New NanoPi DUO2 Development Board 512M RAM Allwinner H3 -A7 WiFi Bluetooth Module

New NanoPi DUO2 Development Board 512M RAM Allwinner H3 -A7 WiFi Bluetooth Module Description

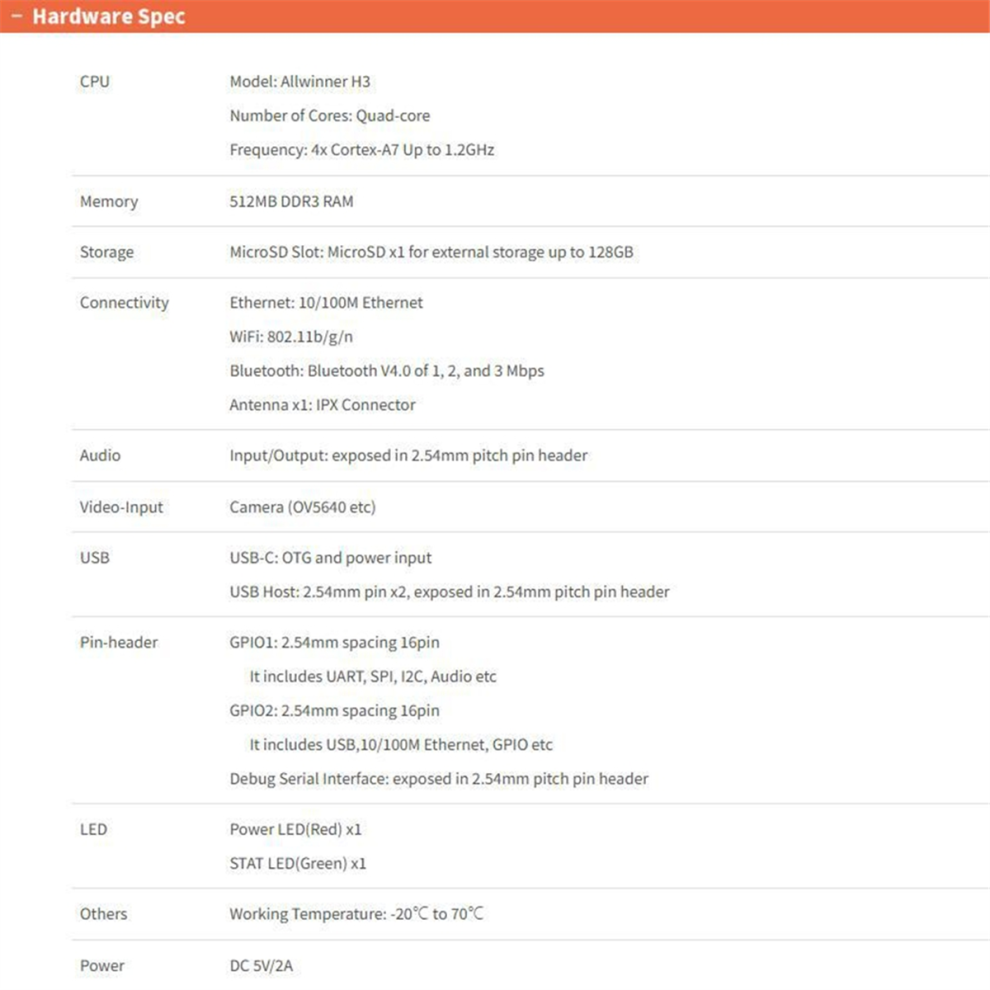

CPU: Allwinner H3, Quad-core -A7 Up to 1.2GHz
DDR3 RAM: 512M
Connectivity: 10/100M Ethernet
WiFi: 802.11b/g
Bluetooth: Bluetooth V4.0 of 1, 2 and 3 Mbps.

Camera: OV5640
Key: GPIO Key
USB Host: 2.54mm pin x2, exposed in 2.54mm pitch pin header
Micro-SD Slot x 1
Micro-USB: OTG and power input
Debug Serial Interface: exposed in 2.54mm pitch pin header
Audio input/output Interface: exposed in 2.54mm pitch pin header

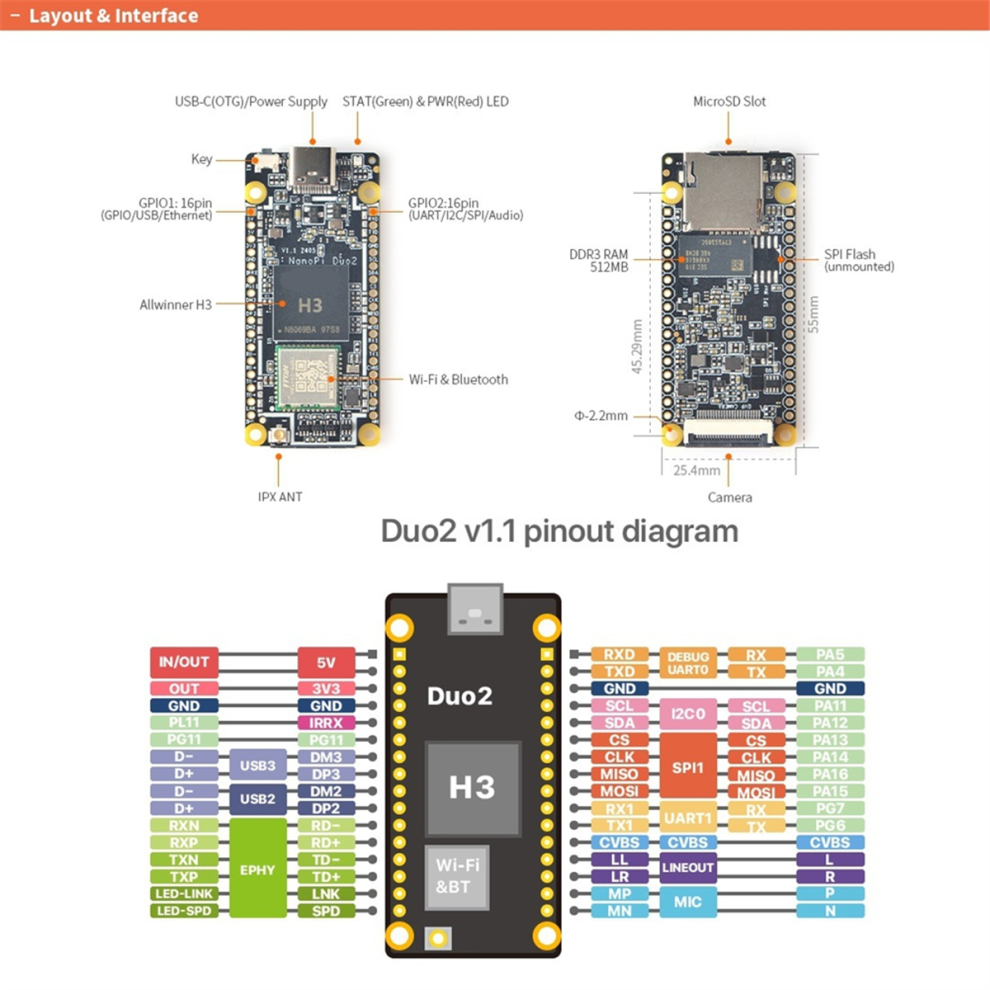

GPIO1: 2.54mm spacing 16pin. It includes UART, SPI, I2C, Audio etc
GPIO2: 2.54mm spacing 16pin. It includes USB,10/100M Ethernet, IO etc
PCB Dimension: 25.4 x 55mm
Power Supply: DC 5V/2A
Temperature measuring range: -40 to 80

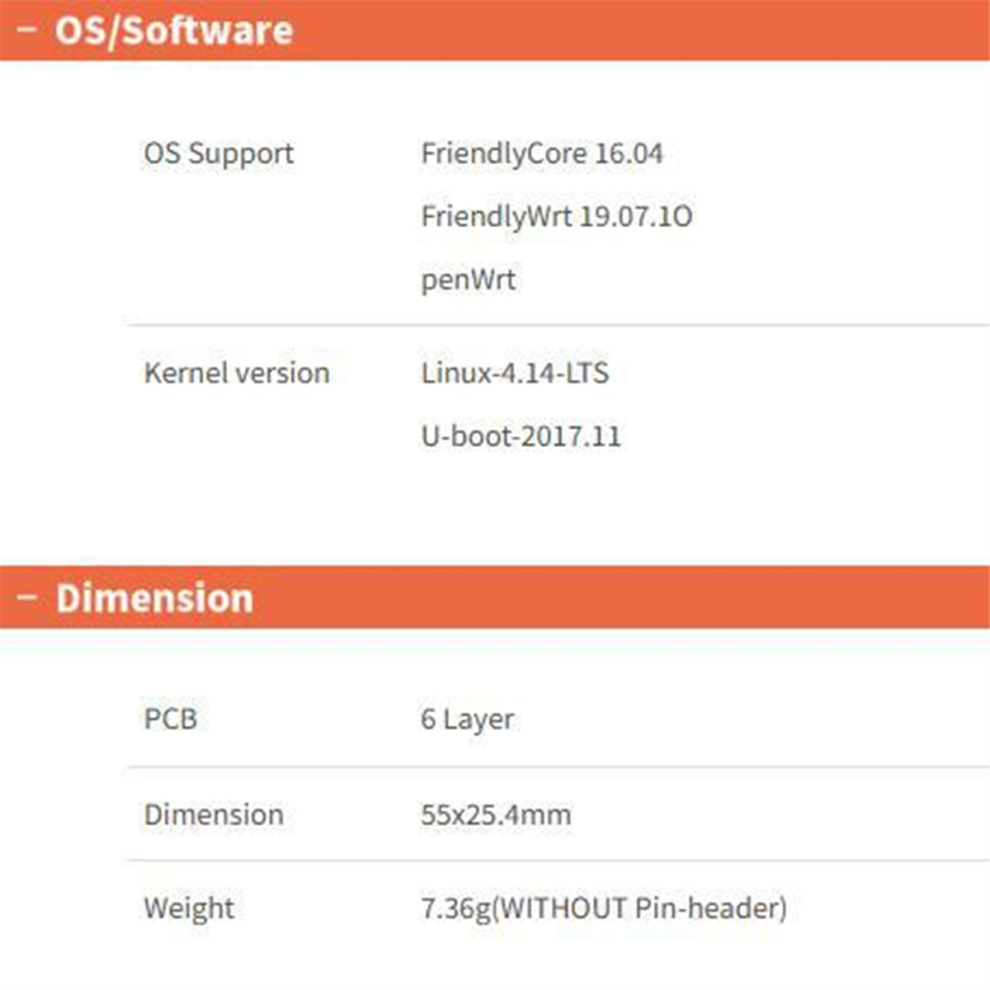

OS/Software: U-boot,Linux 4.11.2 (mainline) , 16.04.2 (Xenial)
Colour:As Shown
Material:PC

Package Contents:

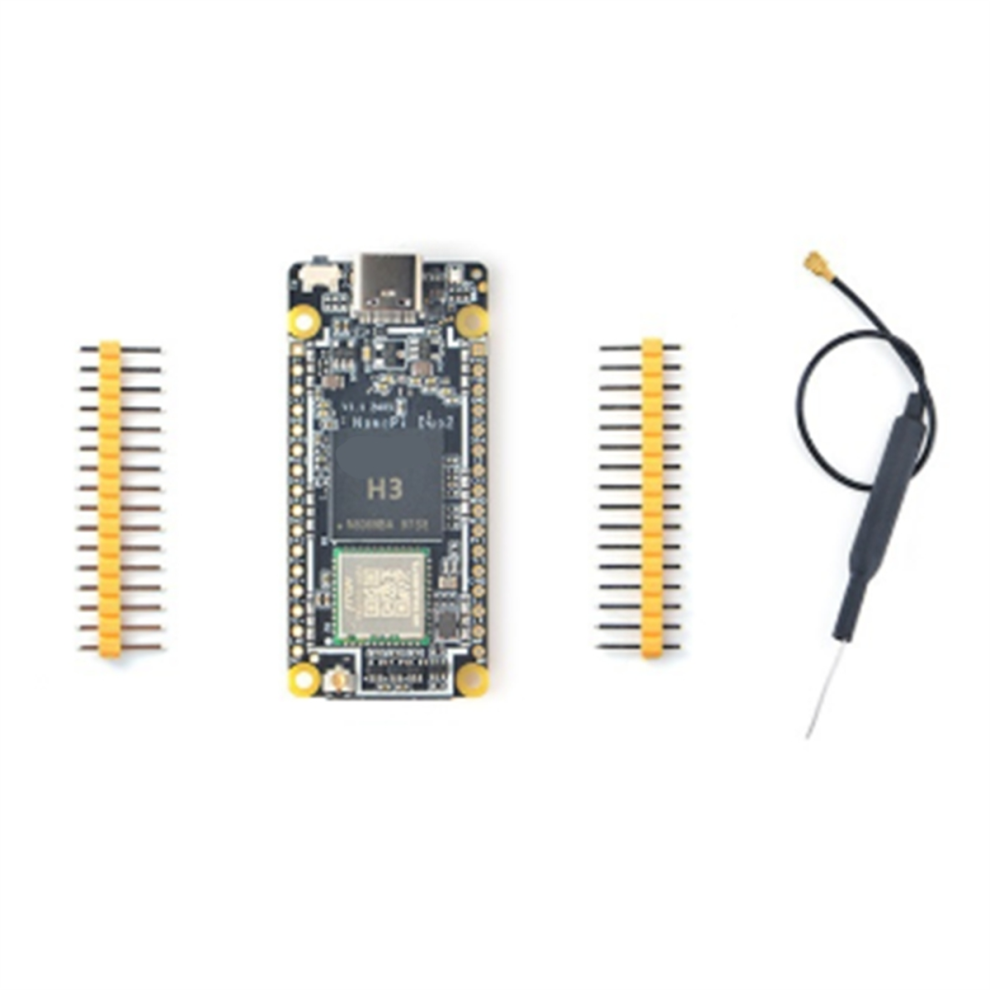

1 * NanoPi DUO2 Development Board Kit(The words on the product due to different product batches, but it not affect the use)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
