Optocoupler Isolation Module 1Channel DC3V-5V/12V/24V For-12V

Optocoupler Isolation Module 1Channel DC3V-5V/12V/24V For-12V Description

Features:
The Optocoupler Isolation Board features PC817 chip for 5KHz high frequency signal conversion, offering DC3V-5V/12V/24V isolation protections and NPN level shifting between circuits.
Design with positive phase amplification and 1channel isolation, this module maintains equal input/output signal while preventing voltages interferences through photoelectric coupling technology.
Ideal for electronics engineers and industrial automation technicians requiring reliable signal isolation in PLC systems, microcontroller interfaces, or motor control applications.
Perfectly integrates with microprocessor I/O switching, power regulation equipment, and communication devices needing voltages isolation up to 24V in harsh electrical environment.
Each pack contains 2 ready to use module with plastic construction, supporting DC3V-24V voltages ranges for flexible deployment in robotics, intelligent home systems, and industrial control panel.

Specifications:
Component:Plastic
Size:Approx.40.3x14.9x17mm/1.58x0.58x0.7inch
Optional input voltages: 3 v to 5V/12V/24V
Output signal voltages: DC1.8V~24V
Operating Current: >1MA (most 50MA)
Most output current 50MA (input current must be 15-20MA)
Working temperature -55~110 degrees
Most application signal frequency: 5KHz
Applicable scenario:Industrial automation
Option Type: 3 v-5V,12V 24V;

Package Includes:

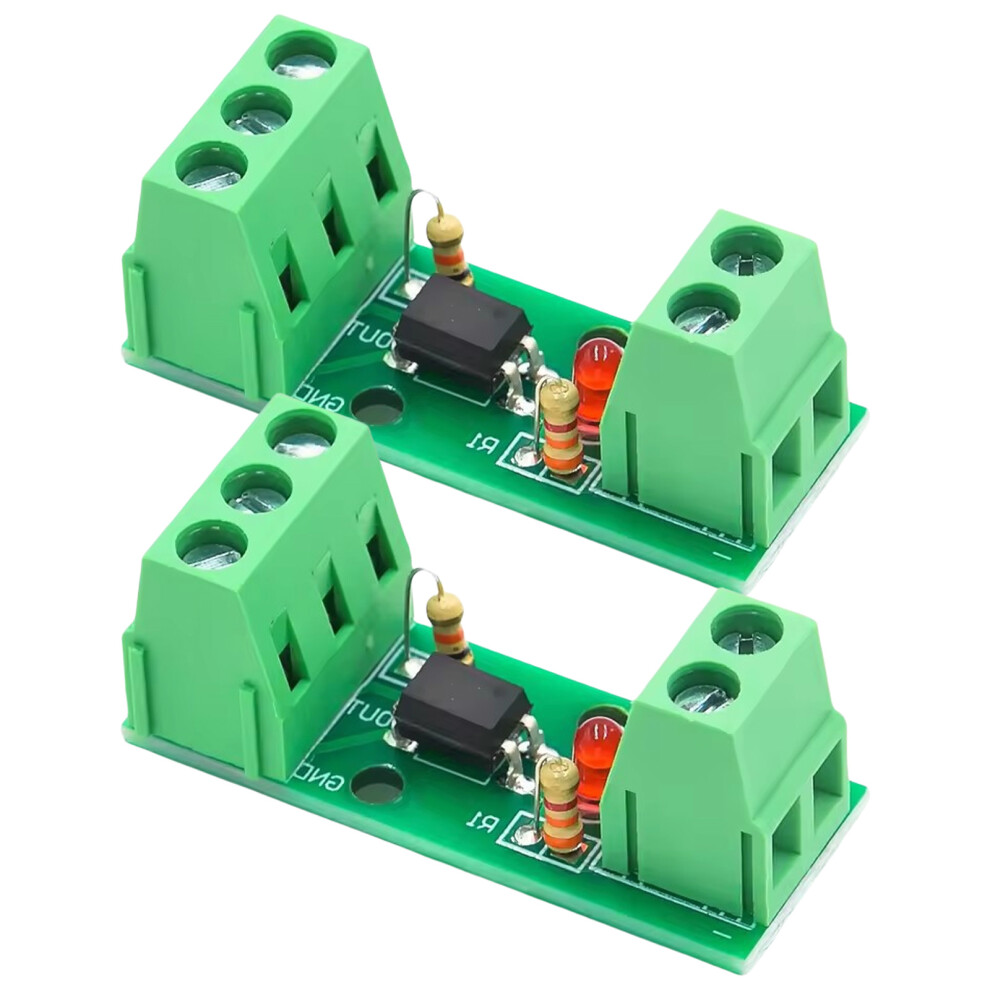

2pcs Optocoupler Isolation Module

note:
Please allow 1-10mm errors due to manual measurement.
Due to the differences between different monitors, the picture may not reflect the actual item color.
