Working voltage:DC 6-24V
Working current:60-70MA
Standby current:1UA
Load current :AC 250V/10A,for DC 30V/10A
Trigger mode:Low pulse trigger
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

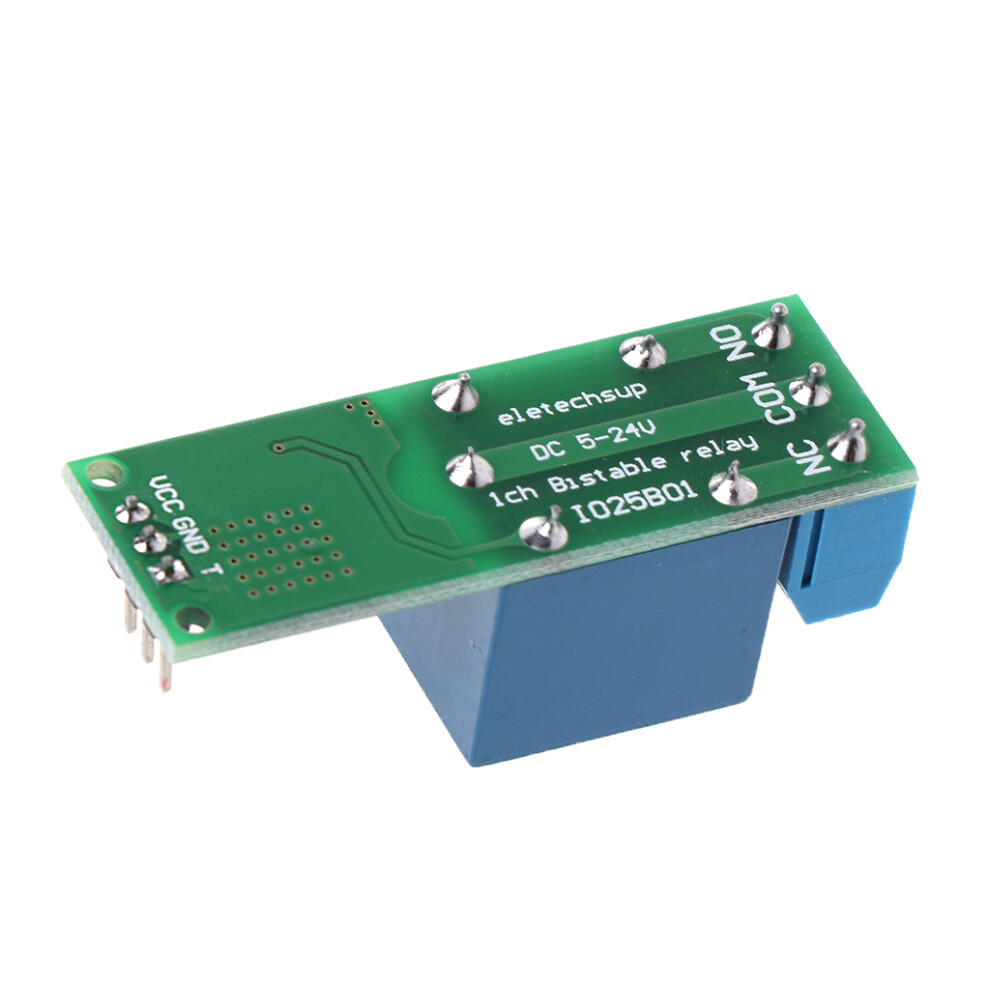

Module interface:
1.VCC: positive power supply (VCC)
2.GND: negative power supply (GND)
3.T: Low pulse trigger

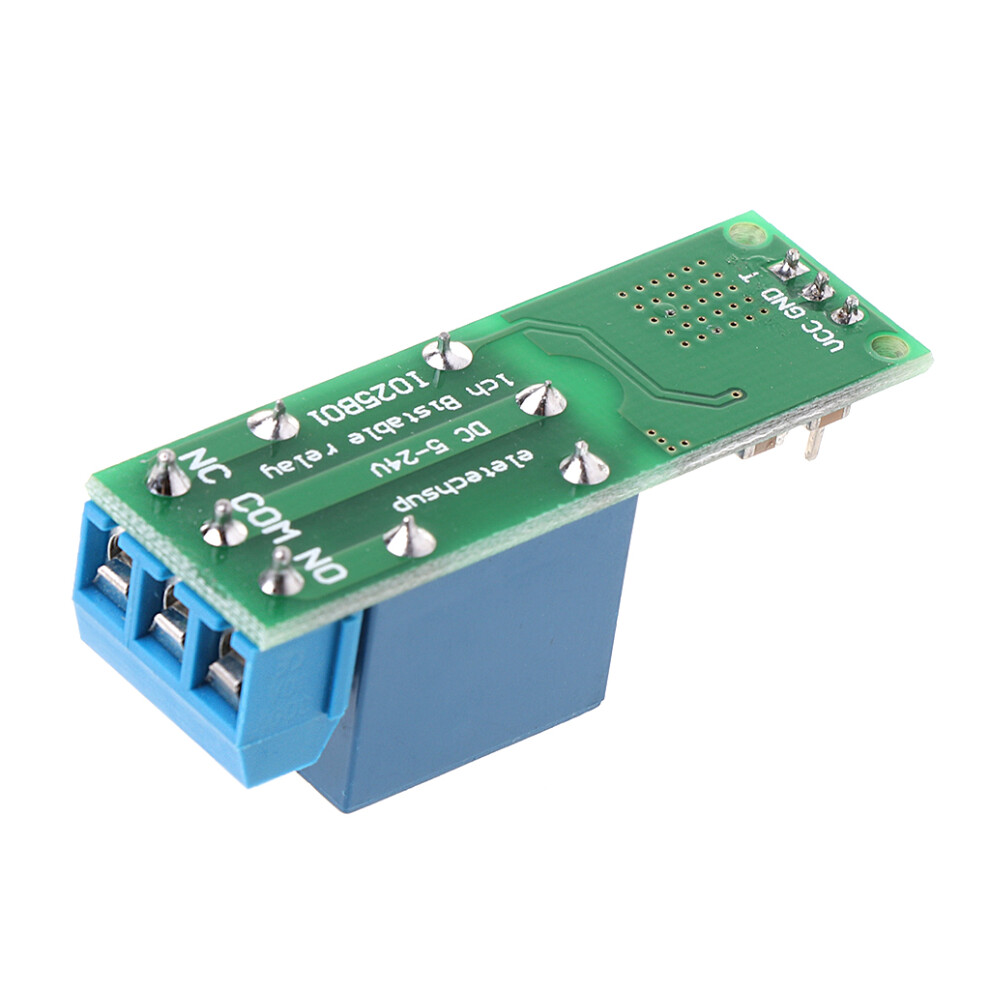

Relay outputs:
1.NO: normally open relay interface
2.COM: Common Interface Relays
3.NC: normally closed relay interface
USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
MCU development board
Automotive electronics
Industrial equipment
Emergency lighting
for Smart Home
Toy car
Motor
LED

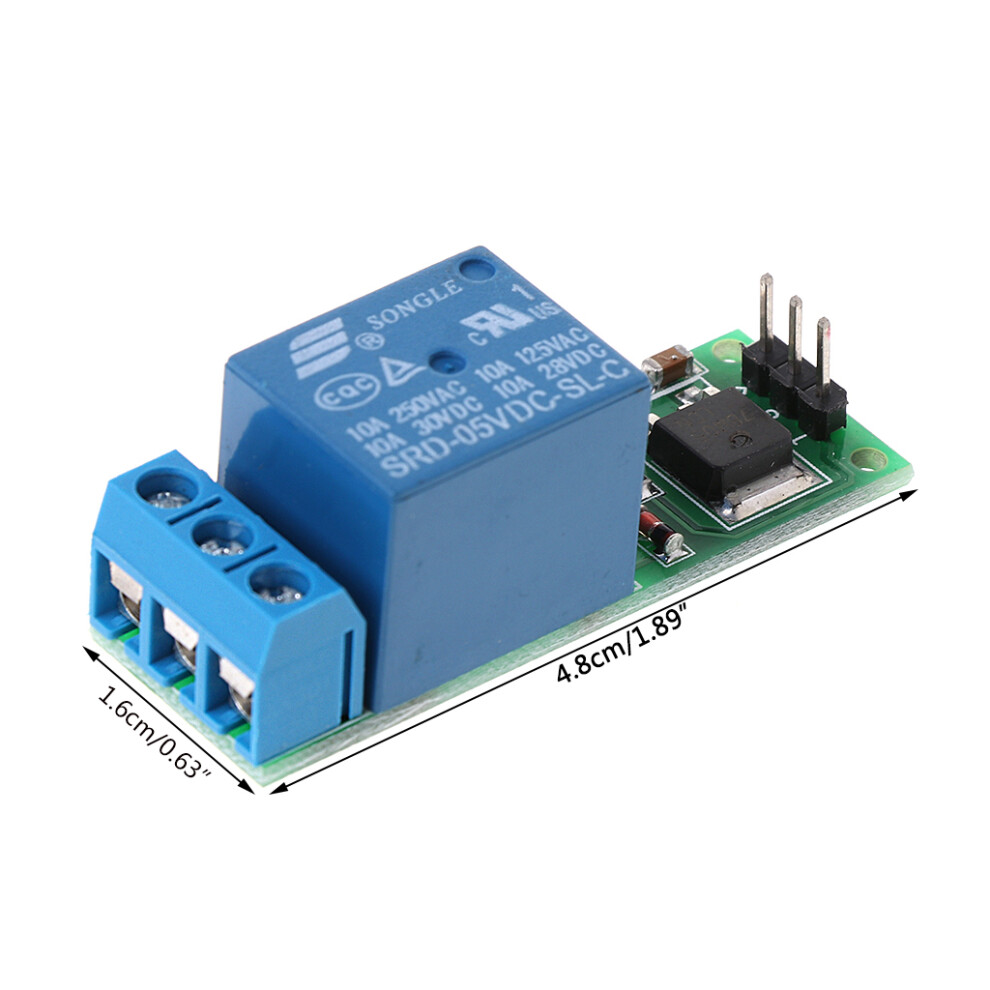

Size:4.8x1.1cm/1.89x0.43inch
Note:
Please allow 1-3mm error due to manual measurement.pls make sure you do not mind before you bid.
Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!

Package Includes:
1x 6-24V Flip-Flop for Latch Relay
