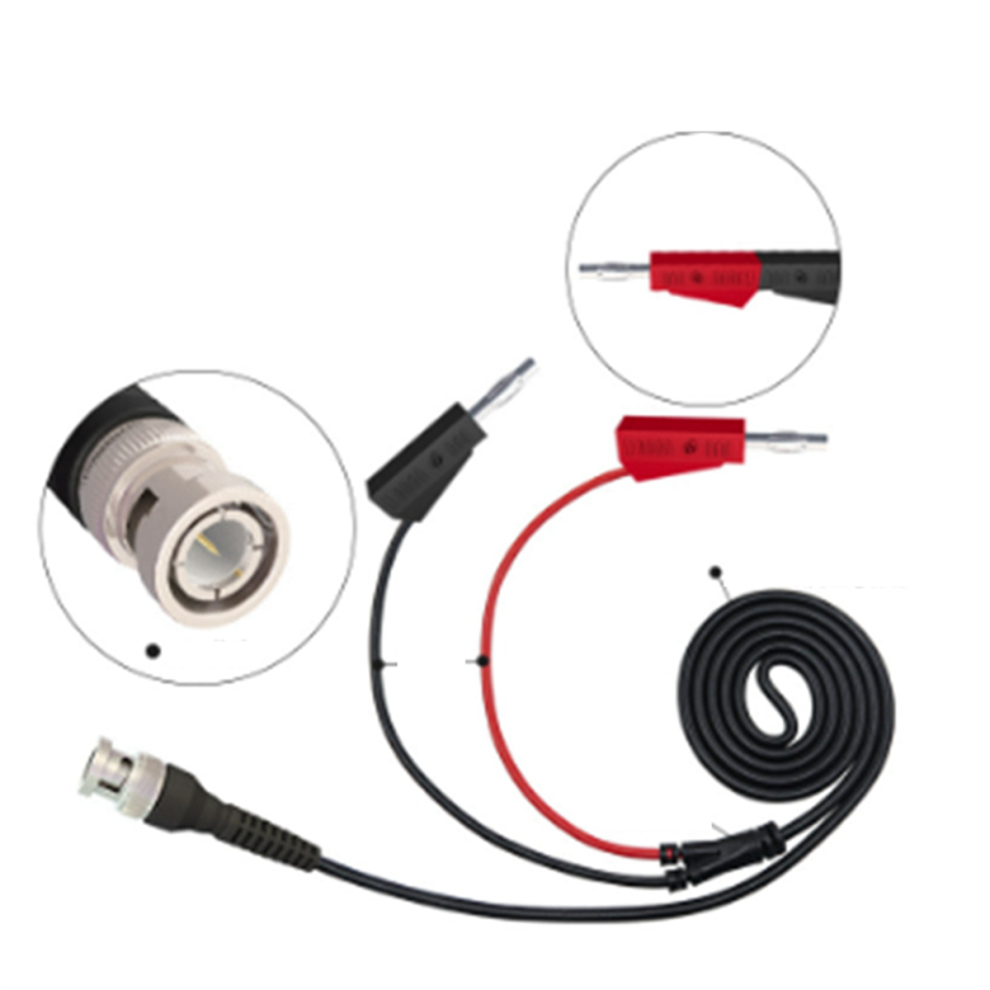

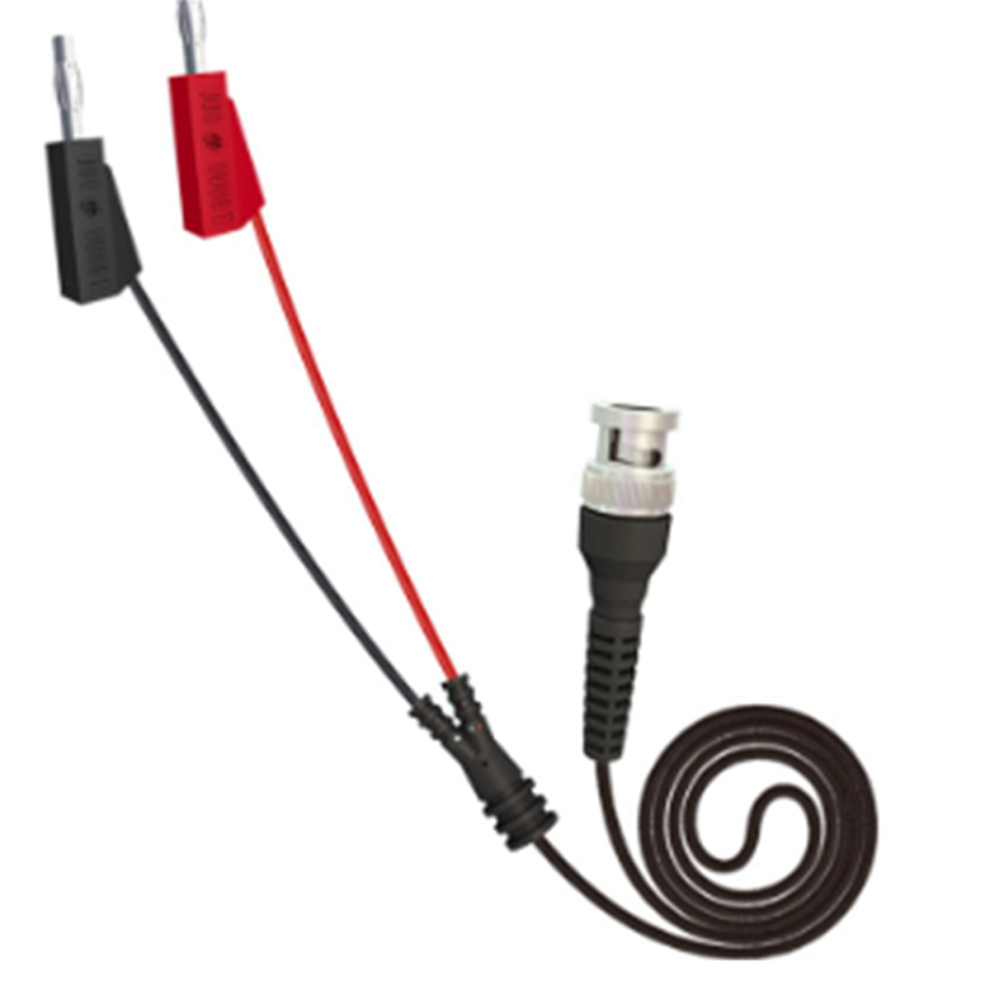

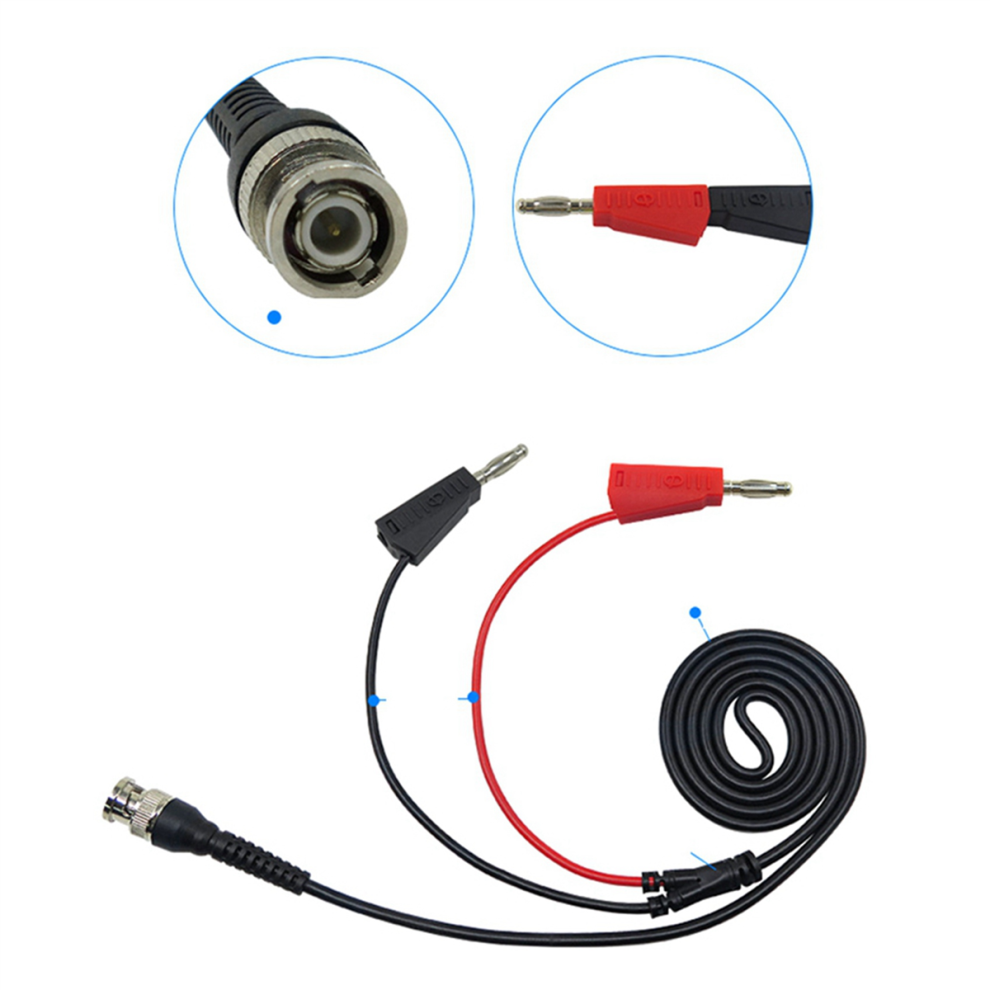

P1009 BNC To Dual 4MM Stackable Banana Plug Test Lead Probe BNC Cable

P1009 BNC To Dual 4MM Stackable Banana Plug Test Lead Probe BNC Cable Description

1. Full integration of injection molding, beautiful appearance, and delicate.
2. Injection molding round connector between cable and conductor makes fastness.
3. High Quality banana plug, good compatibility and delicate BNC connector, soft elastomeric conductor.
4. Applies to all BNC interfaces (such as Oscilloscopes, Signal generators, Video surveillance, etc.) is fixedly connected with the , easy to monitor changes in the signal.

1. BNC Material: Pure Copper
2. Cable outside Diameter: Φ4.0mm
3. Conductor outside Diameter: Φ3.0mm
4. Max. Input Voltage: 500Vpck
5. Maximum input current: 5A
6. Cable Impedance: 50ohm
7. Test Leads Interface: BNC
8. Alligator Clip Type: 4mm Banana Plug
9. Cable Length: About 100cm
10. Conductor Length: 20cm
11. Tatal Length: About 120cm
12. Plug Overall Length: 61.5mm
Colour: As Shown
Material: plastic+metal

Package Contents:

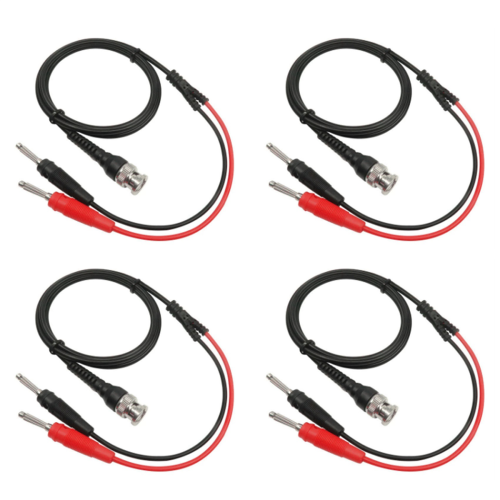

4 x BNC to Dual 4MM Banana Plug Test Lead

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
