PCI-E to SATA3.0 Controller Expansion Board 8-Port SATA3.0

PCI-E to SATA3.0 Controller Expansion Board 8-Port SATA3.0 Description

Features:
Compliant with Serial-ATA3.0 specification, backward compatible with SATA2.0 SATA1.0; PCI-Express v-2.0 compliant, backward compatible with PCI-Express v-1.0.
Supports communication speeds of 6.0Gbps, 3.0Gbps and 1.5Gbps; supports Gen1i, Gen1x, Gen2i, Gen2m, Gen2x, and Gen3i.
Supports AHCI1.0 and -IDE, native command queue(NCQ), FIS- base on port multiplier switching or command switching and hot plugs.
Compatible with SATA6G, 3G-,1.5G- hard drives.
User with SATA3.0 data cable for best result.

Specifications:
Material:Metal;
Color:Black

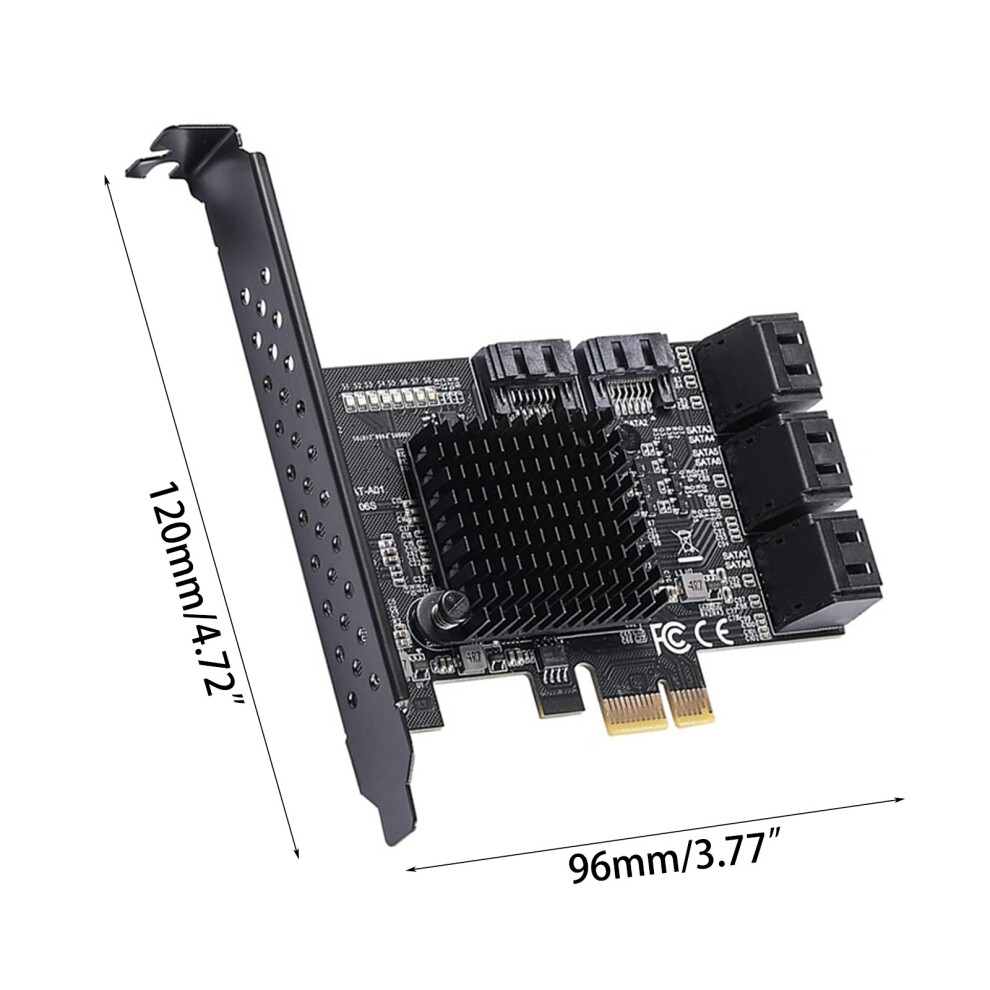

Size:Approx.120x96mm/4.72x3.77in
Model: PCE8SAT-M01
Master: Fit for Marvell 88SE92xx+JMB5XX

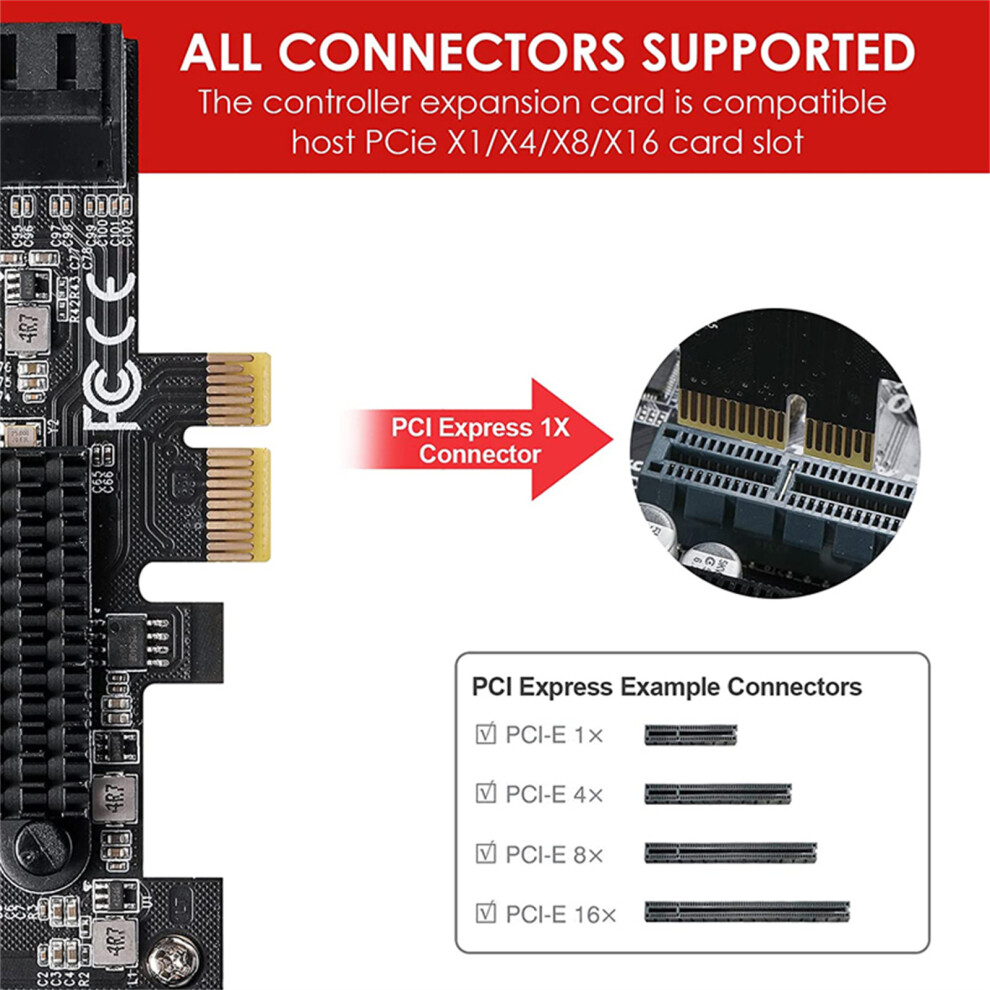

Interface: PCI-E 1X 2X 4X 8X 16X
Support System:Fit For 7/8/XP/10
Expansion Interface: 8xSATA3.0 Interfaces

Package Includes:
1xPCI-E to SATA3.0 Expansion Board

note:
Please allow 1-2cm errors due to manual measurement,please make sure that you do not mind before you order.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
