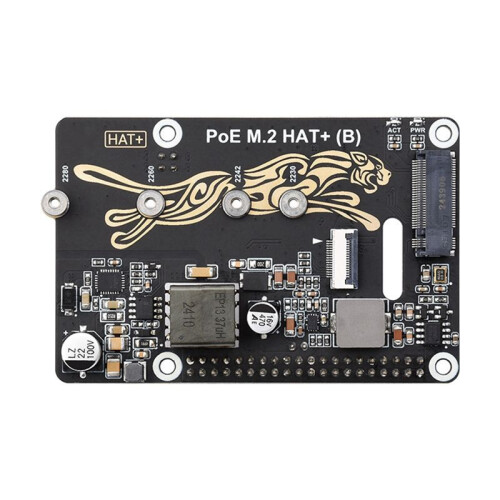

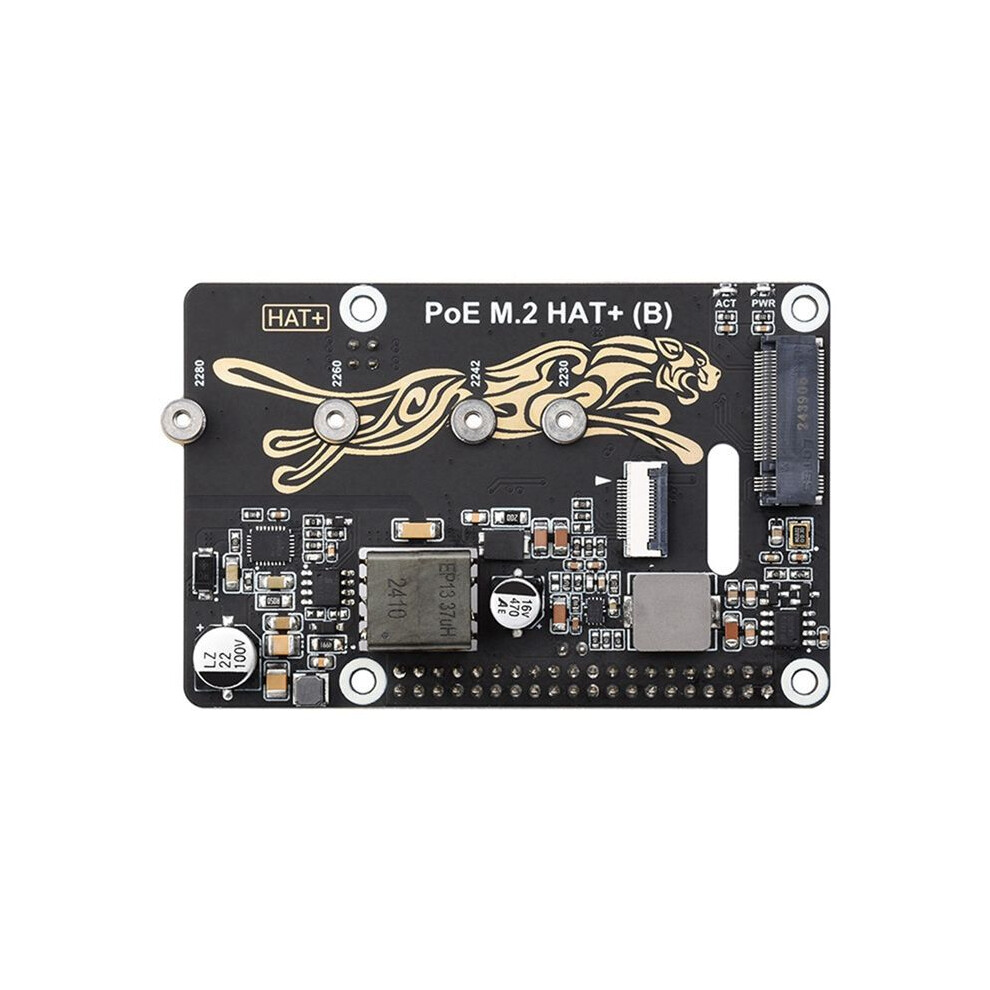

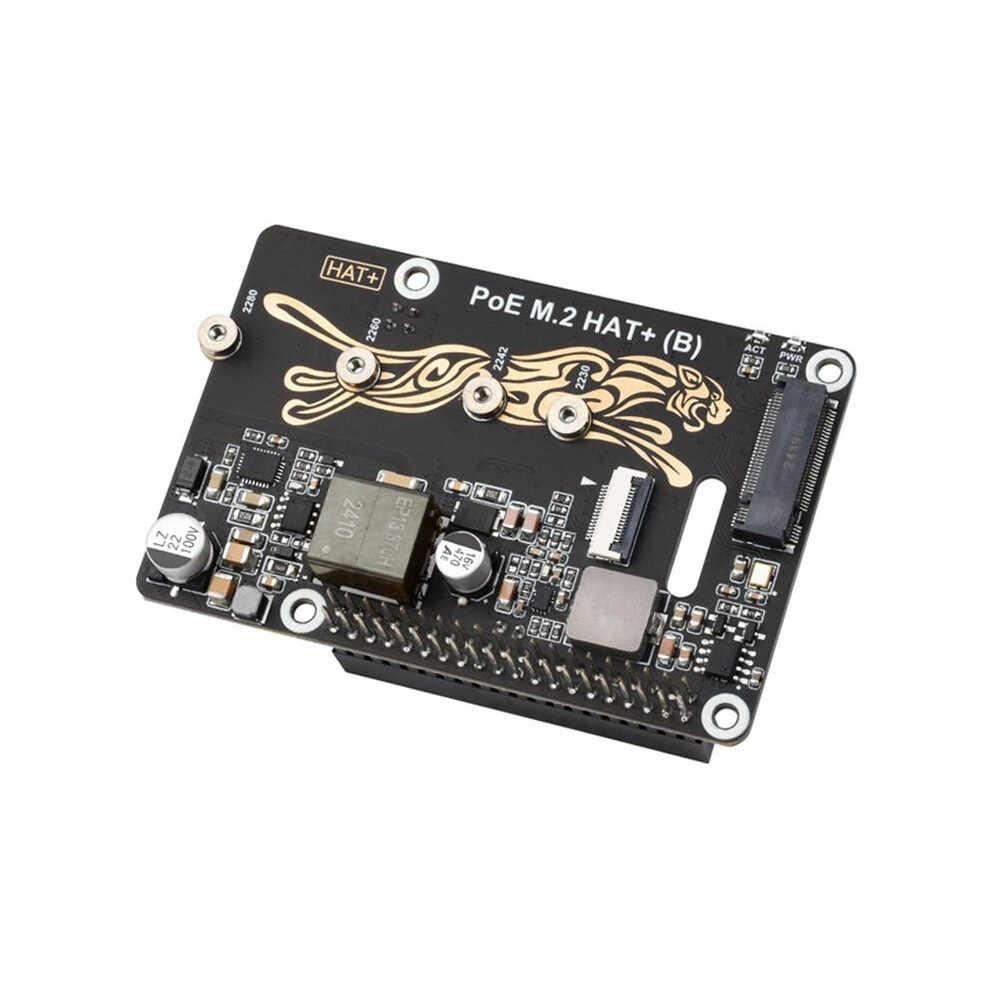

PCIe to M.2 Adapter with PoE Function Supports NVMe Protocol M.2 Solid State Drive for Raspberry Pi 5 PoE HAT

PCIe to M.2 Adapter with PoE Function Supports NVMe Protocol M.2 Solid State Drive for Raspberry Pi 5 PoE HAT Description

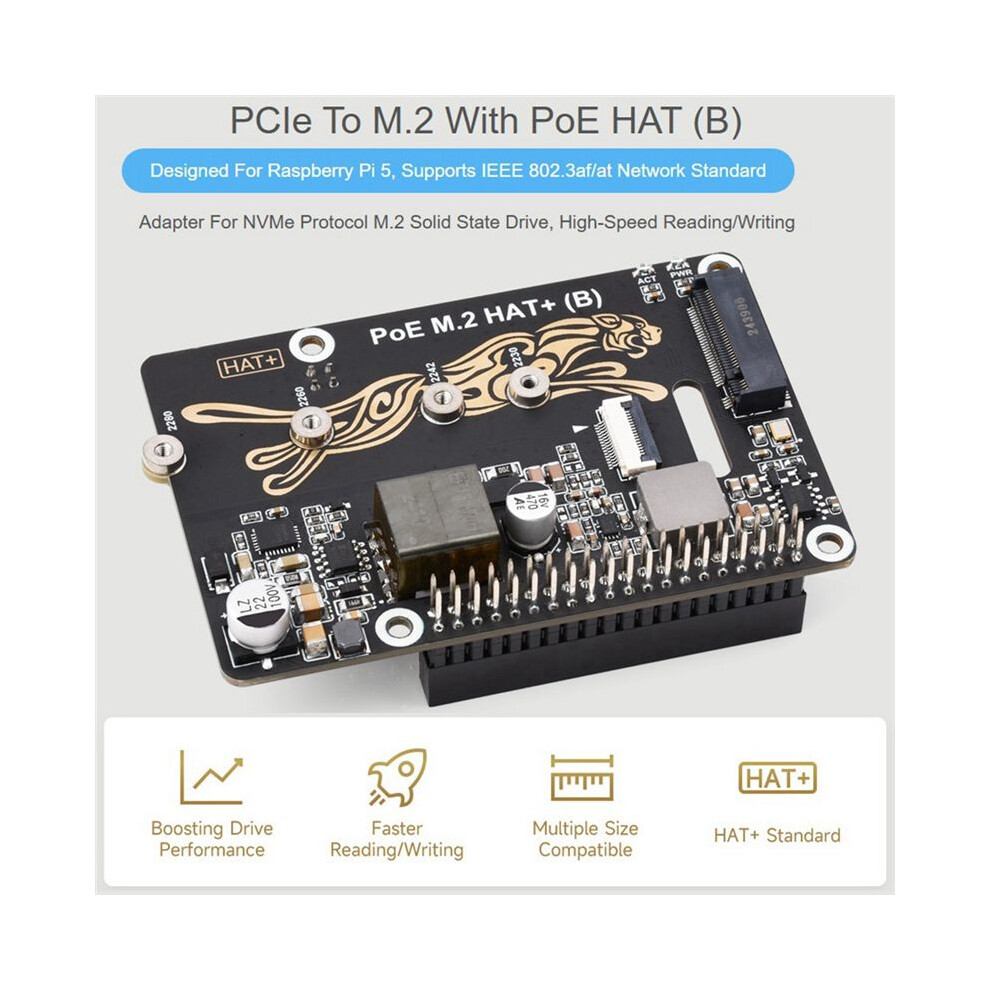

PCIe To M.2 with PoE HAT (B), Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard.
Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing.

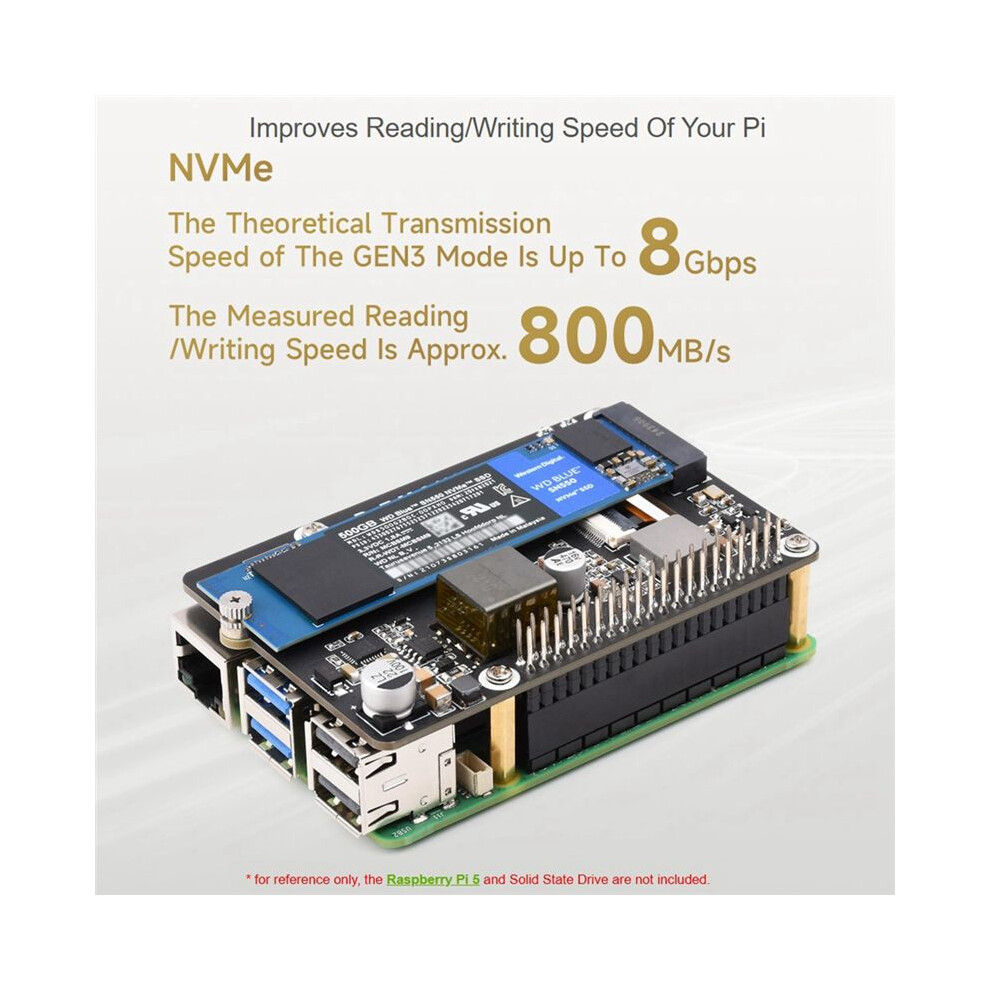

Improves reading/writing speed of your Pi

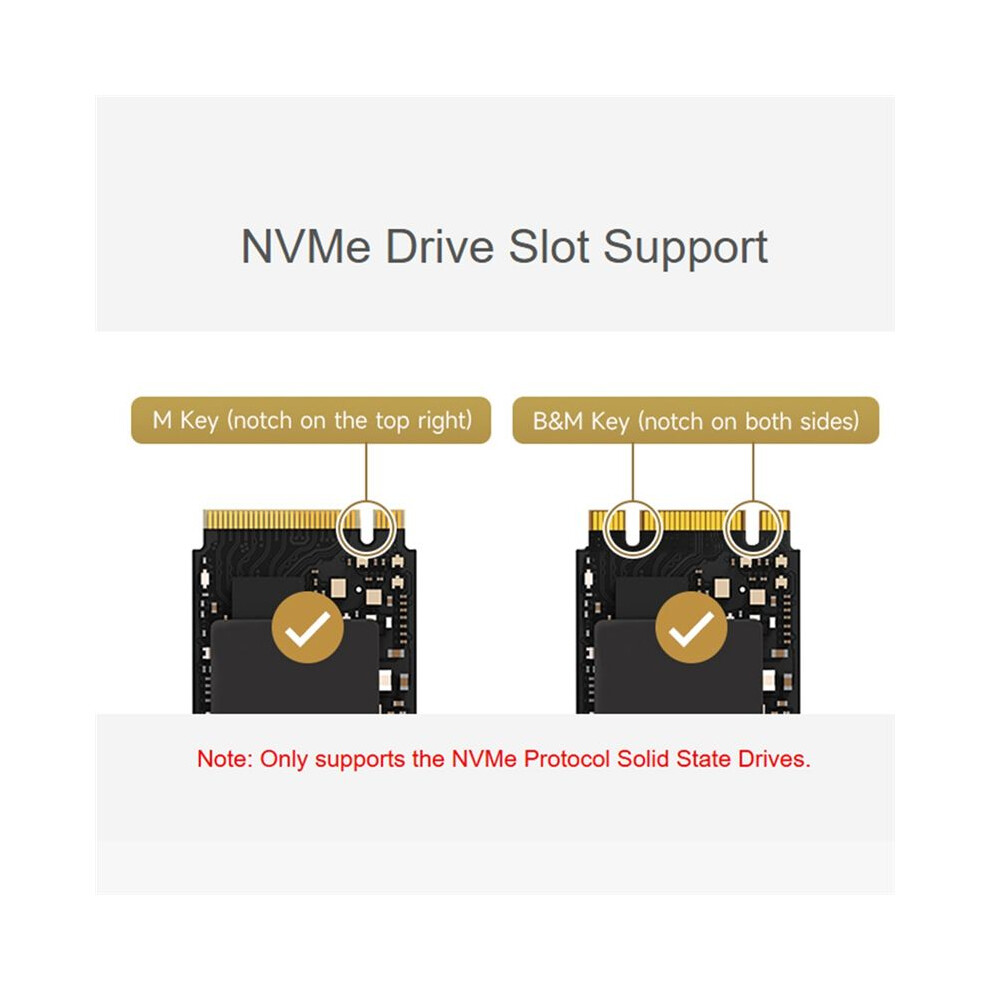

NVMe Drive Slot Support (Note: Only supports the NVMe Protocol Solid State Drives.)

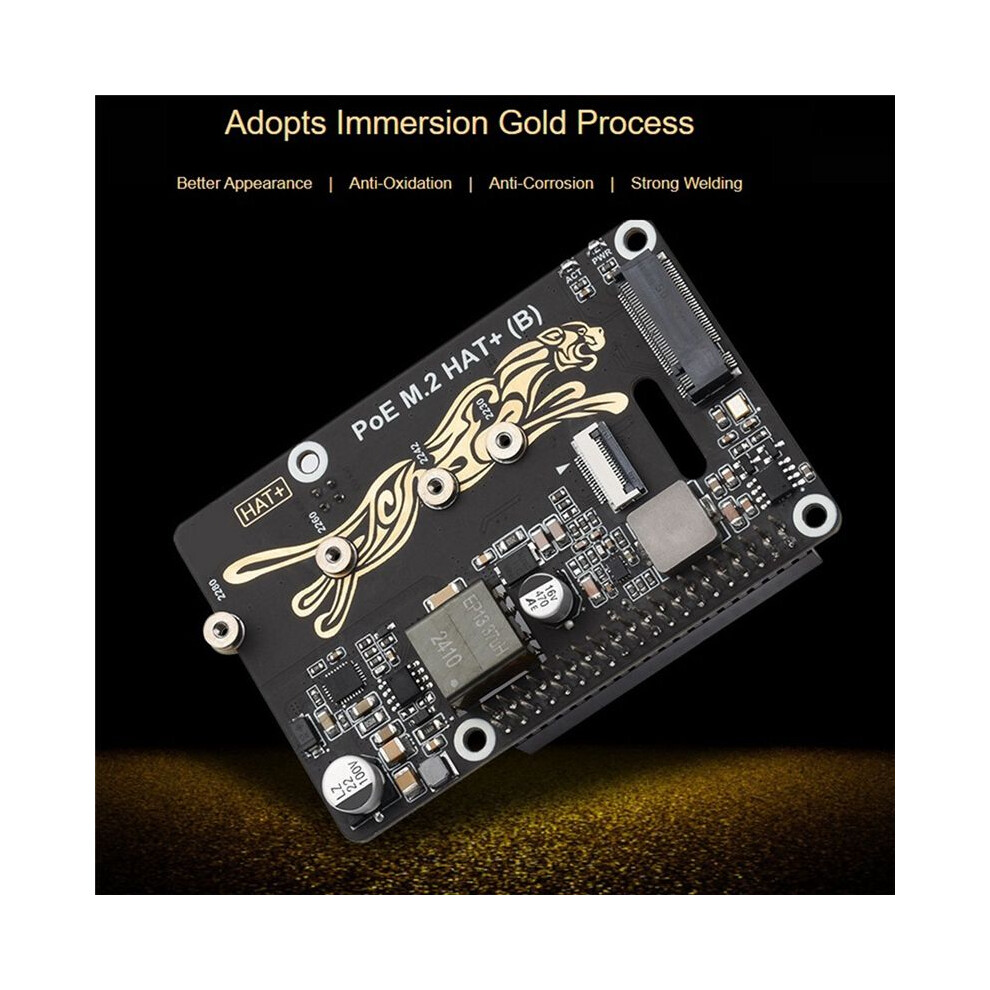

Adopts Immersion Gold Process, Better appearance,Anti-oxidation,Anti-corrosion,Strong welding.

Based 16PIN PCIe Interface of for Raspberry Pi 5, Connecting to PI5 via 16PIN Cable.
Standard for Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs.
Onboard Dual LED Indicators, Easy to monitor the Working Status.
NVMe Drive Protocol Support: Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive; Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive.

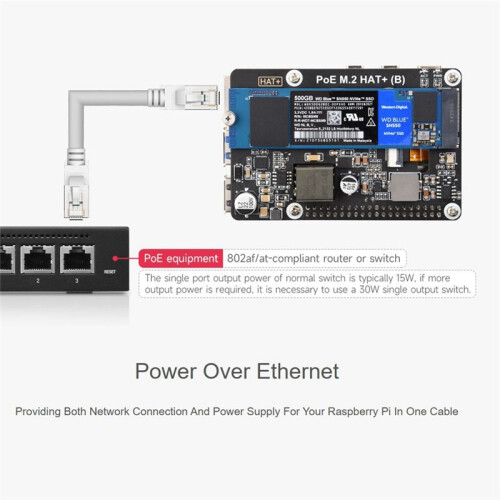

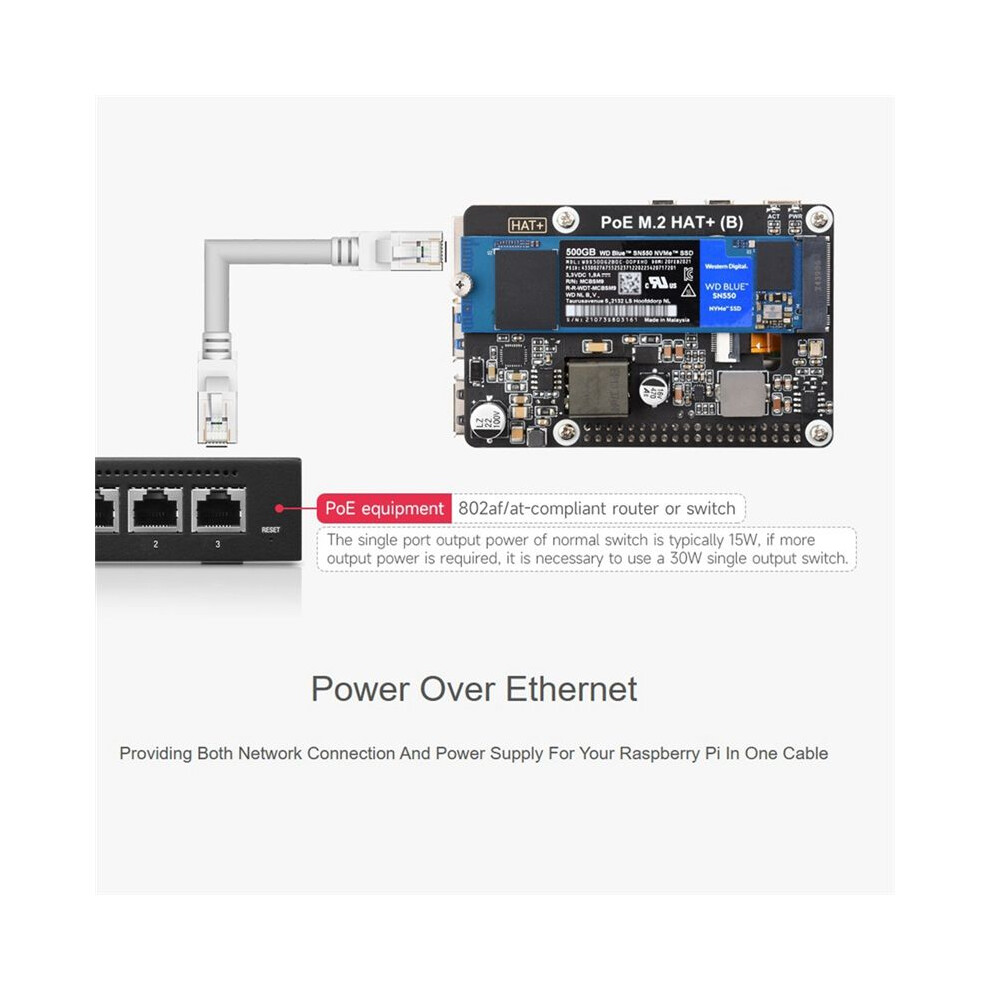

Power Over Ethernet: providing both network connection and power supply for your for Raspberry Pi in one cable.

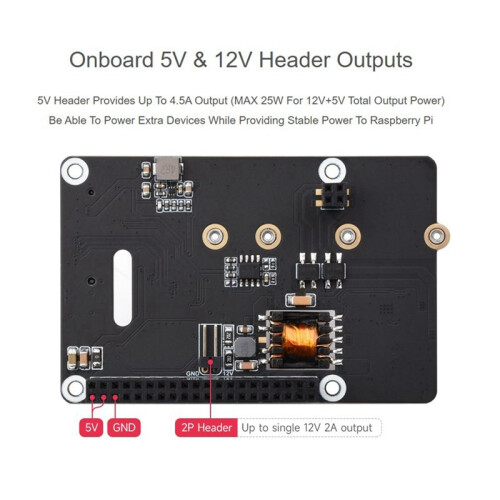

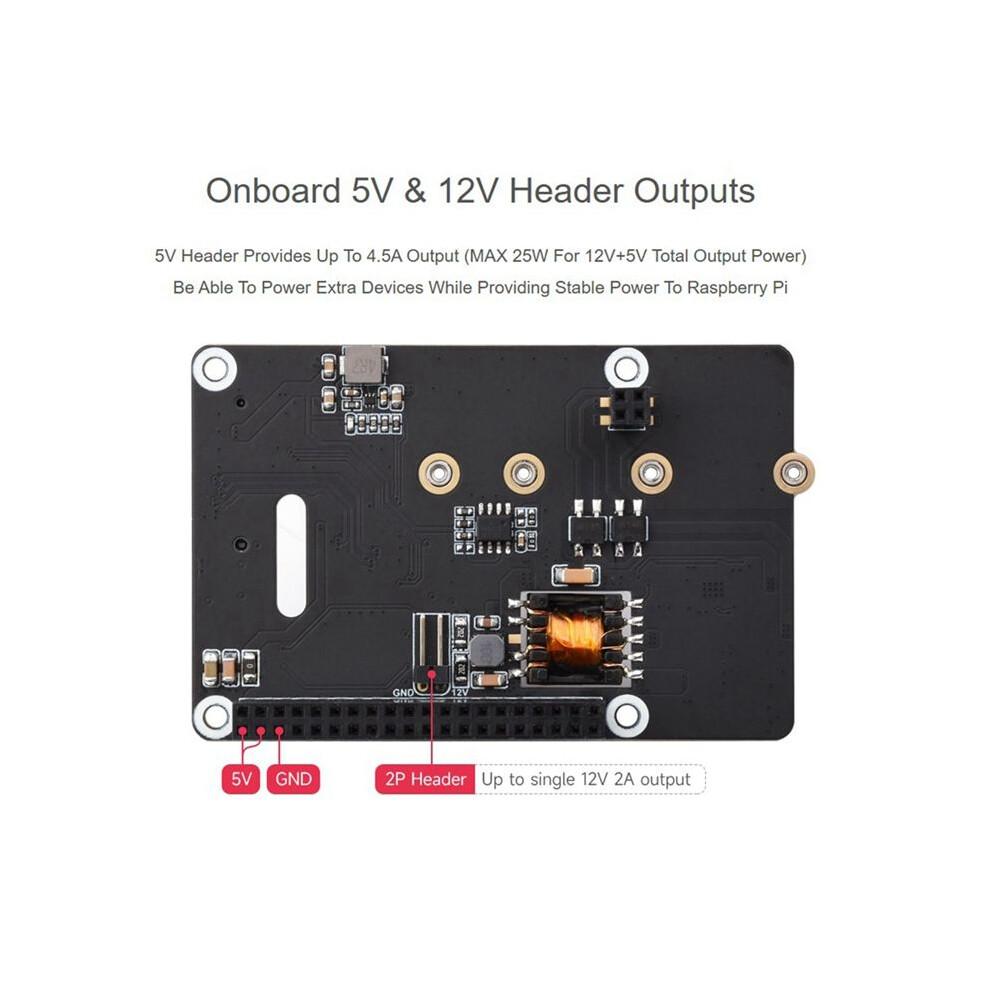

Onboard 5V & 12V header outputs: 5V header provides to 4.5A output (MAX 25W for 12V+5V total output power) be able to power extra devices while providing stable power to for Raspberry Pi.

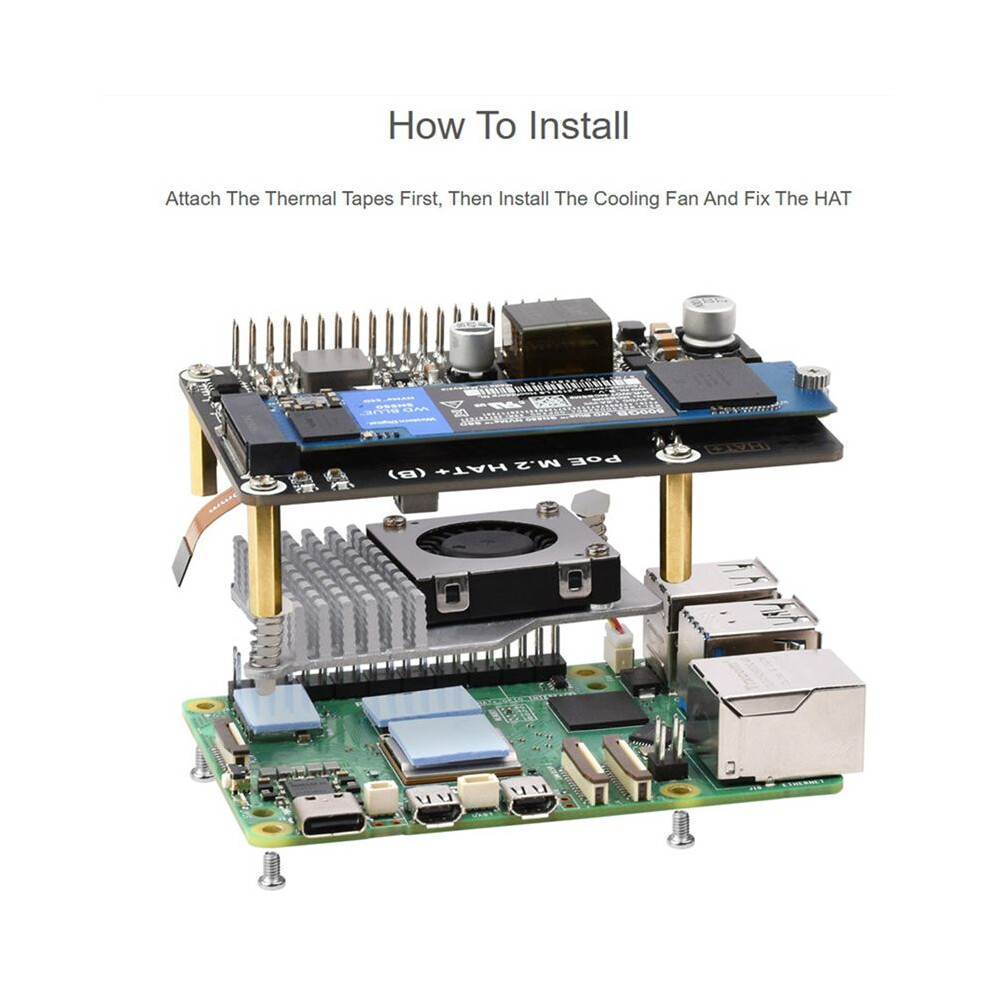

How to Install: Attach the thermal tapes first, then install the cooling fan and fix the HAT.
The printing/appearance may vary from batch to batch, but it will not affect the use; the actual product may have color difference due to different light or display.
Color: Black
Material: PCB

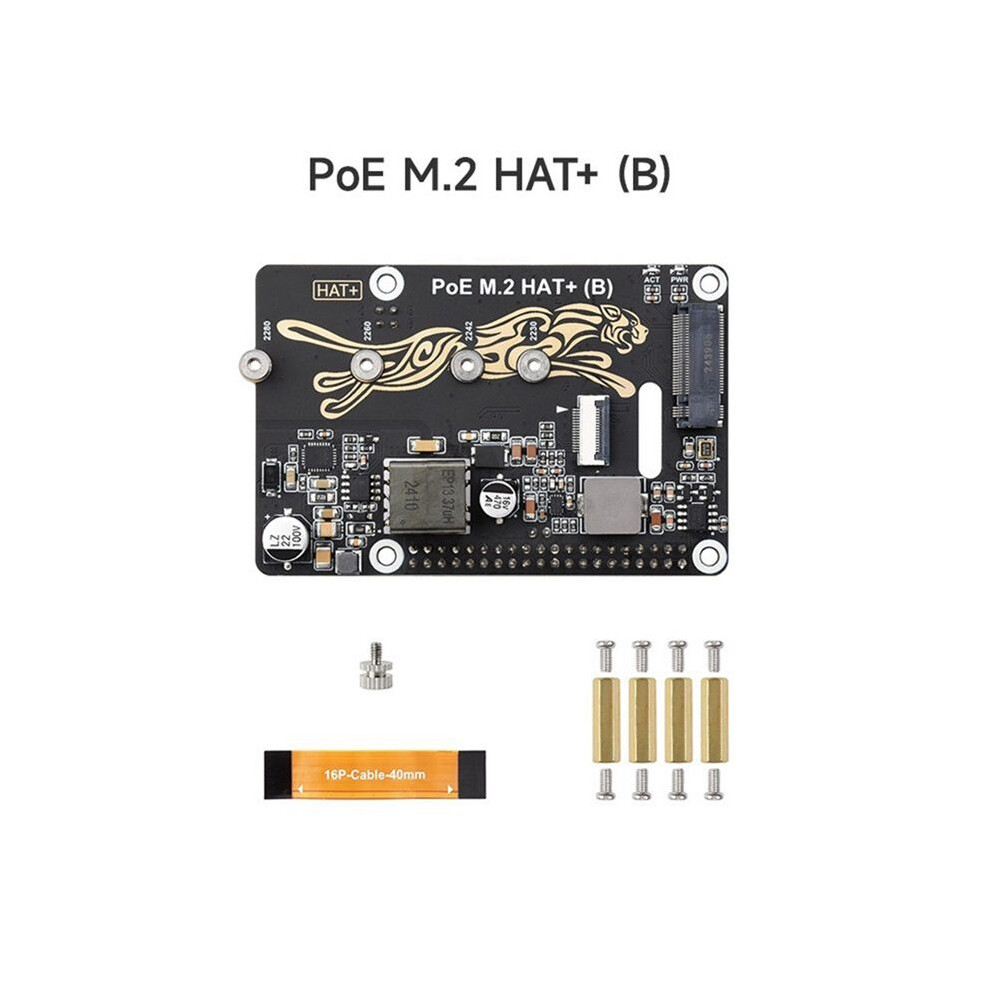

Package Contents:
1 * Expansion board
1 * 16PIN PCIE cable
1 * Screw column
1 * Screw bag
