PD2.0 PD3.0 QC3.0 Fast Charging Decoy 5V 9V 12V Ad

PD2.0 PD3.0 QC3.0 Fast Charging Decoy 5V 9V 12V Ad Description

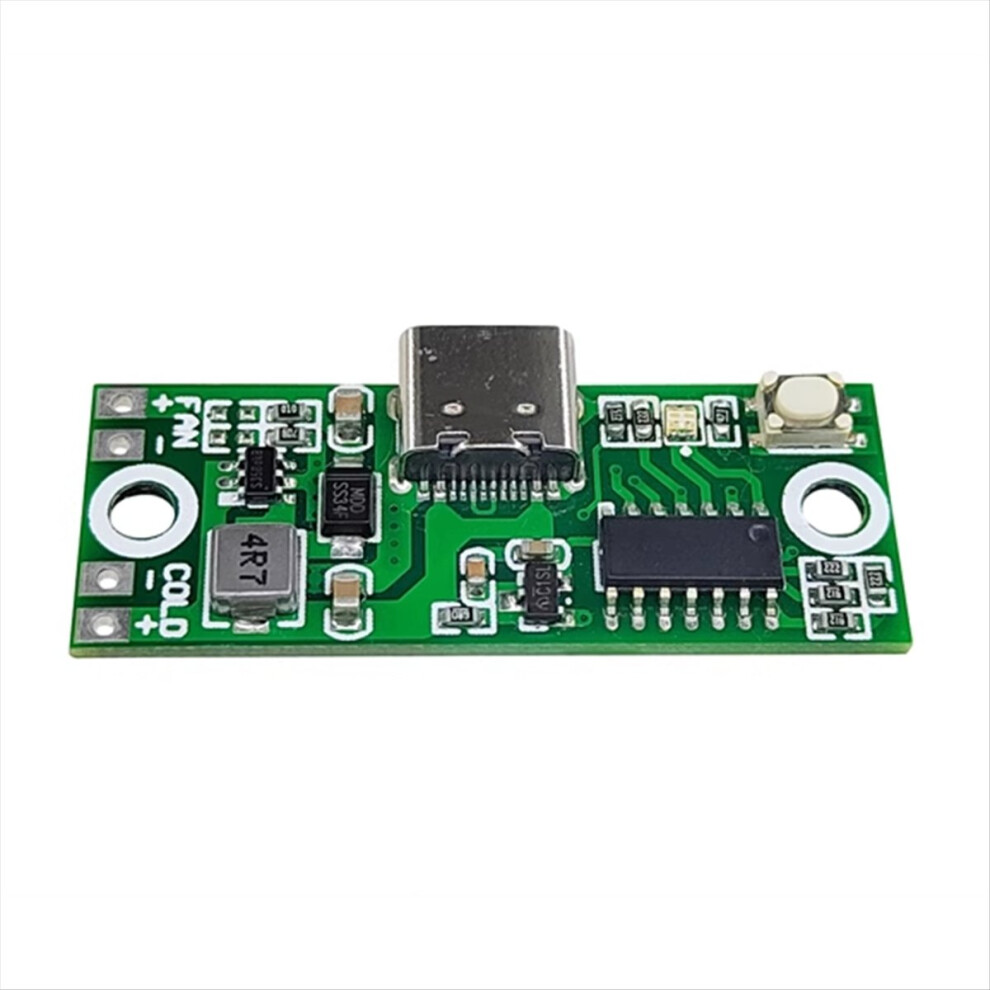

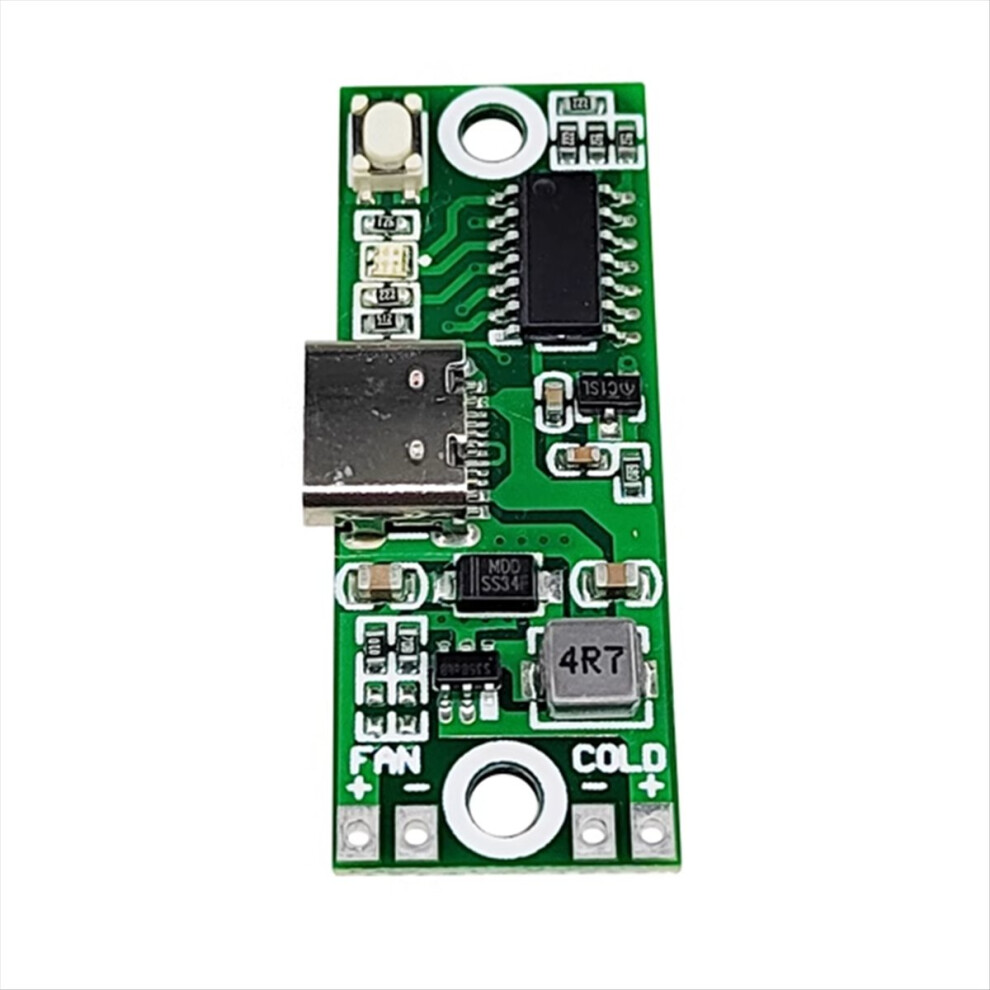

1. This model only supports QC2.0/3.0 fast charging protocol detection board, and the input interface button of type-c female head can adjust the voltage of 5V/9V/12V. (This trigger does not support other fast charging protocols)
2. The FAN interface is a 12V fan interface (this interface has a boost function, but the charging head is 5V or 9V, which can automatically boost the voltage when used, and the 12V output supplies power to the fan, with the maximum power of 12V0.5A).
3. The COLD interface is a cooling plate interface or a load interface (this interface can output 5V 9V 12V and support the output below 3A/specifically, see the charging head load capacity).
4. The decoy can meet the requirements of the modification of the cooling semiconductor refrigeration chip of the mobile phone, the 12V fan interface, the 5V 9V 12V refrigeration chip interface, and the booster interface is convenient for the modification and use of the 12V fan.

Color:As Shown
Material:PCB

Package Contents:
1 * Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
