Powerful 60A Battery Protections Module For 18V-Blue With line

Powerful 60A Battery Protections Module For 18V-Blue With line Description

Features:
Designed for 18V battery packs, this component works with 13.5V to 21V input and contests BL18 series cells, offering a quality solution for power tool energy needs.
Built in safeguards prevent excessive charging, low potential cutoff, current overload, short circuit issues, temperature bounds, and cell imbalance with fast response under 500μs for secure use and extended service life.
Delivers strong 60A continuous output with 12A charging capacity, supporting demanding tools during heavy workloads while maintaining consistent functionality.
Features visual indicators and activation buttons for easy monitoring of energy condition, operational alerts, and simple diagnostics to enable user friendly handling.

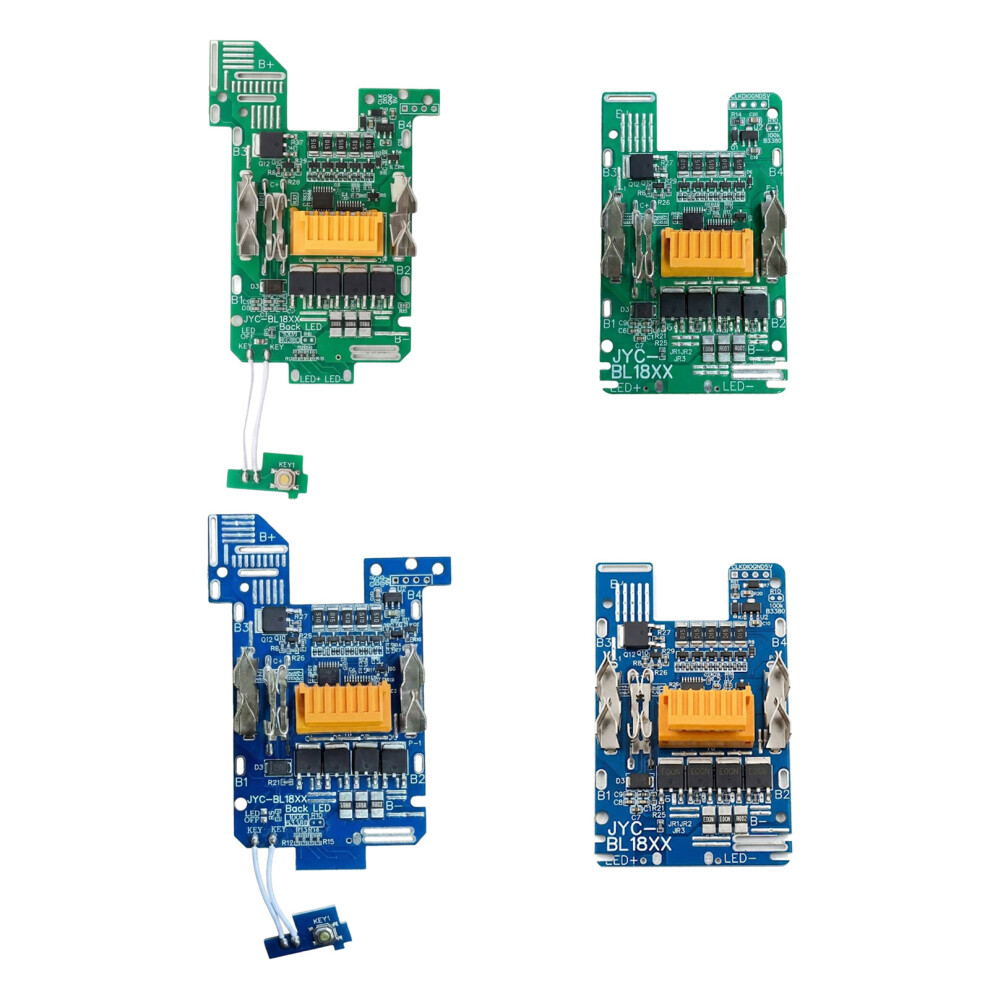

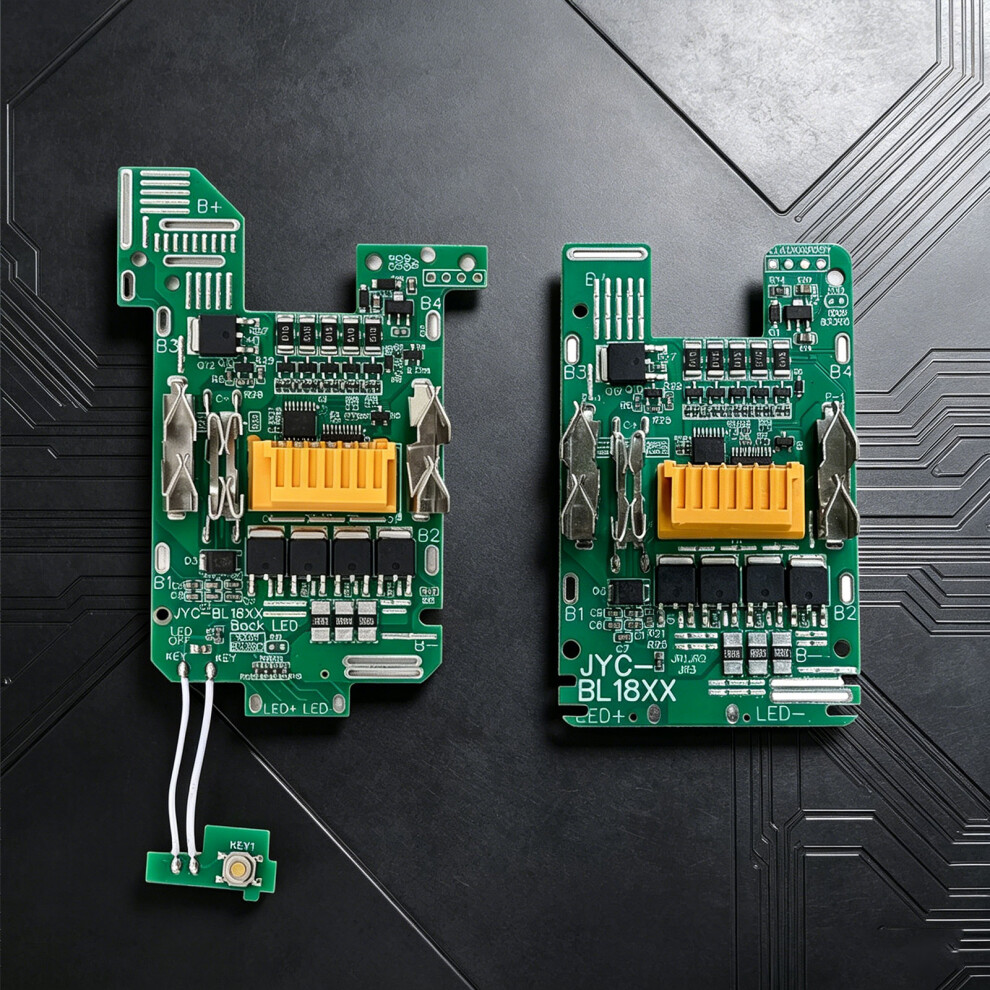

Available in interconnected/unwireded variants with blue/green printed boards in multiple sizes to fit different housing setups, offering flexible installation for repairs and tradition projects.

Specifications:

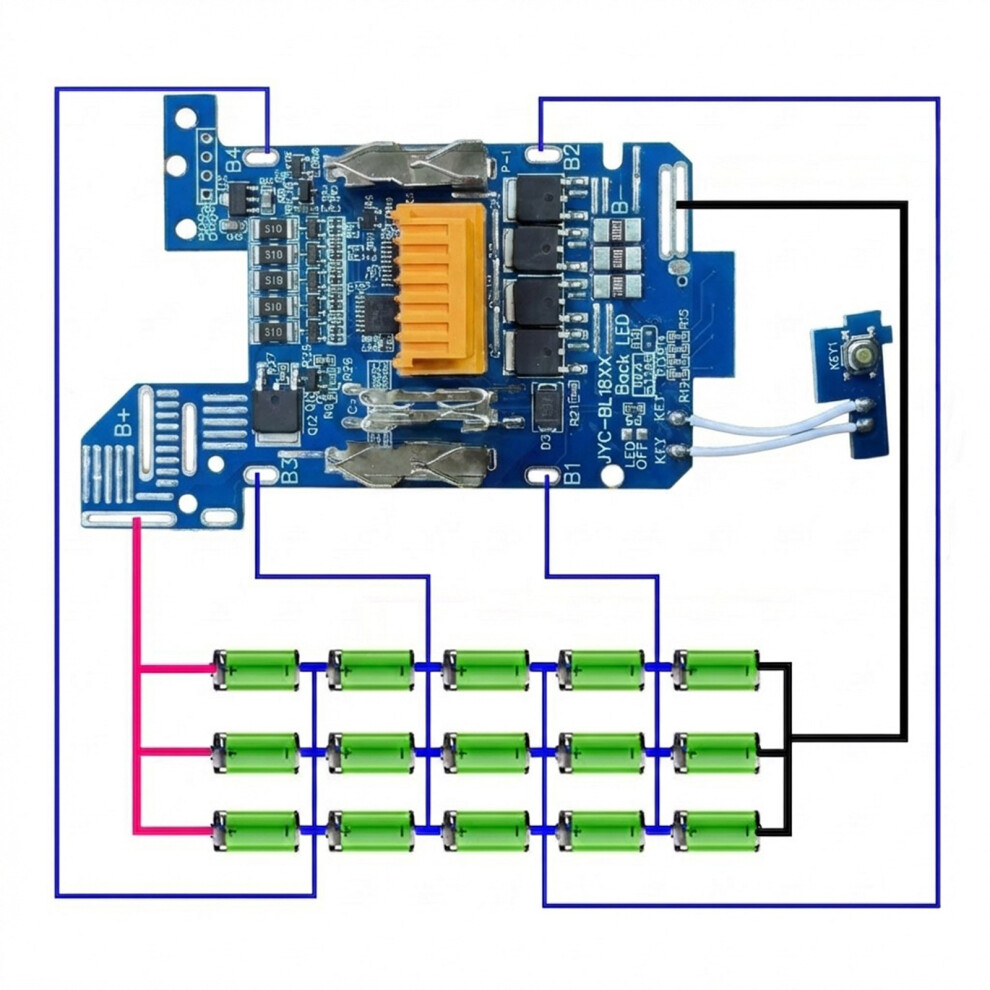

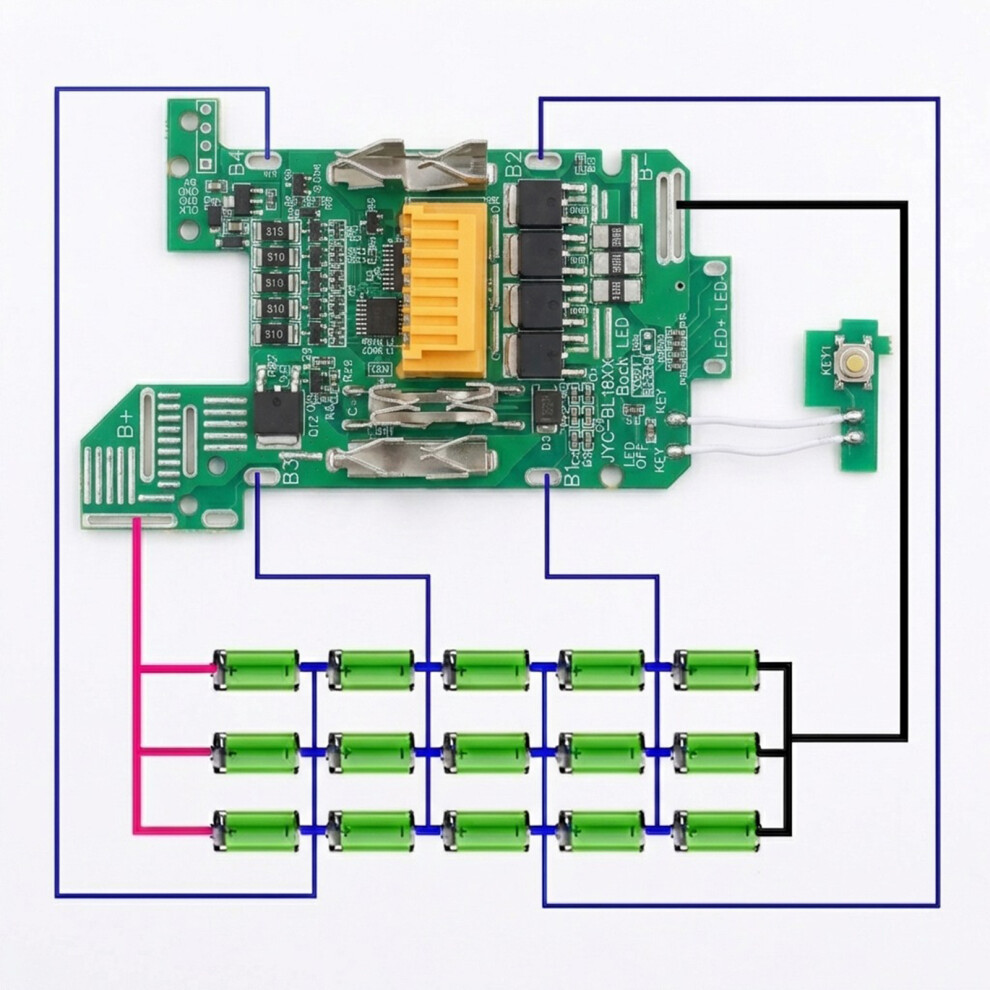

Applicable battery: 18V (5-string/5S) battery
Nominal voltages: 18.5V (based on 3.7V/cell).
Working voltages ranges: 13.5V ~ 21V.
Charging voltages: 21V 0.05V (single cell 4.2V).
Discharge cut-off voltages: 15V 0.05V (single cell 3V, adjustable).
Maximumed continuous charging current: 12A.
Maximumed continuous discharge current: 60A.
Quiescented operating current: < 50μA.
Sleep mode current: < 20μA.
Version: With Cable/Without Cable

Package Includes:
1PC Battery protections board
