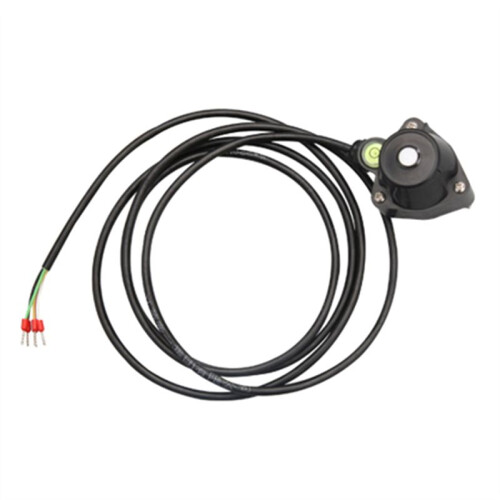

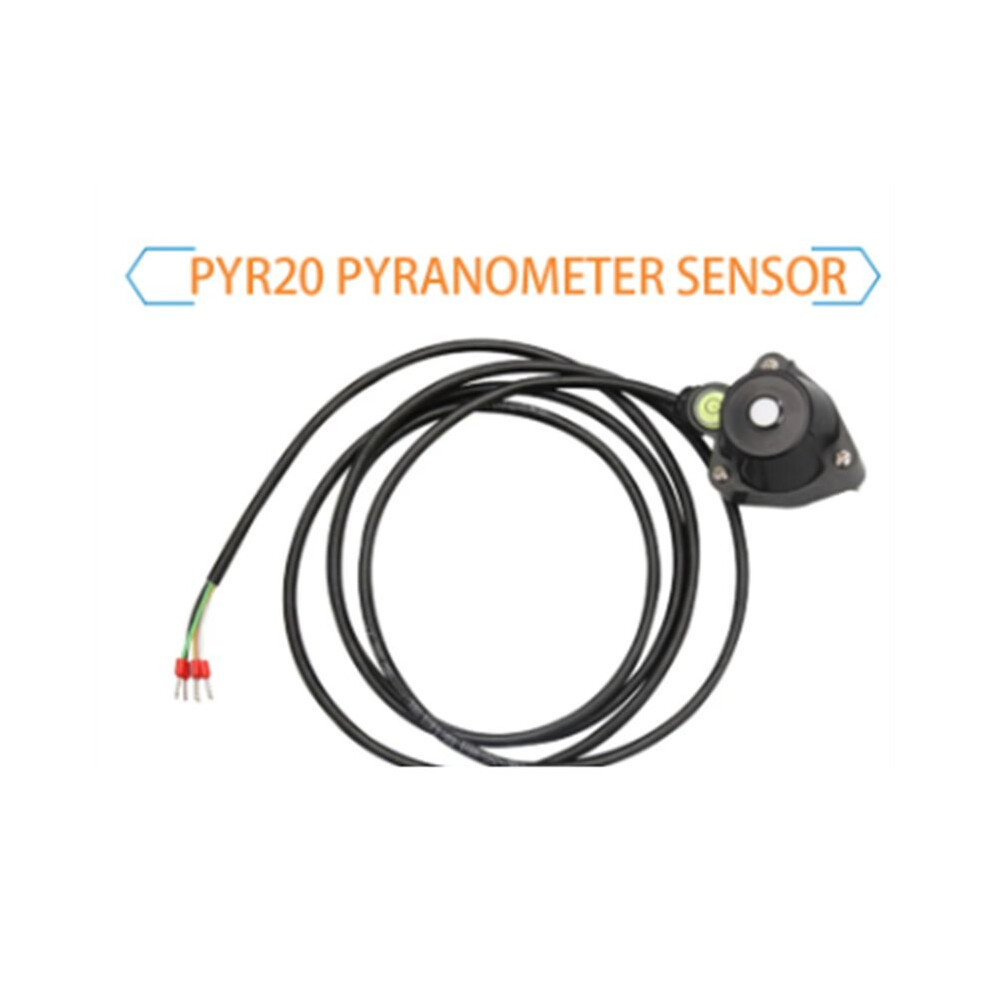

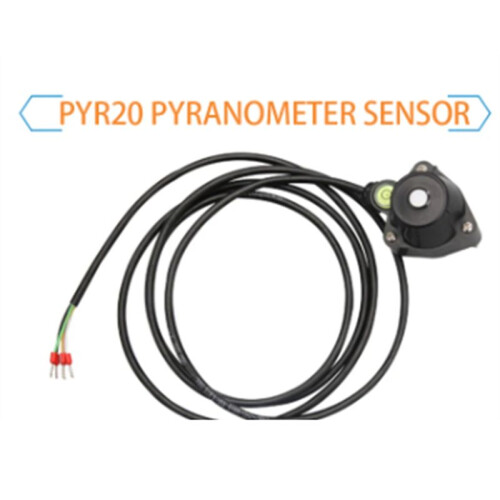

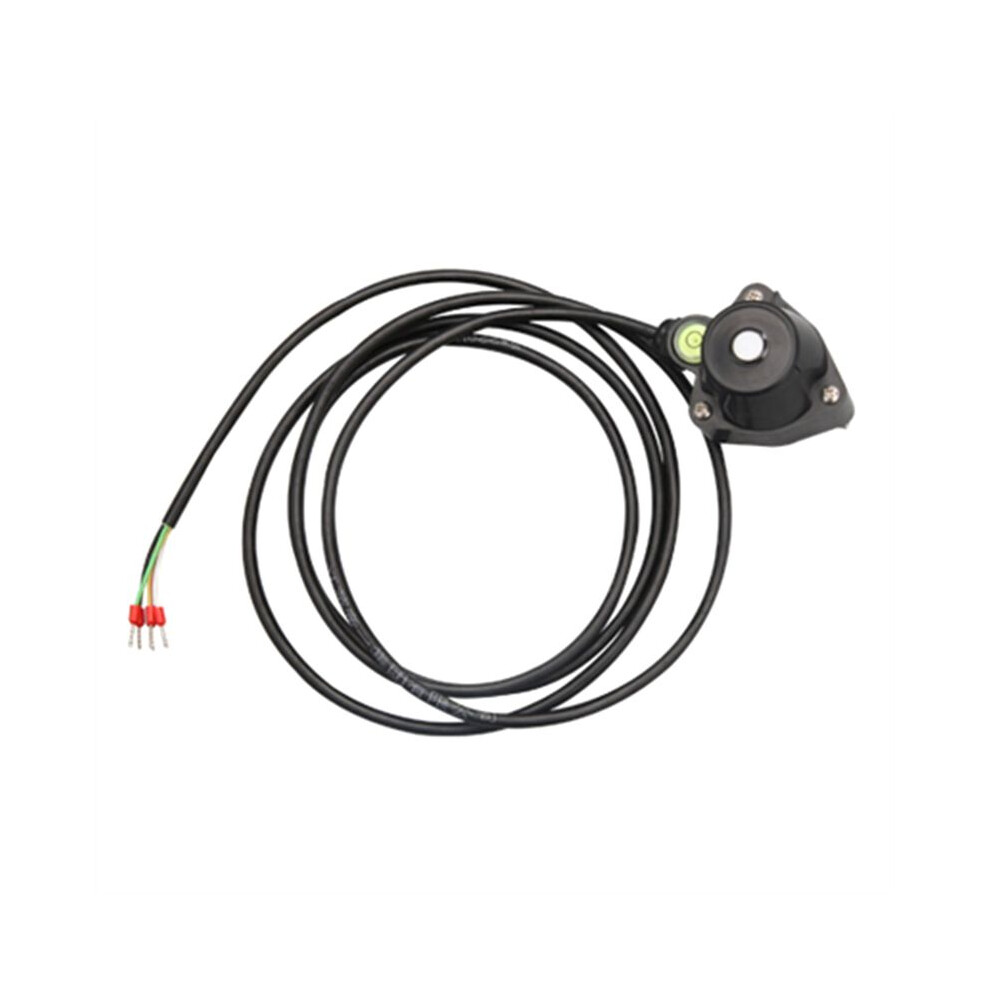

PYR20 Solar Radiation/Pyranometer Sensor(4-20MA)

PYR20 Solar Radiation/Pyranometer Sensor(4-20MA) Description

PYR20 pyranometer, or solar Radiation Sensor, measures global radiation of both direct and diffusion of solar irradiance. The internal temperature compensation minimizing the error caused by heating of the sensor. Each sensor is calibrated against Eppley Precision Spectral Pyranometer and offers excellent accuracy and consistency. The sensor is applicable for science research, solar power , greenhouse, weather station etc.
Measurement range to 2000W/m2, Spectral range 400-1100nm
Output interface with RS485, Voltage or Current
Temperature compensated

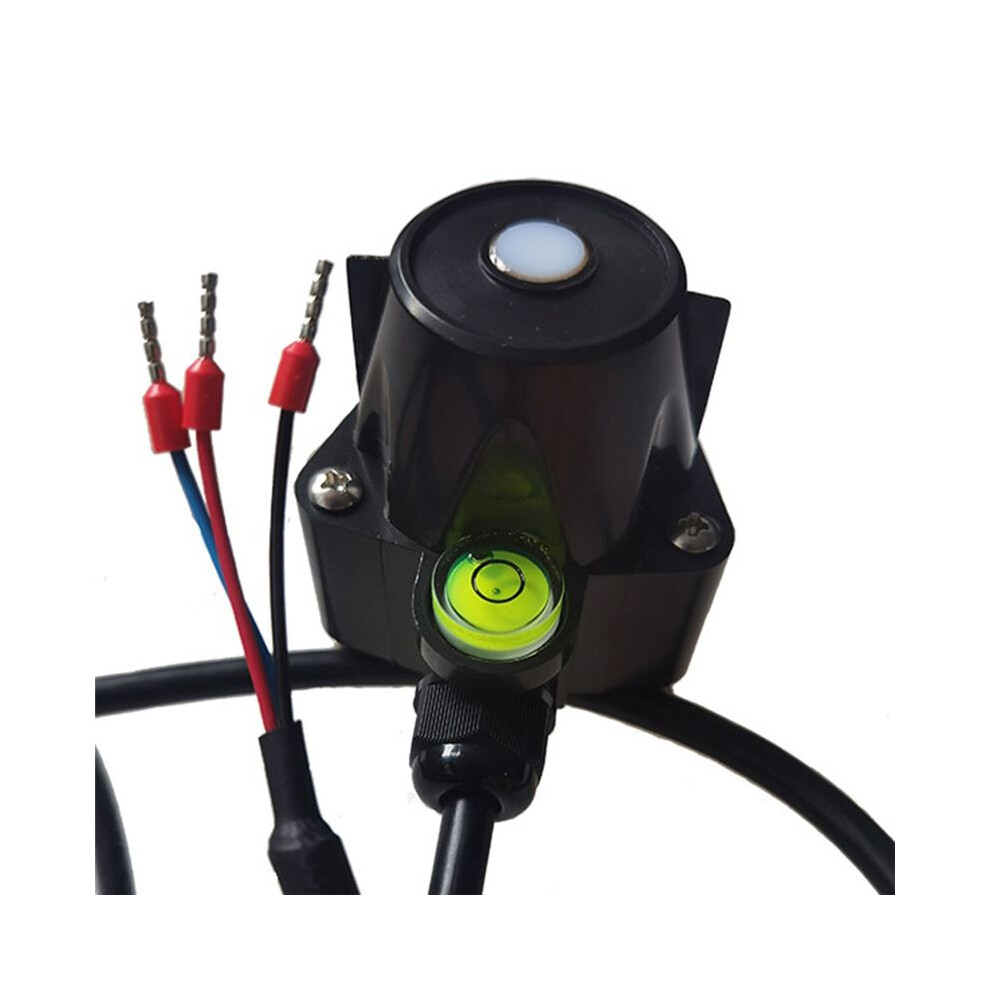

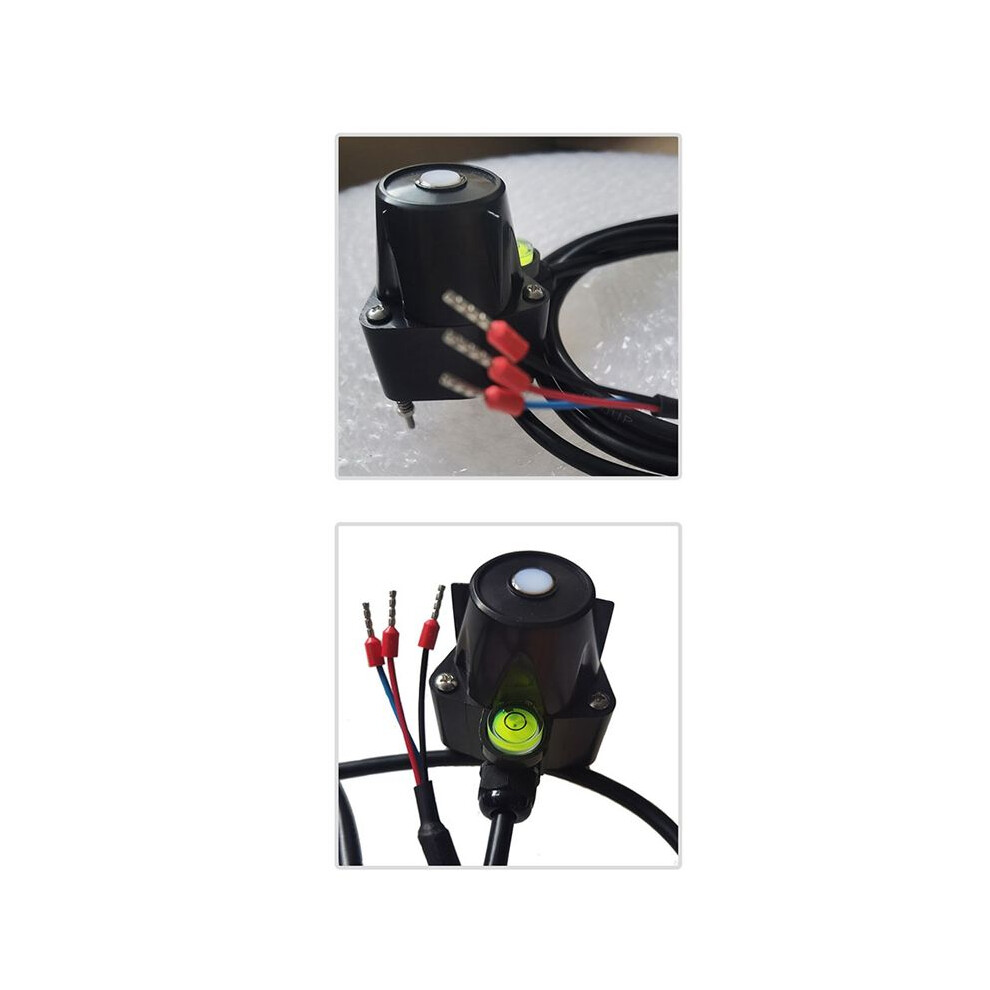

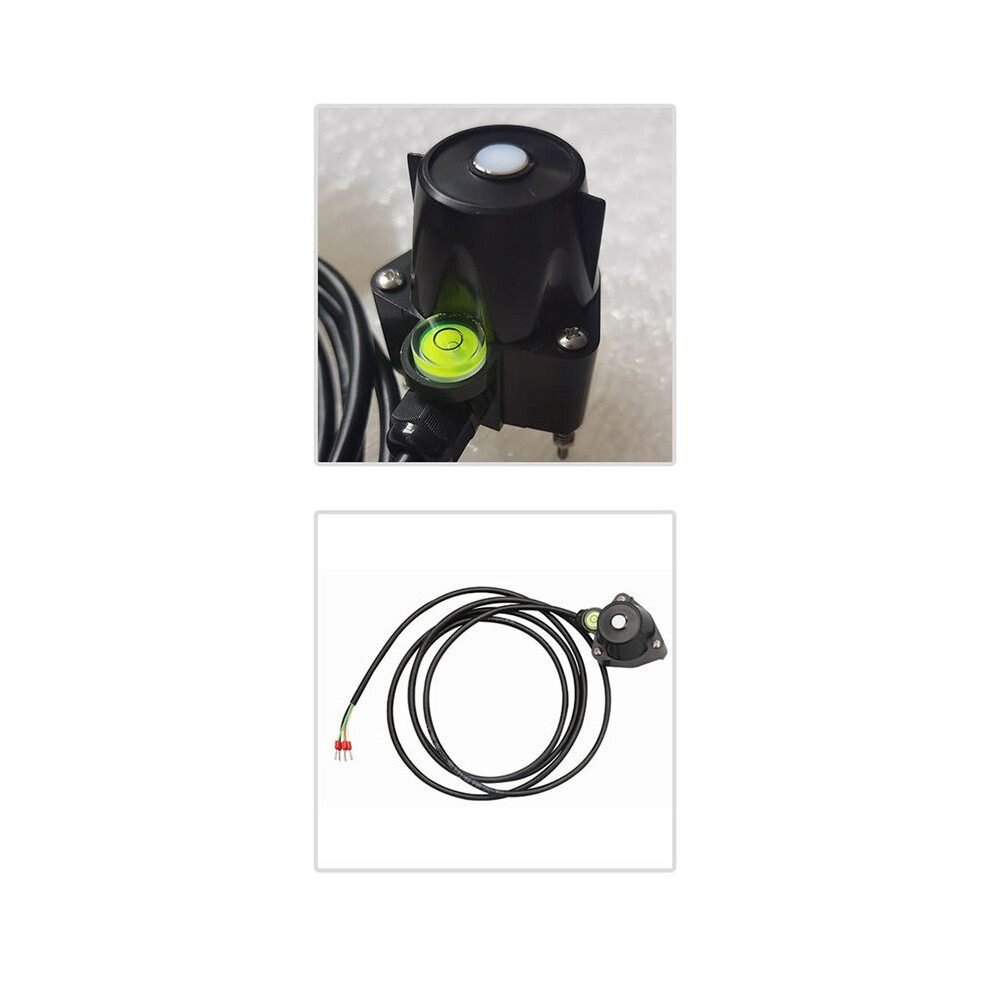

Level indicator and spring loaded for installation

Water proof to IP66 can be used outdoor
High accuracy and consistency with excellent stability
Reverse power protection and Built-in TVS/ESD protection

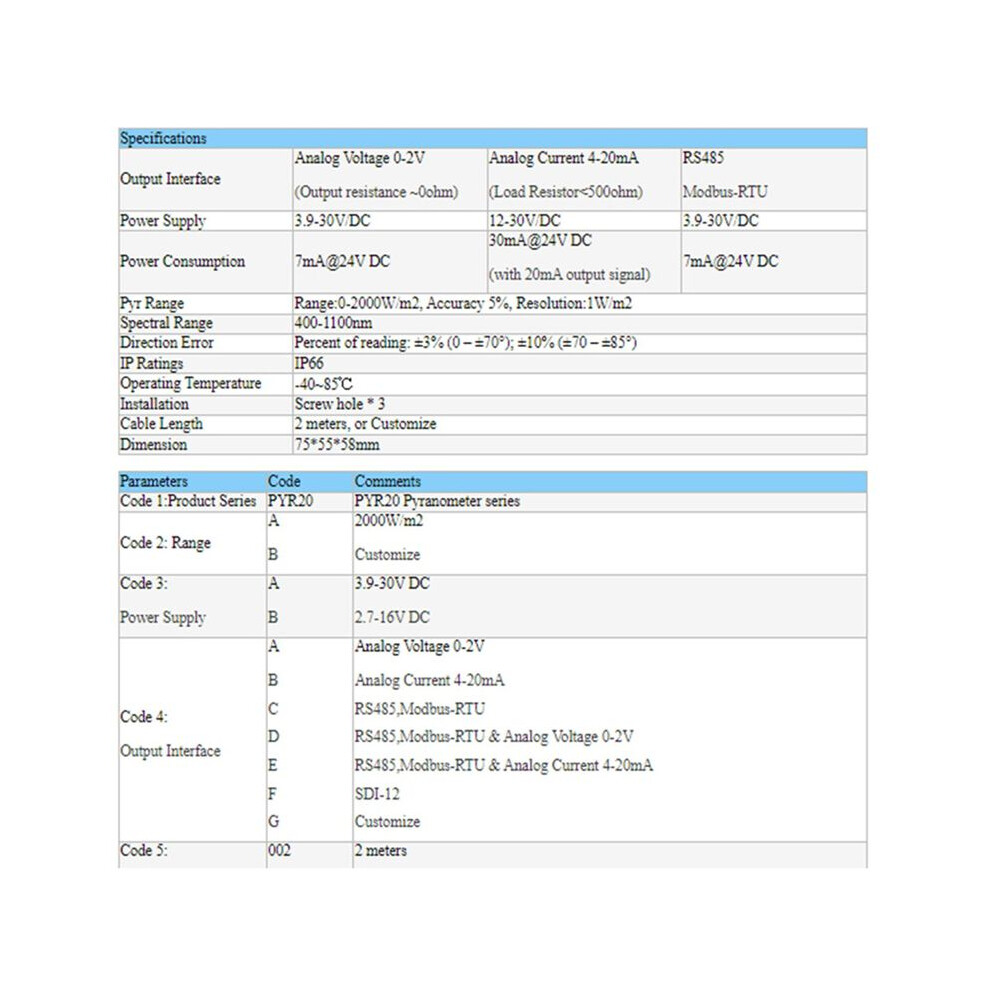

Pyr Range : Range:0-2000W/m2, Accuracy 5%, Resolution:1W/m2
Spectral Range : 400-1100nm
Direction Error : Percent of reading: 3% (0 - 70); 10% (70 - 85)
IP Ratings: IP66
Operating Temperature : -40~85

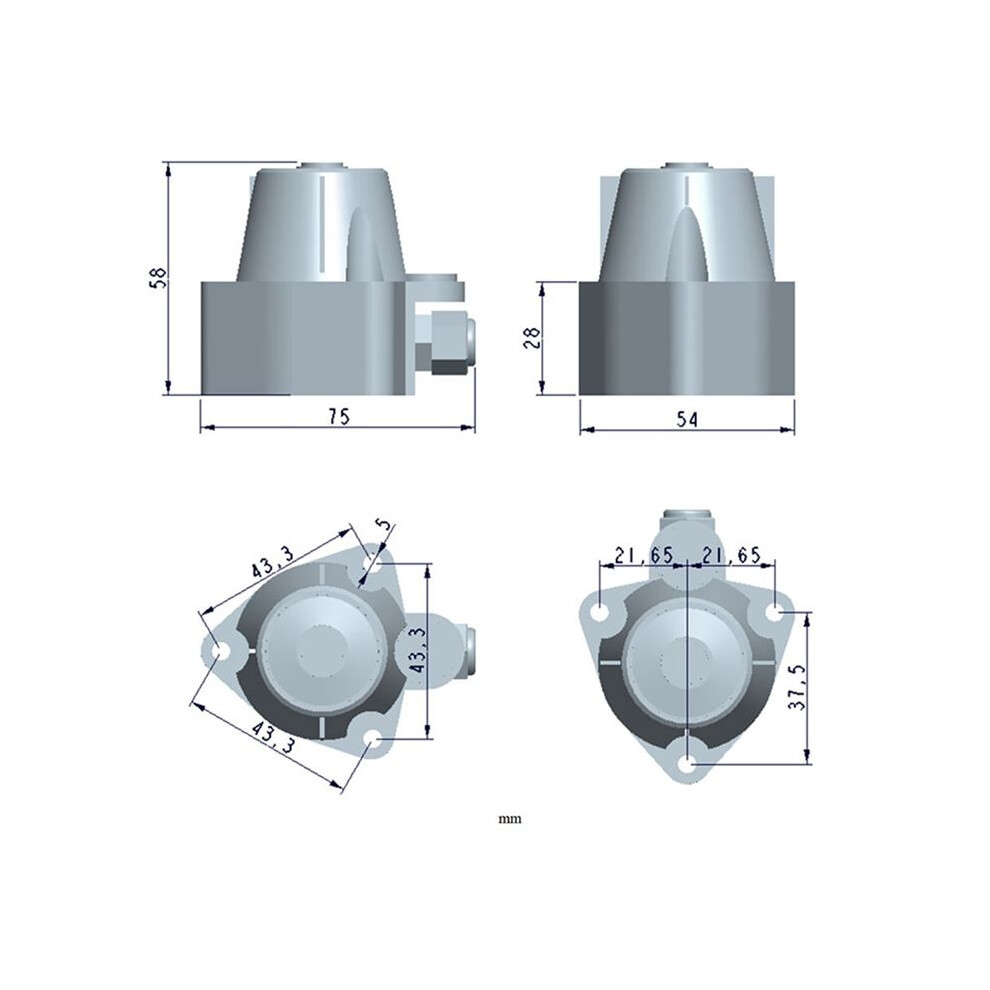

Installation : Screw hole * 3
Colour:black
Material:plastic
type:4-20mA

Package Contents:
1 x Sensor

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
