Raymarine E70533-00-NAG, Element 9S Chartplotter w/ Navionics+ U.S. an

Raymarine E70533-00-NAG, Element 9S Chartplotter w/ Navionics+ U.S. an Description

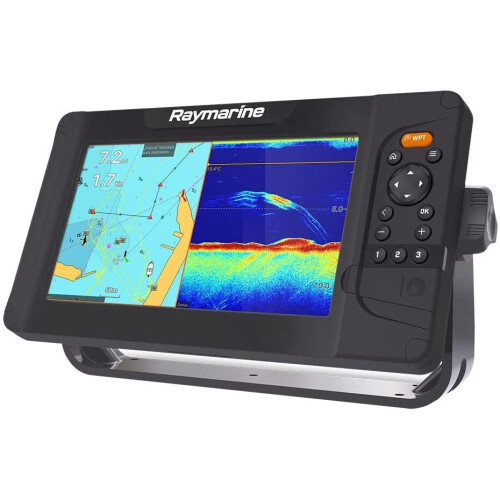

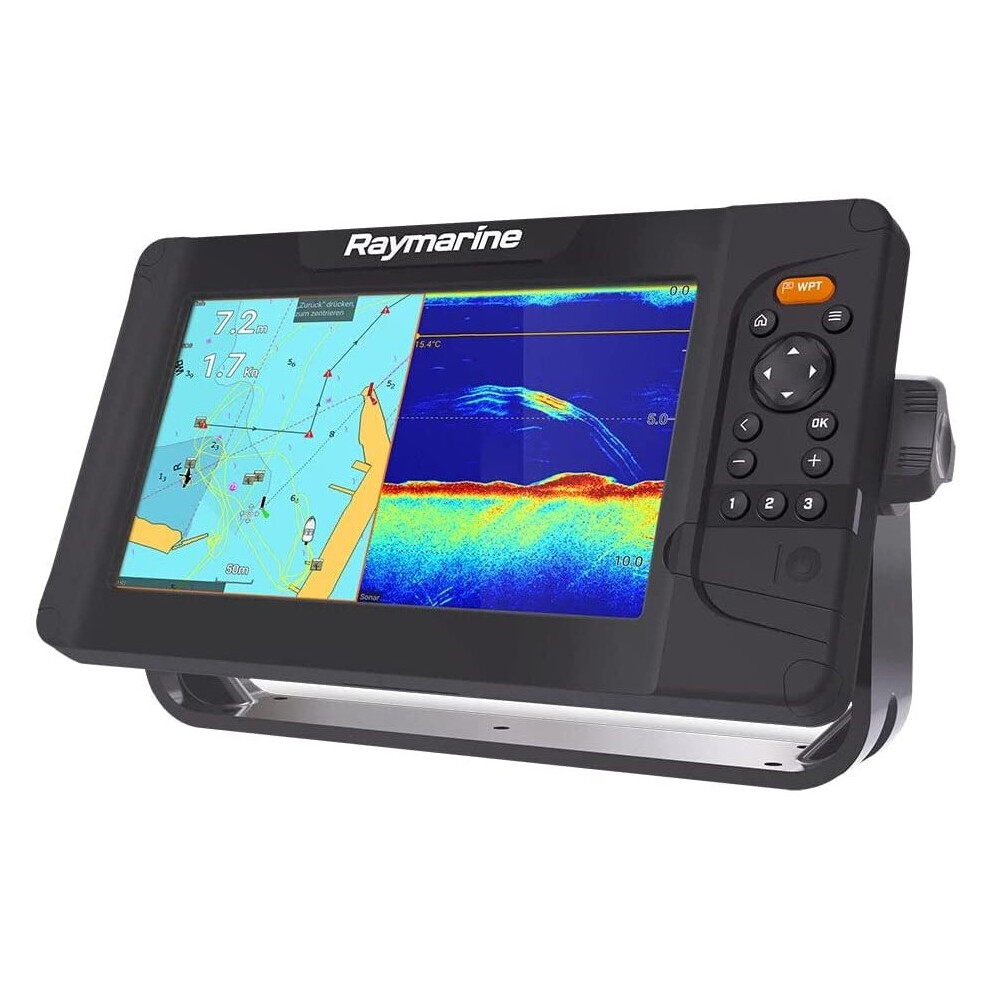

Raymarine Element 9S 9.0" MFD with Navionics Nav+ US & Canada Chart

Model: E70533-00-NAG

• Category-leading quad-core processor delivers fast chart redraw and responsive performance
• Fast and accurate 10hz GPS/GNSS sensor
• Rugged design and backed by Raymarine’s three-year warranty (product registration required)
• Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
• Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
• Built-in High CHIRP sonar for depth and bottom contour imaging
• Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
• Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
• From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating
• An oversized waypoint key for quick and easy marking of your favorite locations
• Three user-programmable quick keys to access your favorite pages with one button push
• Live menus let you customize charts while seeing the navigation display change in real time

The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.

Specifications
Display Size9.0" Optically Bonded LCDDisplay Resolution800 x 480 WVGADisplay TypeNon-TouchBrightness1,500 nitsW x H x D (mm)(11.3 x 6.3 x 2.4 inches)Product Weight (lbs)5.0Water Ingress ProtectionIPx6 and IPx7Operating Temperature Range-25°C to + 55°C (-13°F to 131°F)Storage temperature range-30°C to +70°C (-22°F to 158°F)Voltage12V DC (8V to 16V DC)Power Consumption (max 12V DC)20 WattsGNSS / GPSBuilt-in GPS/GLONASSSonar Type (Built-in)Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducersSonar DepthCHIRP Sonar = 274m (900 feet)RadarQuantum wireless CHIRP compatible Wi-Fi only connectionDoppler RadarN/AMARPAN/ANMEA20001 x NMEA2000 port (DeviceNet microC)SeaTalkngRequires A06045 DeviceNet female (F) adapter cable - 400mmWi-FiWiFi - 802.11 b / g / nCartographyRaymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.Tides & CurrentsRequires LightHouse LNC2, Navionics or *C-MAPSonar MappingRaymarine RealBathy and Navionics SonarChart LiceWaypoint / Routes / Tracks5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk ptsExternal Memory1 x microSD slotsDimensions287 x 161 x 62mm
What's in the Box:

• Element display
• Surface mount gasket
• Suncover
• Trunnion knobs x2
• Documentation pack
• Trunnion bracket
• Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut)
• Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).
