RCWL-1670 Waterproof Transceiver Split Ultrasonic Distance Sensor Module 1.5UA Ultra-Low Power Consumption

RCWL-1670 Waterproof Transceiver Split Ultrasonic Distance Sensor Module 1.5UA Ultra-Low Power Consumption Description

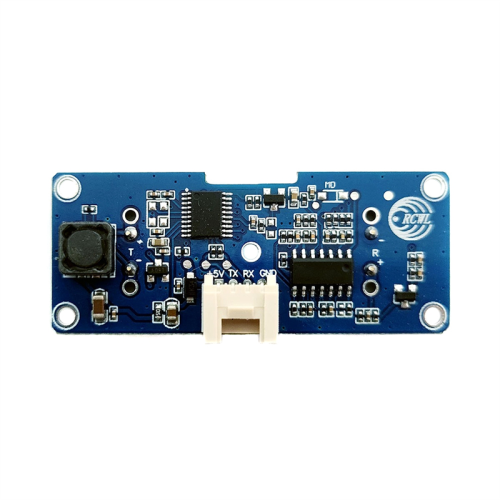

RCWL-1670 is a waterproof, sending and receiving split ultrasonic distance measuring module. 2cm-400cm ranging range, 3-5V wide voltage operation, [email protected]/3.5uA@5V ultra-low standby power consumption. The module includes sending and receiving split waterproof ultrasonic sensors and control circuits. The external control software is compatible with the -SR04 module. The module is waterproof and dustproof, suitable for wet and harsh measurement occasions. The ultra-low standby power consumption of the module is suitable for battery applications. Type: distance sensor module Working voltage: 3-5.5V Working current: 6mA Standby current: 3.5uA@5V [email protected] Software compatible: -SRO4 Ranging range: 2cm-400cm Colour:blue Material:PCB Package Contents: 1 x Sensor Module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
