RP2350 2.8inch LCD Touch Display Development Board IPS Five-Point Touch Capacitive Screen Development Board with Display

RP2350 2.8inch LCD Touch Display Development Board IPS Five-Point Touch Capacitive Screen Development Board with Display Description

Adopts the RP2350 microcontroller chip designed by Raspberry Pi.
Unique dual-core and dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, with a clock running frequency of to 150MHz.
Built-in 520KB and 16MB -chip Flash.

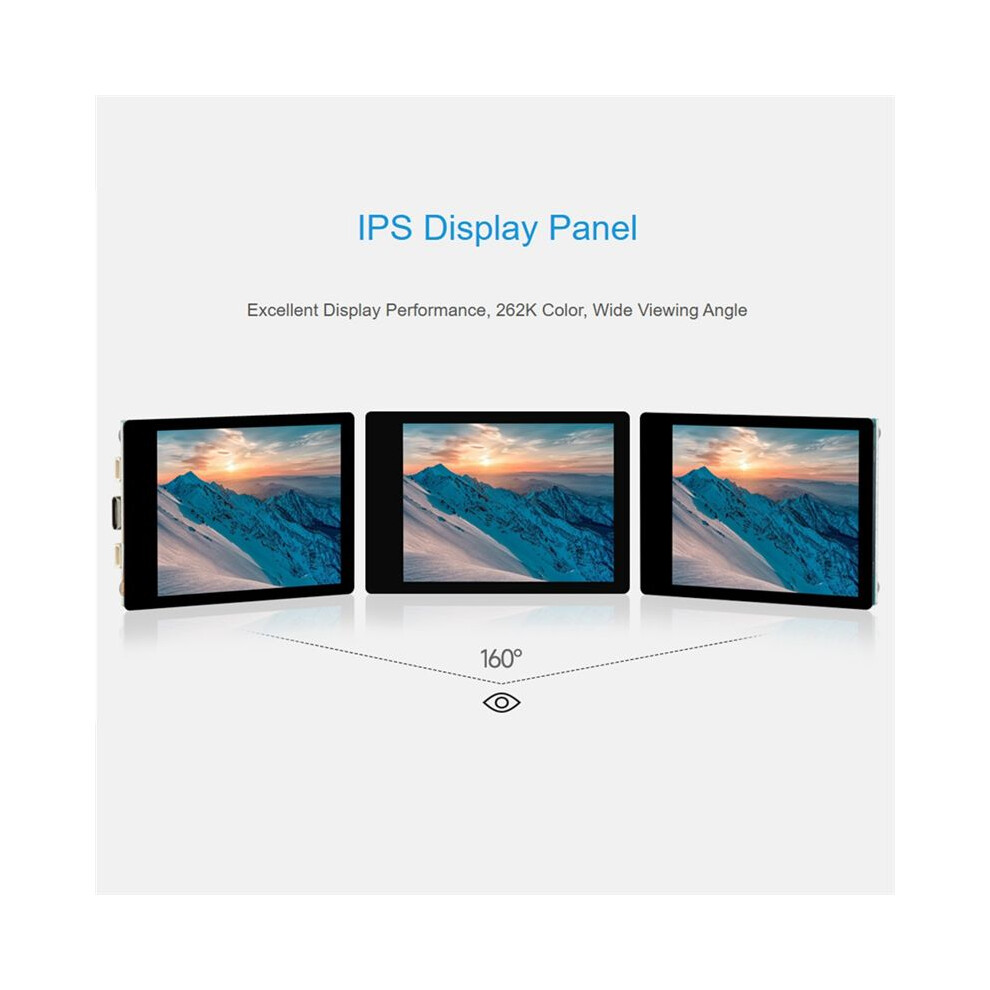

Onboard 2.8-inch LCD screen, 240 x 320 resolution, 262K color.
Support I2C interface to control capacitive touch, 5-point touch, support interruption.

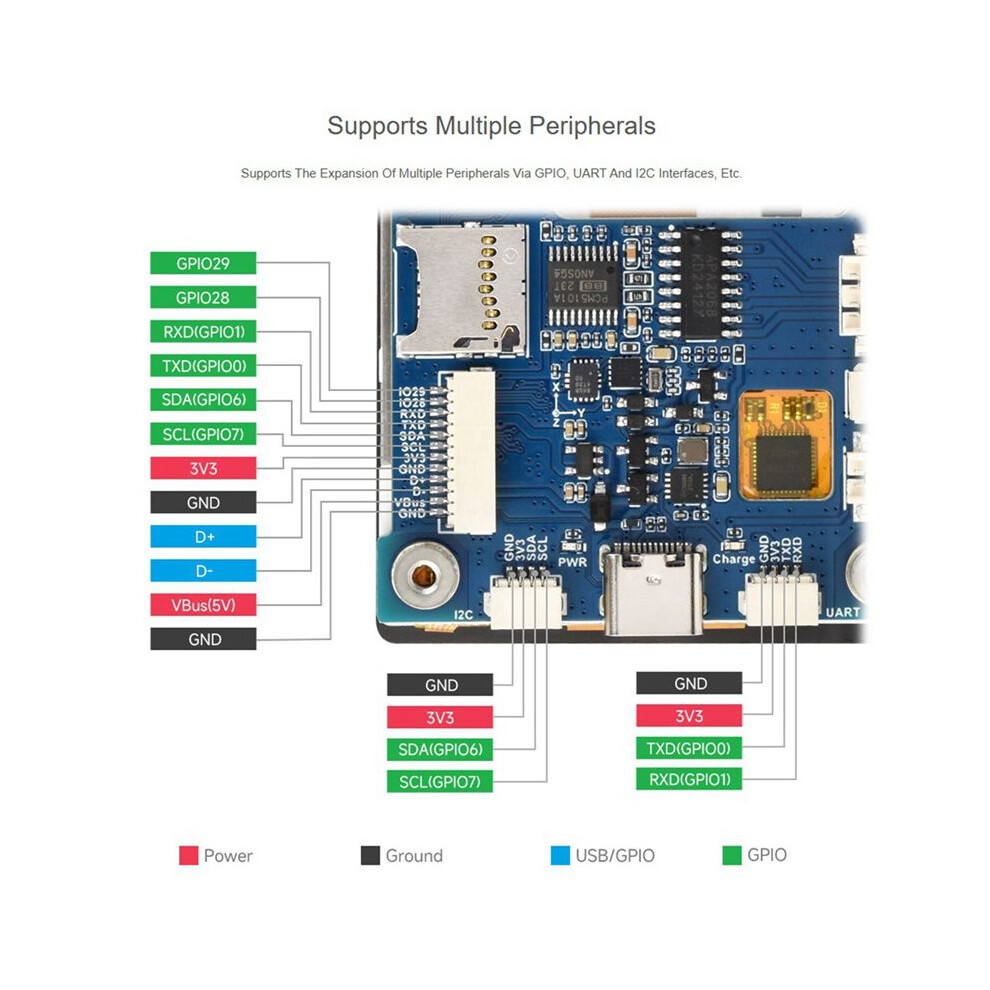

Lead out USB, UART, I2C and some IO interfaces, integrated full-speed USB serial port.

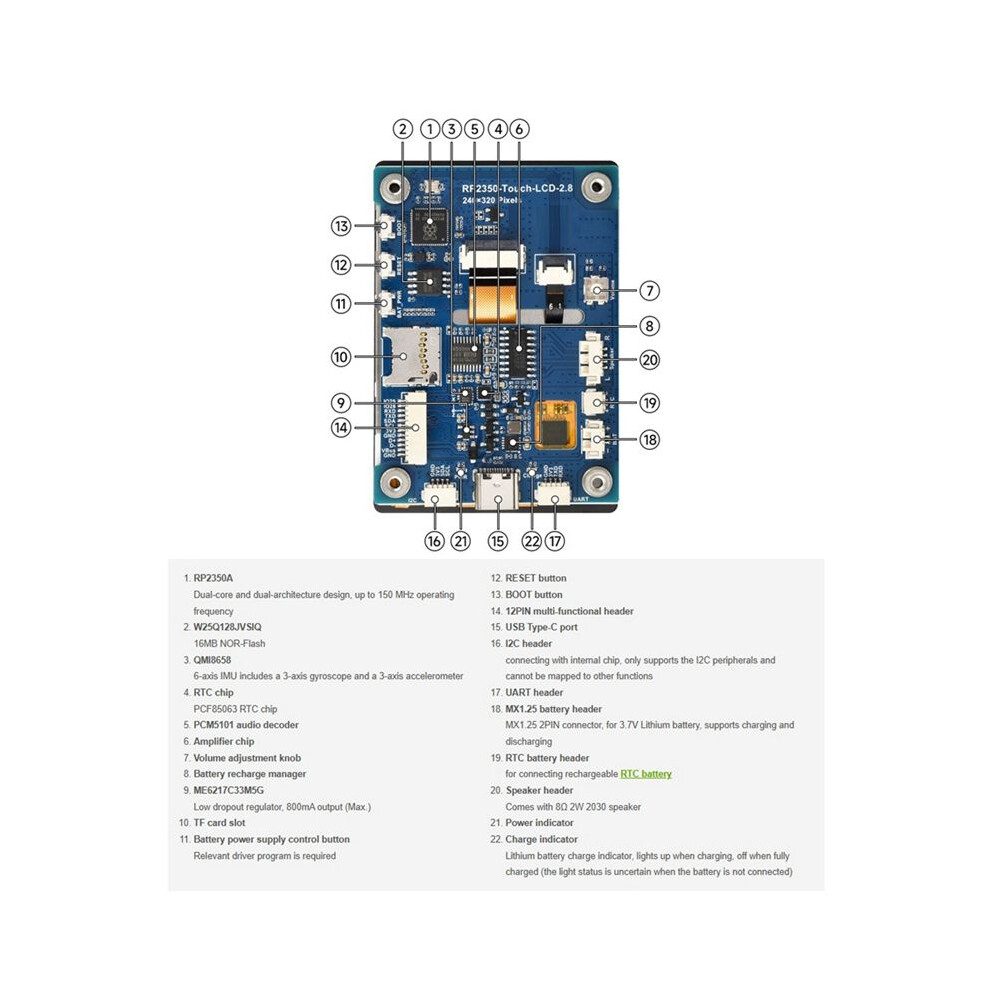

Onboard speaker, QMI8658 six-axis sensor, RTC clock sensor, Micro- card holder and battery charging management module, etc.
Can be identified as a large-capacity storage device through USB for drag-and-drop download of programs.
Support flexible clock, multiple power modes and other accurate control to achieve multi-scenario low-power mode.
Product description:
This product is a low-cost, high-performance microcontroller development board, with a 2.8-inch LCD screen, lithium battery charging chip, six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC and other peripherals board, which is convenient for development and embedding into products. It can run GUI interface programs such as LVGL smoothly.
Colour:Black
Material:PCB+components
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use

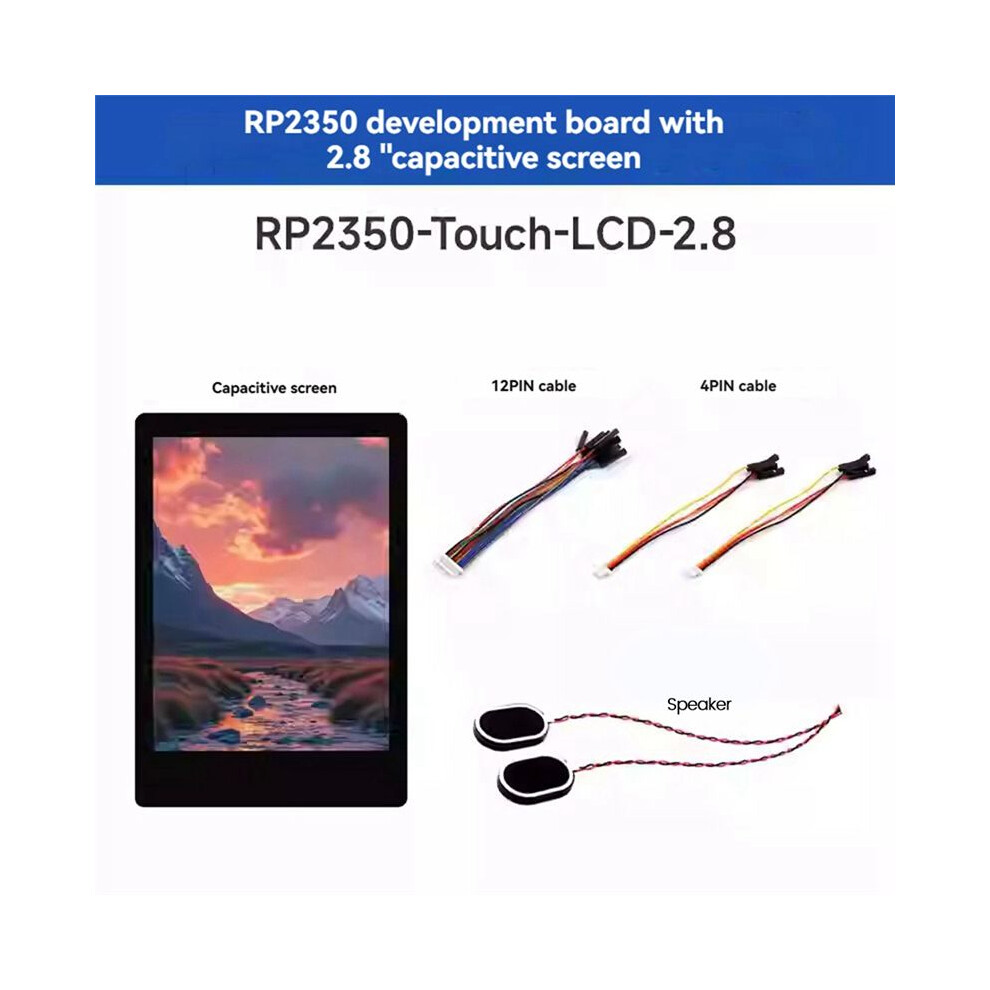

Package Contents:
1 * RP2350-Touch-LCD-2.8 Development Board
1 * speaker
2 * 4PIN connecting wire
1 * 12PIN connecting wire(The colors of the cables are random, no specified colors are accepted)
