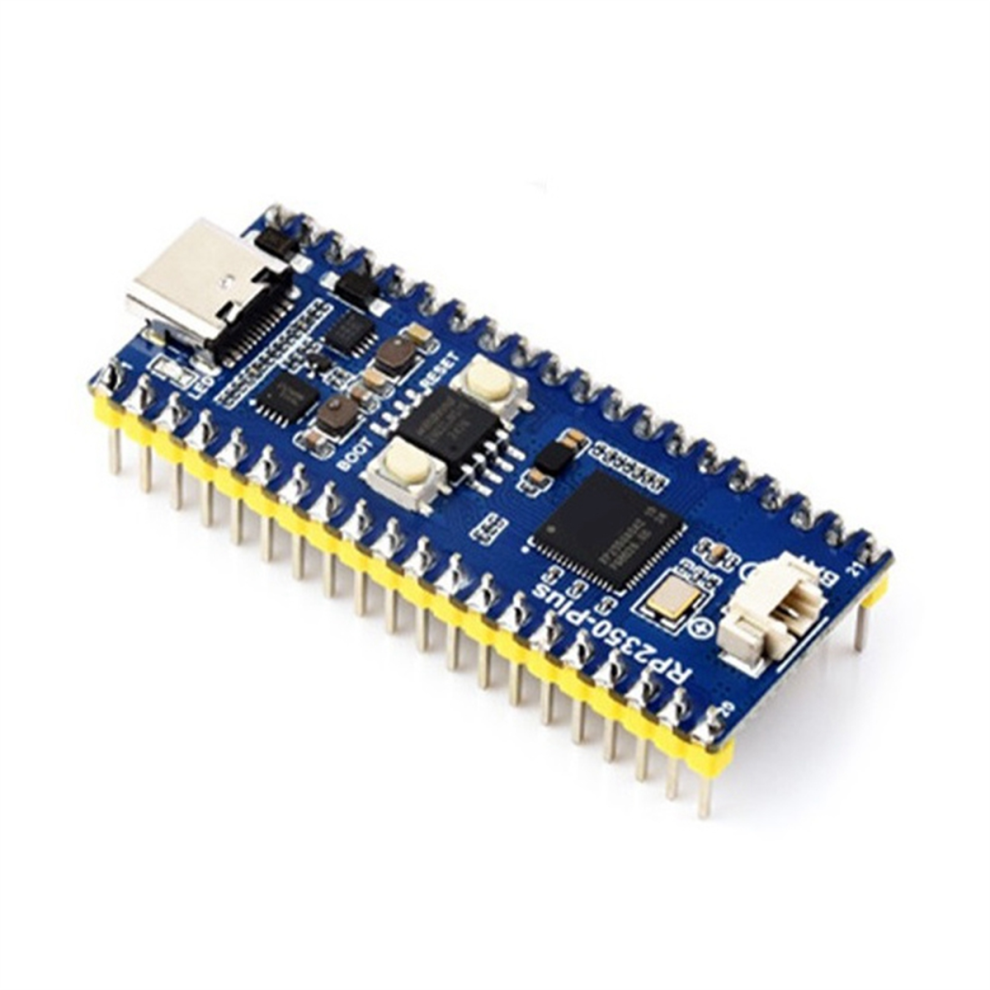

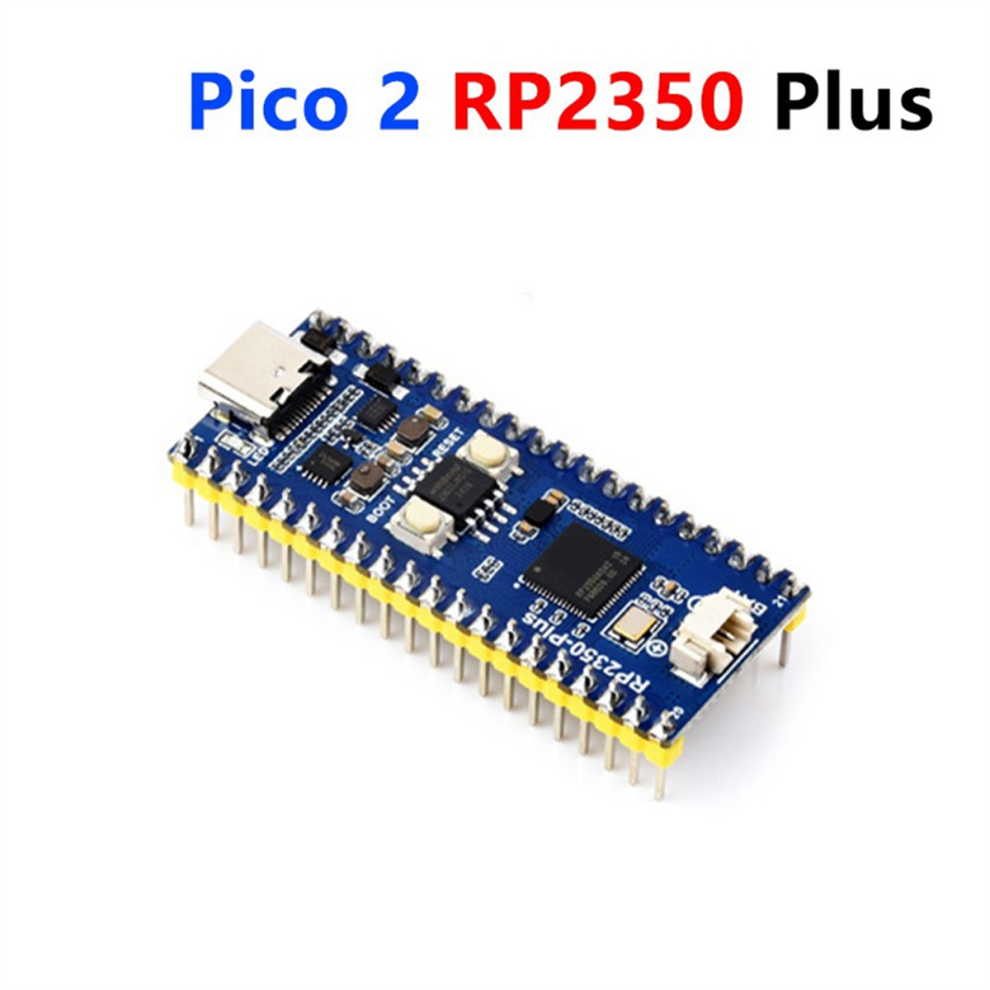

RP2350-Plus Development Board RP2350 Plus Microcontroller MCU Based on for Soldered

RP2350-Plus Development Board RP2350 Plus Microcontroller MCU Based on for Soldered Description

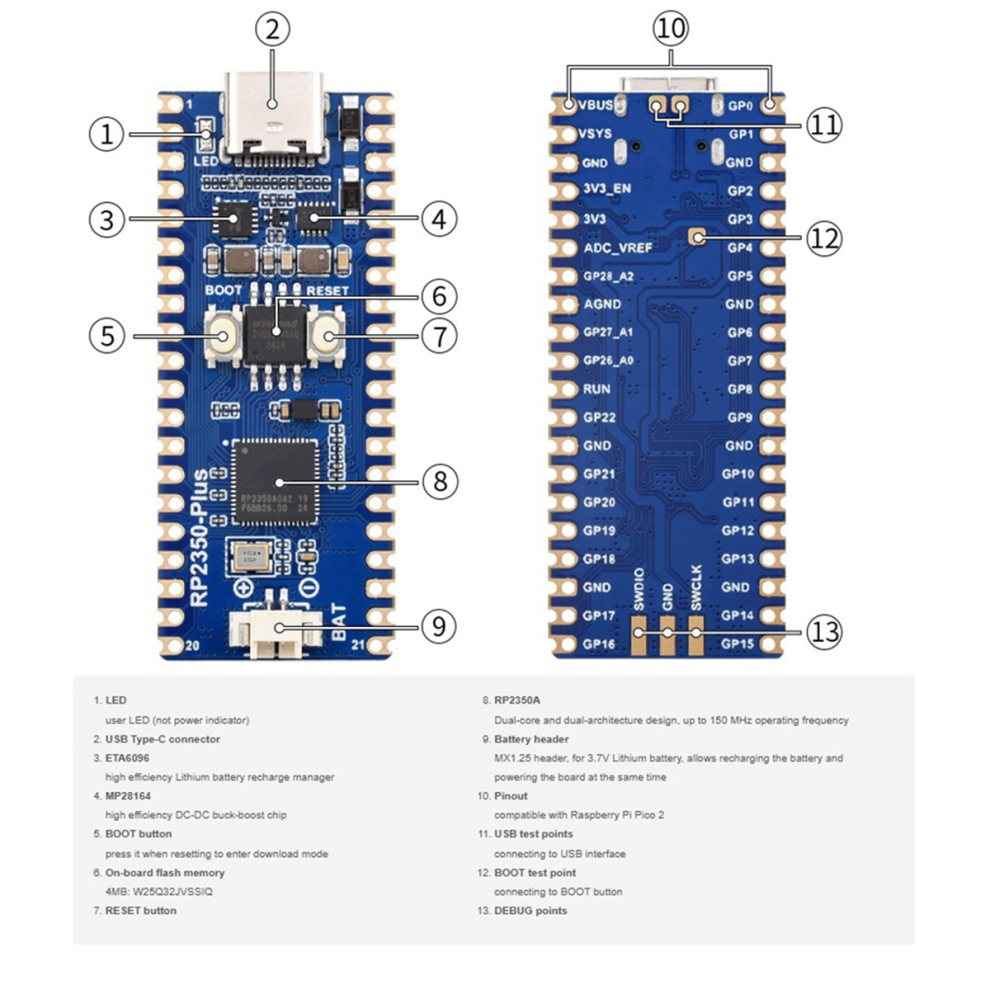

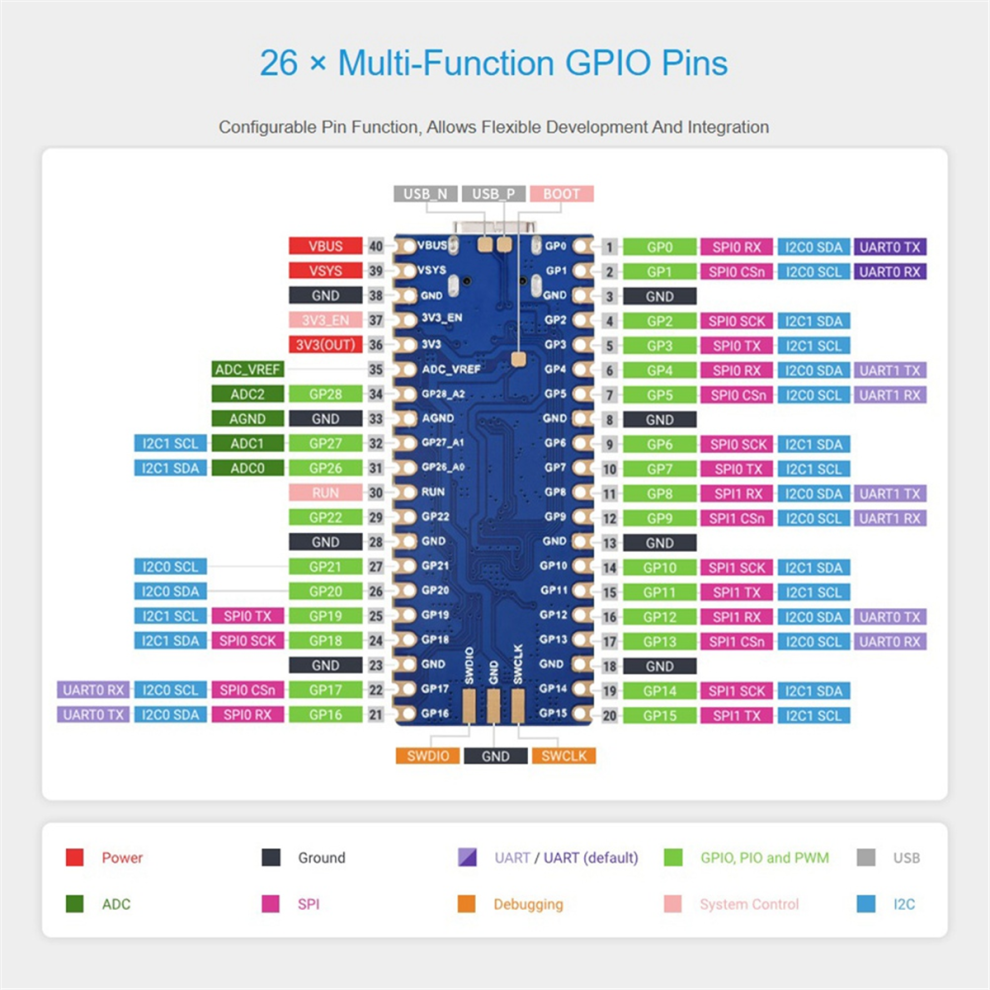

RP2350A Microcontroller chip designed by . Adopts dual-core and dual-architecture design: dual-core Arm -M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of , and 4MB of on-board Flash memory. Type-C connector, keeps it up to date, easier to use. Lithium battery recharge/discharge header, suitable for mobile devices. Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current. Castellated module allows soldering directly to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. 26 x multi-function GPIO pins. 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels. Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 12 x Programmable I/O (PIO) state machines for custom peripheral support. Colour:blue Material:PCB style:Soldered The actual product may have slight color difference or difference, which not affect the use Package Contents: 1 * Developmend Board Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
