RS485 DMX512 Converter Cable Stage Lighting Controller Adapter Equipment LED Control Cable

RS485 DMX512 Converter Cable Stage Lighting Controller Adapter Equipment LED Control Cable Description

FT232RL features: Single chip USB to asynchronous serial data transfer interface. Entire USB protocol handled the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity. Fully assisted hardware or X- / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232). In-built support for event characters and break condition.
New USB FTDIChip-ID? feature. New configurable CBUS I/O pins. Auto transmit buffer control for RS485 applications. Transmit and receive LED drive signals. New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput. 256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput. Adjustable receive buffer timeout.

Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with unique USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Specifications:
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Material: ABS
colour: As shown

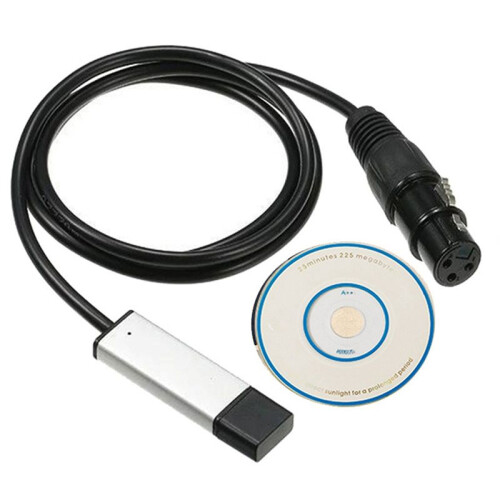

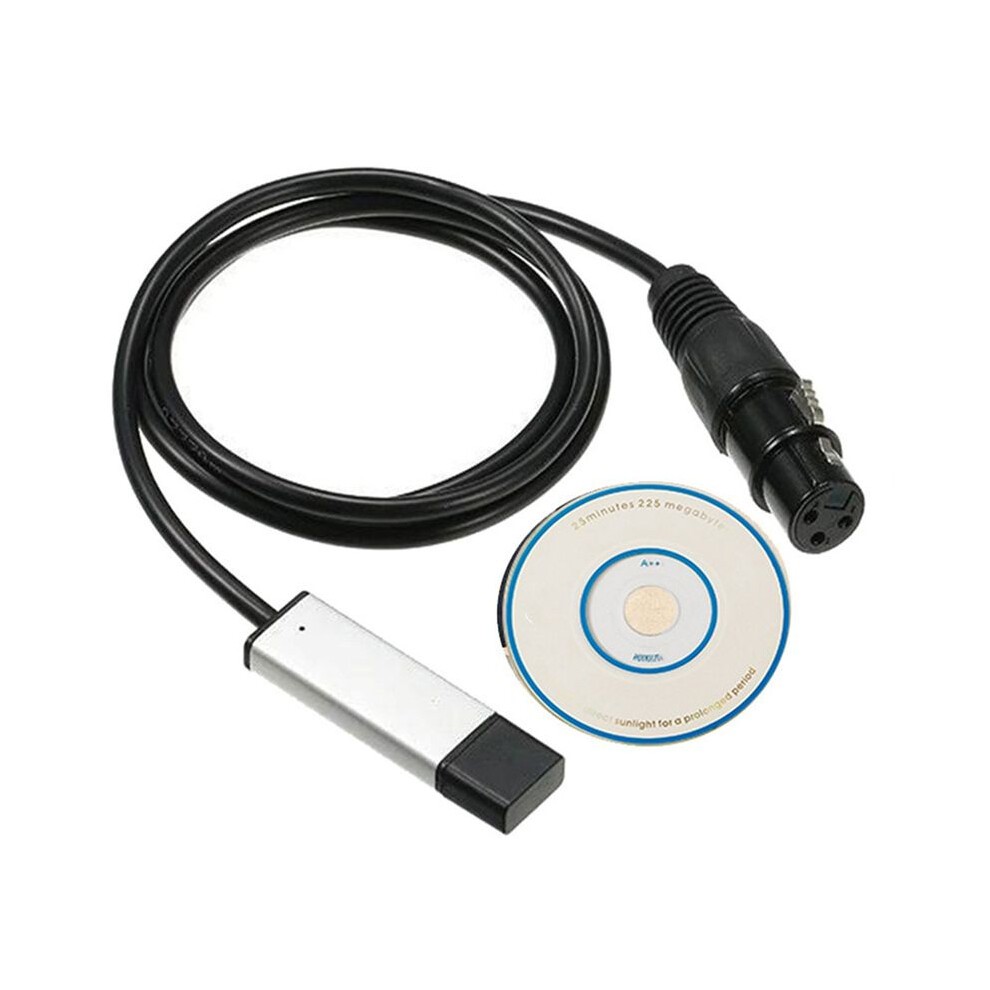

Package Contents:

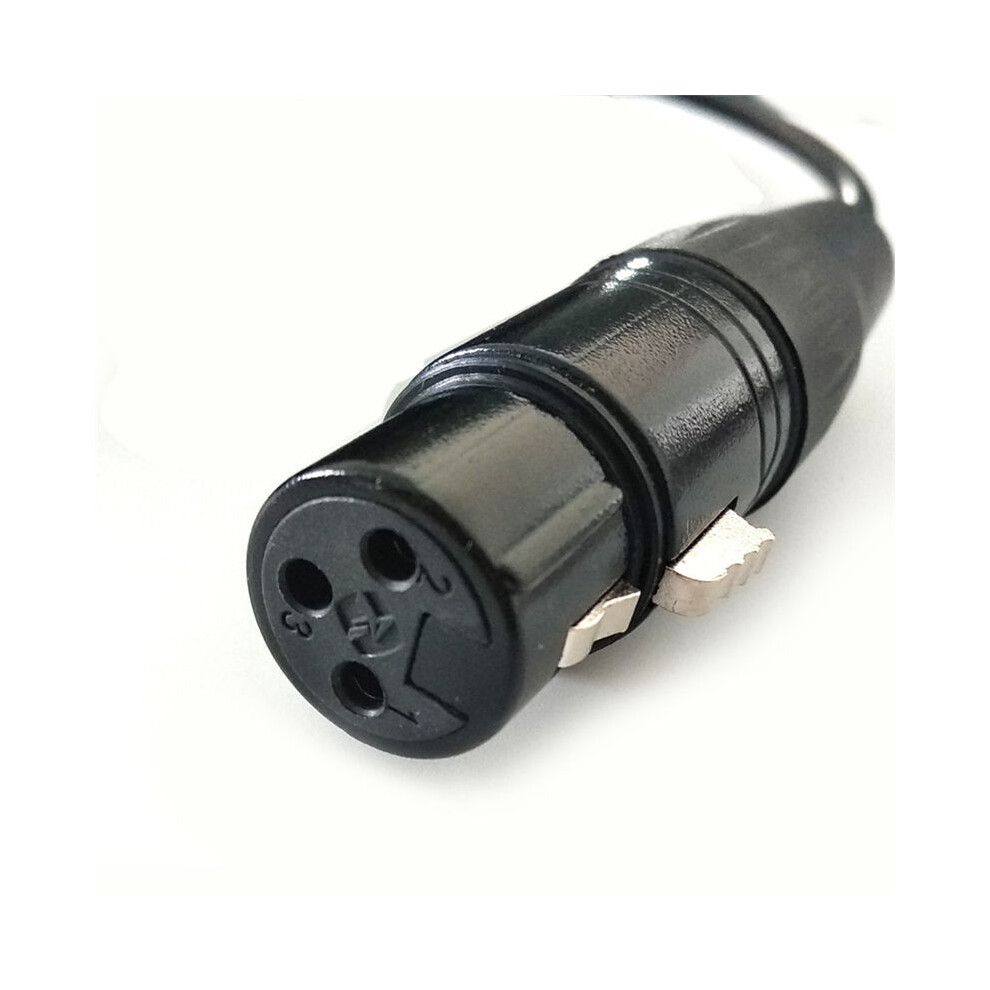

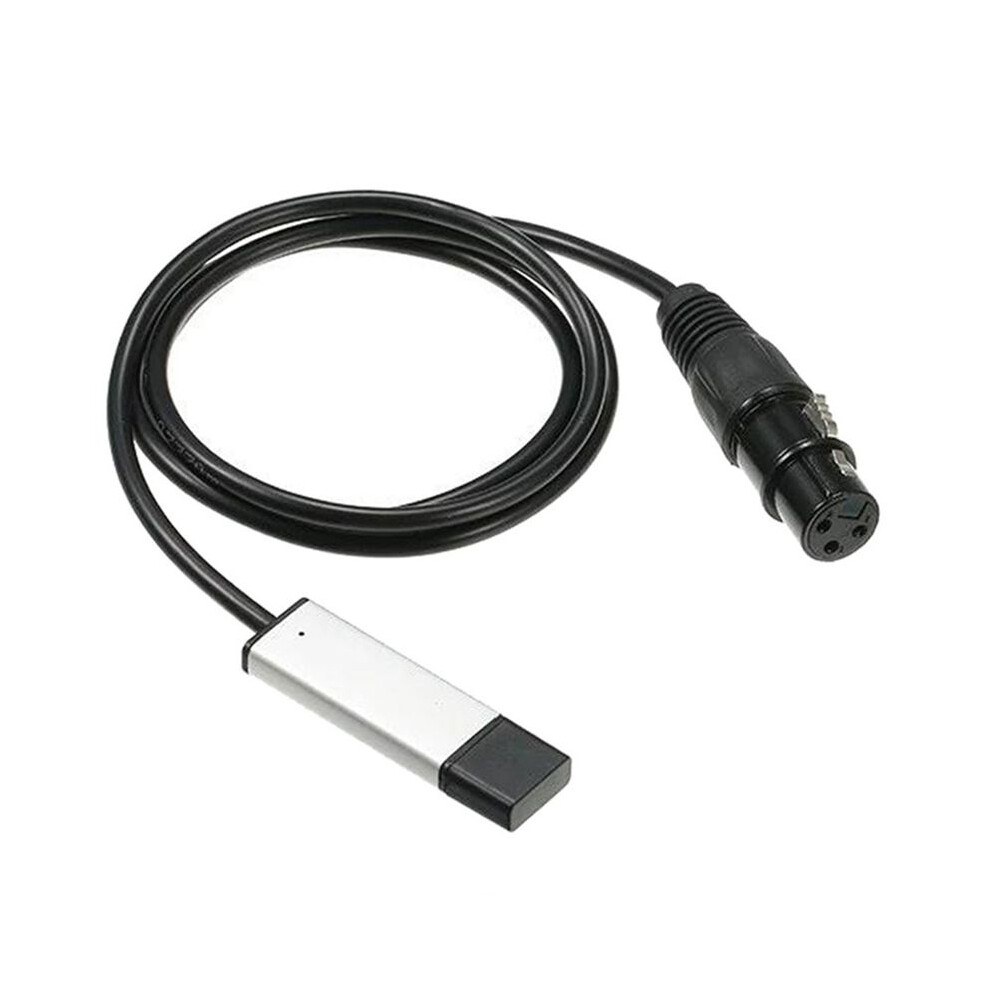

1 x RS485-DMX converter cable
1 x cd
