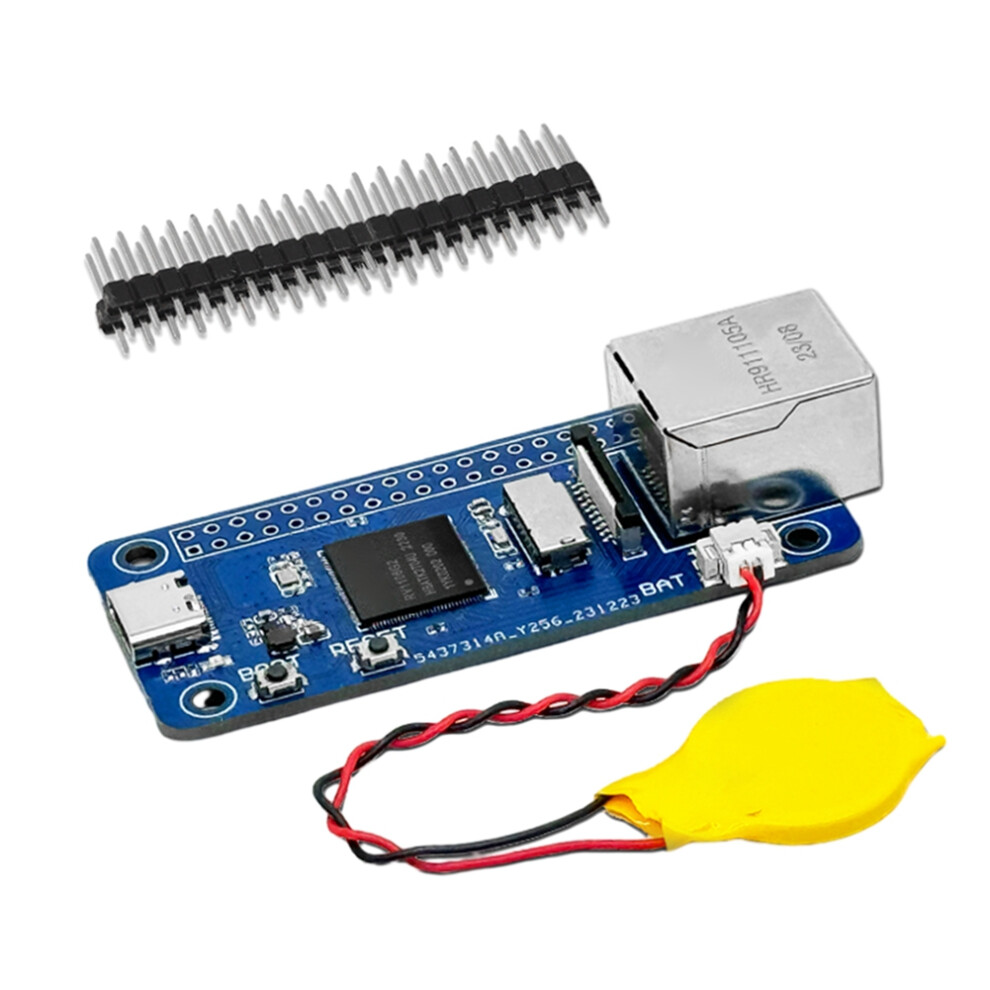

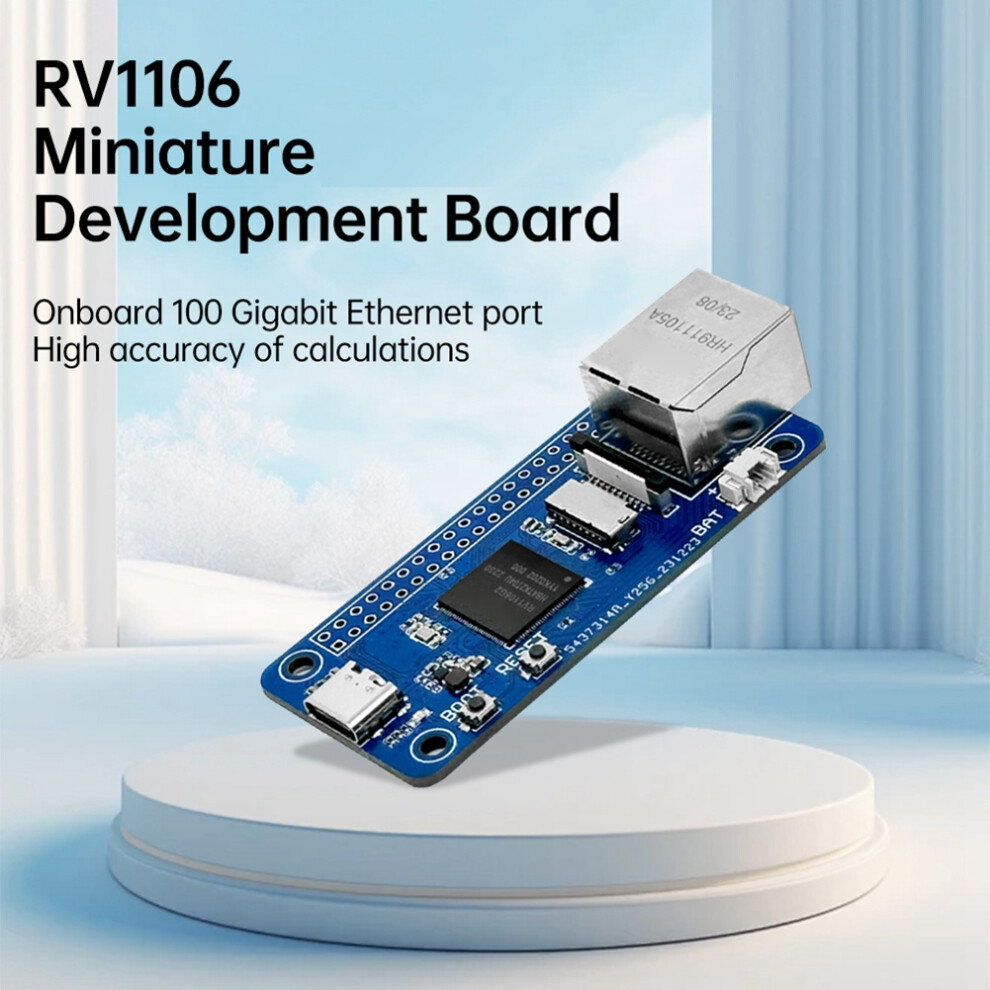

RV1106 Linux Development Board RISC-V Architecture 256MB Flash 100Mbps Ethernet Port Artificial Intelligence A

RV1106 Linux Development Board RISC-V Architecture 256MB Flash 100Mbps Ethernet Port Artificial Intelligence A Description

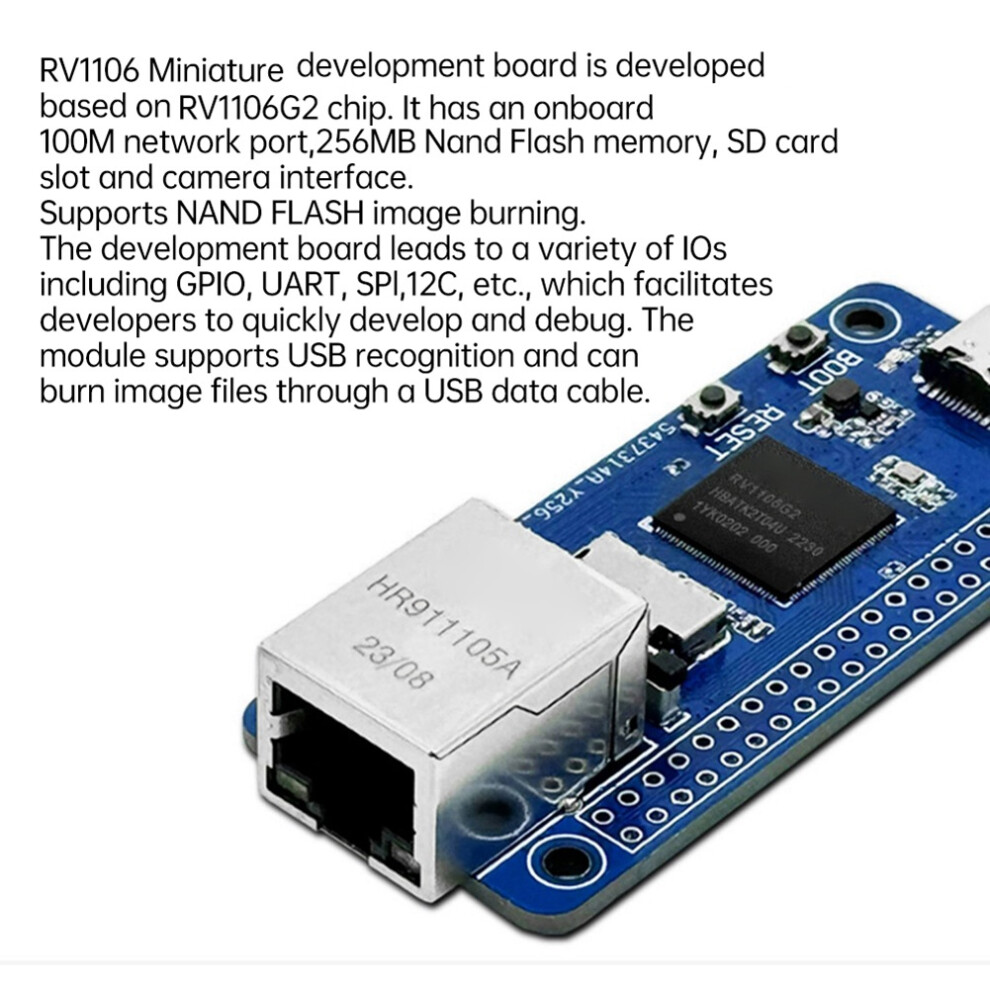

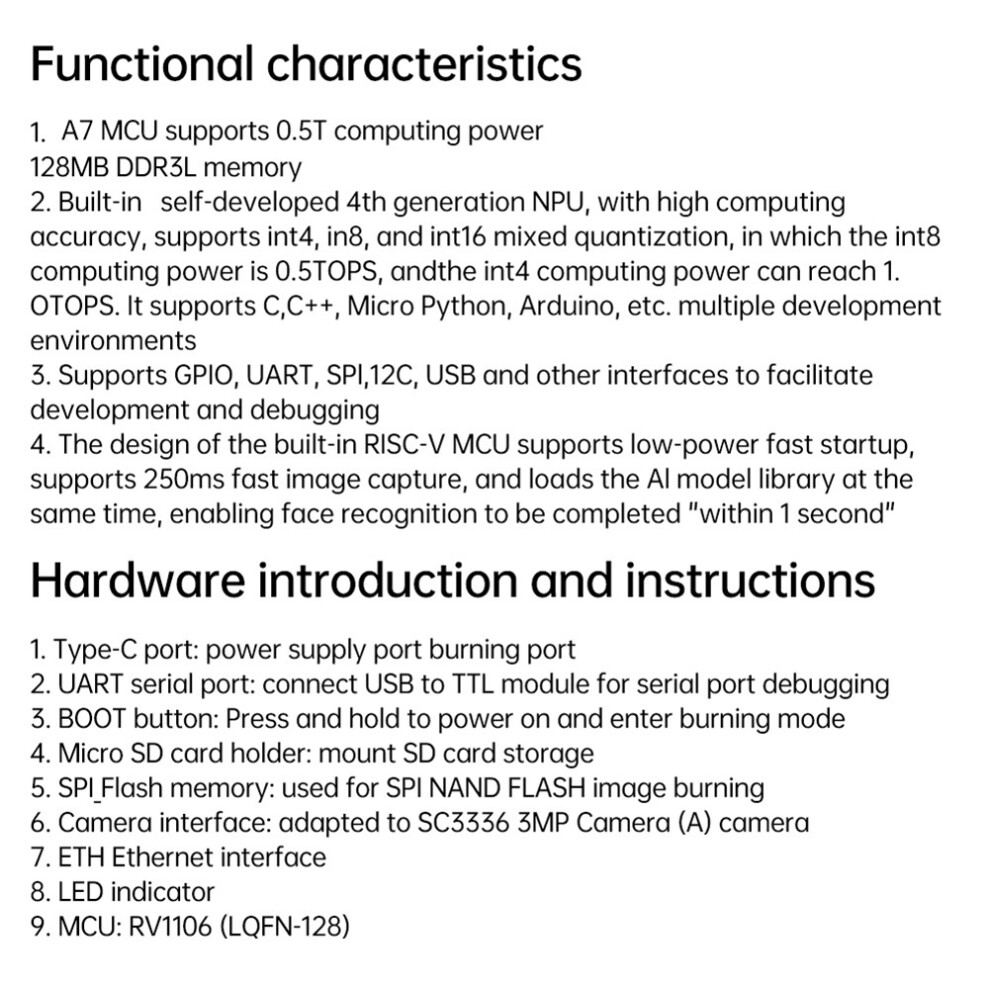

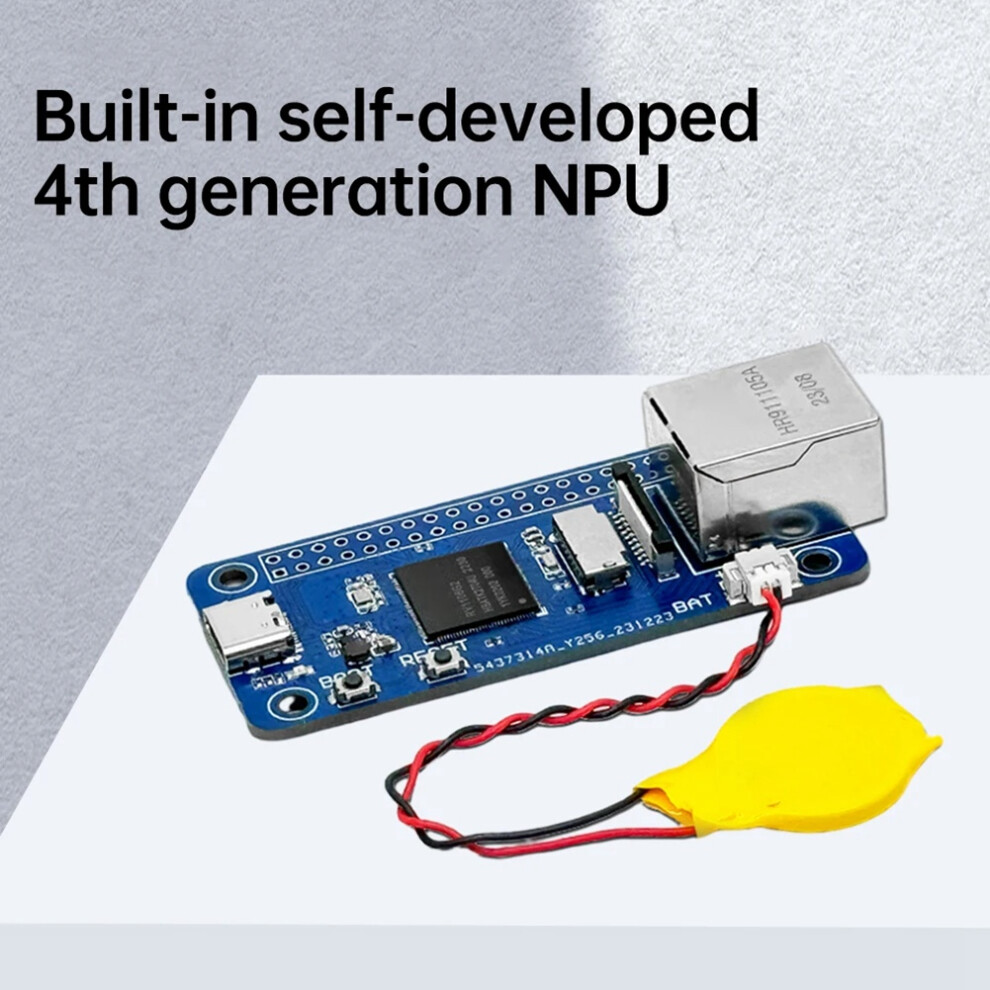

1. A7+MCU supports 0.5T computing power and 128MB DDR3L memory. 2. Equipped with Micro's self-developed 4th generation NPU, it has high computational accuracy and supports mixed quantization of int4, in8, and int16. The computing power of int8 is 0.5TOPS, while the computing power of int4 can reach 1. OTOPS. It supports development environments such as C, C++, and Micro-Python. 3. Supports multiple interfaces such as GPIO, UART, SPI, I2C, USB, etc., facilitating development and debugging. 4. Built in RISC-V MCU design, supports low-power fast startup, supports 250ms fast capture, and simultaneously loads AI model library, enabling recognition to be completed within 1 second. 5. The onboard 100Mbps Ethernet port has high computational accuracy, and the RV1106G2 chips are equipped with the 4th generation NPU of Mini. Product Introduction: The RV1106 mini LINUX development board is developed based on the micro-RV1106G2 chip, with a 100Mbps Ethernet port and 256MB onboard NAND FLASH memory SD card slot and camera interface. Support NAND FLASH image burning development board to export IOs, including GPIO, UART, SPI, I2C, etc., for developers to quickly develop and debug. The module supports USB recognition and burning image files through a USB data cable. Parameter: 1. Type-C port: power supply port+burning port 2. UART serial port: Connect USB to TTL module for serial port debugging 3. BOOT button: and hold the power button to enter the burning mode 4. Micro-SD card holder: mounting SD card storage 5. SPL Flash Memory: Used for SPI NAND FLASH image burning 6. Camera interface: compatible with SC3336 3MP Camera (A) camera 7. ETH Ethernet interface 8. LED indicator lights 9. MCU: RV1106 (LQFN-128) Battery model: RTC battery with 2-pin cable interface, 1.25mm battery: A:with battery Colour:Photo Color Material:ABS Package Contents: 1X development board 1X double row pin 20PIN Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
