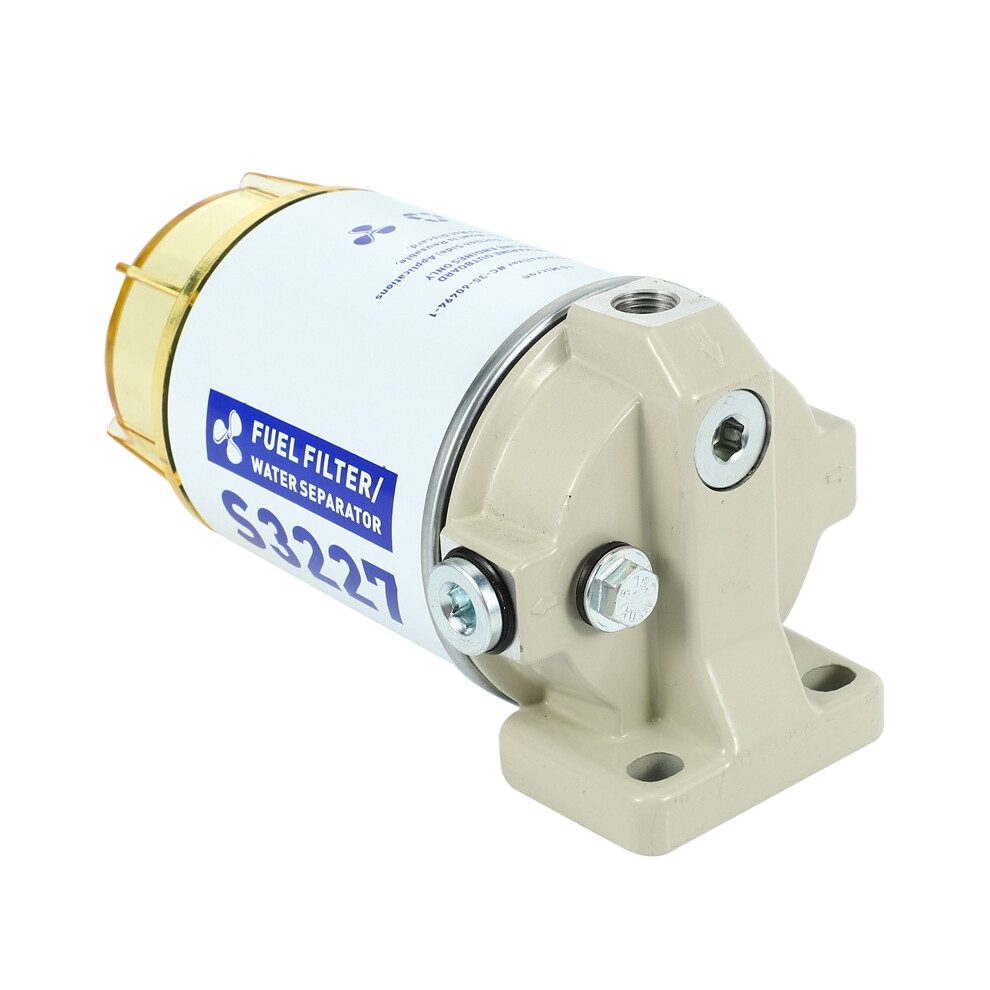

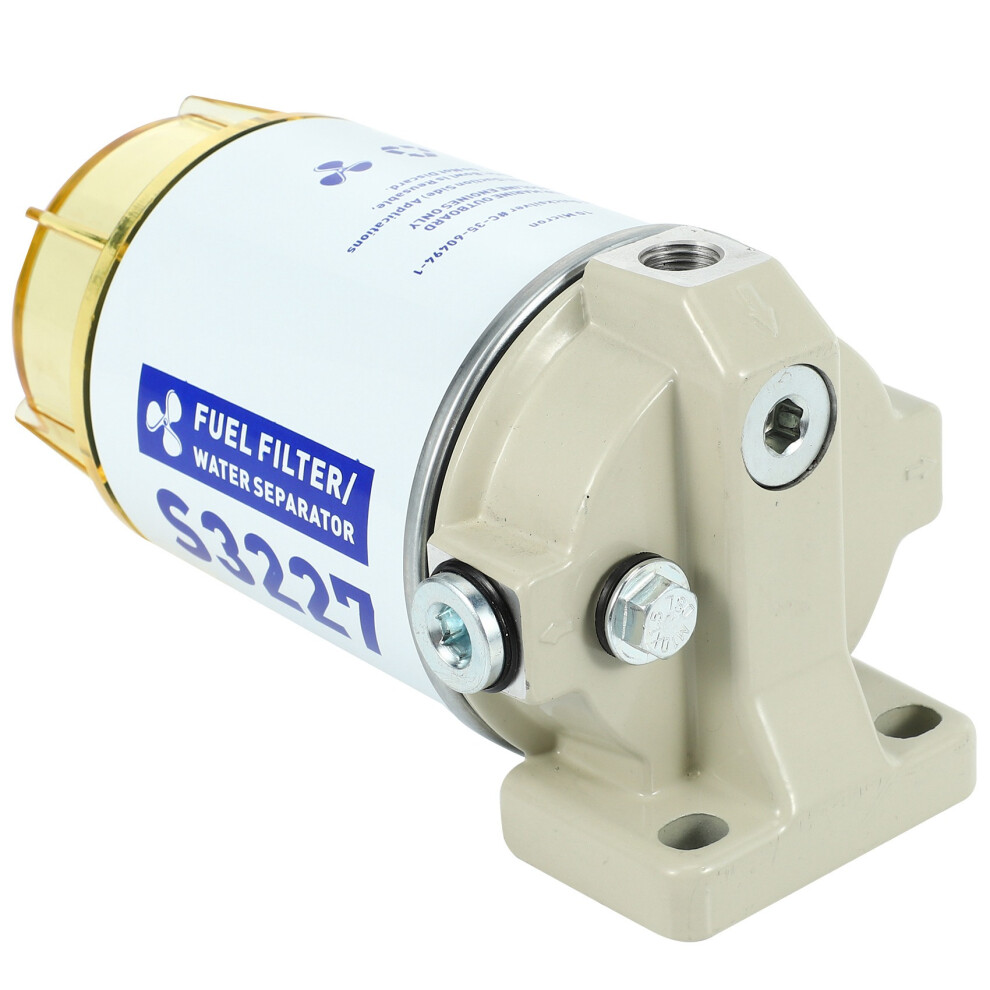

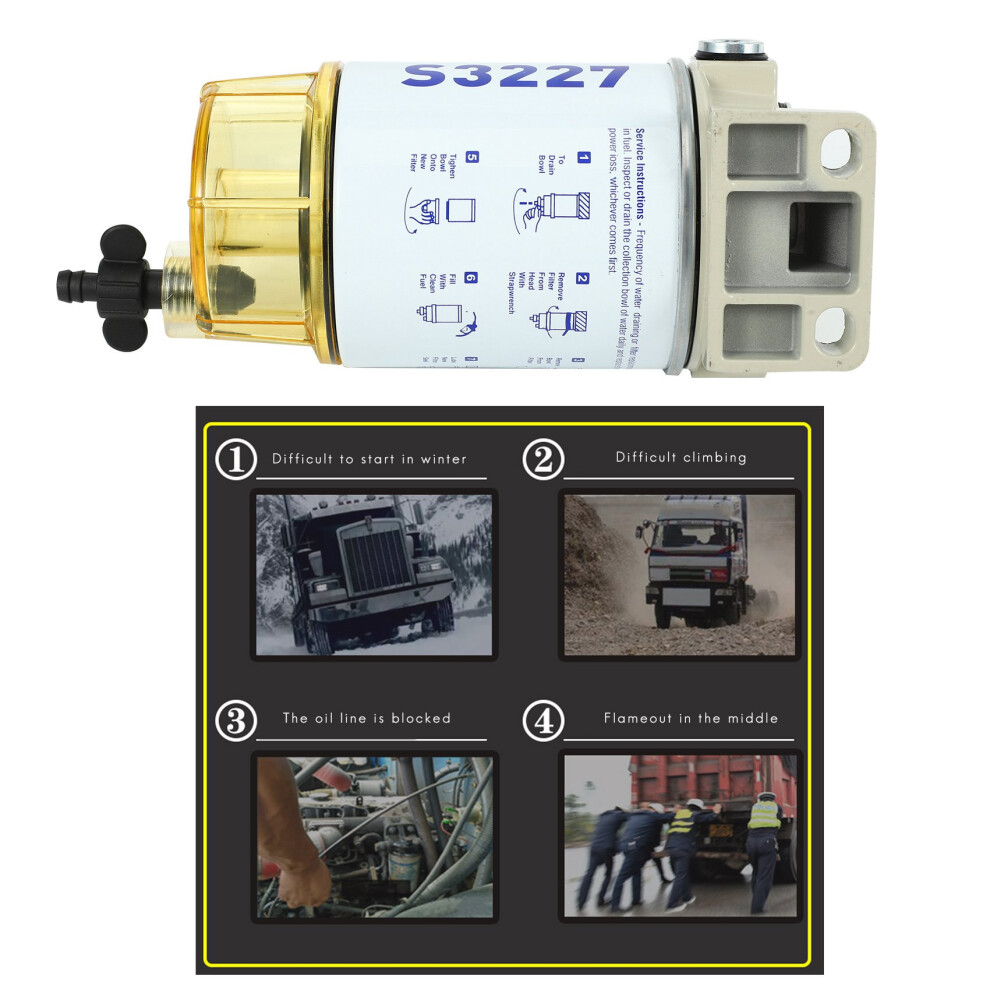

S3227 Outboard Marine Filter Water Separator Assembly Engine

S3227 Outboard Marine Filter Water Separator Assembly Engine Description

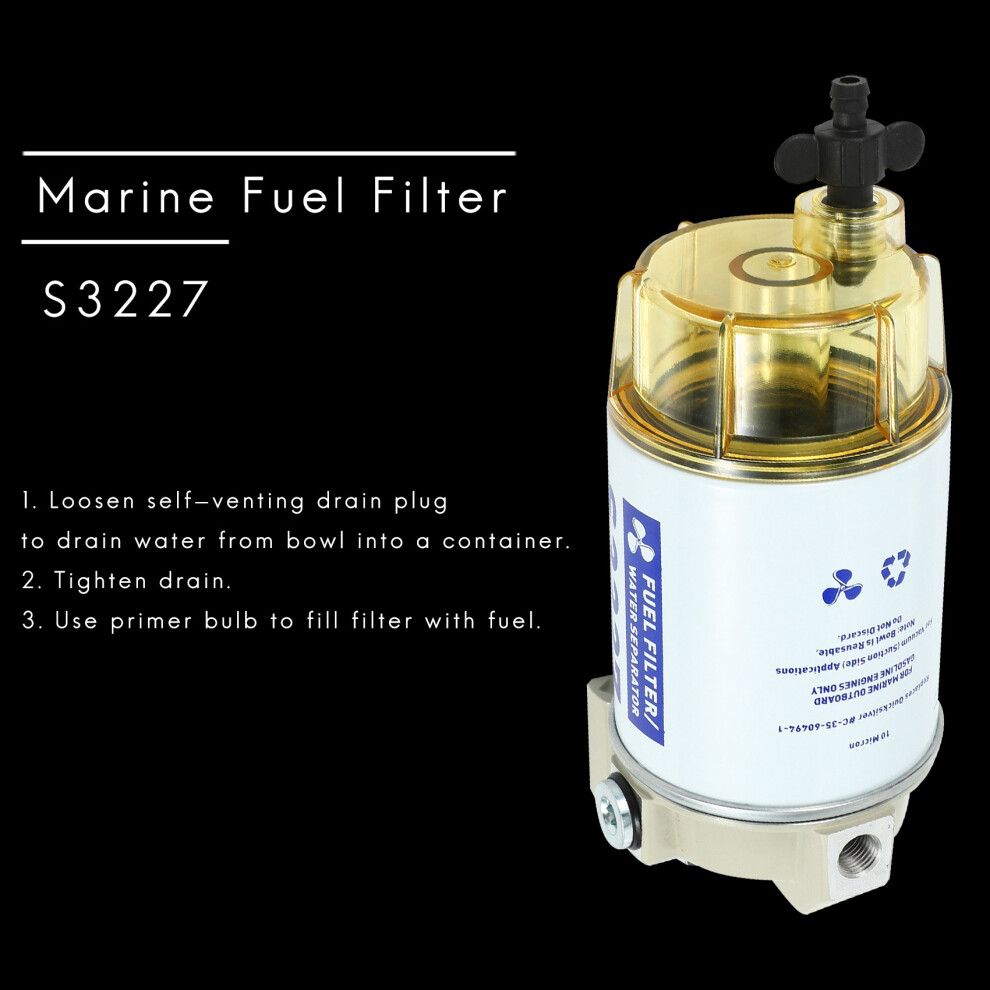

Application: Outboard engine for Mercury speedboats Motorboats, etc. Draining of water or replacement of elements is determined by contamination level of . Inspect bowl for water daily and service as necessary. Replace elements at least once a year or when a decrease of power is noticed. To Drain Water: 1. Loosen self-venting drain plug to drain water from bowl into a container. 2. Tighten drain. 3. Use primer bulb to fill filter with . 4. engine and check there are no leaks. To Replace elements: 1. Loosen self-venting drain plug and drain the elements into a container. 2. Remove filter elements from mounting bracket with bowl connected. 3. Remove bowl from filter elements and clean o-ring gland on bowl. BOWL IS REUSABLE * DO NOT DISCARD. 4. Lubricate o-ring with oil or grease and install on bowl. 5. Install bowl onto new elements, tighten by hand. 6. Lubricate filter top seal with oil or grease. 7. Fill filter/bowl assemble with clean and attach onto mounting bracket, tighten by hand. 8. engine and check to there are no leaks. Model: S3227 Category: Oil-water separator Colour: picture color Material: metal + nylon Size: 10.4*11.4*27.9cm Package Contents: 1 * Water Separator 2 * Screw (with apron) Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
