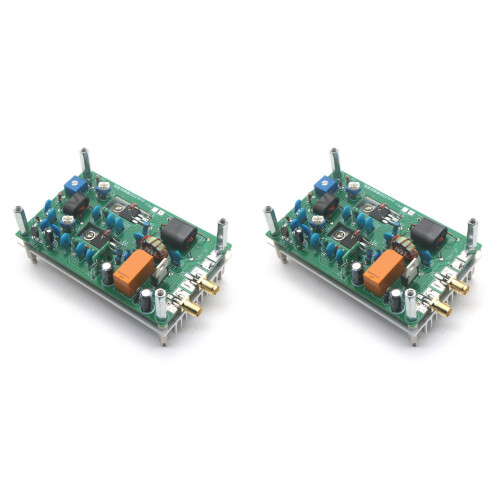

ShortWave Amplifier Board 3-28MHz CW SSB Linear Power Amplifier

ShortWave Amplifier Board 3-28MHz CW SSB Linear Power Amplifier Description

3-28MHz 30W Short Wave Power Amplifier Board CW SSB Linear High Frequency power amplifier
Name: Shortwave Power Amplifier Board
Frequency range: 3-28MHz
Input power: 0.1-3W
Output power: 30W (7MHz) 13.8 volts about 15W when pushed by 0.2W, about 30W when pushed by Frogsong Kit 2.5W

Operating voltage: DC 12-13.8V
Working current: about 6A Max
Switchover mode: Automatic
pcb size: 60x100mm

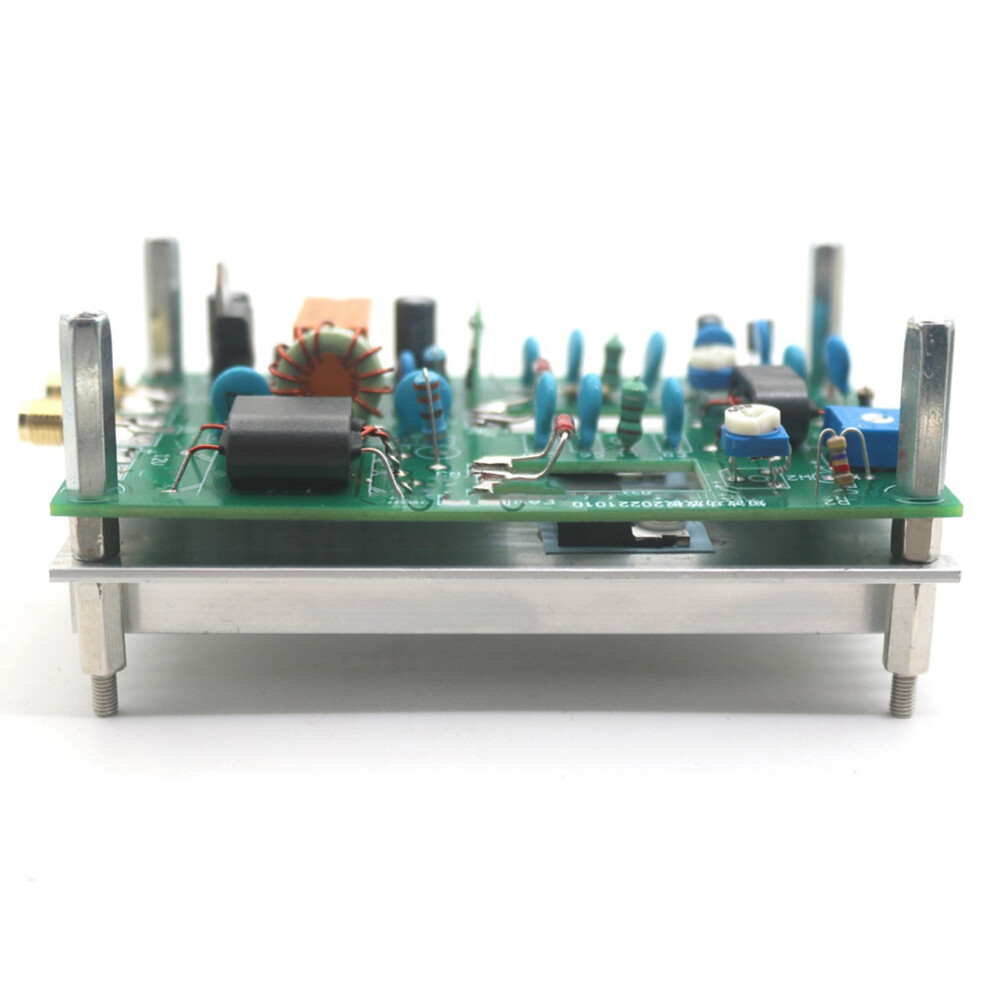

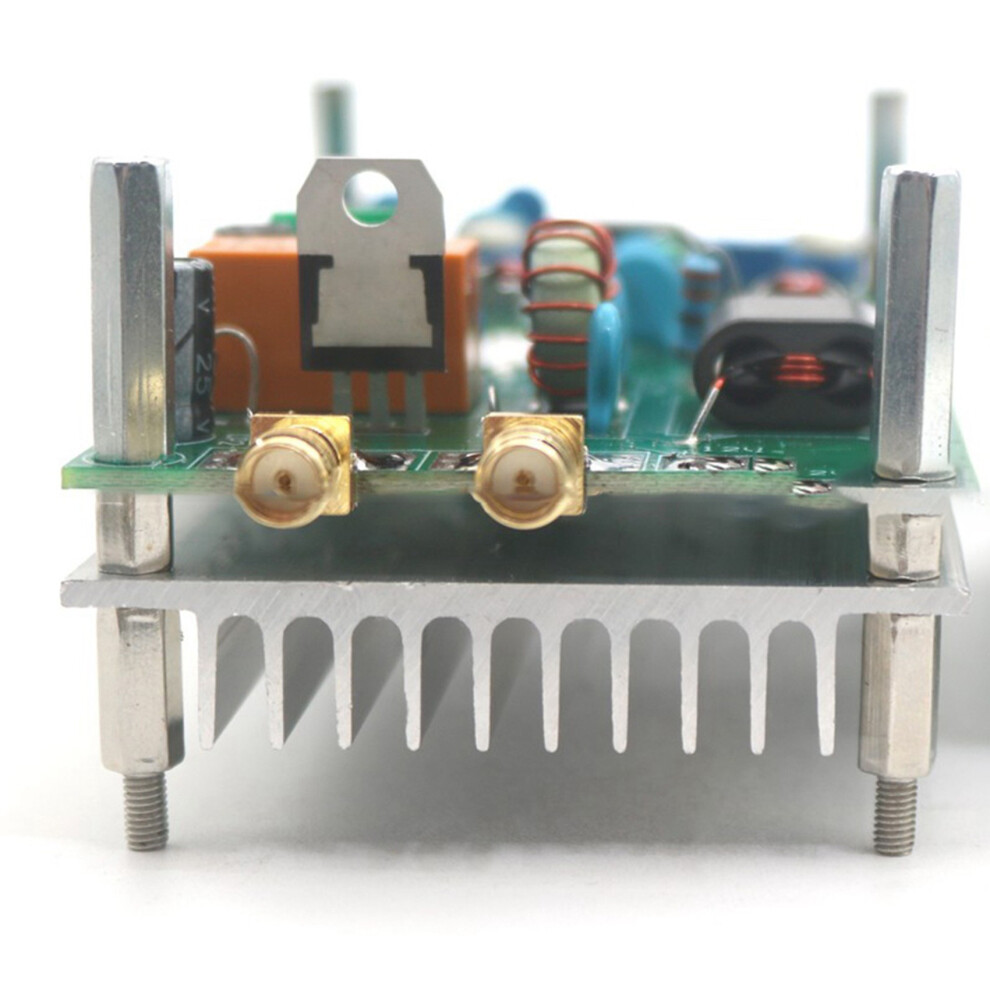

The finished board and parts are equipped with a cooling plate, but the cooling fan is not included. A cooling fan is recommended for daily use.
The power cord can be directly welded to the pad, which can withstand more current.
Colour:As Shown
Material:PCB

Package Contents:

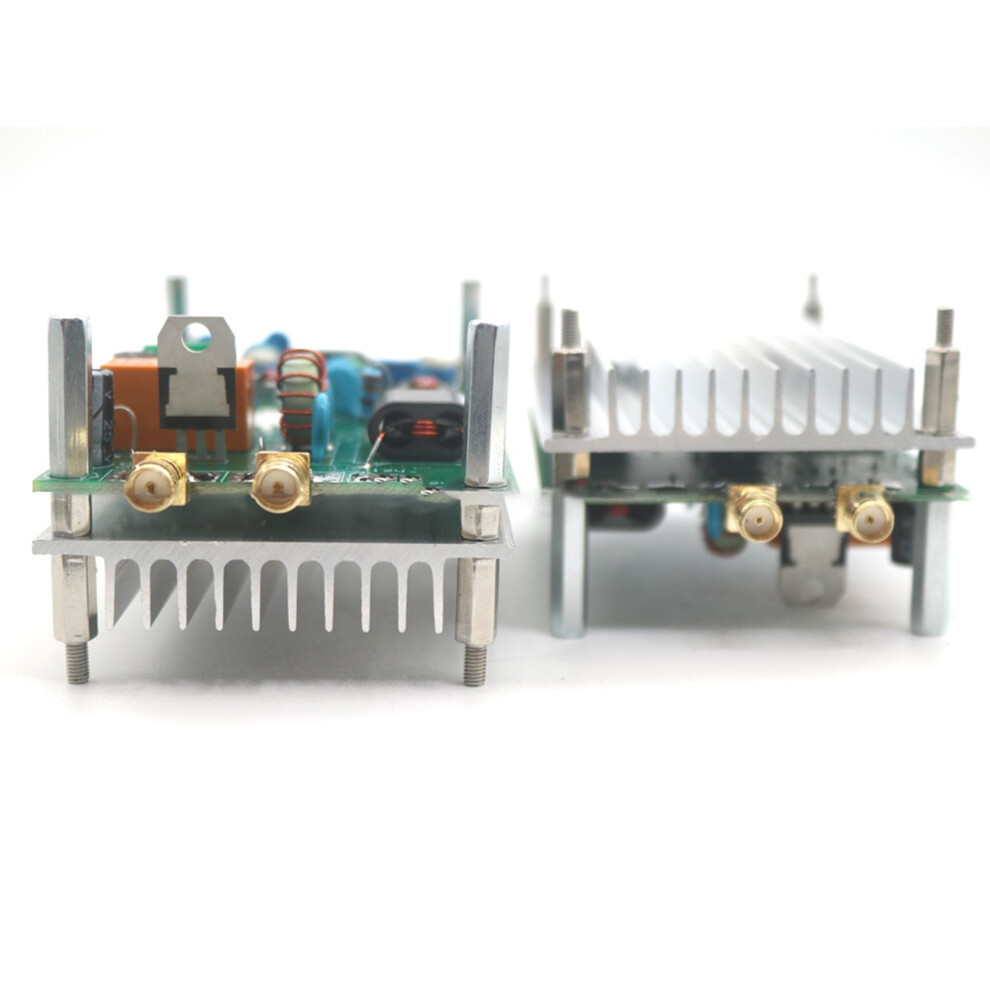

2 x Amplifier Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
