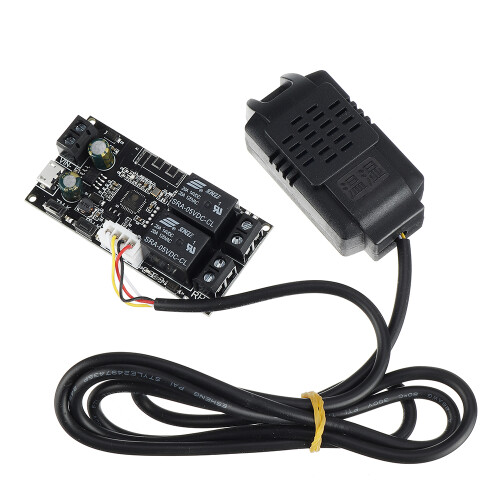

SHT20 Temperature Humidity Remote Controller Module Sensor Wireless WIFI Control Switch

SHT20 Temperature Humidity Remote Controller Module Sensor Wireless WIFI Control Switch Description

Description: XY-WFWT is a digital temperature/humidity controller module with APP Sinilink control. It can be widely used at Smart home,Industrial control,Automatic irrigation,Indoor ventilation.Protection equipment.XY-WFWT temperature and humidity control module high precision double output automatic constant temperature and humidity control panel.XY-WFWT adopts industrial-grade chip with high-precision SHT20 temperature and humidity sensor Features: 1.APP intelligent control and monitoring2.Simultaneous temperature and humidity detection3.Celsius and Fahrenheit display4.Automatic recognition working mode Parameters: 1.Product Name:XY-WFWT Temperature Humidity Remote Controller2.Product Number:XY-WFWT3.Working Voltage:DC 5V/6V~30V4.Control Type:APP Sinilink Control5.Sensor:SHT20 Humidity Temperature sensor6.Temperature range:-20â~60â7.Temperature Control precision:0.1â8.Humidity range:0%-100%RH9.Humidity Control precision:0.1%RH10.Output type:Relay output(It can not output voltage)11.Load: 125V 10A12.Working Temperature range:-40â~85â13.Working Humidity Range:5%-95%RH14.Module Size:64*32*16mm Temperature function: 1.Automatic recognition working mode: XY-WFWT can automatically select the working mode according to the Start Temperature and Stop Temperature.It works in Cooling Mode if Start Temperature is greater than stop temperature. It works in Heating Mode if Start temperature is less than stop temperature. 2.Cooling Mode: Relay turn ON and Red Indicator turn ON and Refrigeration equipment starts working if connect load when Current Temperature is greater than Start Temperature.Relay turn OFF and Red Indicator turn OFF and Refrigeration equipment stops working if connect load when Current Temperature is less than Stop Temperature. 3.Heating mode: Relay turn ON and Red Indicator turn ON and Heating equipment starts working if connect load when Current Temperature is less than Start Temperature.Relay turn OFF and Red Indicator turn OFF and Heating equipment stops working if connect load when Current Temperature is more than Stop Temperature. 4.Set Start/Stop Temperature: User can set Start/Stop Temperature on APP and also can set calibration value. 5.Humidity function: 1.Automatic recognition working mode: XY-WFWT automatically selects the working mode according to the Start Humidity and Stop Humidity.It works in Dehumidification Mode if Start Humidity is greater than Stop Humidity.It works in Humidification Mode if Start Humidity is less than Stop Humidity. 2.Dehumidification Mode: Relay turn ON and Red Indicator turn ON and Dehumidification equipment starts working if connect load when Current Humidity is greater than Start Humidity.Relay turn OFF and Red Indicator turn OFF and Dehumidification equipment stops working if connect load when Current Humidity is less than Stop Humidity. 3.Humidification mode: Relay turn ON and Red Indicator turn ON and Humidification equipment starts working if connect load when Current Humidity is less than Start Humidity.Relay turn OFF and Red Indicator turn OFF and Humidification equipment stops working if connect load when Current Humidity is more than Stop Humidity. 4.Set Start/Stop Humidity: User can set Start/Stop Humidity on APP and also can set calibration value. Use steps: 2 .Connect to right power supply from input terminal.3 .Connect SHT20 Humidity Temperature sensor.4 .Open APP Sinilink and register an account.5 .Click the dot on the right.6 .Select 'Add WiFi Dev'.7 .Input your WIFI name and password from your router and your phone need connect to same WIFI at the same time.8 .Set device name and choose device classification.9 .Start connection.10 .User need to wait patiently when connect for the first time. Please follow the instructions of the APP and try again if the connection is wrong.11 .Select devices 'Sinilink-APP' to connect module.12 .Set parameters after connection succeeded.12.1 .Set temperature unit in Celsius and Fahrenheit.12.2 .Set work mode by Manual Control Mode and Automatic Control Mode. Automatic Control Mode can automatic select Cooling/Heating and Dehumidification/Humidification work mode.12.3 .Set the default work output state.12.4 .Set Start/Stop Temperature and Start/Stop Humidity.12.5 .Set Temperature/Humidity calibration value.12.6 .Set Timer/Delay/Cycle/Self-locking Function for Manual Control Mode.12.7 .Share the device with other users.12.8 .Monitor working status. Application: 1.Control cabinet2.Production workshop3.Hatching aquaculture control4.Printing house5.Aquarium temperature control6.Bedroom Note: 1.It is a relay output mode and cannot be used as a power module. It cannot output voltage. The load needs to be connected to a separate power supply.2.At first time when pairing,phone must be connected to WIFI from router.It is not need connect to WIFI after pairing success.3.Please read use manual and description before use. Package included: 1 x XY-WFWT Temperature Humidity Remote Controller1 x 100cm SHT20 Humidity Temperature sensor
