Simulation Ideal Diode Module 3V-26V 5.5mΩ Low Internal

Simulation Ideal Diode Module 3V-26V 5.5mΩ Low Internal Description

Features:
This XL0401 Ideal Diode Module offer low voltages drops of approximately 53mv, minimizing heat generation and enhancing efficiency compared to standard diodes, making it for high current applications with its low internal resistance MOSs design.
Featuring 15x12.8x3.4mm, this module supports wide voltages ranges of 3V to 26V and handles up to 15A current with proper cooling, utilizing 5.5mΩ low resistance MOSs for superior performances in demanding circuits.
for electronics engineers, industrial controls systems designers, and developers seeking high current stability and efficient power management in their projects, ensuring optimal performances for applications.
for scenarios like anti backflow protections in power supplies, compact electronic assemblies, and systems requiring long operations such as communication equipment or servers, where efficient diode rectifier functionality.
Optimize your circuit designs with this advanced module, which emphasizes thermal management to maintain consistent low voltages drops under high loads, ideal for enhancing overall systems reliability and energy efficiency.

Specifications:
Materials: PCB

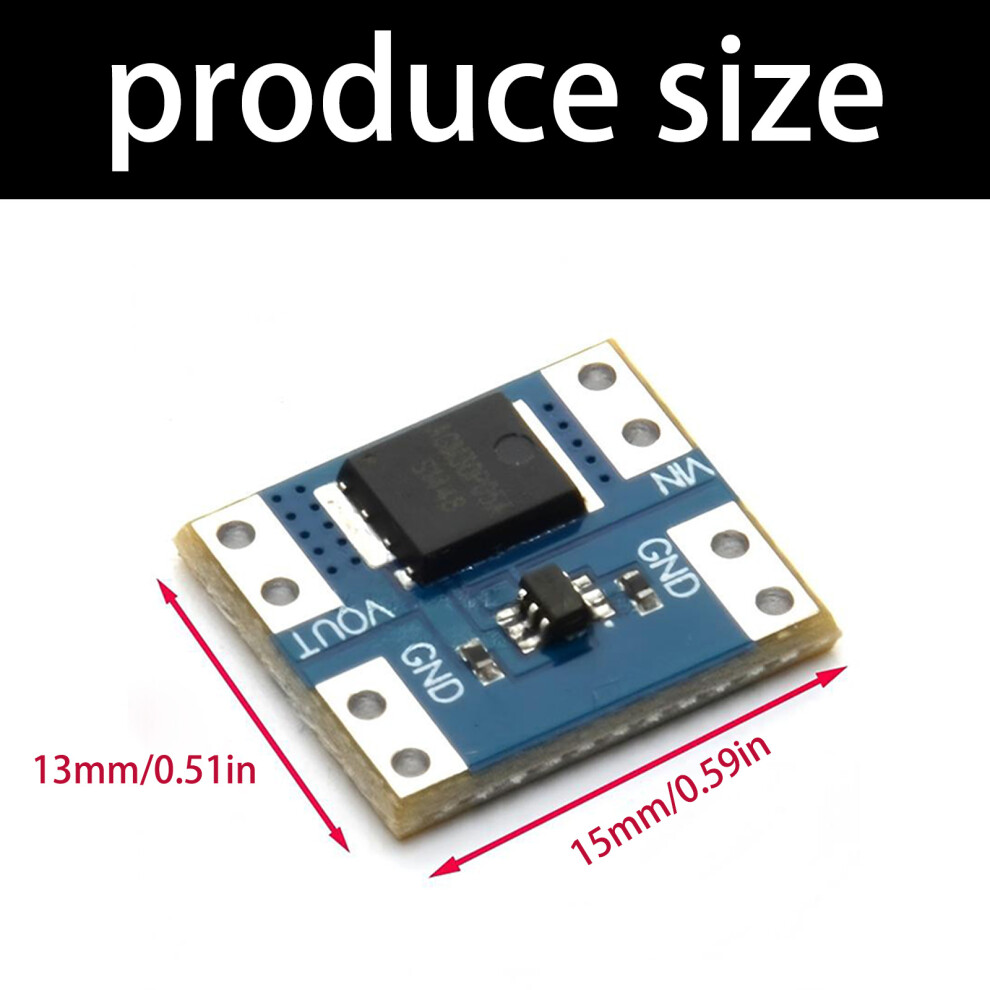

Size: 15x12.8x3.4mm
Working voltages: 3V-26V
Working current: 12V
Quiescents current: 130uA (12V not load)
Internal resistance: 5.5mΩ
Minimum voltages drops: about 53mV

Package Includes:
1PC XL0401 Analog Ideal Diode Module

note:
Please allow 0-1cm error due to manual measurement. make sure you not mind before bid.
Due to the differences between different monitors, the Pictures may not reflect the actual of the item.
