STC-100A Temperature Controller Cool Heat Refrigerator Thermostat Regulator Thermoregulator Thermocouple Sensor,AC 220V

STC-100A Temperature Controller Cool Heat Refrigerator Thermostat Regulator Thermoregulator Thermocouple Sensor,AC 220V Description

1.Two modes: the modes between heating and refrigerating.
2.Control temperature by setting the temperature setting value and the difference value.
3.Temperature calibration,refrigerating control output delay protection;
4.Alarm when temperature exceeds temperature limit or when sensor error.
5.High accuracy of temperature measurement and clear temperature value.

1.This controller is suitable for temperature control of the middle and low temperature cold storage or heating equipment.
2.High accuracy of temperature measurement,clear temperature value and more convenient observation.

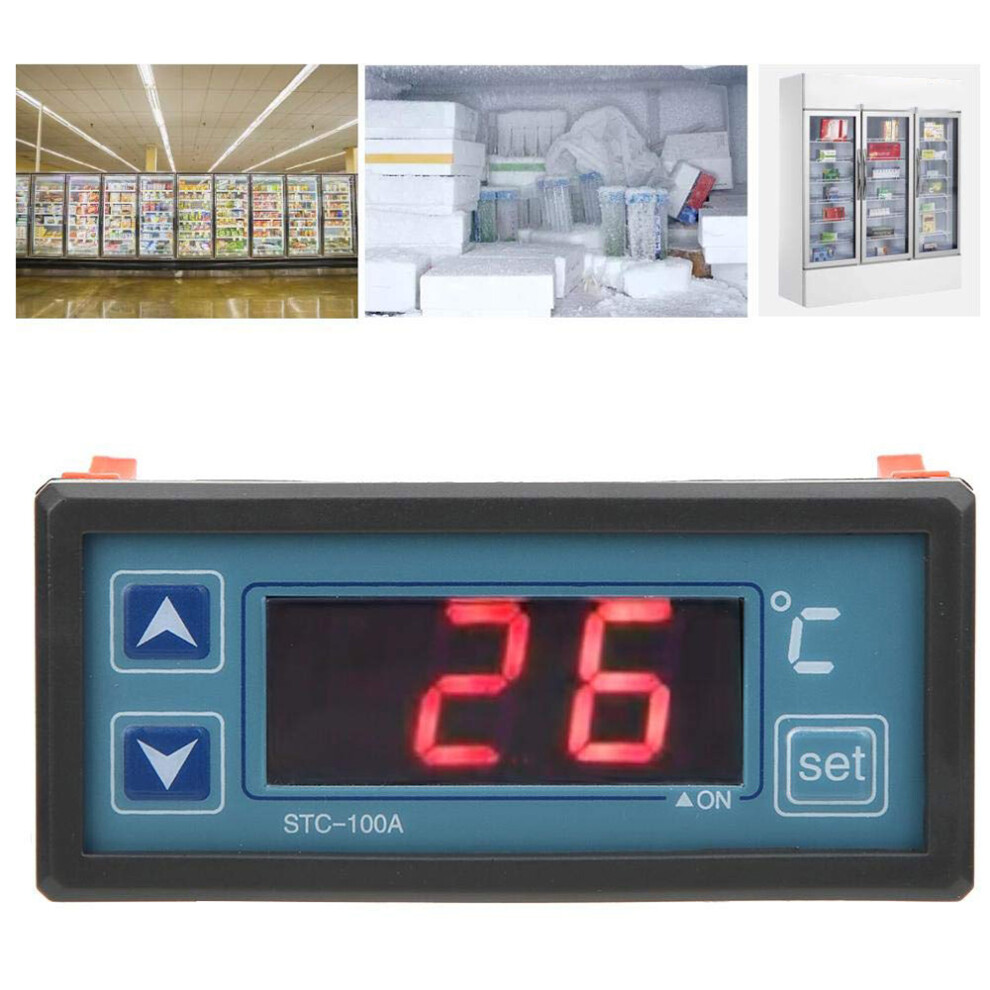

3.Can be used for domestic freezer, water tanks, refrigerator,industrial chiller, steamer, industrial equipment and other temperature control applications.
specification
Model:STC-100A
Relay capacity:10A(0.5HP)/220VAC
Temperature measure range: -40~99C
Temperature controlling range: -40~99C
Resolution: 1C
Accuracy: 1 C0.5digit
Ambient requirements: temperature: 0-60C humidity: 20%-85%(No condensate)
Consumption:3W

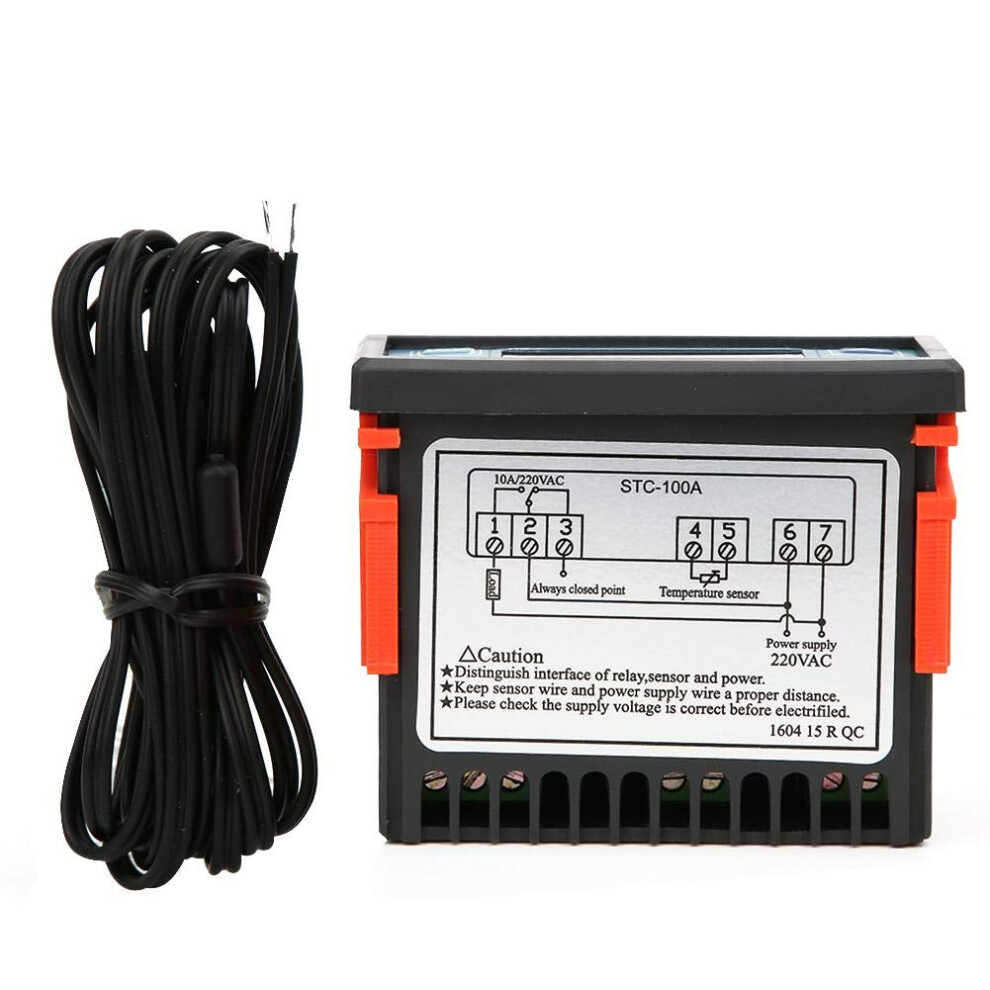

Input: 1 NTC sensor
Sensor lenth:2M(include the probe)
Delay when sensor error:1 min
Safe level of the front panel:IP54
Storage temperature:-30C - 75C

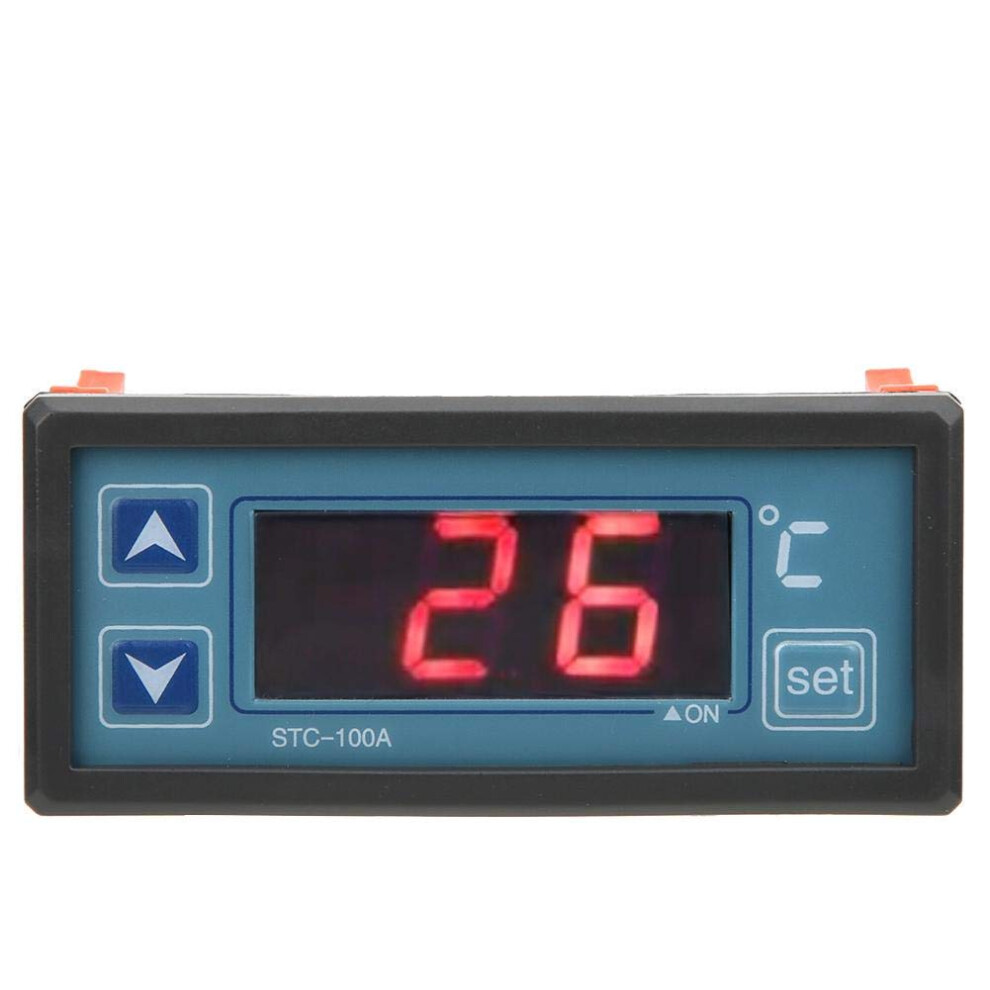

Front Panel Size:77(L)x34.5(W)mm/3x1.35in
Installing hole Size:71(L)x29(W)mm
Item size:77(L)x34.5(W)x62mm(D)/3x1.35x2.42in
Colour: Black
material: plastic

Package Contents:1 x Temperature Controller
