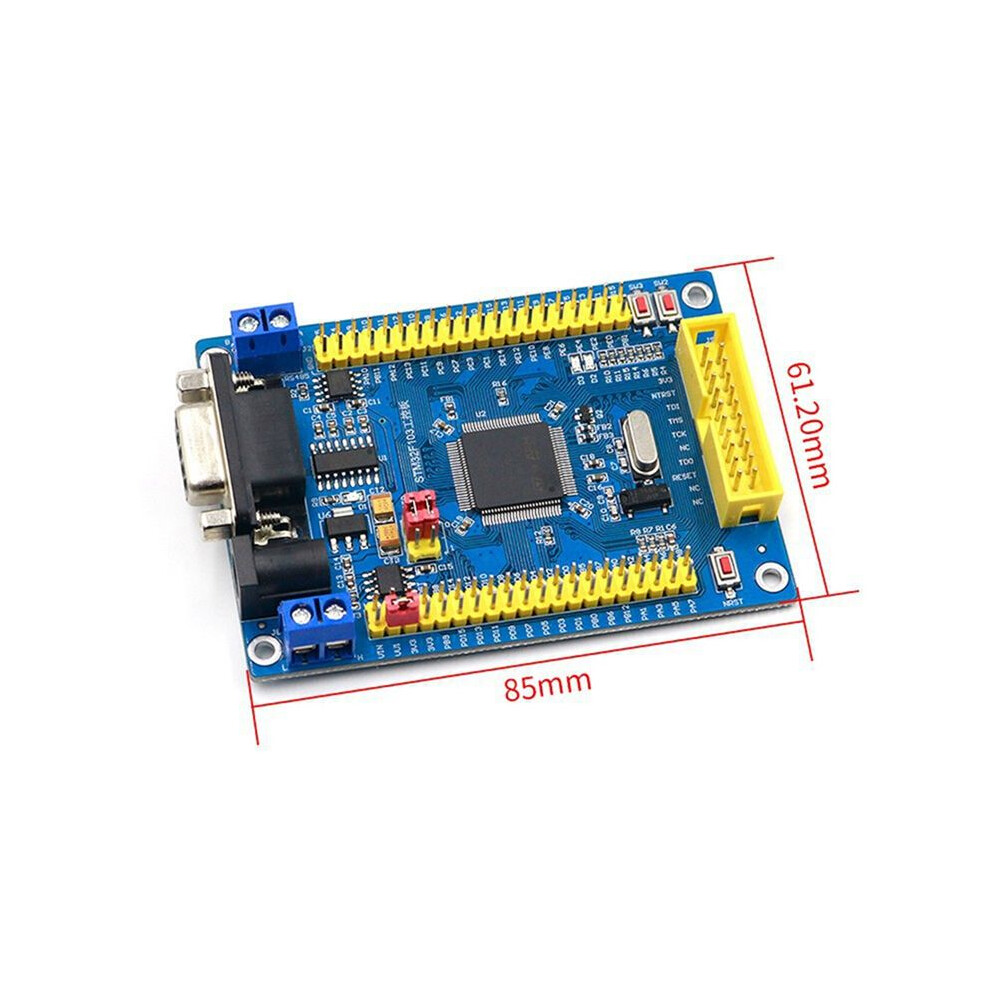

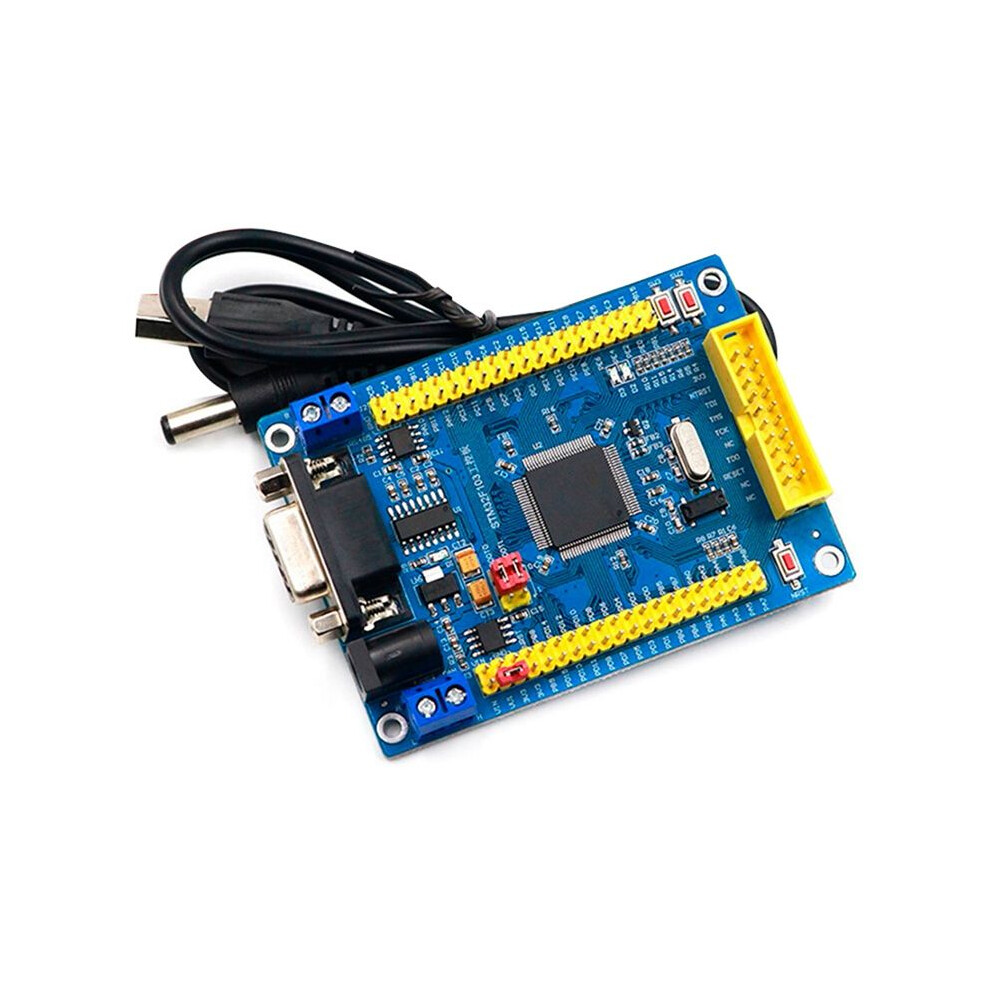

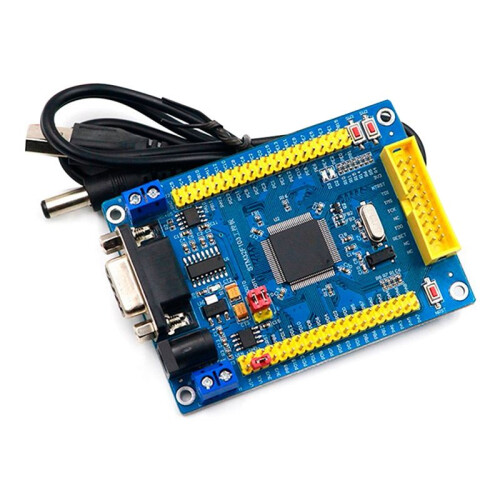

STM32 Development Board CAN RS485 STM32F103VET6 Minimum System for ARM MCU Learning

STM32 Development Board CAN RS485 STM32F103VET6 Minimum System for ARM MCU Learning Description

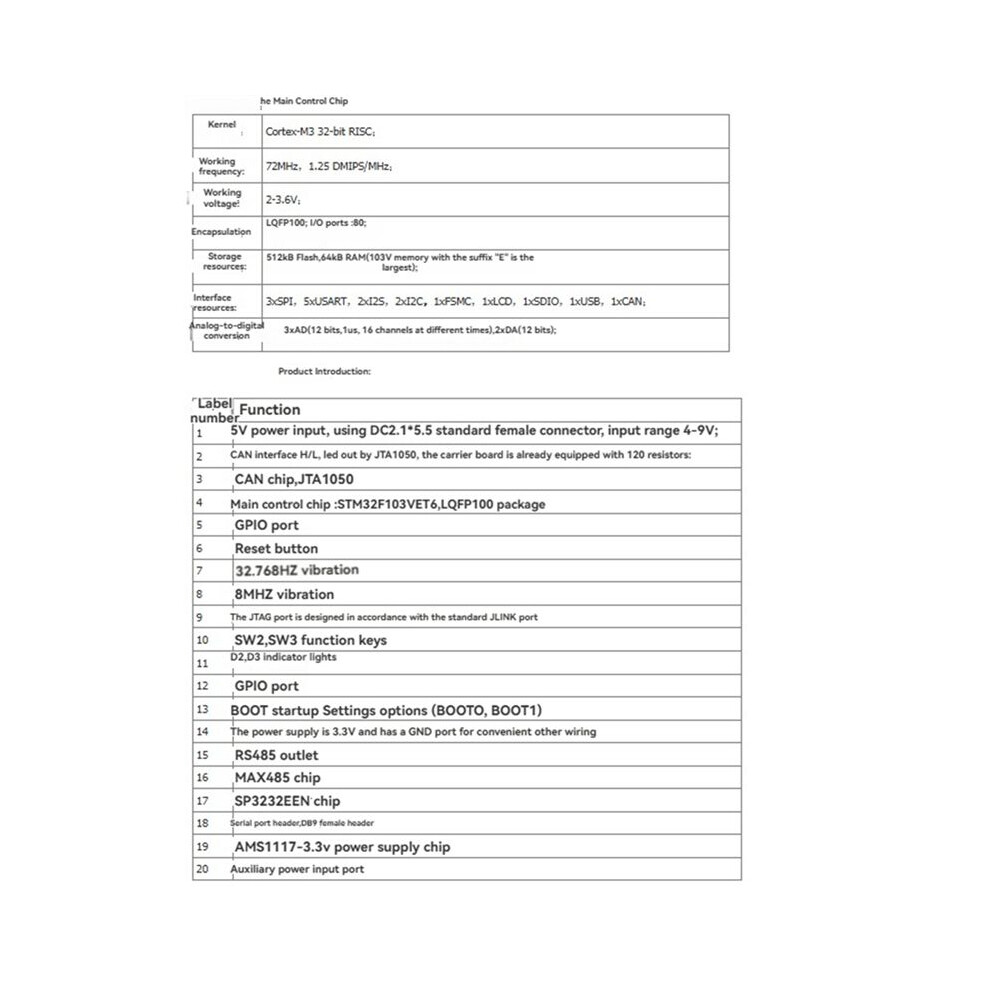

Introduction of main control chip:
Inner core: -M332-BITRISC;
Working frequency: 72MHz, 1.25 DMIPS/MHz;
Working voltage: 2-3.6V;
Packaging: LQFP100; I/O ports: 80;

Storage resources: 512kB Flash, 64kB RAM(103V memory with e suffix is the largest);
Interface resources: 3xSPI, 5xUSART, 2xI2S, 2xI2C, 1xFSMC, 1xLCD, 1xSDIO, 1xUSB, 1xCAN;
Analog-to-digital conversion: 3xAD(12 bits, 1us, time-sharing 16 channels), 2xDA(12 bits);
5V power input, using DC2.1 * 5.5 standard female head, input range of 4-9V;
CAN interface , led out by JTA1050, and the carrier board has been equipped with 120 resistors;
Main control chip: STM32F103VET6, LQFP100 package;
CAN chip, JTA1050;
JTAG port, designed according to standard port.
BOOT startup setting options (BOOT0, BOOT1)
Power supply 3.3V, GND outlet, convenient for other wiring.
Color: Blue & Yellow
Material: PCB+Metal

Package Contents:
1 * Development board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
