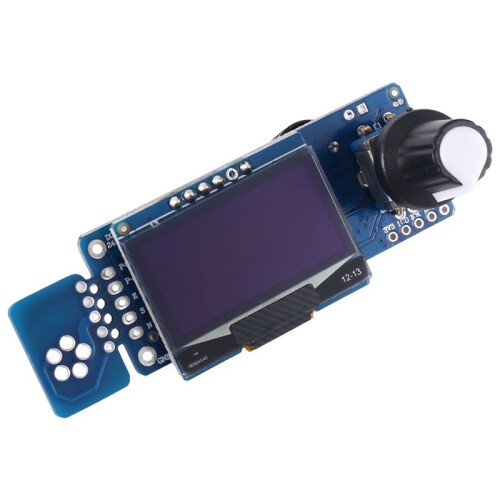

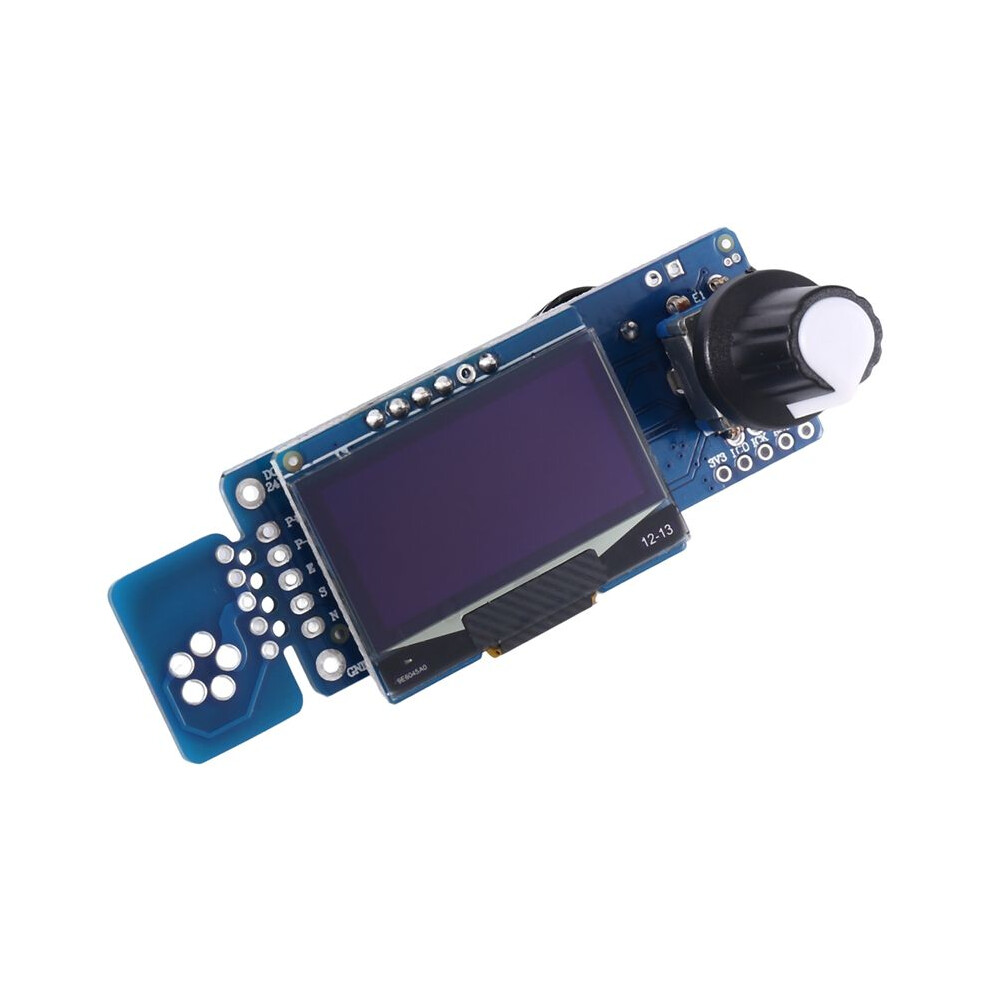

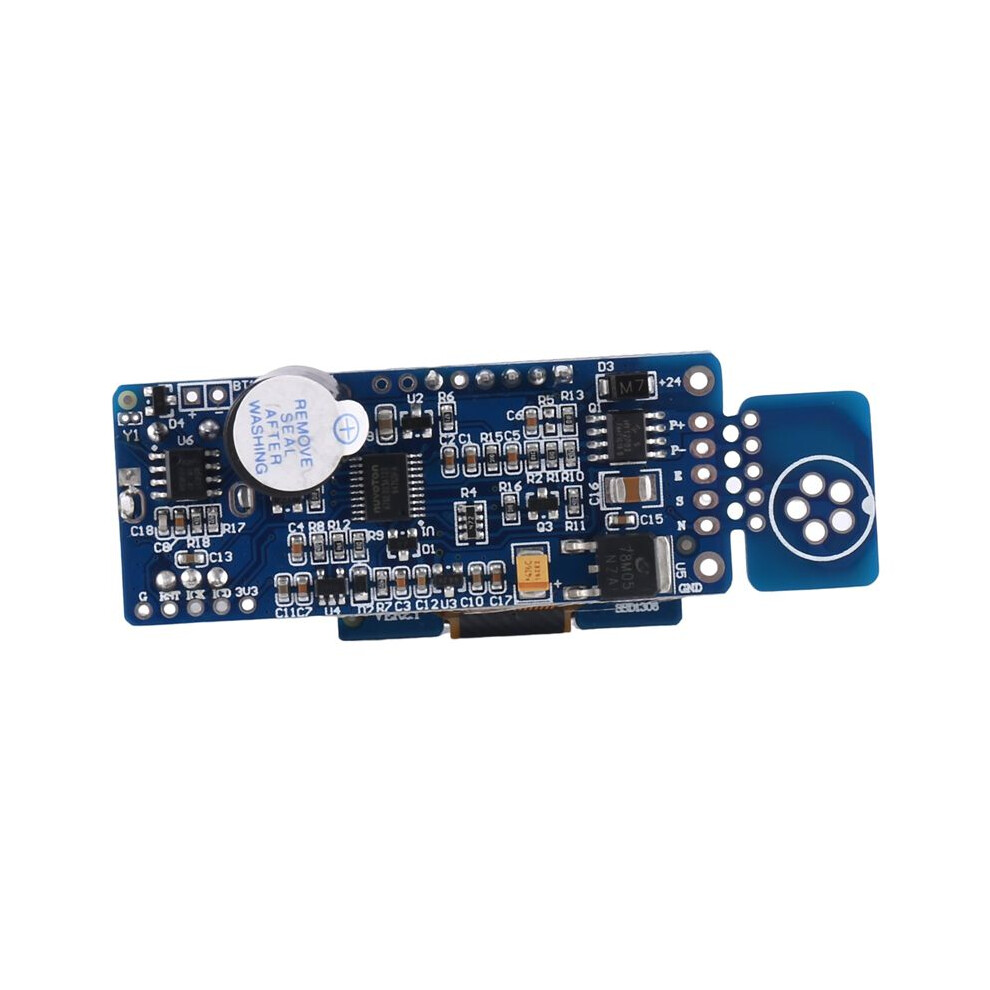

T12 OLED Digital Soldering Iron Station Temperature Controller Board LCD Display Panel for HAKKO

T12 OLED Digital Soldering Iron Station Temperature Controller Board LCD Display Panel for HAKKO Description

The controller board Words with English Display ,5 seconds fast tin, excellent workmanship, quality and stability, strong power, freely adjust the sleep to 30 minutes, black brushed aluminum casing, black acrylic panels, beautiful appearance, large joints is no longer a problem
Temperature setting range: 150-480 degree, the actual temperature can be 500 degrees
Sleep 1-30 minutes freely adjust
SIZE:Length:60mm Wide:27mm
Special note: OLED soldering station a new heater installed being given issue beeps, it does not matter two or three minutes like a new heater will have a process of adaptation, with the aged or used are not new heater temperature is within 5 degrees of beating is normal. After beating aging will be within 1 degree

Basic operation
1: Normal mode, the rotary encoder to adjust the temperature, slow turn, every 1 degree grid, fast forward 5 degrees per division.
2: Under normal mode,short-press the encoder to enter dormancy, any encoder operation quit ,if the vibration mode is enabled, then the vibration handle to exit Hibernation.
3: normal mode, double-click the encoder to enter the enhanced mode, any action the encoder exits.
4: In sleep mode, press the Mid-button off, power again or press the power button.
5: normal mode, press the encoder to enter the menu setting mode.
6: a long without entering sleep mode, if not longer into shutdown mode, the two times can be set to enter the menu.
Colour:As Shown
Material:PC+metal

Package Contents:
1 x Controller Board
