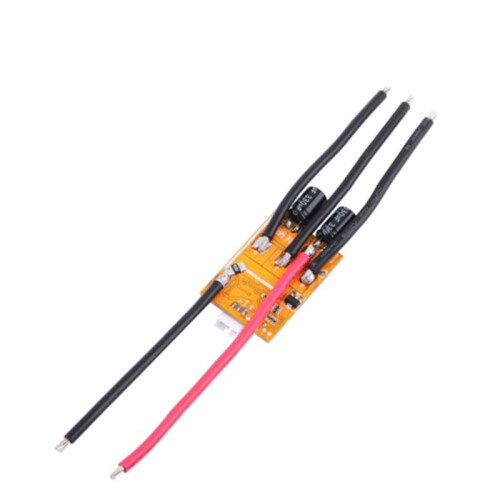

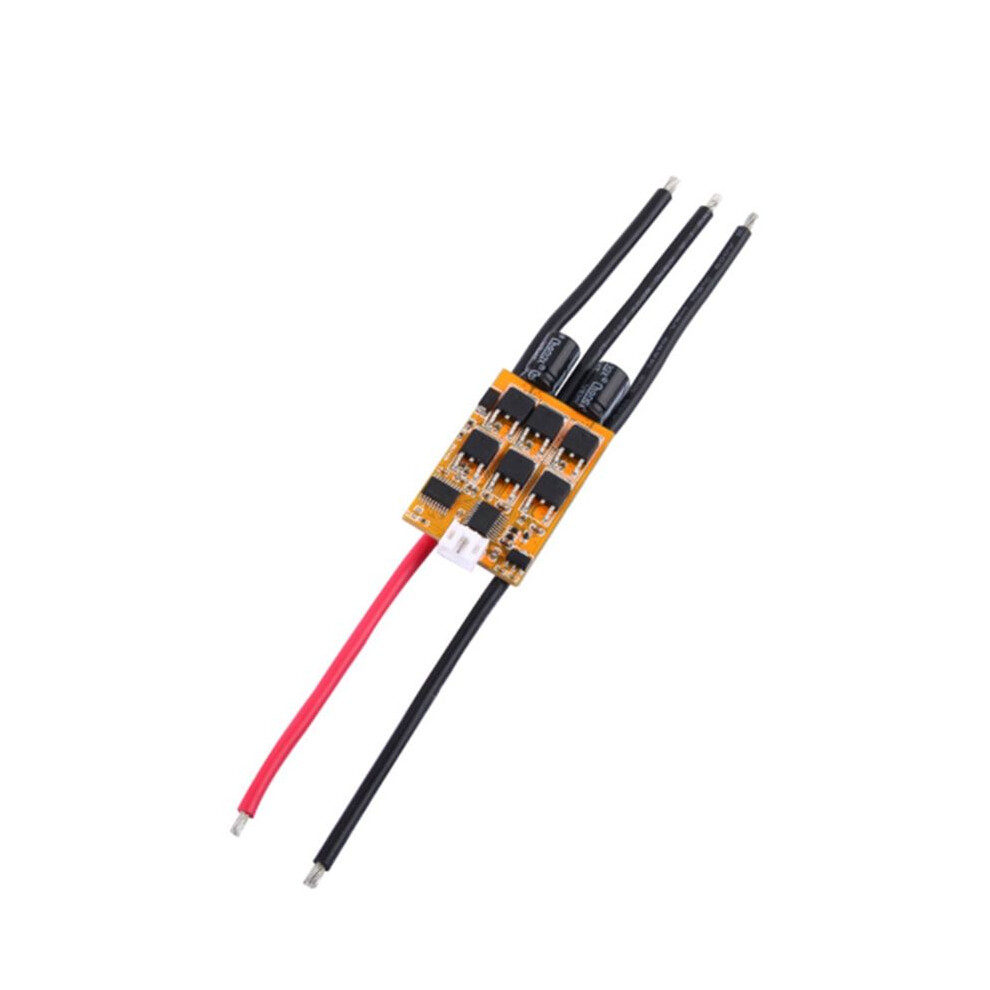

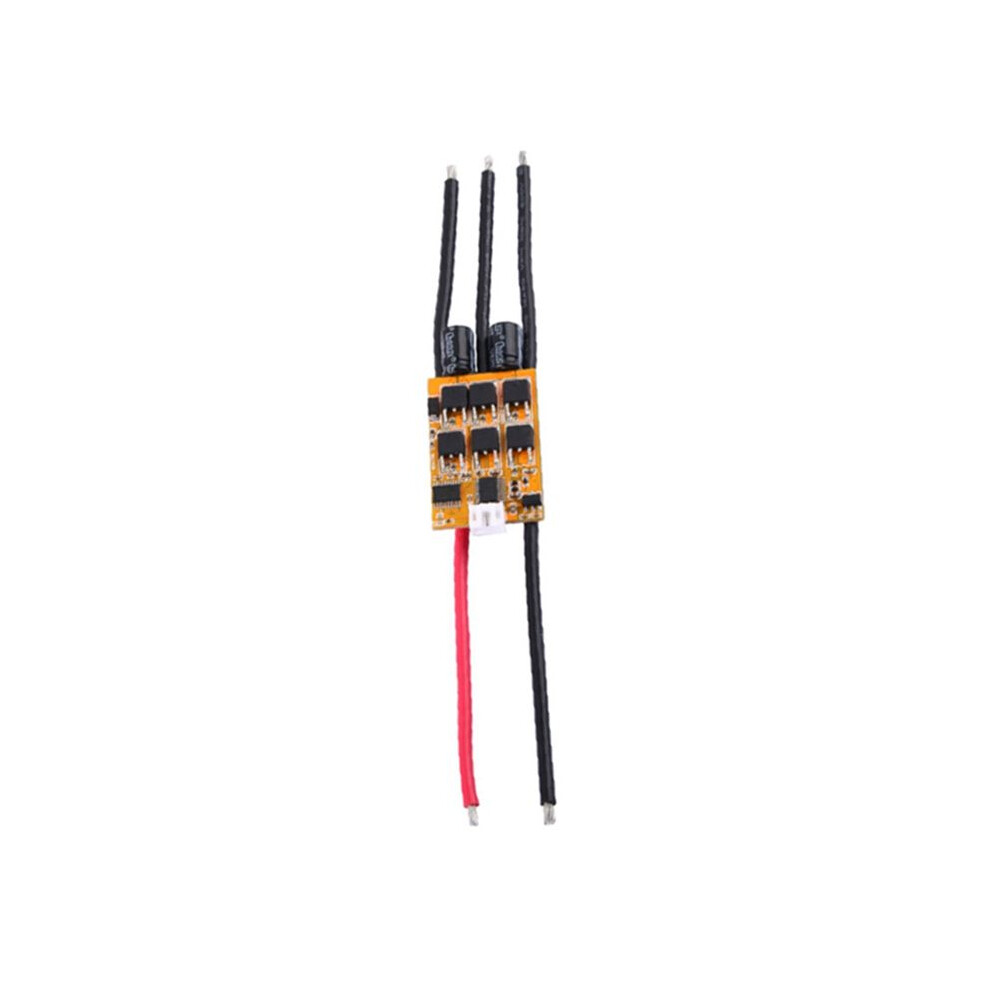

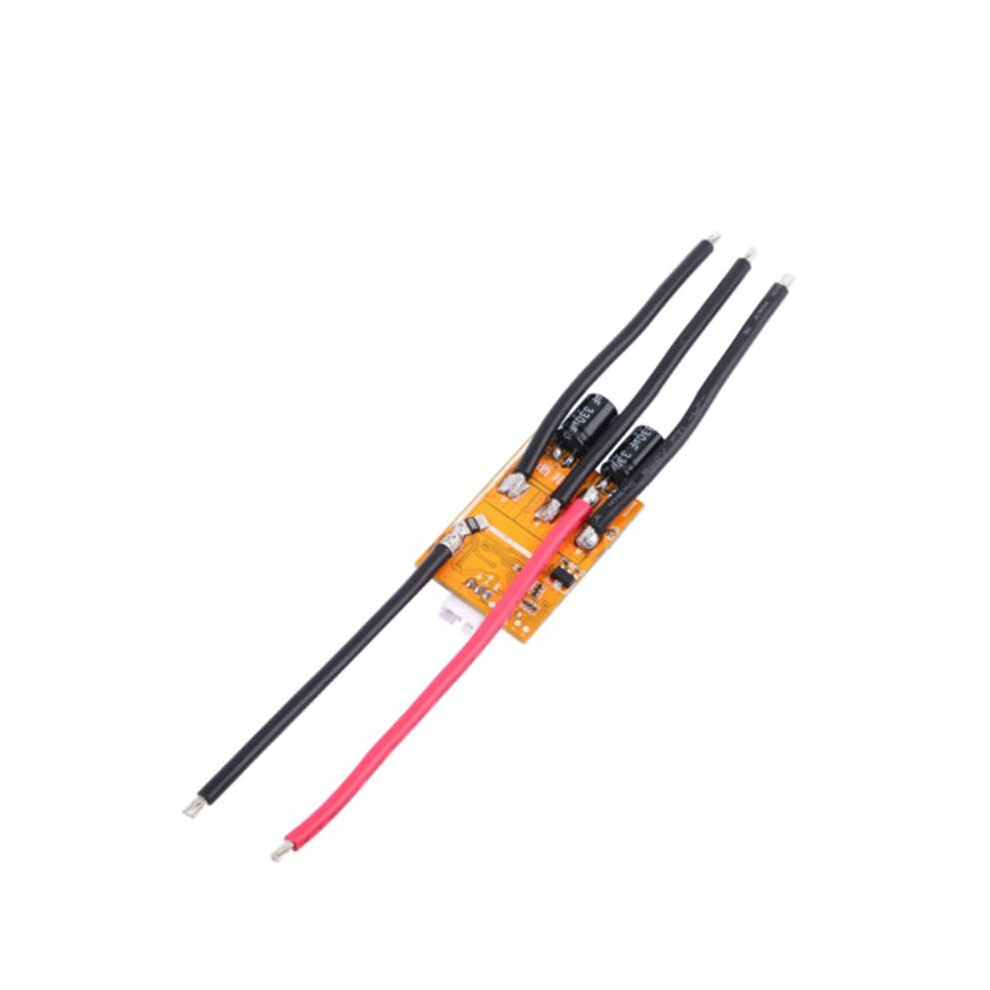

Three-Phase Brushless and Hall-Free DC Motor Contr

Three-Phase Brushless and Hall-Free DC Motor Contr Description

ESC is developed and designed for all kinds of industrial control electric tools such as air pump, water pump, oil pump, fan using DC three-phase brushless motor, default in the angle of high current work for a long time, it is recommended to add fan cooling indeed with overheating protection, when the ESC external heat dissipation conditions are poor resulting in temperature over 100 degrees automatically reduce power, the temperature drops to 100 degrees to restore normal.

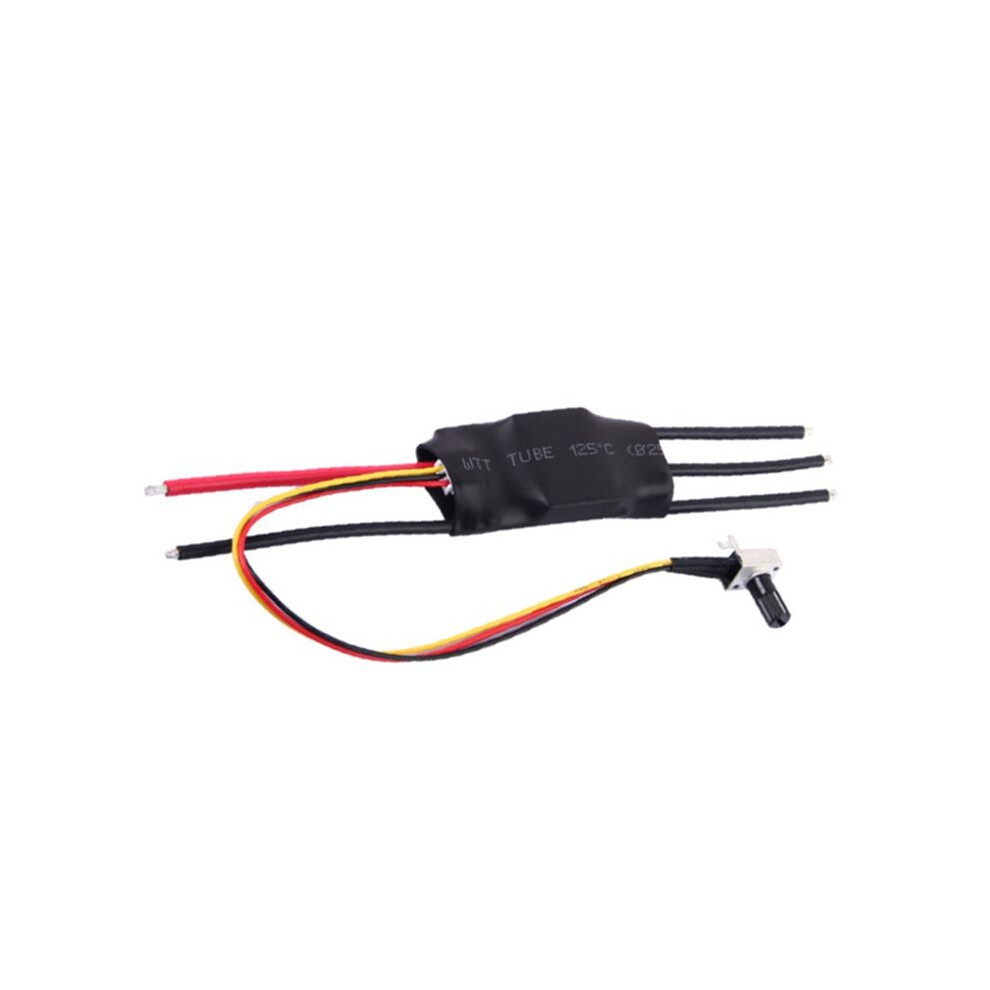

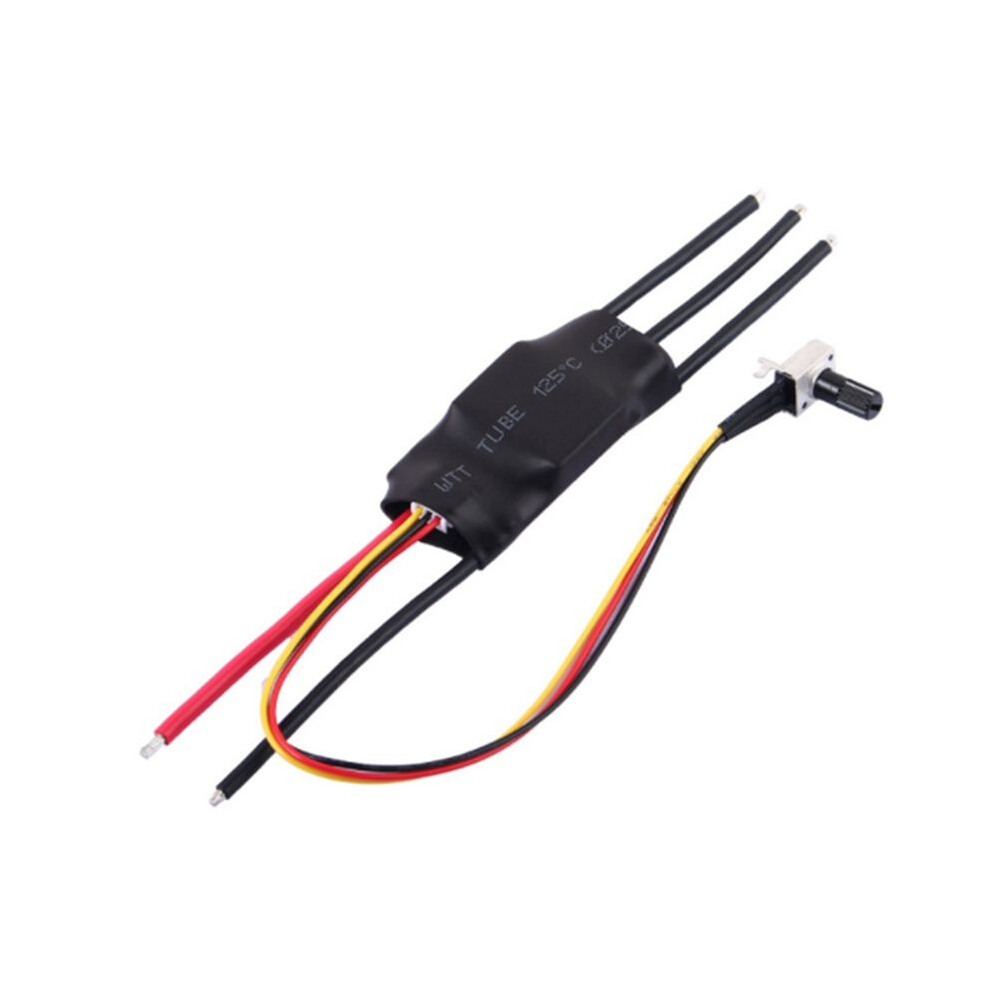

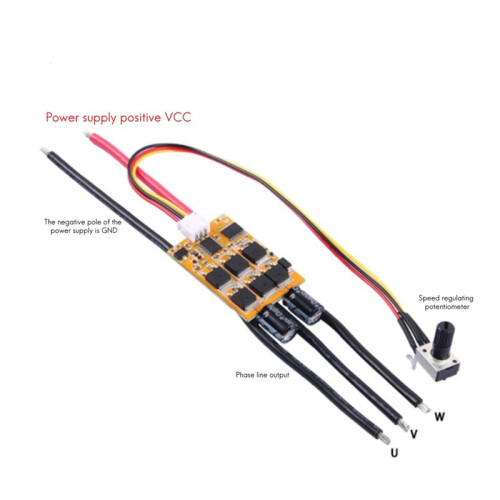

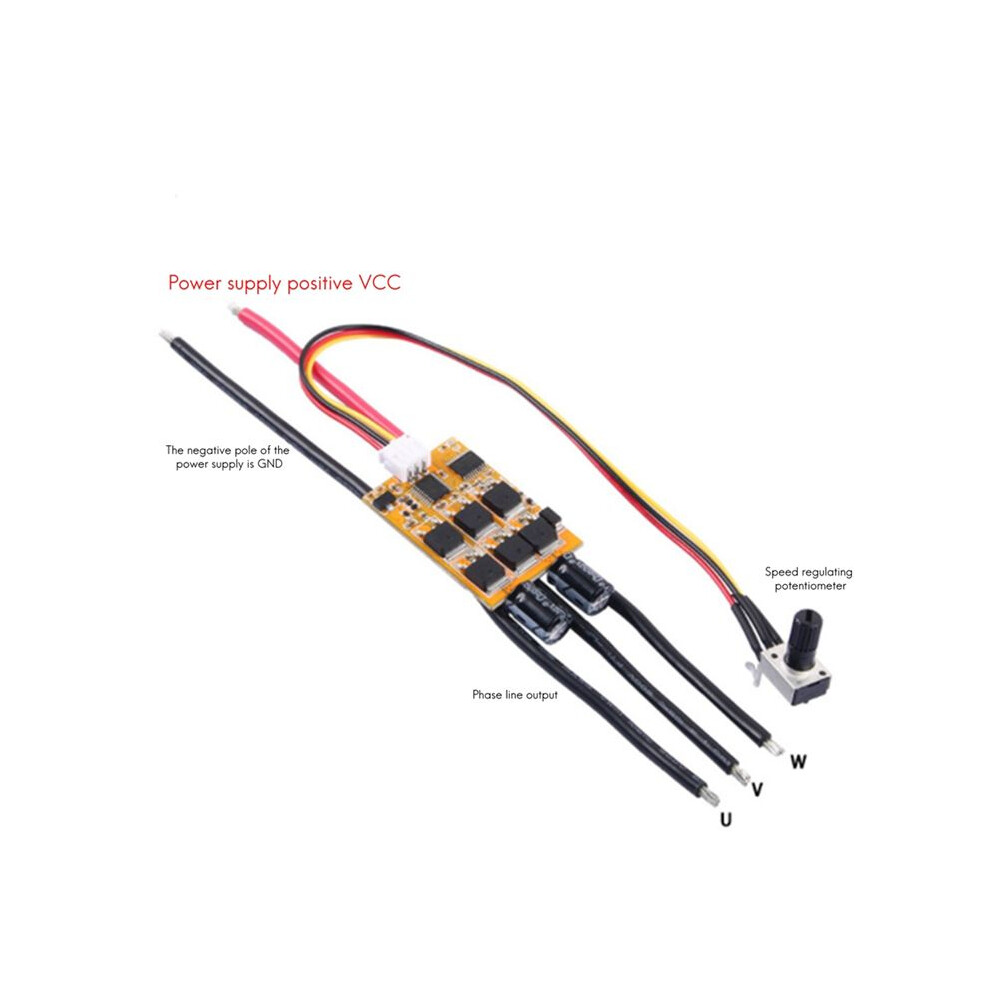

The new BLDC wide voltage 7-24V high power small volume potentiometer speed control brushless without Hall controller, support PLC 0-5V touch volume signal speed control.

Product name: three-phase DC brushless without Hall drive
Operating voltage: 6.5-24V
Drive current: rated 12A plus fan cooling to 20A
Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor)
Colour:As Shown
Material:ABS

Package Contents:
1 x DC motor controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
