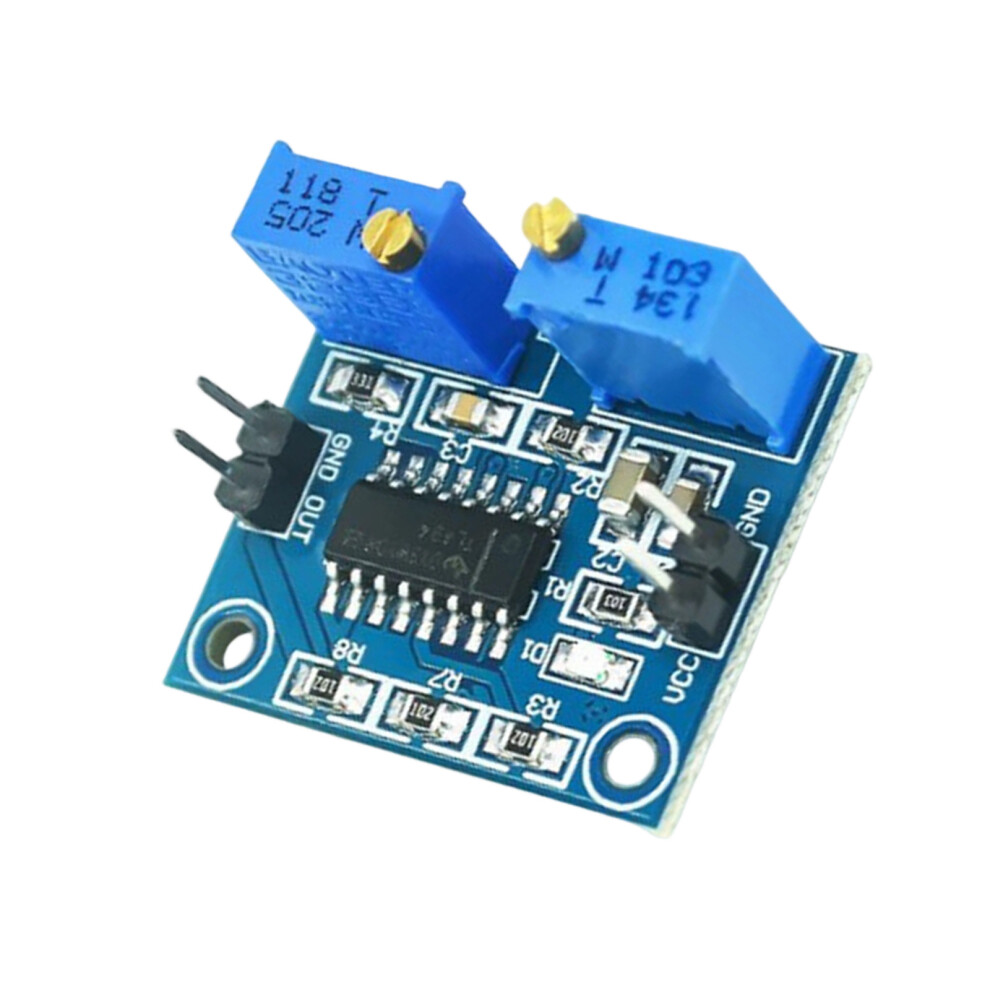

TL494 PWM Controller Module Adjustable Waveform Generator 5V-1
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 23rd - Mon 29th Jun
Returns: 30 days
180-day payment protection
Summary
- Built with TL494 control chip for low power consumption and high stability, operating within 0-70°C for long term industrial control applications
- Features potentiometers for adjusting frequency (500Hz 100kHz) and duty cycle (up to 96%), enabling customized waveform output for diverse circuit needs
- Ideal for motor speed control, switcher power supply drives, LED dimming, inverter circuits, and generators, serving as a practical tool for electronics development
- Supports stable 7V-40V input with 5V output, delivering 250mA current for transmission and strong driving capability
- Measures only 26×23mm with mounting holes, designed for seamless embedding into space limited projects or industrial circuits
TL494 PWM Controller Module Adjustable Waveform Generator 5V-1 Description
Features:
Features potentiometers for adjusting frequency (500Hz 100kHz) and duty cycle (up to 96%), enabling customized waveform output for diverse circuit needs.
Supports stable 7V-40V input with 5V output, delivering 250mA current for transmission and strong driving capability.
Built with TL494 control chip for low power consumption and high stability, operating within 0-70C for long term industrial control applications.
Measures only 2623mm with mounting holes, designed for seamless embedding into space limited projects or industrial circuits.
Ideal for motor speed control, switcher power supply drives, LED dimming, inverter circuits, and generators, serving as a practical tool for electronics development.
Specifications:
Component:ABS
Size:Approx. 26x23mm/
Working: 7V-40V (limit 42V).
Output current: 250mA.
Frequency adjustment: 500Hz-100kHz.
Duty cycle adjustment: 0-96%
Package Includes:
1Pc TL494 controller
note:
1.Please allow 1-2cm errors due to manual measurement, making sure that you not mind before order.
2.Due to the differences between different monitors, the picture may not reflect the actual of the item.
