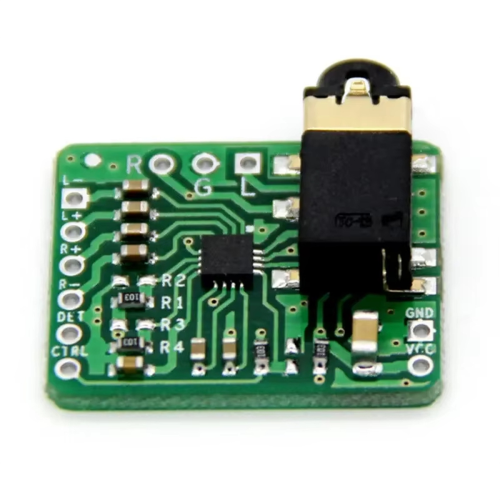

TPA6132 Differential-Balanced Stereo Headphone Amp
Brand Semoic
New
€16.24
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary
- Chip: TPA6132
- 3.5MM earphone hole output
- DET: earphone plug-in detection pin; after the earphone plugs in,it output low level; when it does not plug in, it output high level;
- CTRL: chip enable pin (usually connect with bluetooth module MUTE);when input low level,it be closed;when input high level,it enable;defaults internal pull-up is high level;
TPA6132 Differential-Balanced Stereo Headphone Amp Description
Chip: TPA6132
3.5MM earphone hole output
DET: earphone plug-in detection pin; after the earphone plugs in,it output low level; when it does not plug in, it output high level;
CTRL: chip enable pin (usually connect with bluetooth module MUTE);when input low level,it be closed;when input high level,it enable;defaults internal pull-up is high level;
Tips:L,R,G pin is connected with earphone jack
When it is differential input: L-, L+, R-, R+
When it is single port input: L- and R- connect with single port input common port; L+ connects with left channel; R+ connects with right channel
VCC: 2.3-5.5V
Color: As Shown
Material: PCB
Package Contents:
1 x Stereo Headphone Amplifier Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Details
| OPC | PJXYGDY |
|---|---|
| Brand | Semoic |
| Codes | 4853133934027 (EAN) |
| Product and Safety Information |
Product Data
| Length | 8cm |
|---|---|
| Width | 5cm |
| Height | 1cm |
| Weight | 2.5g |
