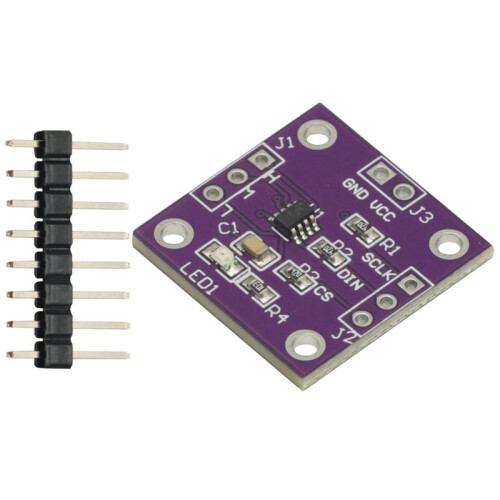

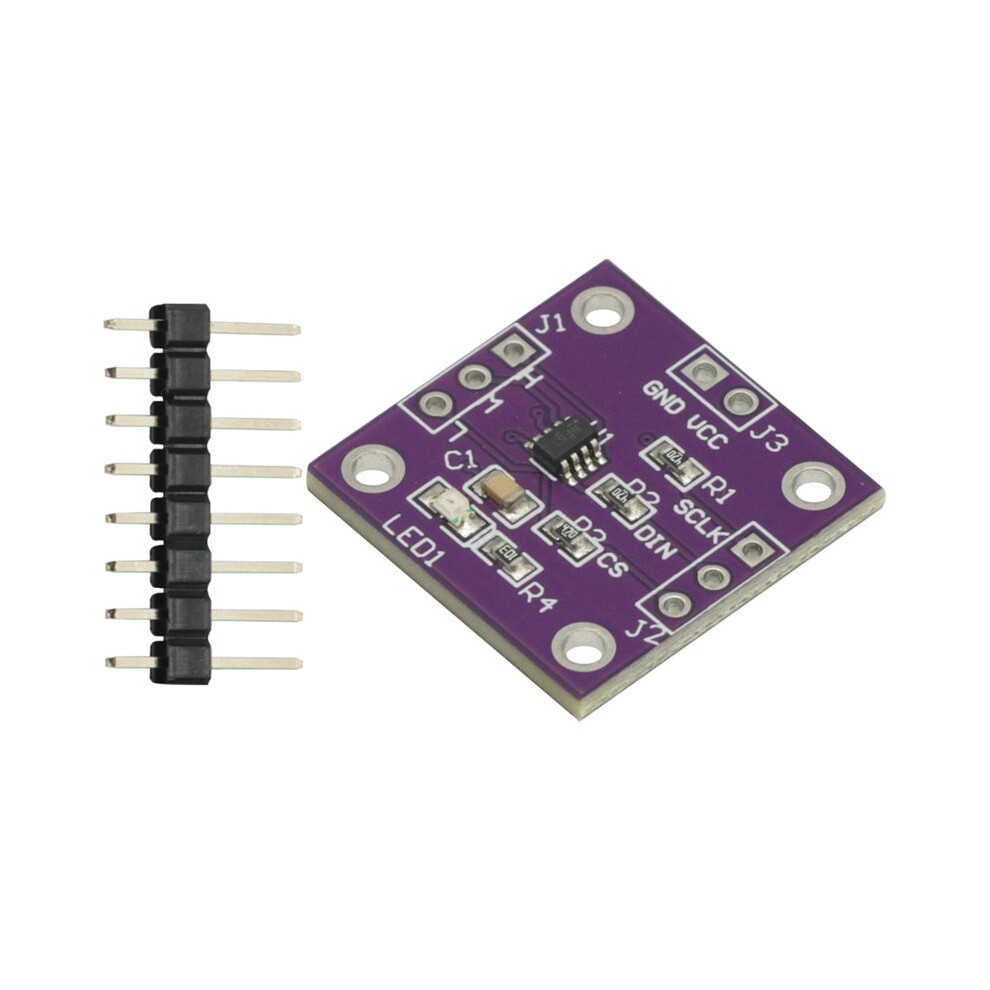

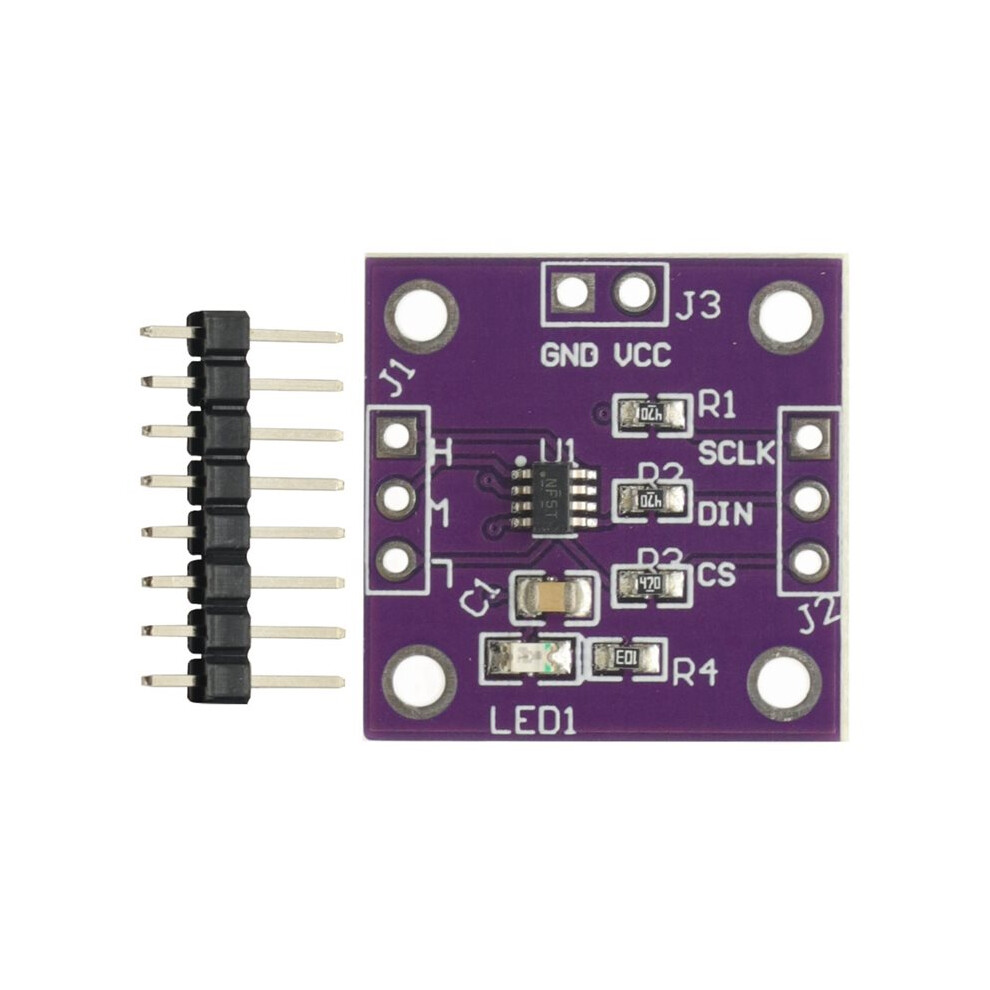

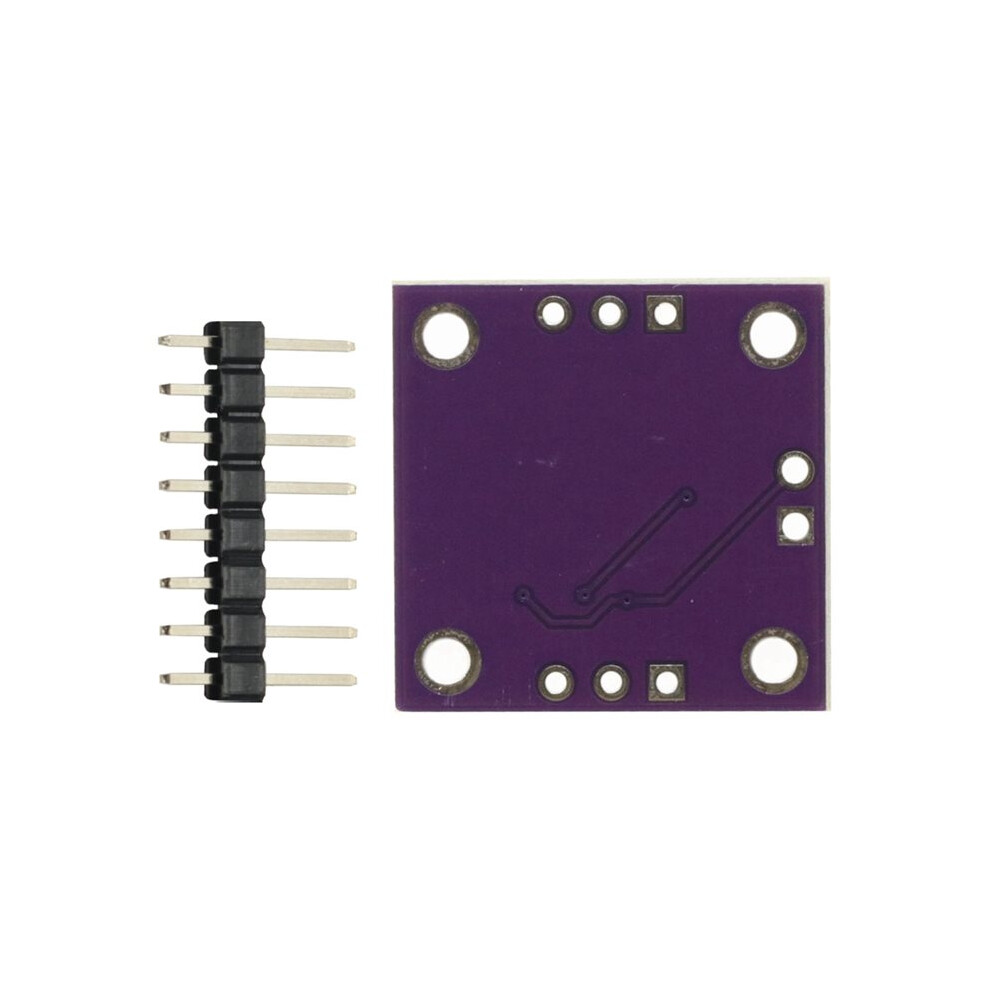

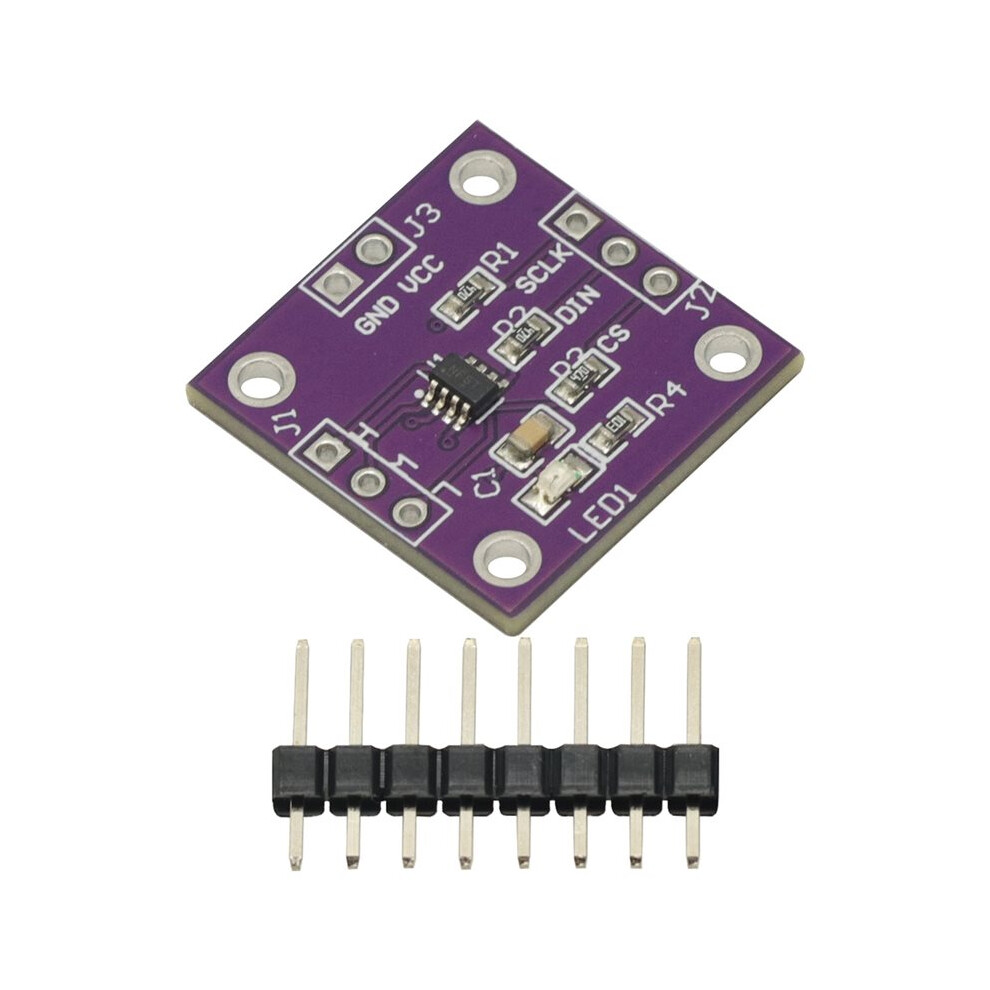

TPL0501 Digital Potentiometer Module 2.7V-5.5V 100K Adjustable SPI Interface Programmable Resistor Bridge Balance Sensor

TPL0501 Digital Potentiometer Module 2.7V-5.5V 100K Adjustable SPI Interface Programmable Resistor Bridge Balance Sensor Description

1. Features

• Single-channel 256-position resolution
• 100kΩ end-to-end resistance option
• Low temperature coefficient: 35ppm/C
• SPI-compatible serial interface
• 2.7V to 5.5V single-supply operation
• 20% resistance tolerance
• Operating temperature: -40C to 125C
• Electrostatic discharge (ESD) performance according to JESD 22 testing
2000V human body discharge mode (A114-B, Class II)
2. Applications
• Adjustable power supply
• Adjustable gain amplifier and offset trimming
• Accuracy calibration of setpoint threshold
• Sensor fine-tuning and calibration
• Replacement for mechanical potentiometers
3. Description
The TPL0501 device is a single-channel linear tap digital potentiometer with 256 tap positions. This device can be used as a three-terminal potentiometer or a two-terminal rheostat. The TPL0501 device comes with a 100kΩ end-to-end resistor. The internal registers of the TPL0501 device can be accessed using an SPI-compatible interface. The nominal temperature coefficient of the TPL0501 device is 35ppm/C.
Color:
Material: PCB

Package Contents:
1*Module
