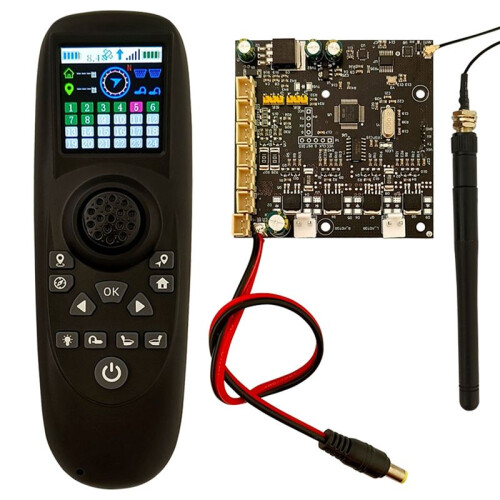

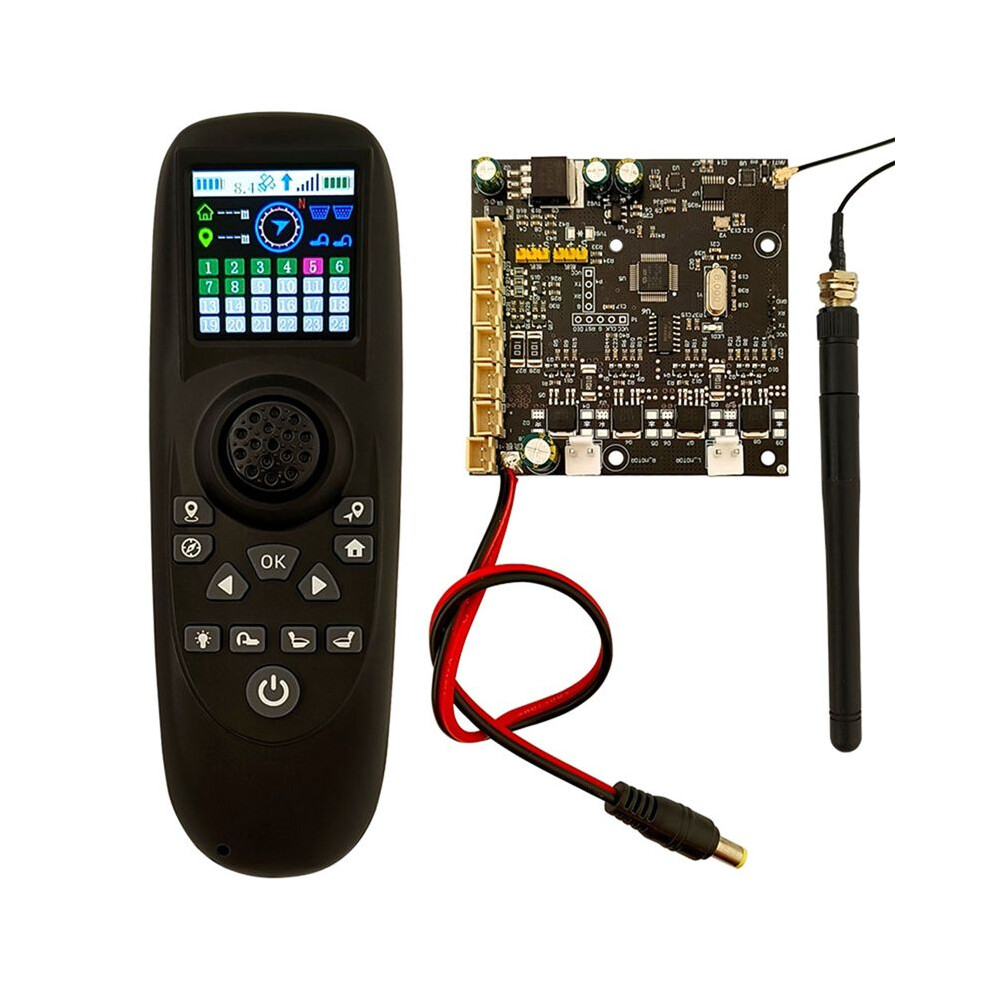

TXG4 1.54Inch Colored Screen Display Single-Hand Remote Controller 6-12V Receiver Board GPS Control for RC Bait Boat

TXG4 1.54Inch Colored Screen Display Single-Hand Remote Controller 6-12V Receiver Board GPS Control for RC Bait Boat Description

The remote control is used in conjunction with the receiver board. The wireless transmission signal is strong, and the distance between the remote control and the receiving board should be greater than 20cm when using it. Otherwise, if the distance is too close, it will reach saturation due to the strong wireless signal, and the remote control and receiving board cannot be connected
The receiving board is tested well before send out
The recommended battery is a 7.4V rechargeable battery, and the recommended motor is a 390 motor. It is not allowed to use a 775 large current motor. Two motors are the same specification, and the current cannot exceed 10A
If a high-voltage high rate battery (such as 12V) is used and drives a high-speed and high-power motor (with a load current greater than 8A), it is easy to burn out the receiving board due to excessive power
The receiving board is equipped with a built-in compass chip. Please install it according to the direction indicated the back of the receiving board, so that the ship can automatically travel in a straight .

Specification for remote controller:
1.54inch colored screen display
Silicone buttons,and clear button functions
Built-in rechargeable battery 1500mah
Type-C charging port
Long term endurance of 18 hours
Easy selection of 24 fishing points
Distance, power, signal, direction, and status feedback display
Weight for remote controller:about 103g
Specification for receiver board:
Adapted battery: 6V,7.2V,7.4V,11.1V,12V lipo battery(Do not use dry battery,as their poor current output capacity can cause the motor to fail to start)
Adapted motor:380 390 motor
Max output current:10A
Motor interface:single way rated current 10A, current 20A
LED light interface:directly connected to the LED light, the circuit boa
