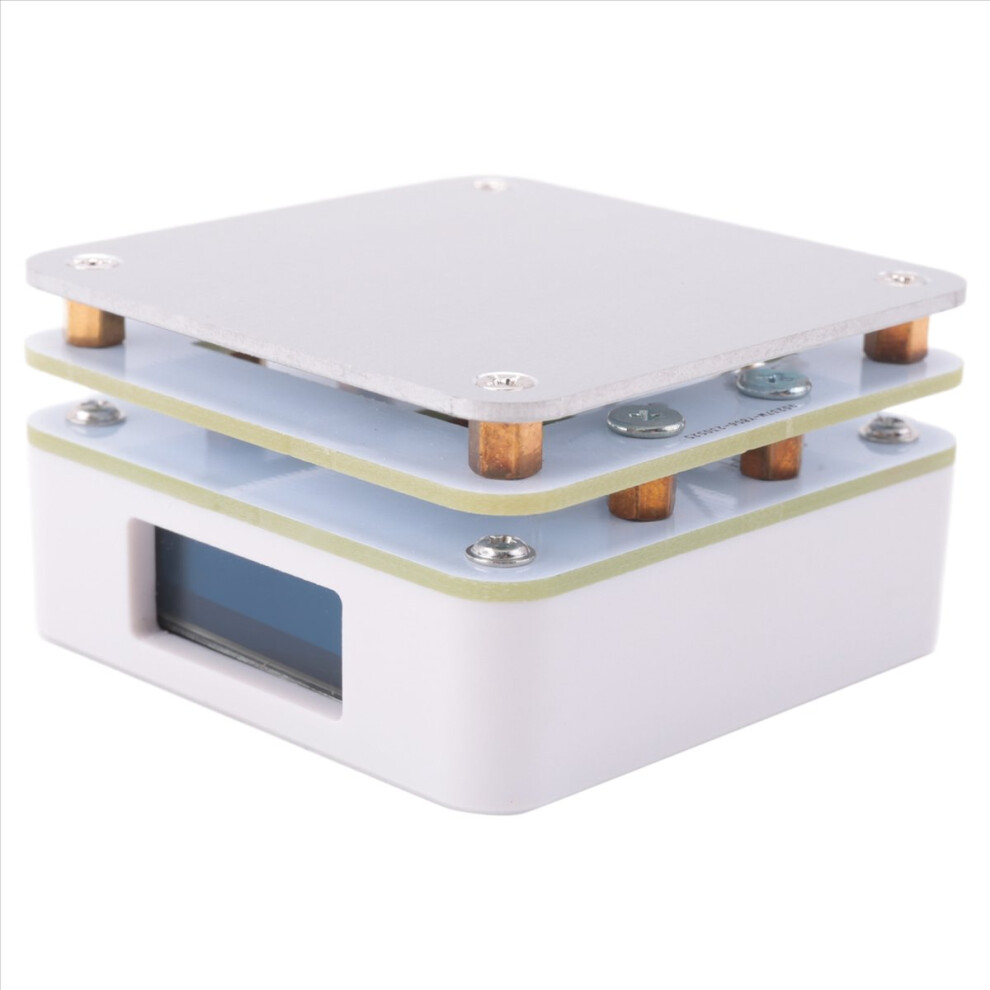

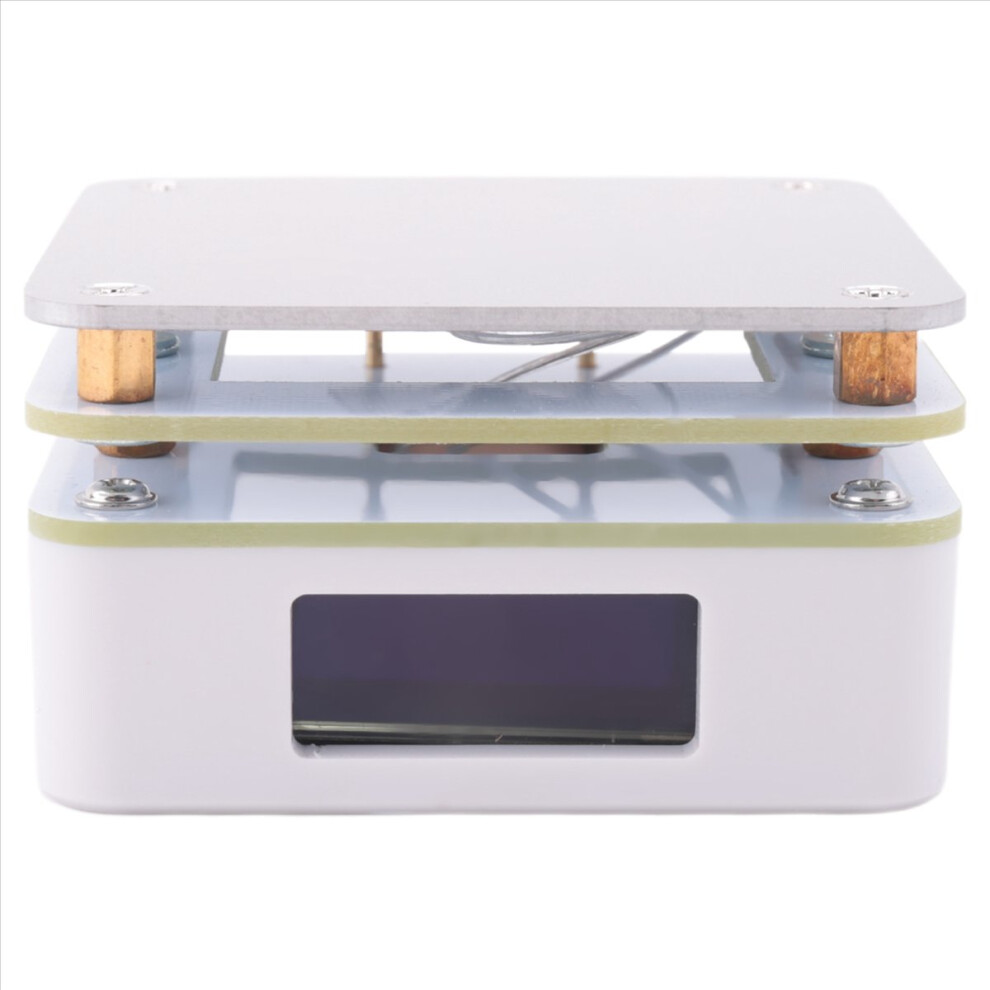

Type-C Mini Hot Plate Board Soldering Adjustable C

Type-C Mini Hot Plate Board Soldering Adjustable C Description

1. Ultra-small intelligent constant temperature heating table
2. Eliminate redundancy, retain sufficient effective heating area, greatly save energy consumption and heating time

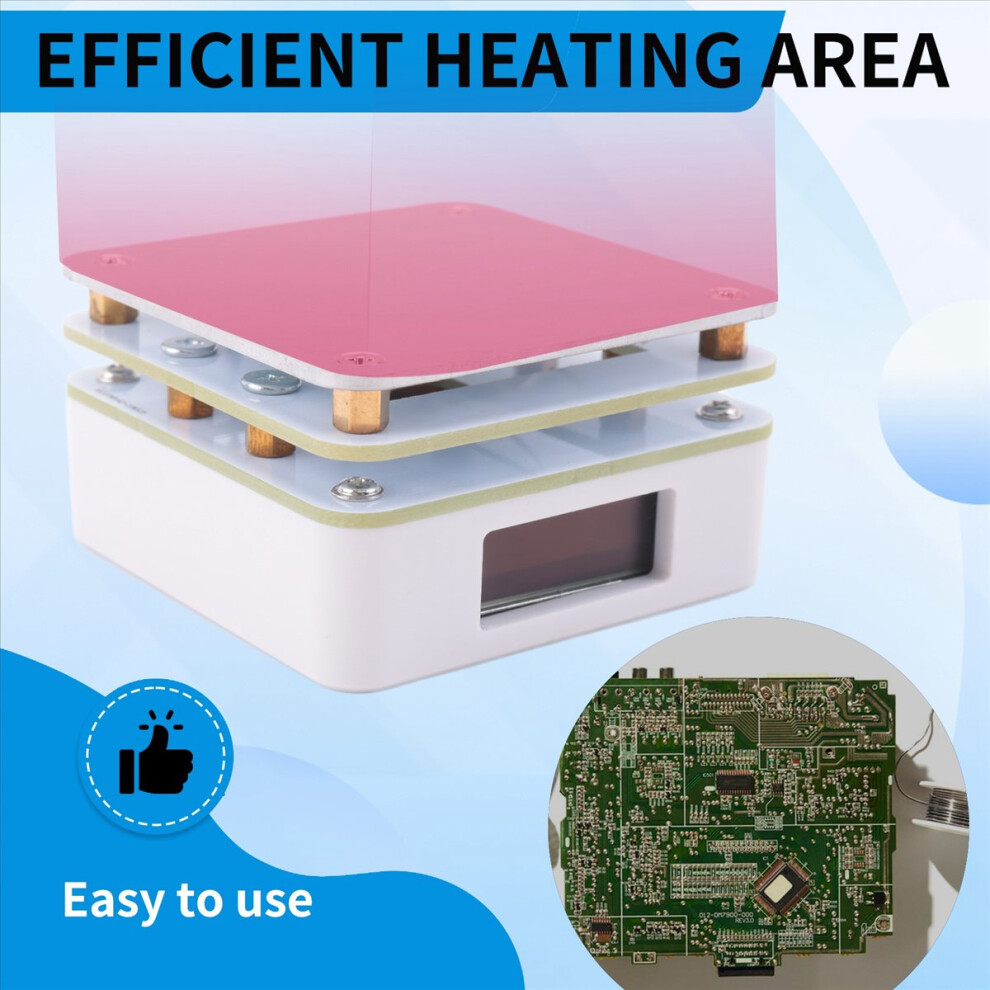

3. Efficient heating area, reduce energy consumption, wide application field, screen display and temperature control
4. Centralized preheating of operating parts to reduce damage to nearby parts
5. USB Type-C interface + PD protocol, faster heating speed

Input interface: Type-C
Power supply: PD65w 20v 3.25A (PD65w is recommended)
Temperature range: 0-250 (the lowest temperature is the ambient temperature, which can only be increased but not decreased)
Shell: high-quality 3D printed shell, no delamination
Operation instructions:
the two buttons at the same time: heating or stopping heating
and hold the two buttons to enter or exit the menu interface
the two buttons to confirm
Note: The recommended operating temperature does not exceed 250
Frequently Asked Questions:
How many volts does the power supply require?
A charger with a voltage of 20V 3.25A that supports the PD protocol is required. Theoretically, it can support the PD protocol with a voltage of 20V
Why does the screen restart when it is turned on?
This problem triggers the charger protection and needs to be replaced with another charger or data cable. Most of the charger models are recorded
Colour:White
Material:plastic

Package Contents:
1 x heating table

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
