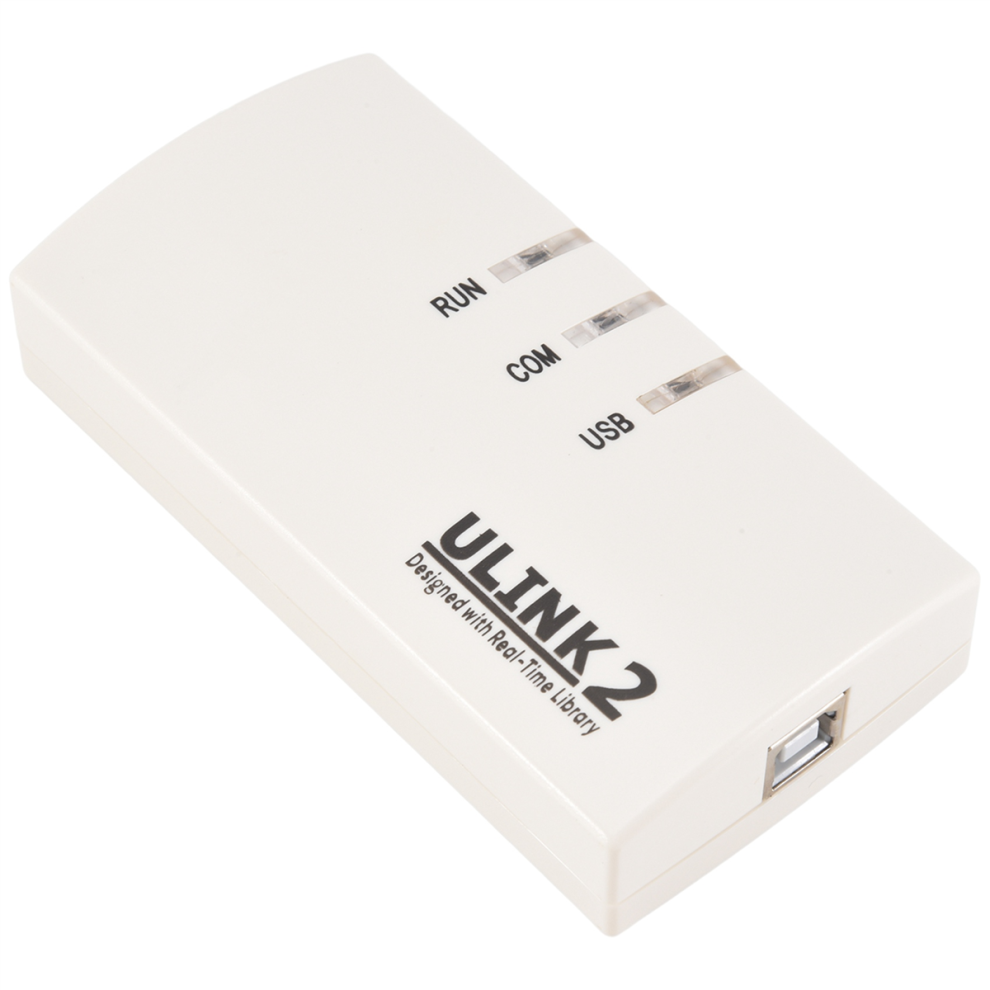

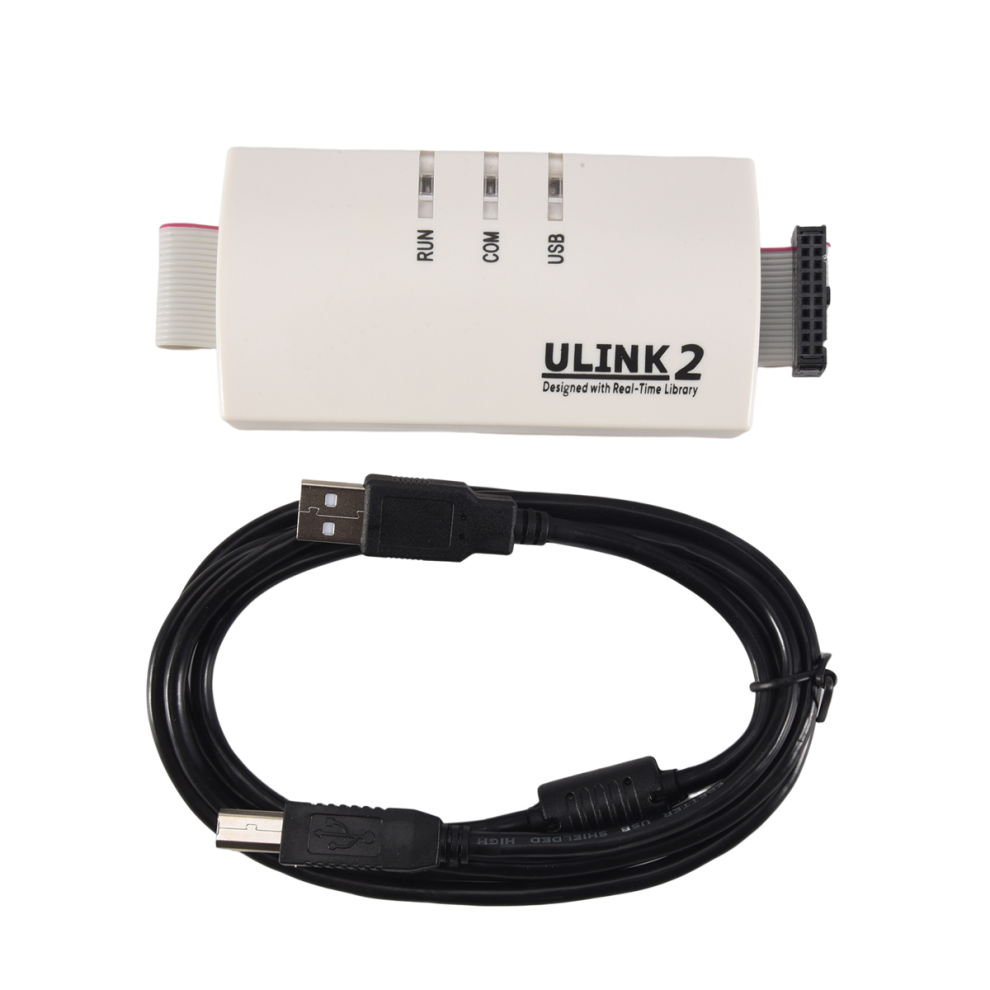

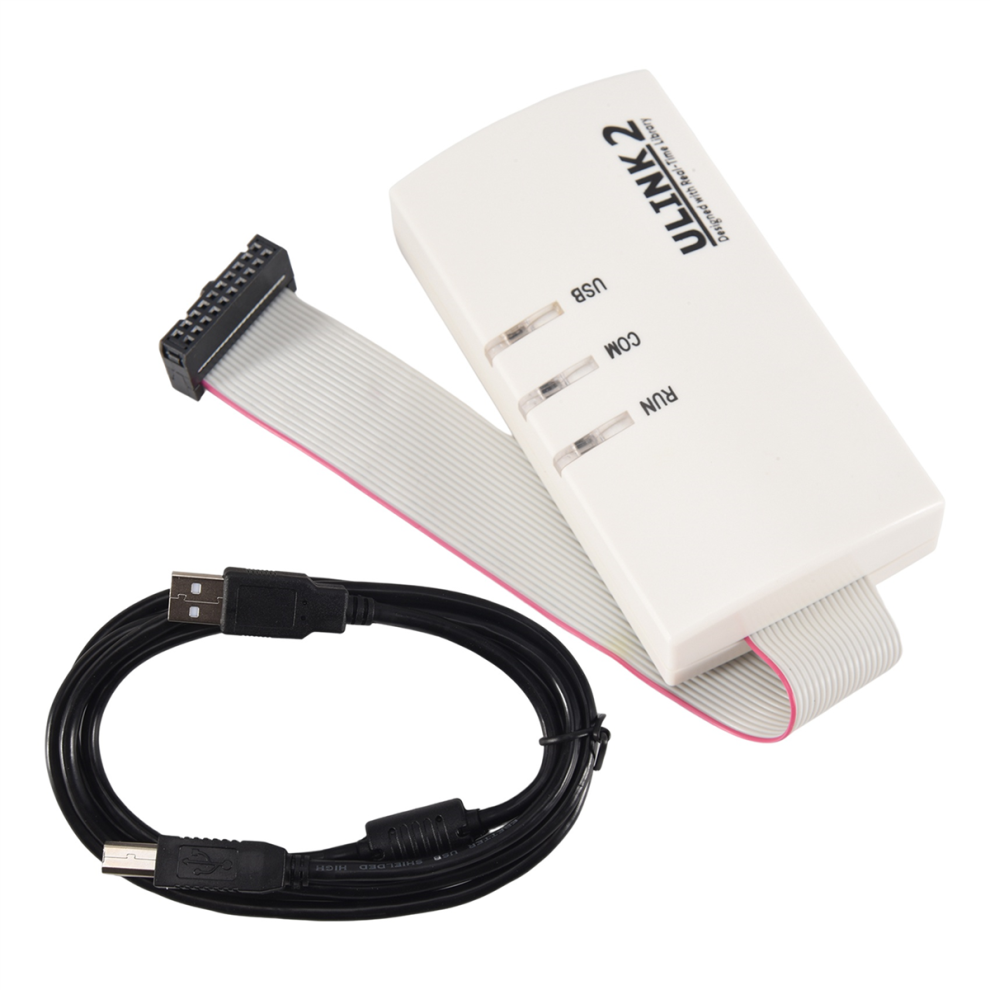

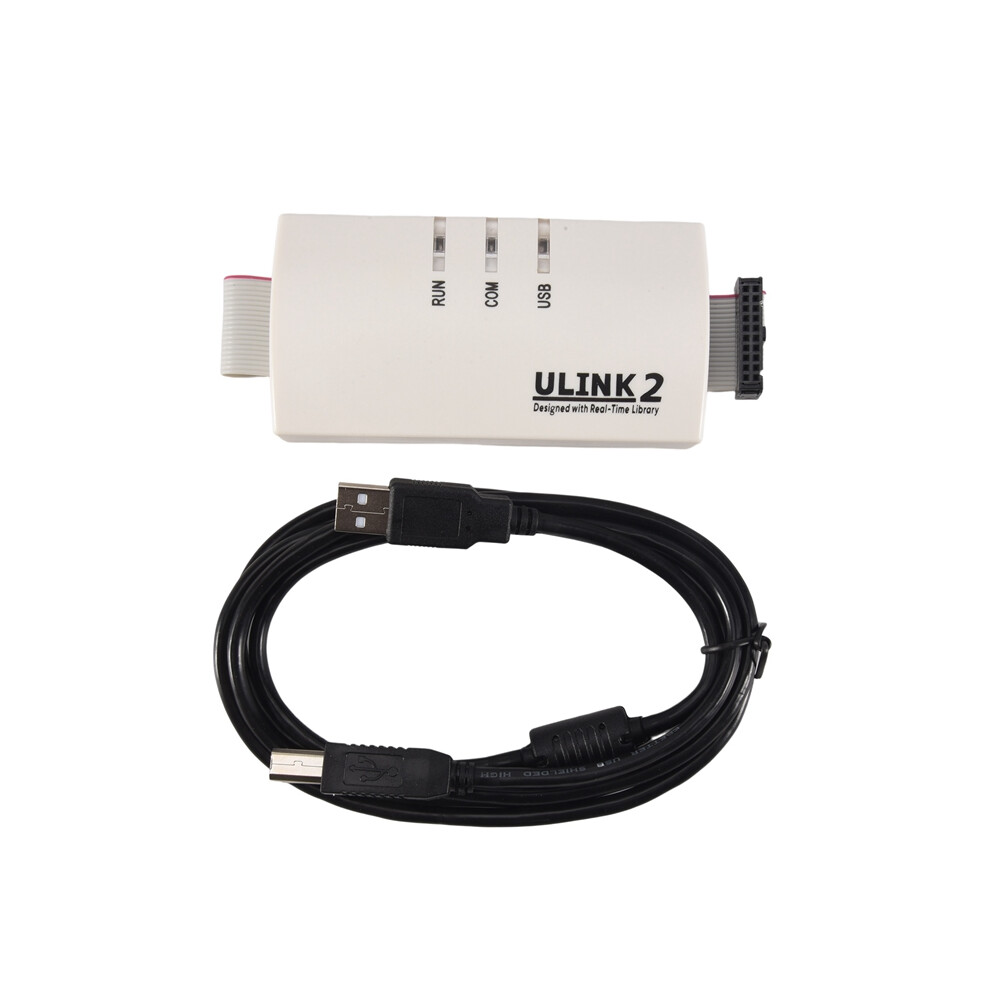

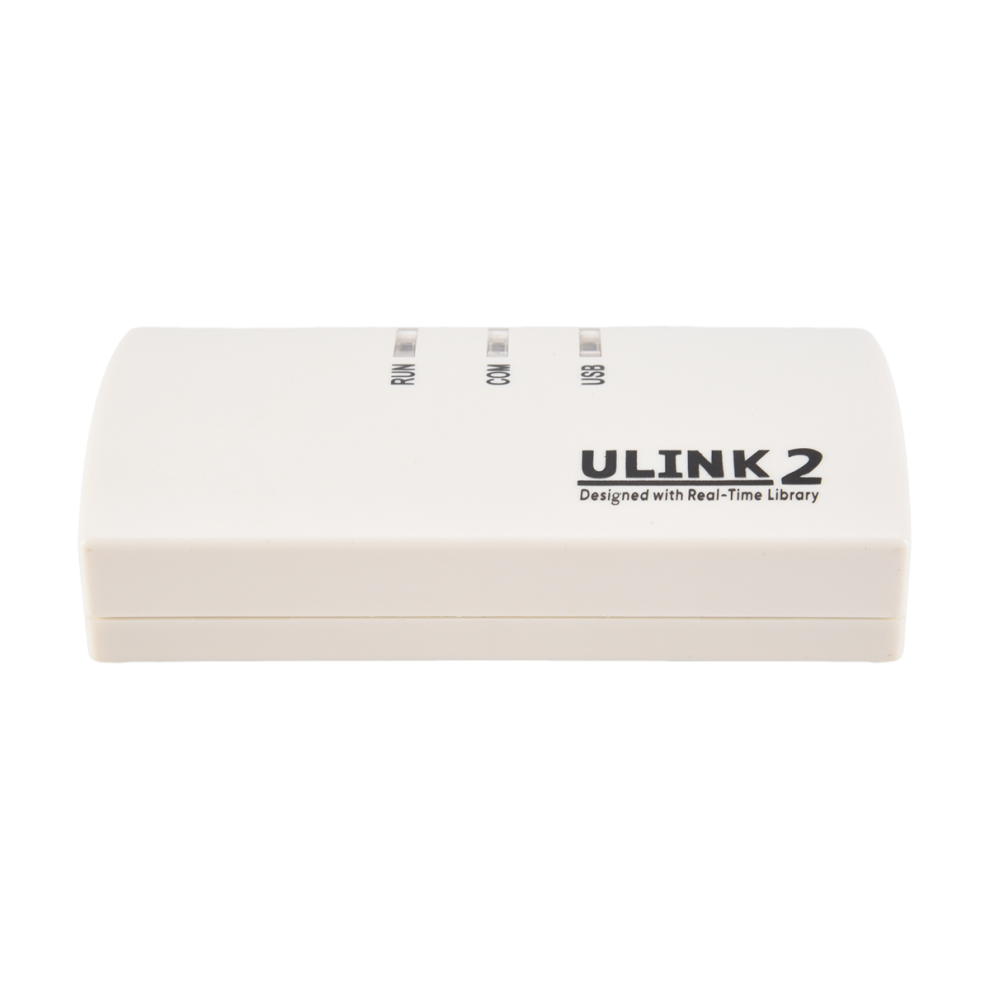

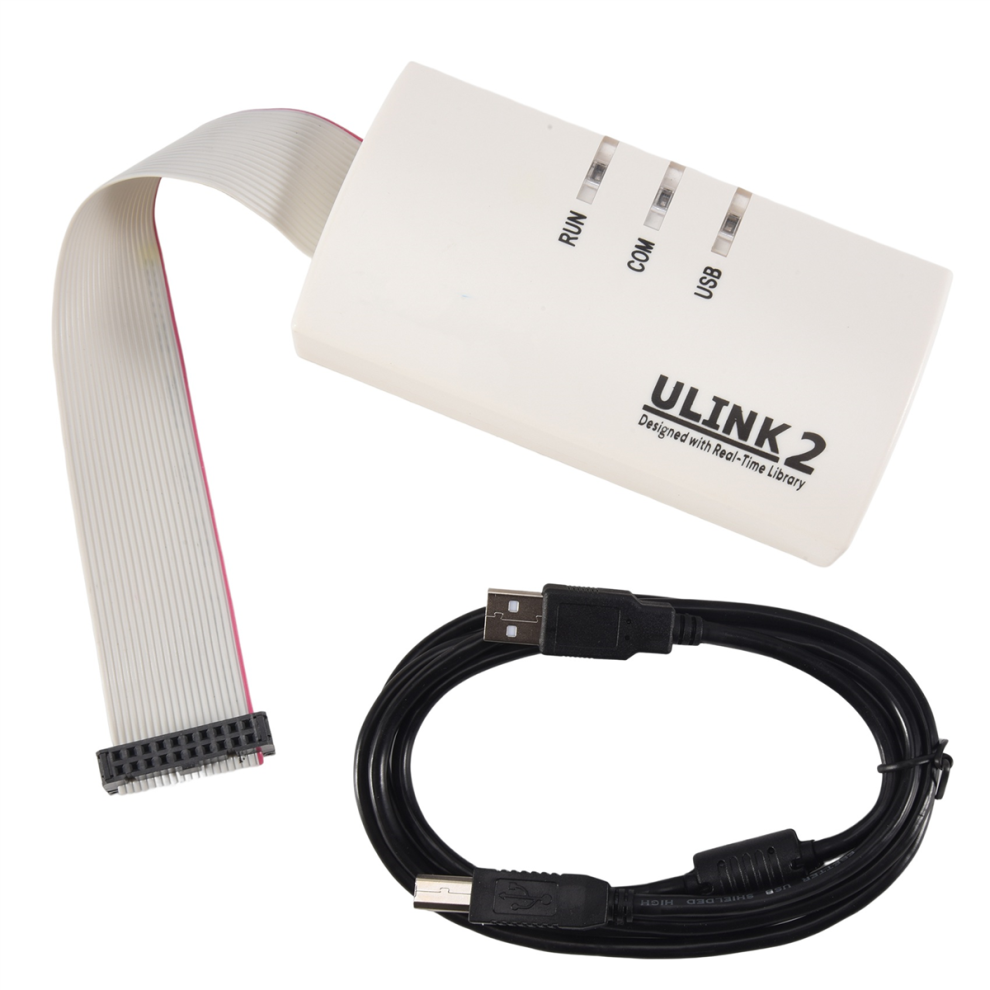

ULINK2 Emulator MDK5.0 Upgrade -M0- Gold Plated Version

ULINK2 Emulator MDK5.0 Upgrade -M0- Gold Plated Version Description

Get ULINK2, please see here: 1. First install the MDK software in the CD, the first time you use the ulink2 driver automatically install the ULINK2 driver here: C:////Keil////ARM////ULINK (keil default installation directory); Ulink2 connected to the computer instantly: COM, RUN led flash at the same time 2. The settings do not understand can see ULINK2 manual: C: ////Keil////ARM////Hlp////ULNK2.chm (keil default installation directory); Win7 customer that harmonious file to use "run with administrator privileges" / to minimize permissions, the computer before running MDK registration service. 3. SWD and wiring instructions: Wiring SW mode: SWCLK, SWD, GND, a total of , are indispensable; mode needs to increase SWO; (If the download appears: Contents missmatch at: 0800005DH (Flash=FFH Required=18H) ! Please connect the reset pin to this error!) 4. The function is fully compatible, can be seamlessly connected with the latest version of MDK software. support firmware firmware automatic upgrade. After long-term verification, the performance is stable without any abnormality. the quality is absolutely guaranteed, the best cost performance. JTAG and SW interface clock speed can reach 10MHz (speed and 12MHz after V8) Precautions: 1, support MDK3.8a, 4.0x, 4.1x, 4.20, 4.21, 4.22, 4.23, 4.50, 4.53, 4.54, 4.60 upgrade! And later version of keil software! Please use MDK3.8a or above! 2, if the simulation ARM - is best to use the latest MDK4.23 (keil for arm) software above The kEIL ARM emulator is the latest emulator for ARM used by RealView MDK and is an upgraded version of the ULink emulator. The kEIL ARM emulator not only has all the features of the ULINK emulator, but also adds support for serial debugging (SWD), return clock support and real-time proxy. Development engineers can easily perform on-chip debugging (using on-chip JTAG, SWD and OCDS), Flash programming on the target hardware by using the RealView MDK debugger and kEIL ARM emulator... New features of kEIL ARM simulator: Standard USB driver supports ULINK2 plug and play Support for serial debugging based on ARM -M3 Support for memory read and write, terminal emulation, and serial debug output during program execution Support 10-pin cable (also supports 20-pin cable) The main functions of the kEIL ARM simulator: USB communication interface to download user code at high speed Storage area/register view Fast single step program running Multiple program breakpoints On-chip Flash programming color:As shown Material:plastic Package Contents: 1 x emulator Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
