Universal Gate Remote Control 12V RF 433 Mhz Asking Code Relay Receiver for Garage Door LED Lighting

Universal Gate Remote Control 12V RF 433 Mhz Asking Code Relay Receiver for Garage Door LED Lighting Description

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Tiem delay mode: Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically.
Clearing the Code:Press the Learning Button the receivers for 8 times, the codes will be cleaned. After cleaning the code, all the remote control cannot work any more.

Please Note:The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
Specifications Of The Receiver:
Input voltage: 12V
Working current: 10A
Maximum load power: 110W
Frequency: 433Mhz
Support encoding format: EV1527

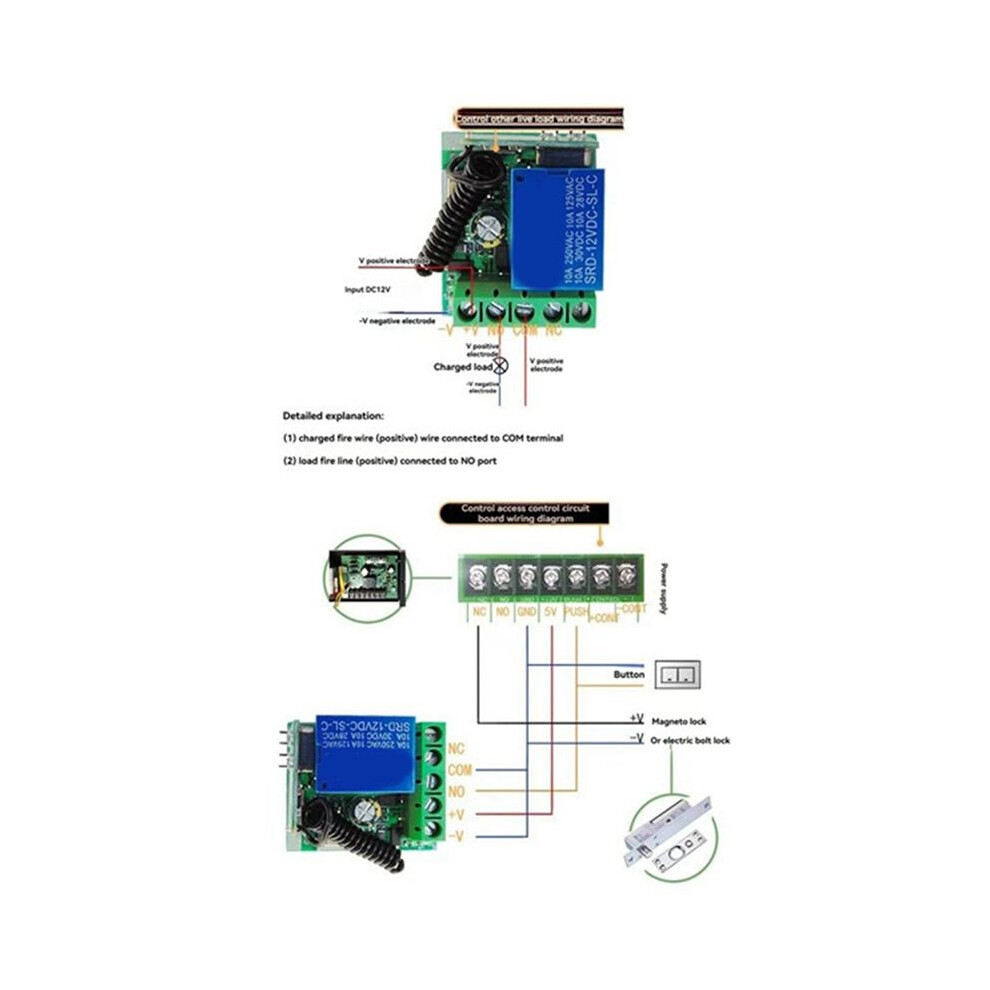

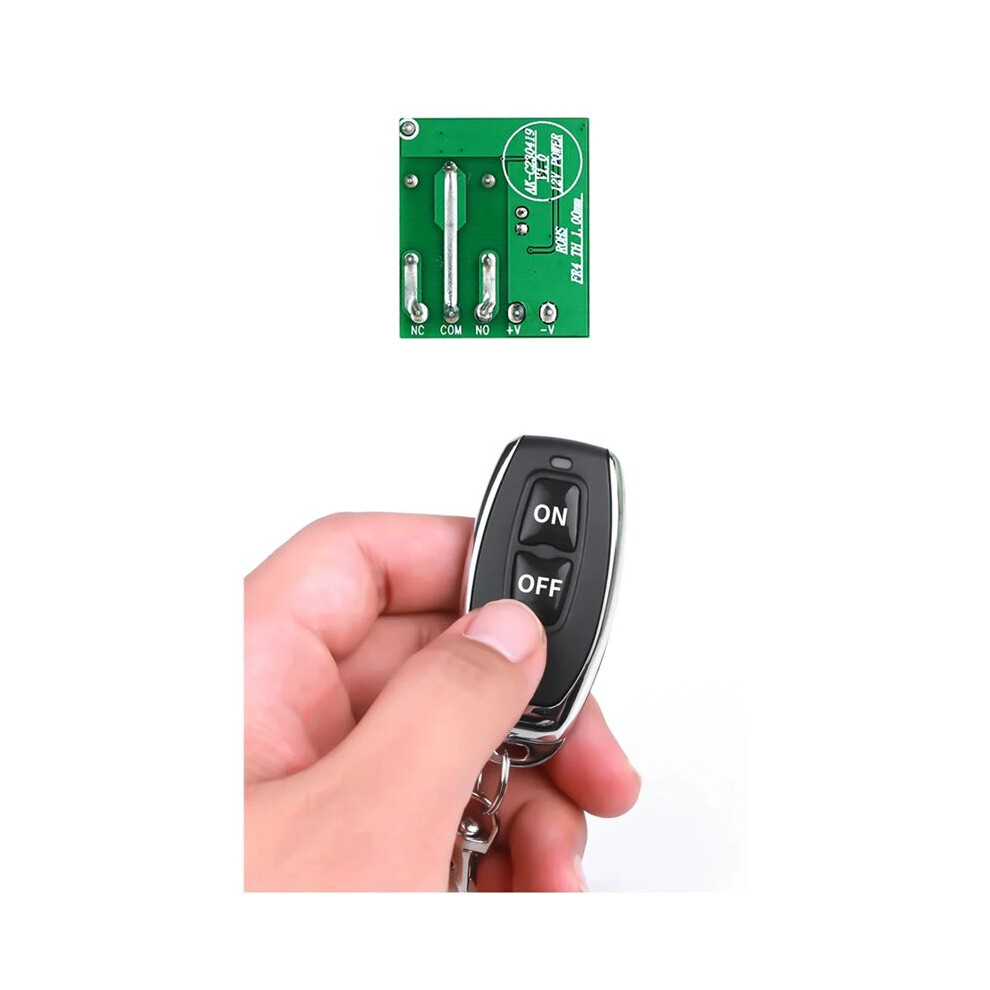

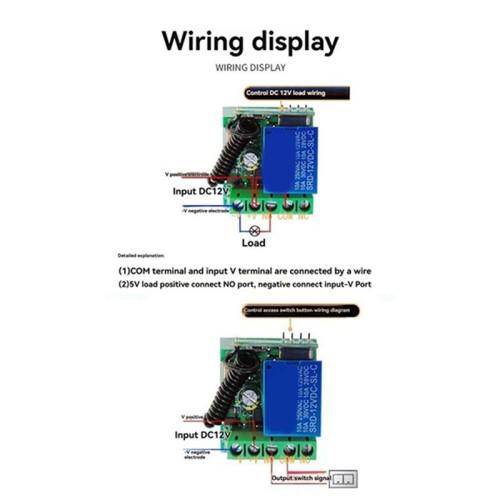

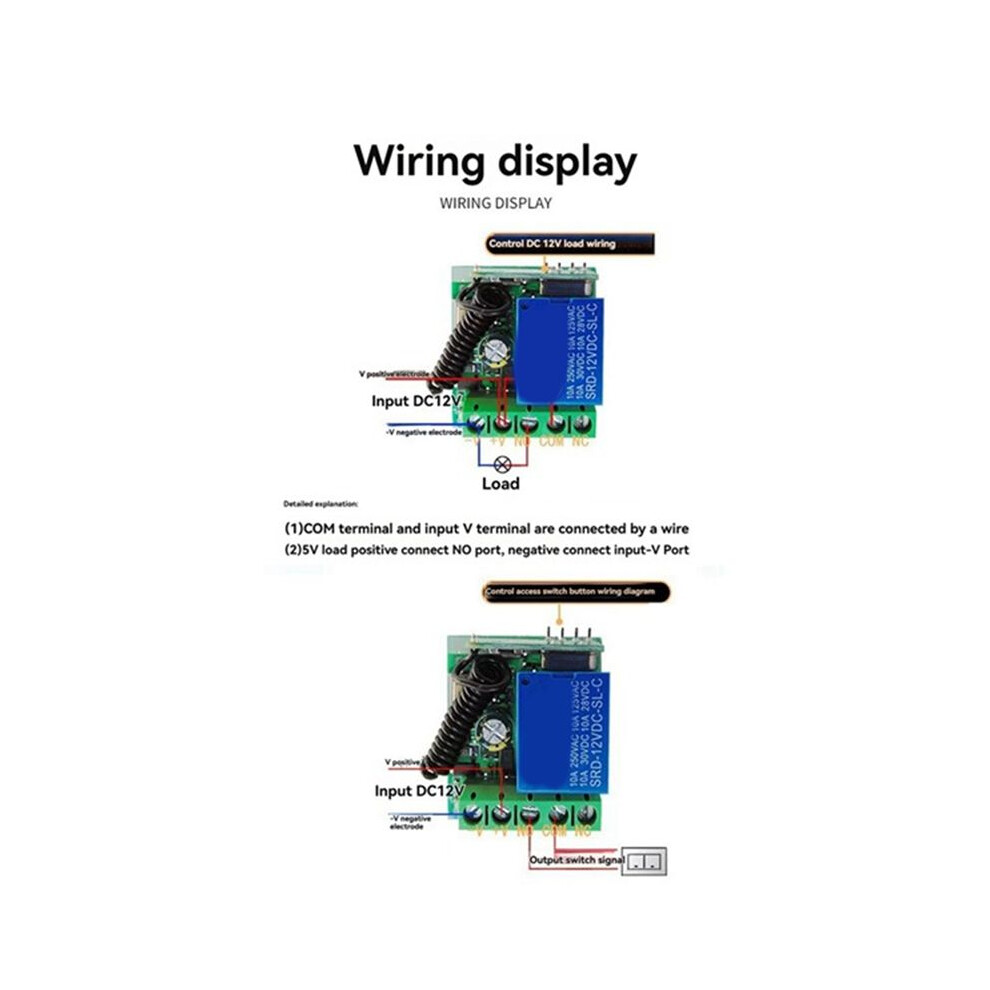

Wiring method: NC COM NO Working mode: Momentary, Toggle, Latching delay (5s ,10s ,15s )
Specifications Of The Remote Control:
Operating RF Frequency: 433MHz.
Coded System: 1527
Learning Code. Working Voltage: 3V.
Working Current: Less than 25mA
Transmitting Power: 10mW.
Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 - 60KHz.
Frequency Deviation: +0.2MHz or -0.2MHz.
Note:
Installation guide not included,
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Color: As Shown
Material: plastic

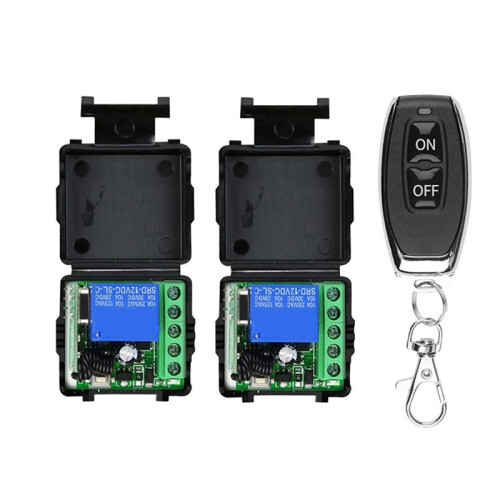

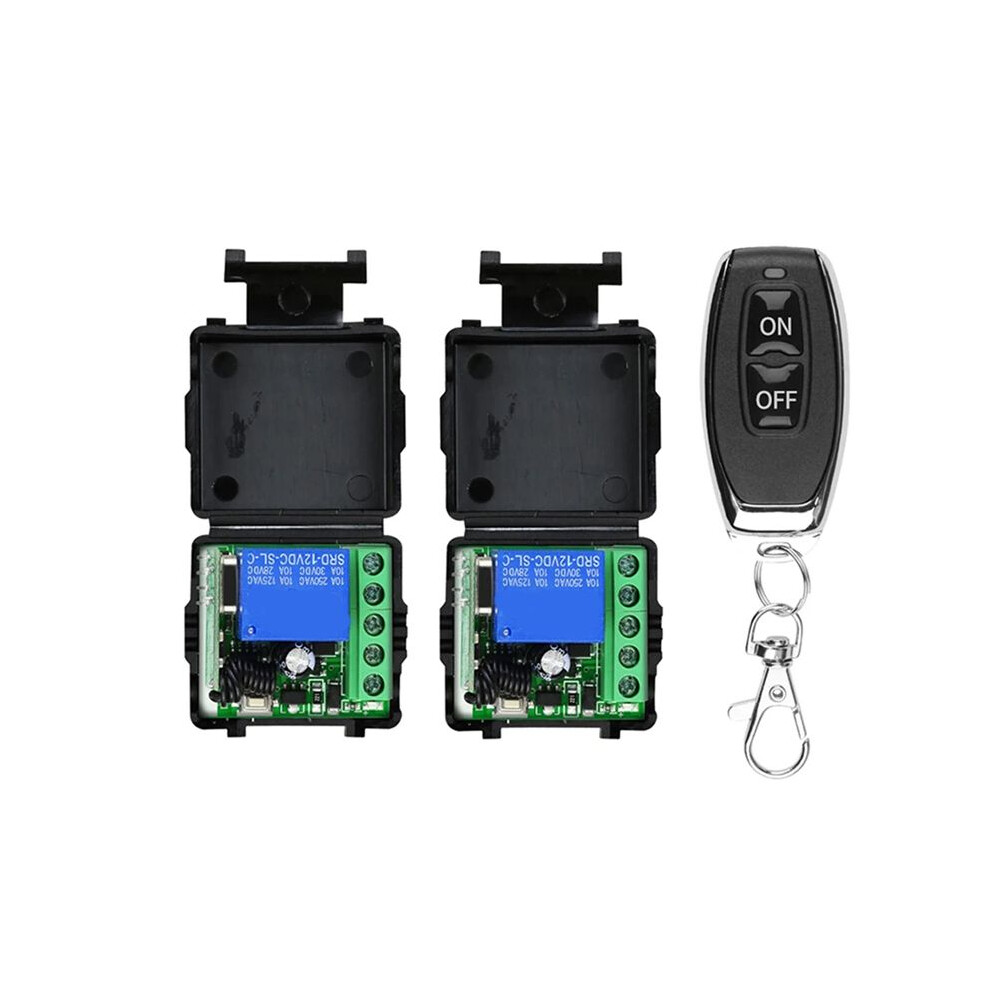

Package Contents:
2 x remote switches
1 x remote control
