Universal Wireless Remote Control DC12V 4CH Relay Receiver Module with 4 Channel RF Remote 433 Mhz Transmitter

Universal Wireless Remote Control DC12V 4CH Relay Receiver Module with 4 Channel RF Remote 433 Mhz Transmitter Description

Universal Wireless Remote Control DC12V 4CH Relay Receiver Module with 4 Channel RF Remote 433 Mhz Transmitter Description

1. Working Voltage:DC12V
2. Quiescent Current:5mA
3. Working Frequency:433Mhz
4. Receiving Sensitivity:-104dBm
5. Function option:Momentary/Toggle/Latched

6. Modulation Mode:ASK
7. Matching Mode: Intelligent Learning code
8. Output Mode:Dry contact /Voltage output
9. Shell:Yes
10. Working temperature : -30~+80
11. PCB dimension:68.2x48.2(mm)
+V - Positive pole input
GND - Negative pole input
1 -KC1 Normal Closed of relay (NC)
2 -KC1 Common of relay (COM)
3 -KC1 Normal Open of relay (NO)
4 -KC3 Normal Closed of relay (NC)
5 -KC3 Common of relay (COM)
6 -KC3 Normal Open of relay (NO)
7 -KC2 Normal Closed of relay (NC)
8 -KC2 Common of relay (COM)
9 -KC2 Normal Open of relay (NO)
10 -KC4 Normal Closed of relay (NC)
11 -KC4 Common of relay (COM)
12 -KC4 Normal Open of relay (NO)
color: As shown
Material: PCB

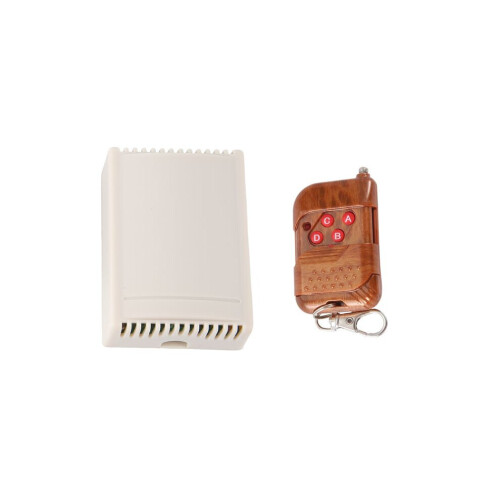

Package Contents:
1*Receiver module ( include Shell )
1*Remote Control (include battery )
