Unwelded SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader

Unwelded SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader Description

1. The power position of the pins one side has been adjusted. V1.3 is consistent with V1.2 and is no longer compatible with V1.1
2. The model of TI power supply chip has been adjusted
3. The CLK pin of has been adjusted to SRCC clock pin (it can adapt to more third-party IP cores)

Please note: the physical slightly color difference or difference, does not affect the use, please do not mind, thank you!
Board resources:Main chip 7020 (new chip industrial grade)
512MB DDR3
TF card slot
A16MB QSPIFLASH (can be responsible for startup)
EEPROM 2KB (PL)
Two LEDs (PL)
Two buttons (PL) + a POR reset button
One UART (PL)
One onboard XILINX downloader
One USB can be used as USB SLAVE or USB HOST10. Lead out 68 GP10 (all lead out from PL end) (34 groups) all connected in pairs with differential lines, and the differential lines are of equal length One side of the BANK is independently powered, and the BANK voltage can be adjusted by resistors
Gigabit Ethernet (connected to PL end)
output interface
SP: 1.47-inch vertical screen (172X320) or SP2: 1.3-inch square screen (240x240) (connected to PL end)
PL is connected to 50M active crystal oscillator
, USB and downloader are all connected to ESD electrostatic protection devices 8-layer immersion gold board can run
Color: As Shown
Material: Metal

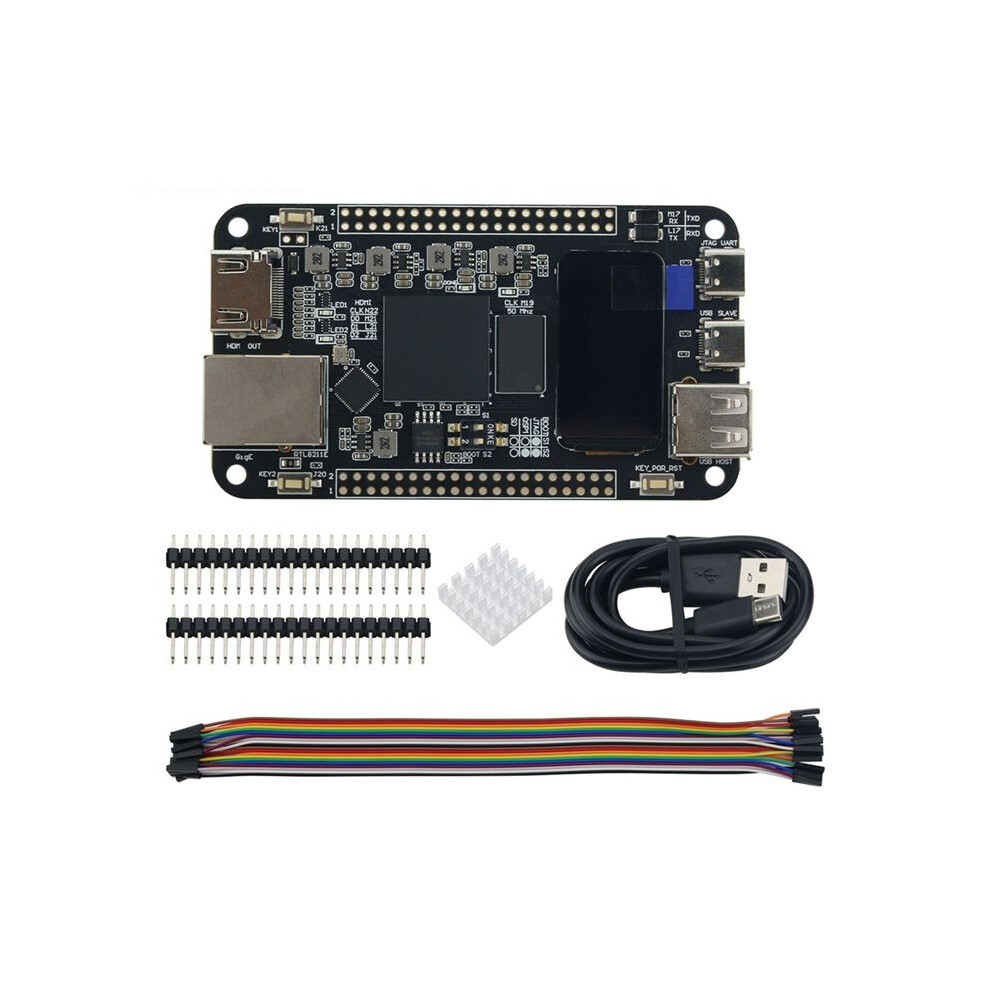

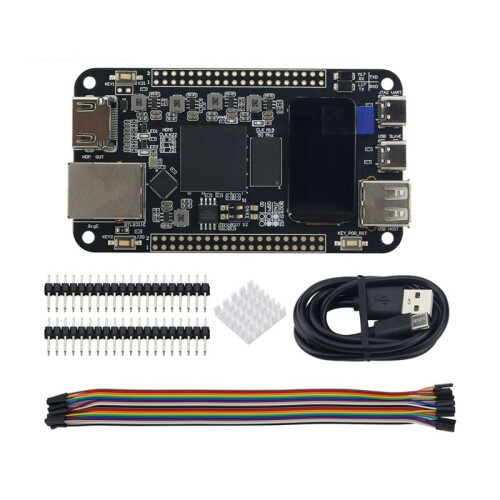

Package Contents:
1set x Minimum System Development Board
