Upgrade Coilovers Lowering Kit For Toyota Corolla E90 E100 E110 AE92 AE101

Upgrade Coilovers Lowering Kit For Toyota Corolla E90 E100 E110 AE92 AE101 Description

Application:

For Toyota Corolla E90  1987–1992

For Toyota Corolla E100 1991–1998

For Toyota Corolla E110  1995-2002

For Toyota Corolla AE92  1987-1991

For Toyota Corolla AE101 1992-1998

For Toyota Corolla AE111 1988-2002

Specification:

Adjustable height: lowering 1-3 inch

Damping: 24 levels rebound damping adjustable

Front Top mount: pillow ball wih camber plate

Rear top mount: pillow ball

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Shock type: Twin tube

Spring Preload: 7-10 mm

Warranty: 2 year

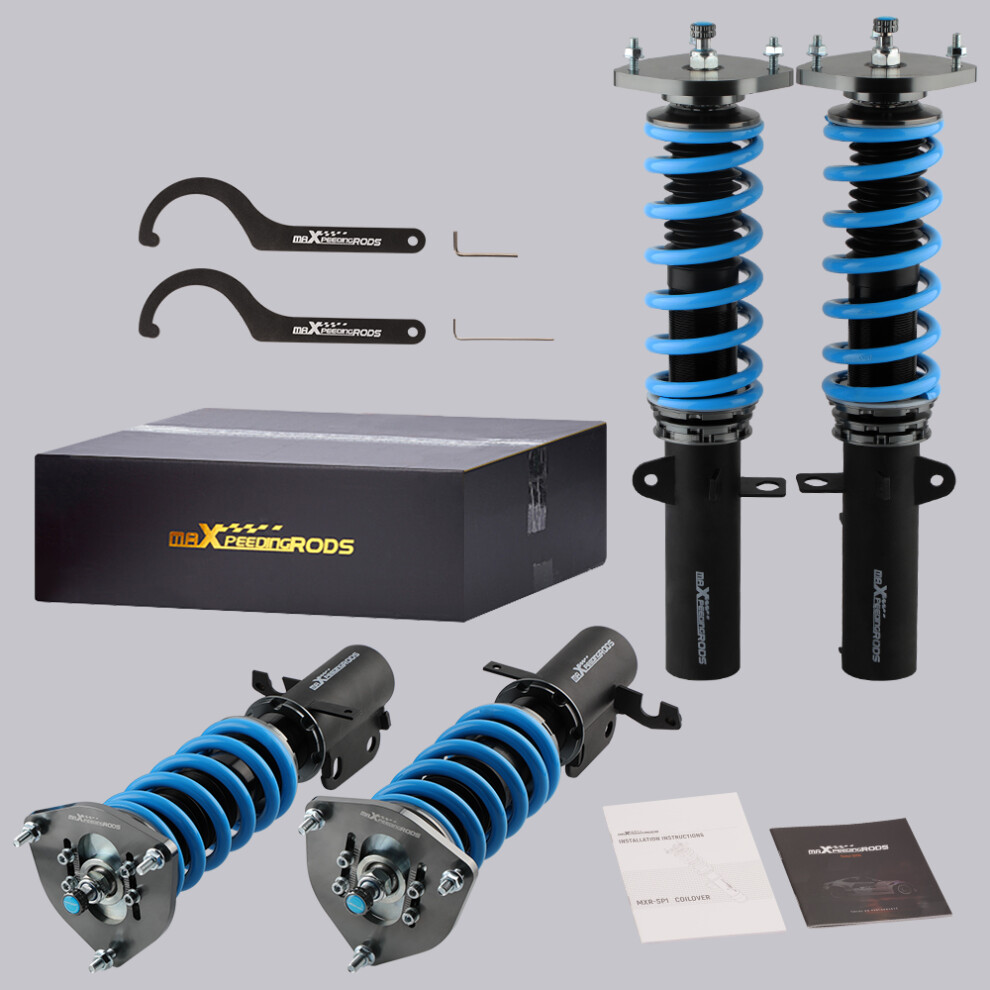

Package Included:

Complete coilover assembly kit for front and rear

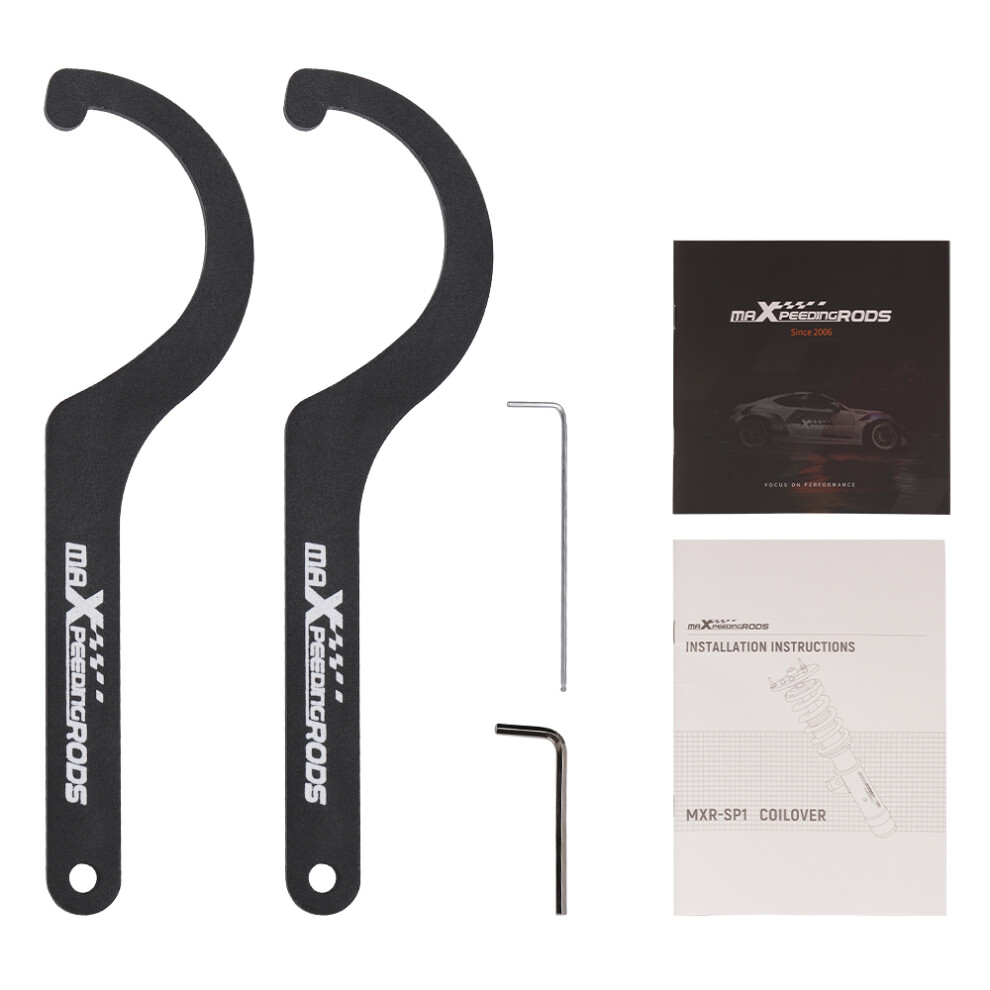

A pair wrench for height adjustment

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

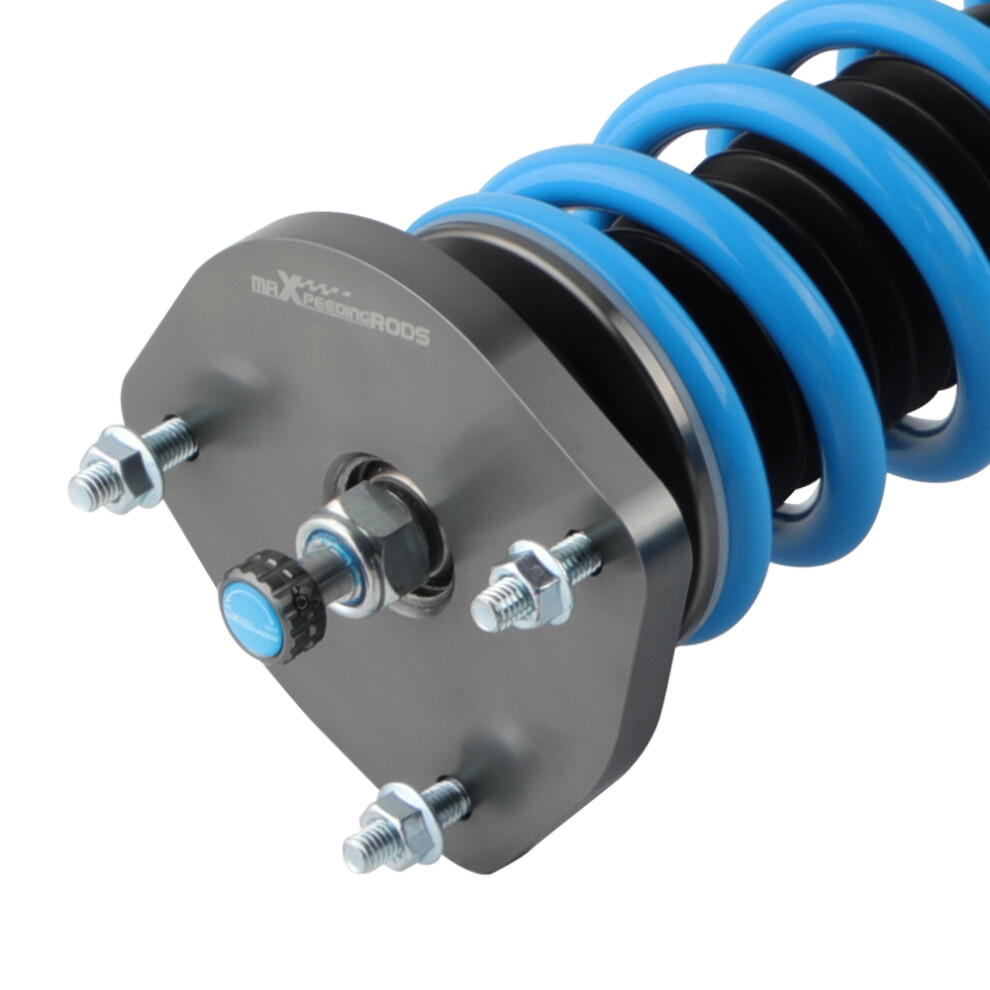

3. Pillow ball top mounts improve the steering feel and response.
4. Full length dust boot keeps shaft and oil seal from damage.
5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.
15. Camber plate top mounts help to eliminate the need for a separate camber kit.

Introduction

maXpeedingrods T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate?for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.
