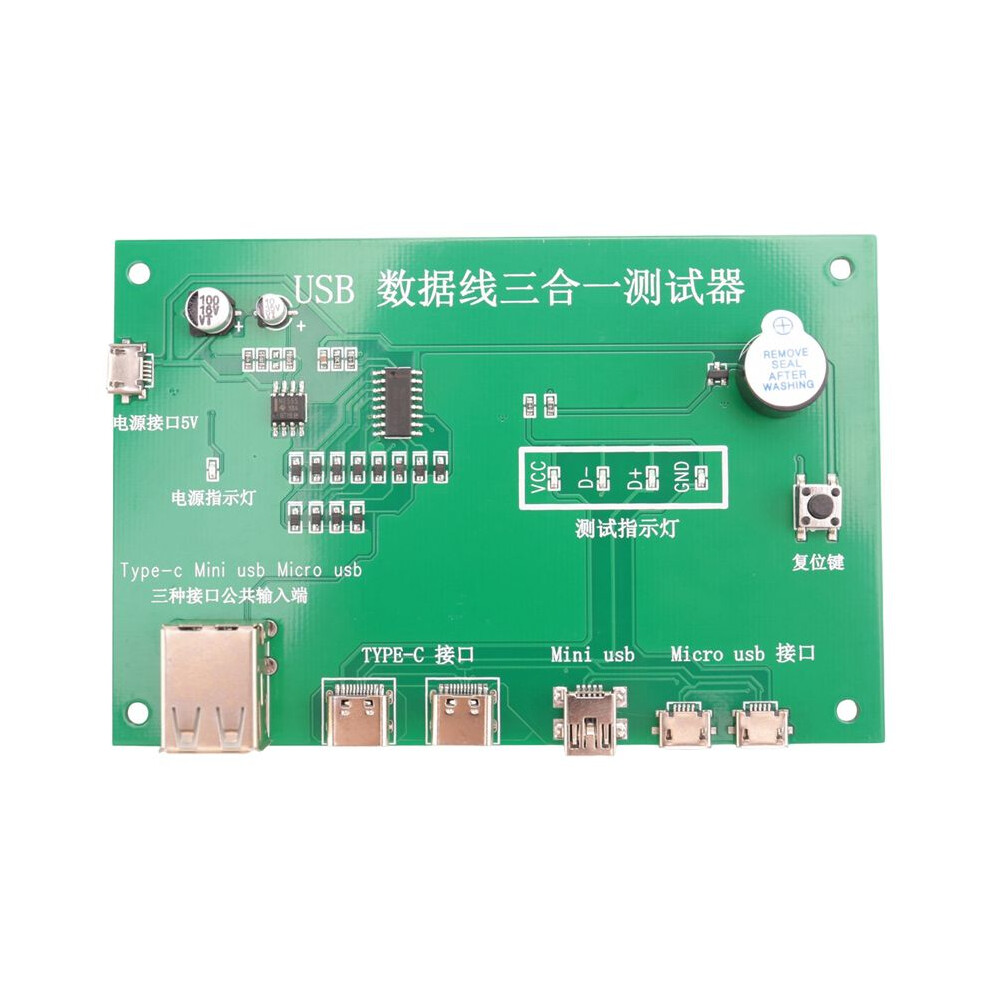

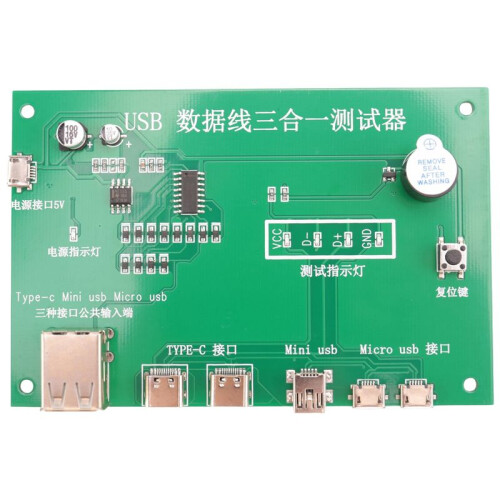

USB Cable Tester, Data Wire Test Fixture Precise Type-C/ USB/Micro-USB USB Cable Tester Charging Cable Tester

USB Cable Tester, Data Wire Test Fixture Precise Type-C/ USB/Micro-USB USB Cable Tester Charging Cable Tester Description

This tester supports Type-c, usb, Micro-usb three interfaces.
It can test the USB data cable open circuit, short circuit and wire material welding error and other faults.
Bee cue and indicator lights remind you of fault types.
Advanced chip makes sure precise measurement.
Multi-level protection ensures the stability and safety of testing.

Instructions:
1. Connect a 5V power supply or a power bank to the Micro-usb power interface, plug one end of the USB cable to be tested into the USB interface, and plug the other end into the corresponding interface. Press the reset button the test board, the tester starts to work.
2. The four LED lights the tester will light . If any lights do not light , it means that the signal has an open circuit fault. Then the LED lights will light sequentially from left to right. If the lighting sequence is disturbed, it indicates that the wire has a reverse welding fault.
3. If two LED lights are lit at the same when they are lit sequentially, it means that the two lines have a short-circuit fault.
4. The buzzer will emit a "beep" tone, and the last four lights will light again, and the test is complete.
Color: green
Material: PCB board

Package Contents: 1 x USB cable tester

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
