Waveshare 2.13Inch E-Ink Display HAT, Black,White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero

Waveshare 2.13Inch E-Ink Display HAT, Black,White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero Description

Waveshare 2.13Inch E-Ink Display HAT, Black,White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero Description

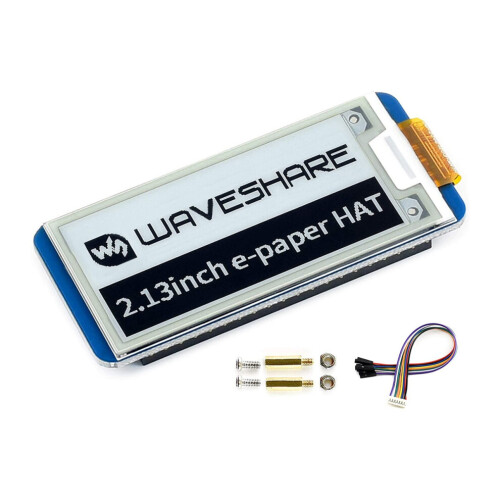

This is 2.13inch E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is a perfect choice for applications such as shelf label, industrial instrument, and so .
No backlight, keeps displaying last content for a long even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson .
Preserved solder pads for SPI interface, for connecting with other controller boards like /Nucleo, etc.Onboard voltage translator, compatible with 3.3V/5V MCUs
Operating voltage: 3.3V/5V. Interface: SPI. Outline dimension: 65mm x 30.2mm. Display size: 23.71mm x 48.55mm. Dot pitch: 0.194 x 0.194. Resolution: 250 x 122. Display color: black, white. Grey level: 2. Partial refresh : 0.3s. Full refresh : 2s. Refresh power: 26.4mW(typ.). Standby power: 170.

color:
Material:PCB

Package Contents:
1 x 2.13inch e-Paper HAT
1 x RPi screws pack
1 x 20cm 8Pin Cable
