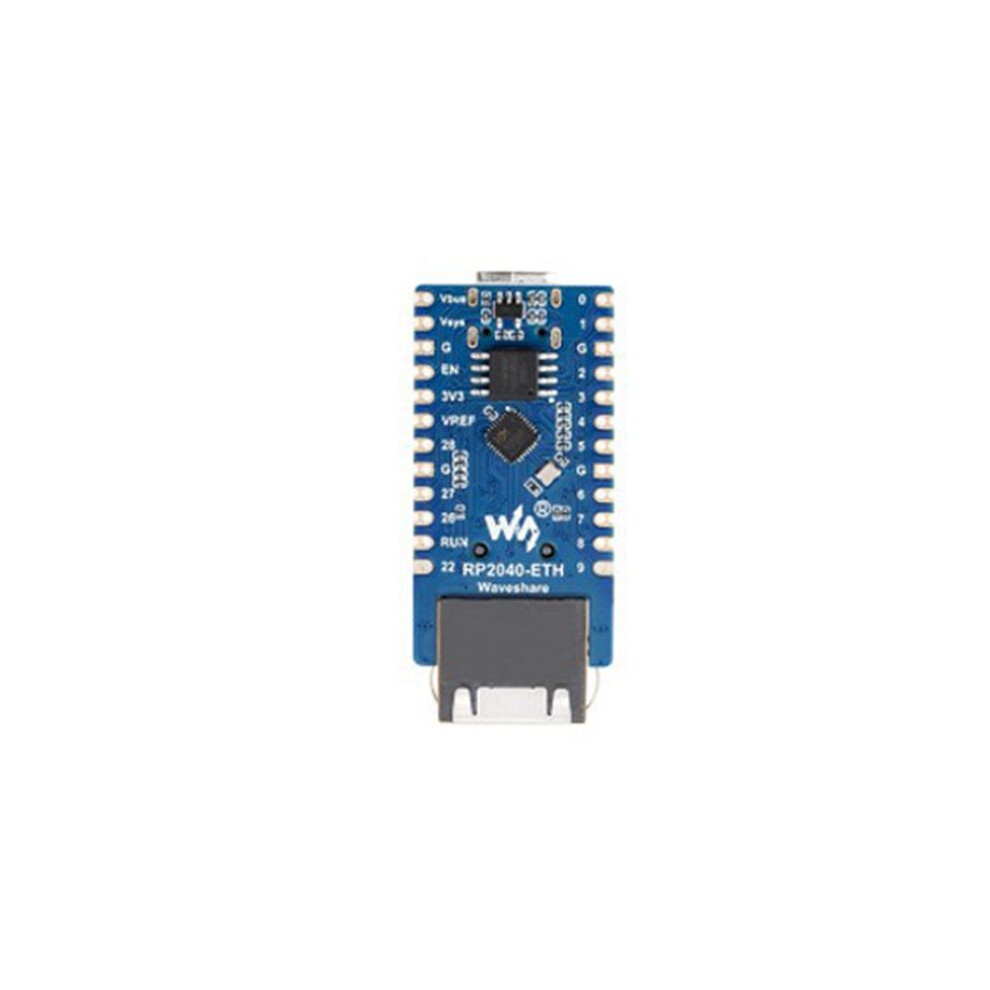

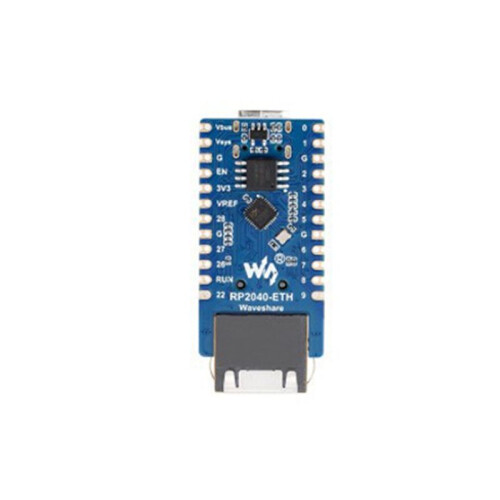

Waveshare RP2040-ETH Development Board with Ethernet Port Dual Core RP2040 Processor for Raspberry Pi

Waveshare RP2040-ETH Development Board with Ethernet Port Dual Core RP2040 Processor for Raspberry Pi Description

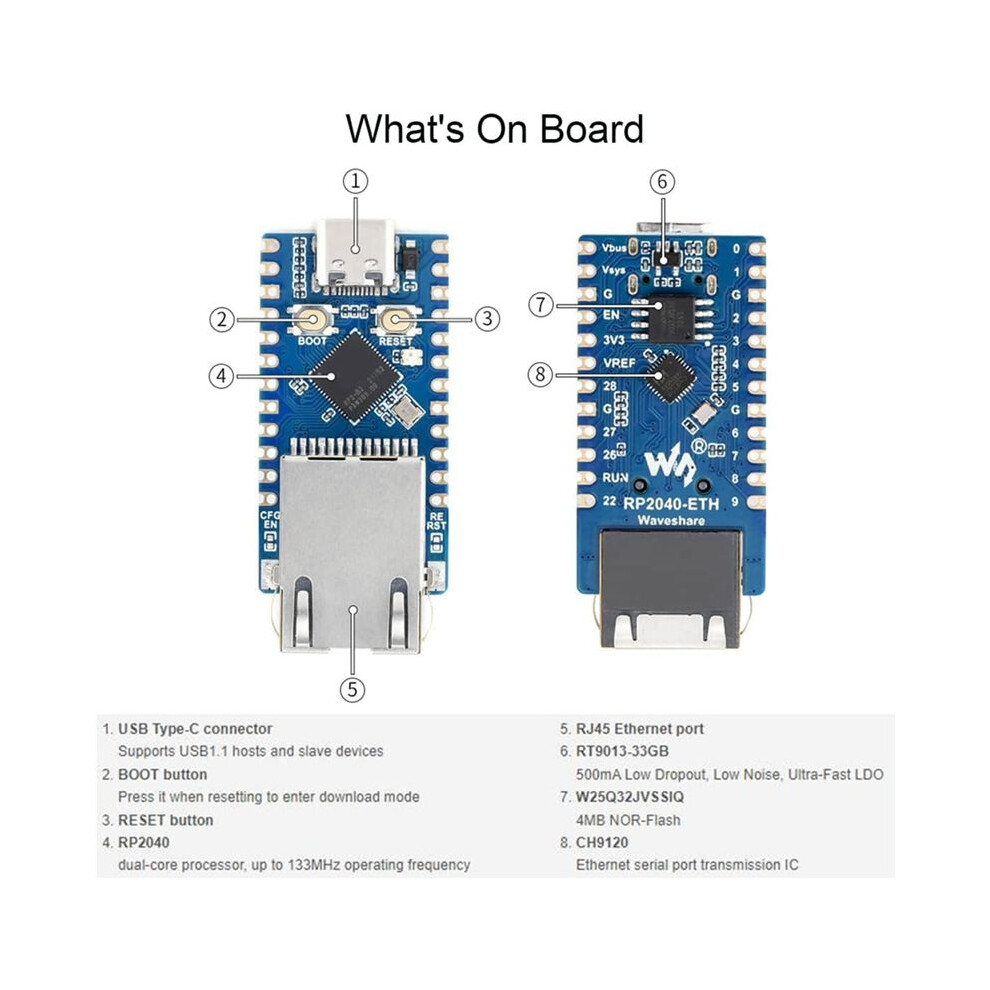

Advanced RP2040-ETH Module: Equipped with a dual-core Arm Cortex M0+ processor capable of speeds to 133 MHz, this board features 264KB of and 4MB of onboard Flash memory. The onboard Ethernet port enhances connectivity, making it ideal for network-intensive applications.

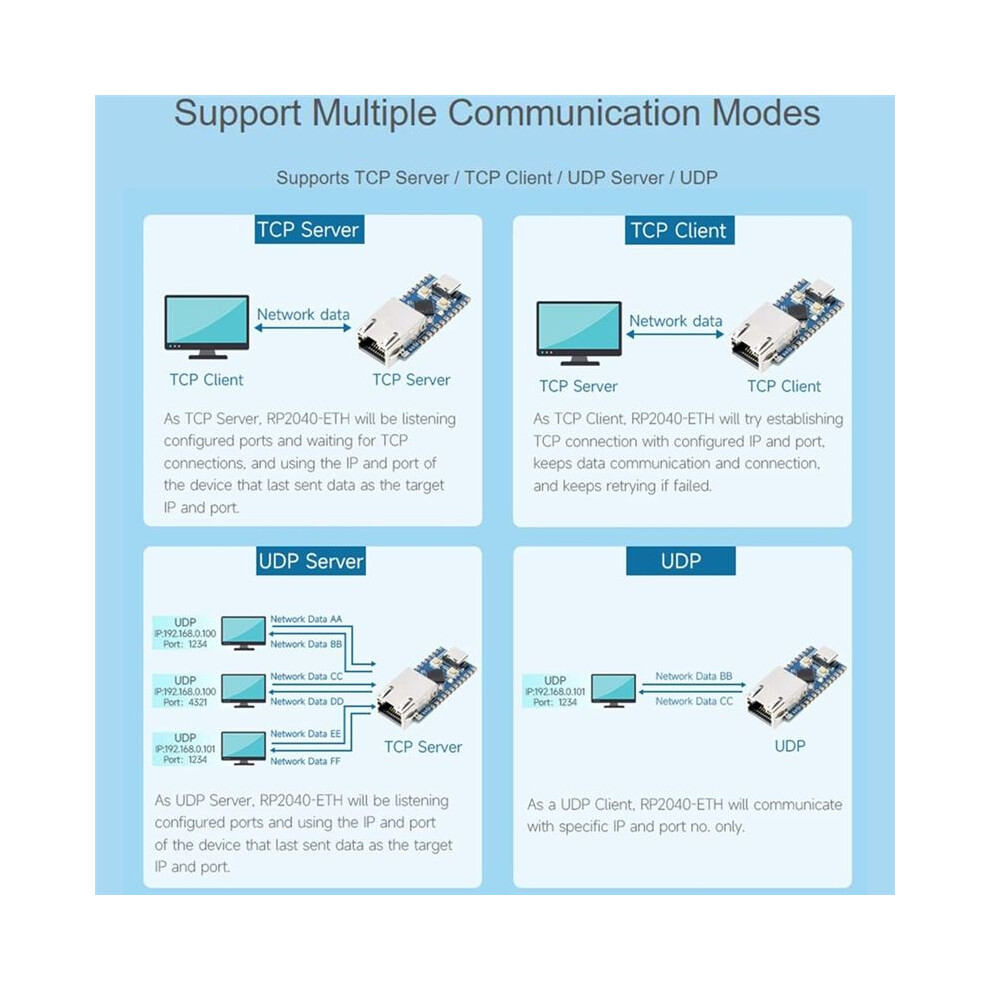

Integrated CH9120 Chip: This development board includes the CH9120 chip with a built-in TCP/IP protocol stack, facilitating easier network communications. It supports various modes such as TCP Server, TCP Client, UDP Server, and UDP, providing versatile network capabilities.
Enhanced Connectivity and Programming: Features 14 multi-function GPIO pins compatible with select HATs and 8 programmable I/O (PIO) state machines for custom peripheral support. The board supports drag-and-drop programming via USB, simplifying the development process.
Versatile Programming Support: Compatible with multiple programming languages including for C/C++, for MicroPython, and for .
Robust Design and Utility: The board's castellated module design allows for direct soldering to carrier boards, enhancing its utility in complex projects. Controllable via network, this board is perfect for developers looking to integrate Ethernet functionality into their designs.

Color: As Shown
Material: PCB

Package Contents:
1 x Development Board
