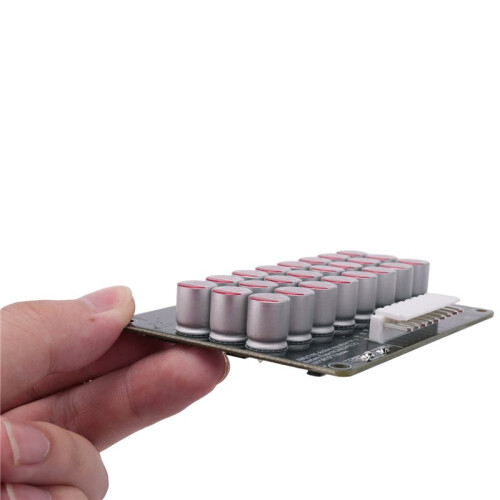

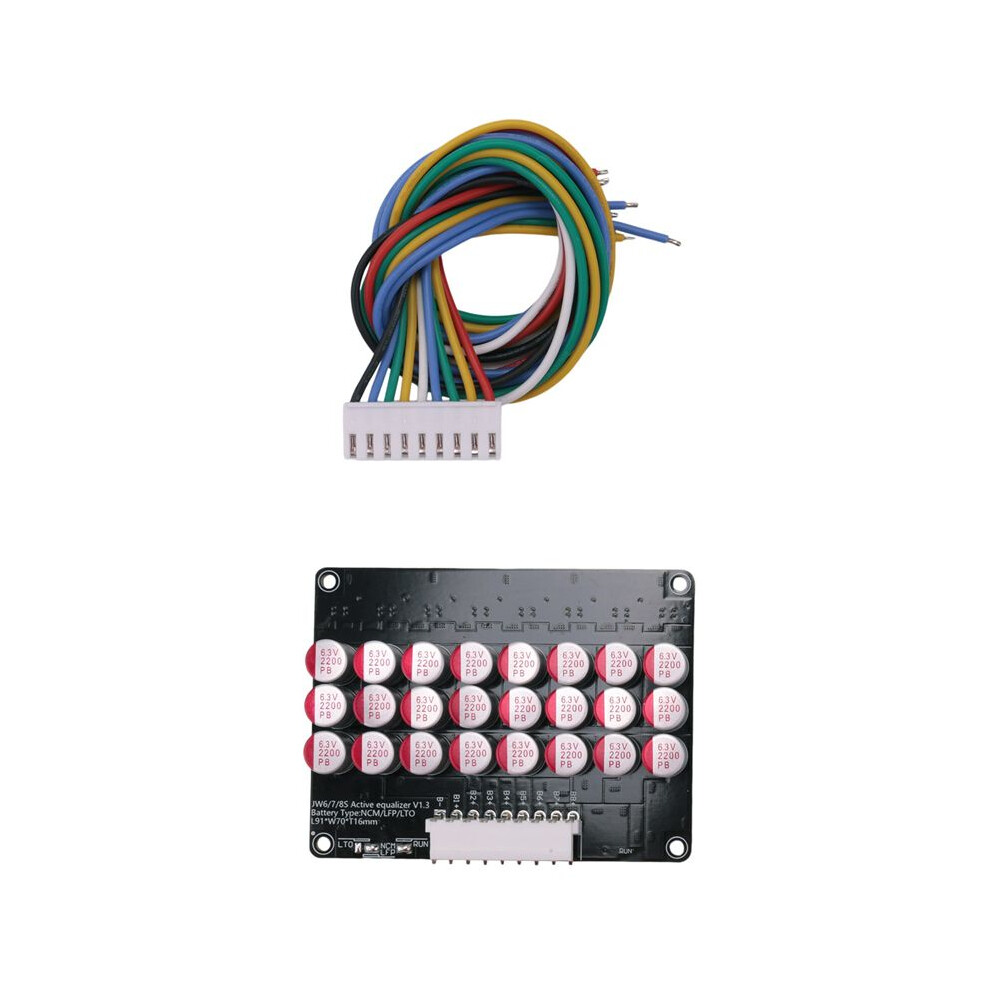

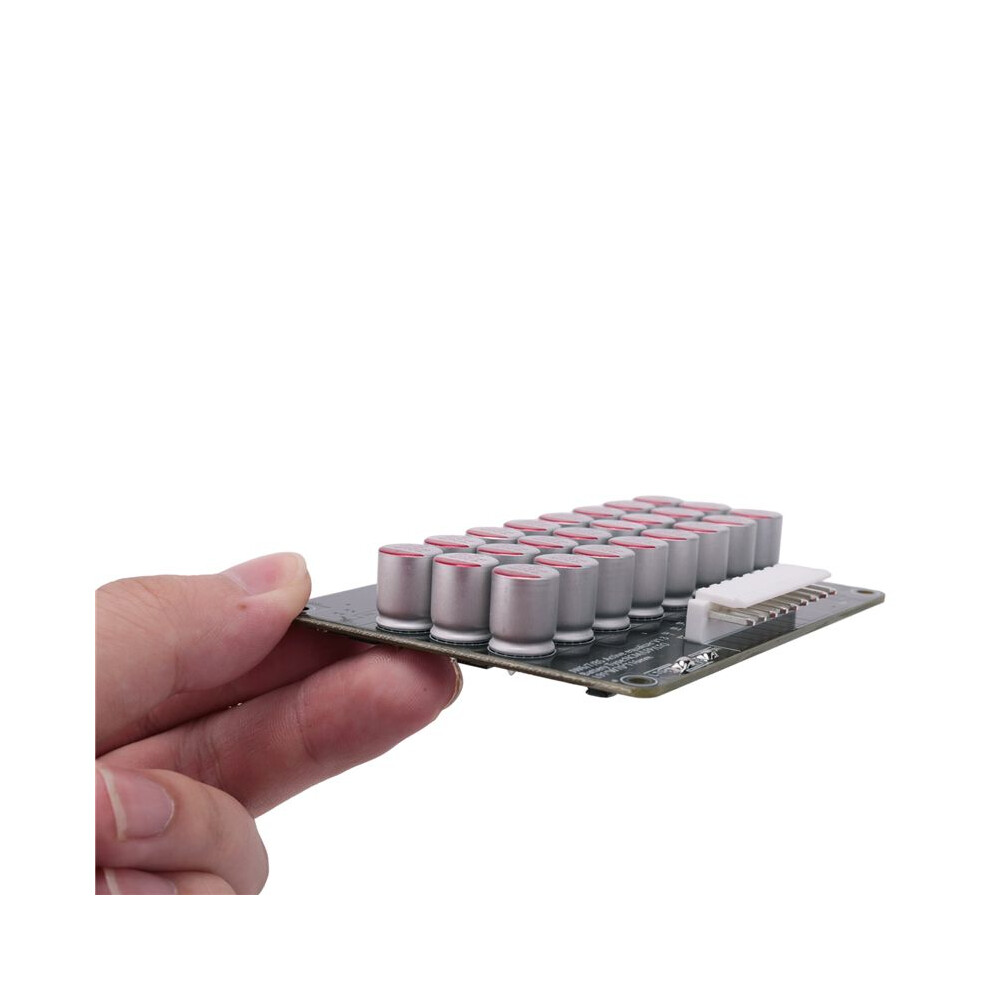

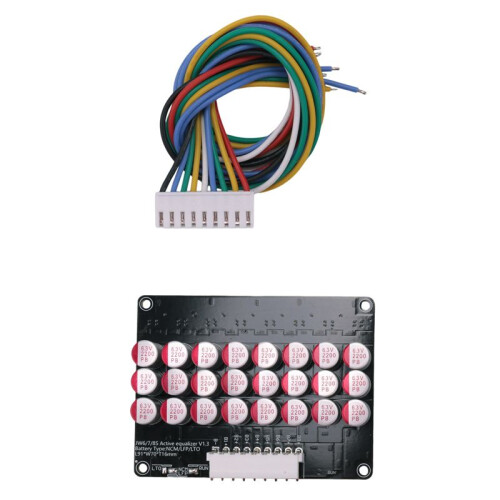

Whole Group Balancer 8S 5A Active Lithium Lipo Lifepo4 Battery Equalizer Transfer Capacitor BMS Board

Whole Group Balancer 8S 5A Active Lithium Lipo Lifepo4 Battery Equalizer Transfer Capacitor BMS Board Description

1. Lithium battery active balance energy transfer board Lithium battery active equalizer high-efficiency energy transfer balance
2. Capacitive energy transfer equalization board (high precision 5mv, whole group equalization, not adjacent equalization)
3. Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.
4. Working principle, the capacitive fit transfers the charge transporter, the equalization board is connected to the battery to start the equalization work, the brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, equalization current 0-5.5A, the more the battery is, the more the equalization current is Small, reserved for the dormant switch wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!

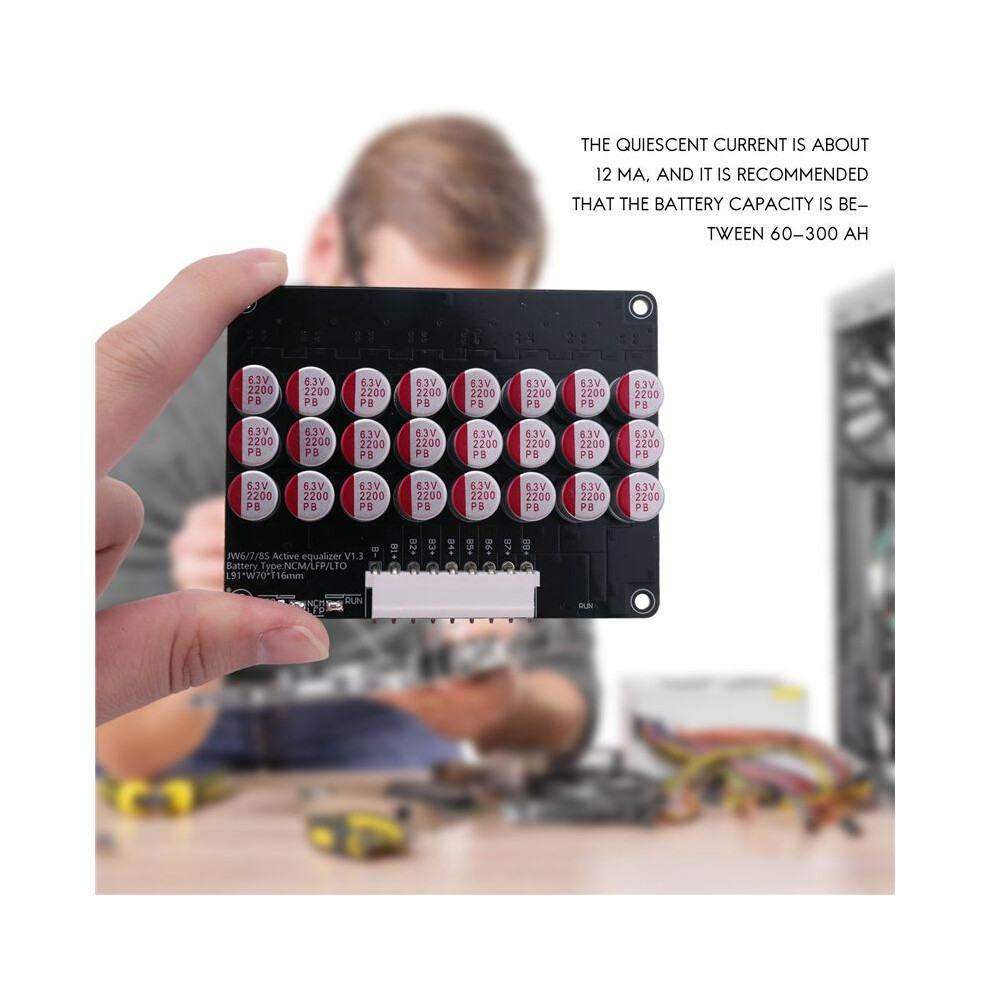

5. The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60-300 AH.

6. With under-voltage sleep protection, the voltage will automatically stop entering the sleep state when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1 mA.
Material:PCB
colour:Black

Package Contents:
1 x Battery Equalizer Energy Transfer
