WIFI Relay Controller Module, DC 5V 8V-80V ESP8266 Wireless Module ESP-12F for IOT Smart

WIFI Relay Controller Module, DC 5V 8V-80V ESP8266 Wireless Module ESP-12F for IOT Smart Description

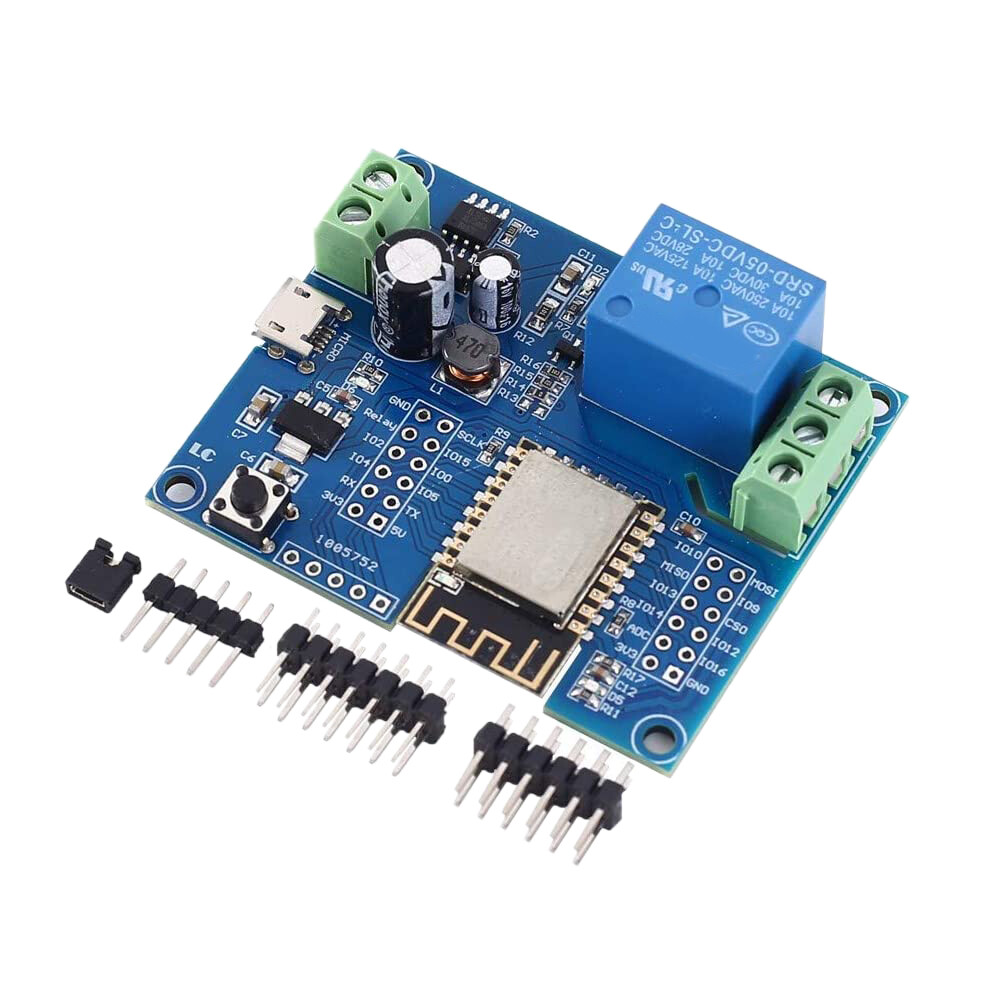

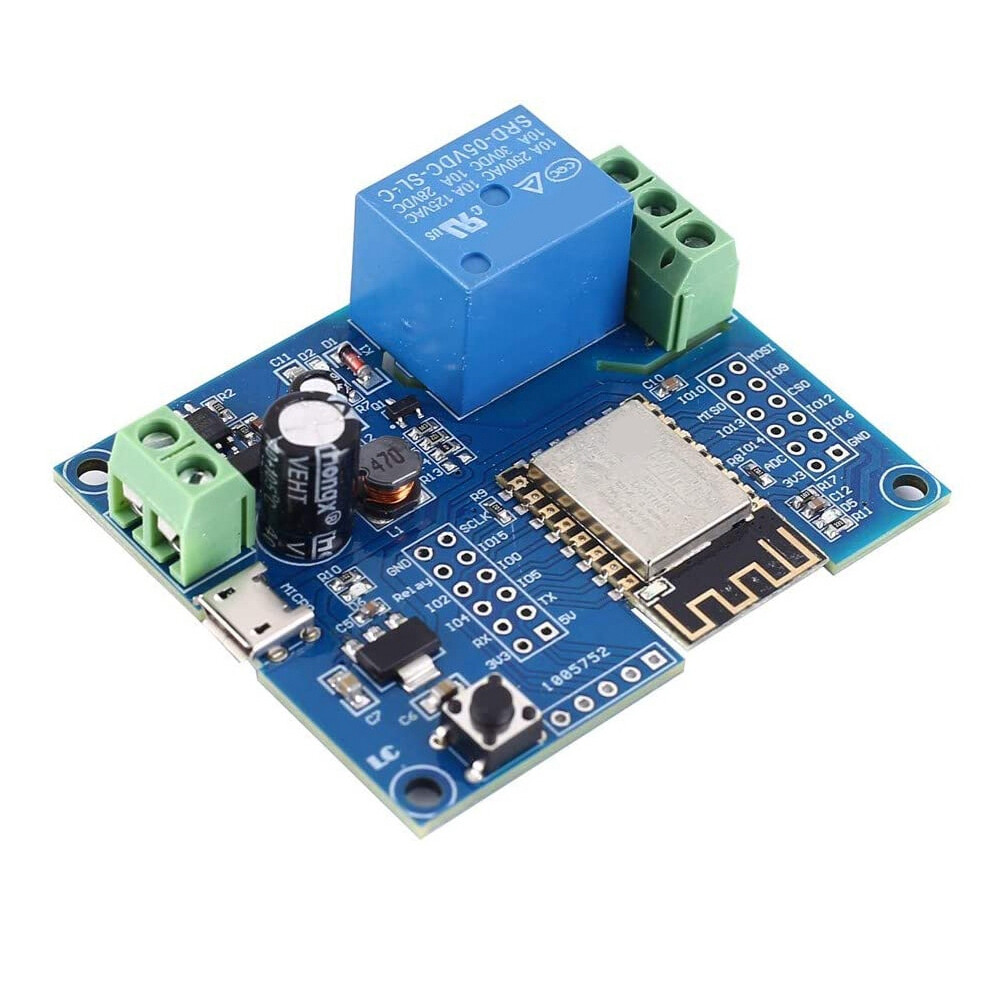

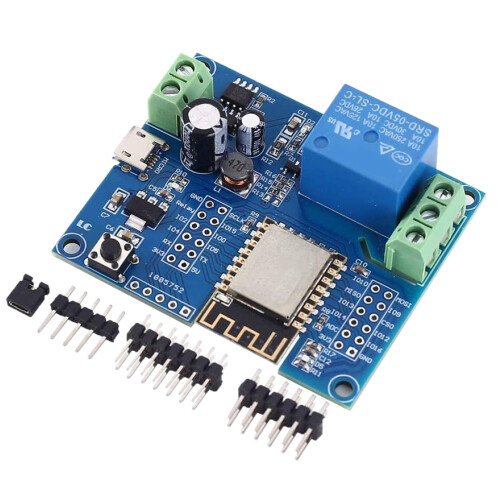

LC-Relay-ESP12-1R-D8 single way relay development board carry on ESP-12F WiFi module I/O port is fully extracted, support DC8-80V/USB 5V and other power supply methods. Supply development environment reference code, suitable for ESP8266 secondary develop learning, smart home wireless control and other occasions.
Onboard and stable ESP-12F WiFi module ,High capacity4M Byte Flash.
Reserve GPIO for ESP-12F. Reserve UART firmware update interface.
Onboard WiFi module reset button. Onboard 1 channel 5V relay.
color: blue
Material: PCB
Model: LC-Relay-ESP12-1R-D8
Work Voltage:DC8-80V/USB5V
WIFI IC: ESP8266
Communication Protocol:UART
Load voltatge:AC 250V or DC 30V(Max)
Load current:10A(Max)
Work Temperature:-25?~85?
Work Humidity:5%~95%RH
Size:59*48*19mm
Package:
1pcs WIFI Relay Switch Module
1pcs 2*7Pin 2.54mm Male Pin
1pcs 2*6Pin 2.54mm Male Pin
1pcs 5Pin 2.54mm Male Pin
1pcs 2.54mm Jump Cap
Only the above package content, other products are not included.
