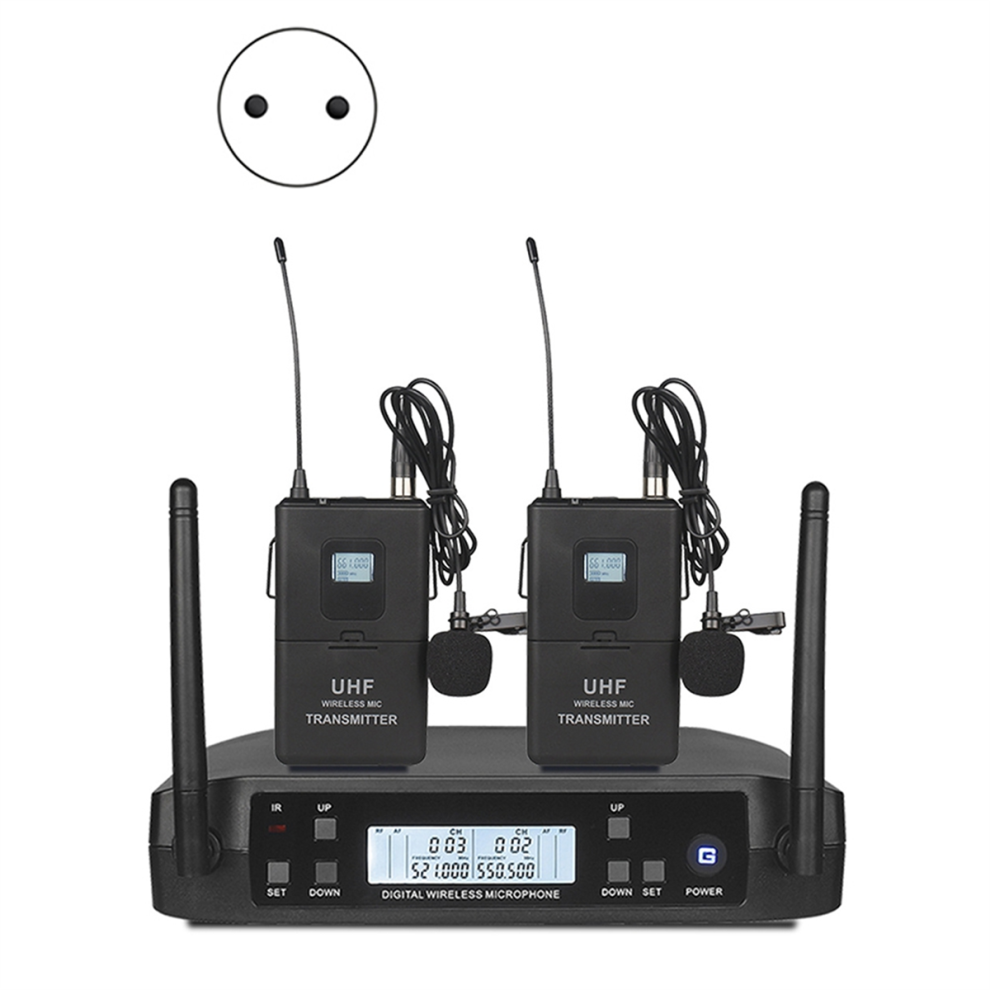

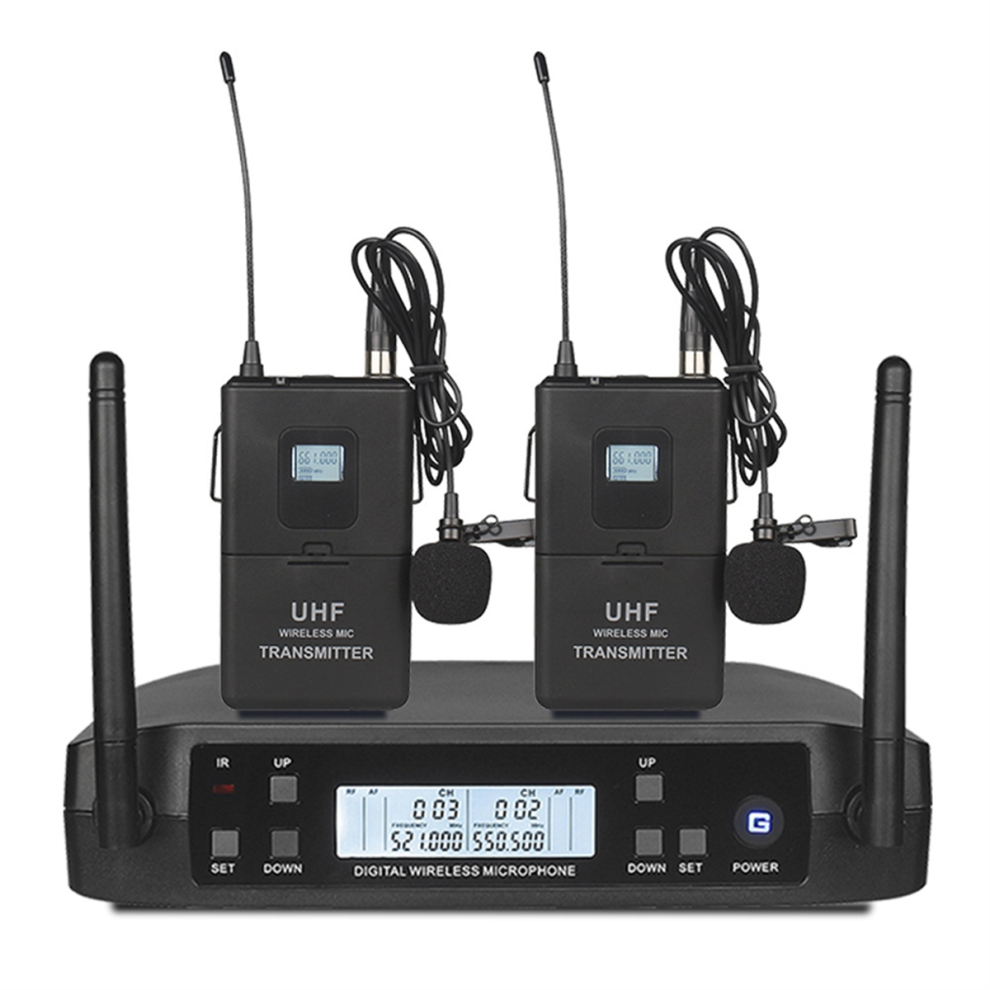

Wireless Microphone for GLXD4 UHF 510-690MHz EU Plug

Wireless Microphone for GLXD4 UHF 510-690MHz EU Plug Description

Dual-channel dual-antenna receiving signal design
Uhf frequency band transmission signal, the frequency range is between 510-690MHz
Both the receiver and transmitter are equipped with liquid crystal display, so the working status is clear at a glance
The rear of the receiver is equipped with 2 rubber antennas to improve the received signal and enhance the high-quality appearance
A wide range of applications, including meetings, speeches, karaoke performances, and lecture lights

Receiver:Power supply: DC 12V-18V
Function display mode: LCD
Frequency: 510-690MHz
Frequency stability: 10ppm
Sensitivity: 13dBuV
Leading channel suppression: 65dB
Image frequency suppression: 75dB
Audio output: 200mW
Output impedance: XLR connector: 200Ω 1/4 connector: 1KΩ
Signal to noise ratio: 100dB
Distortion: Less than 0.1%
Frequency response: 50Hz-15KHz
Receiving distance: 100m
launcher:
Frequency: 510-690MHz
Frequency stability: 10ppm
Transmitting power: 10mW
Launch distance: 100m
Harmonic suppression: 65dB or more
Modulation method: FM
Modulation degree: 75K
Working voltage: 3V
Working current: 120mA
Function display mode: LCD
(The product printed words depending on the batch, but this does not affect use)
Voltage: AC100-240V
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Colour:As Shown
Material:ABS

Package Contents:
1 x Receiver
2 x Microphone

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
