X Micrometer Manual Fine Adjustment - Roller Linear Stage Description
[Precise Measurement] With a load capacity of 49.0 N and a centimeter-scale accuracy of 0.01 mm, it provides precise results for your applications.
[Precise Guide Rail] This is a single X for a linear guide slide rail, ensuring smooth machining and stable performance.
[Roller Design] Features a roller-type rail for smooth and efficient movement, suitable for a variety of applications.
[Multi-Purpose Use] Widely used in production machinery, test equipment, optical experimental measurements, fine-tuning of displacement, positioning, and quantitative motion.
Model: SEMX60-AC

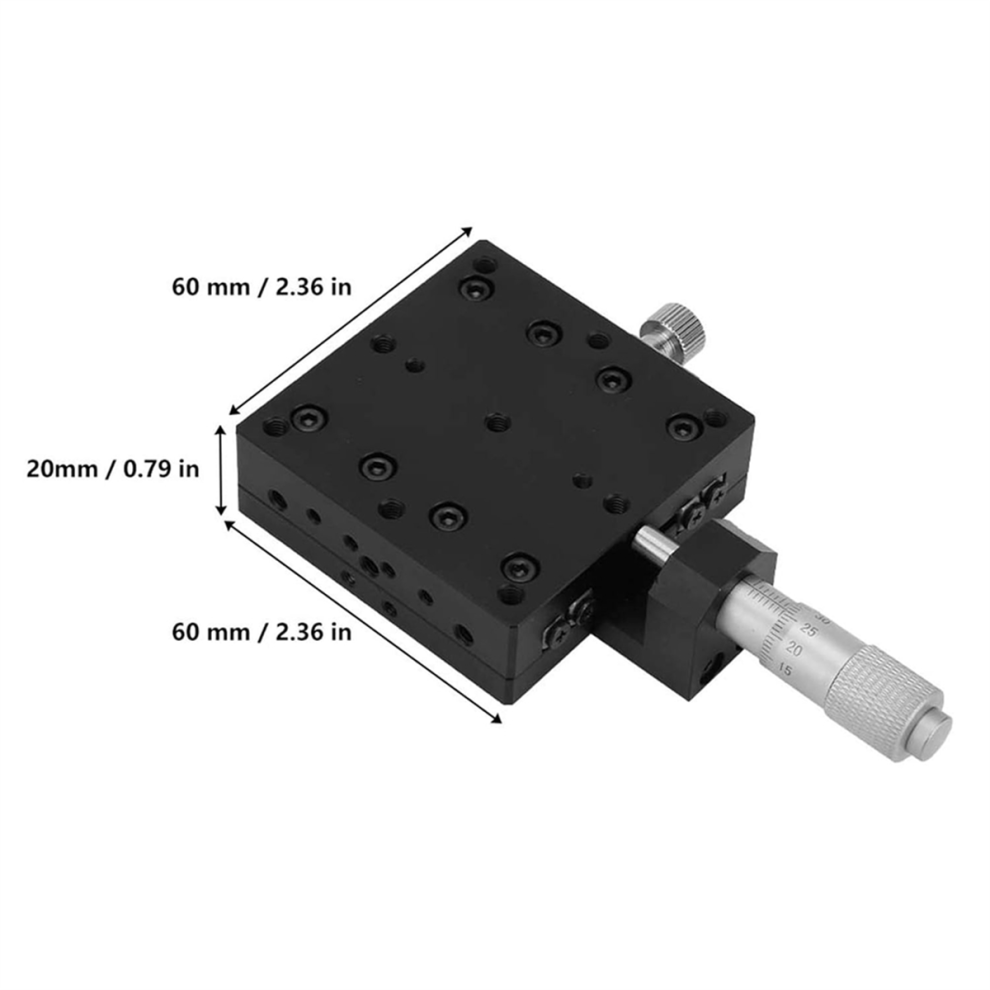

Table Size: 60 x 60 mm, Load: 49.0 N
Stroke: 6.5 mm
Centimeter map accuracy: 0.01 mm
Parallelism: 30 µm
Movement parallelism: 10 µm
True straightness: 3 µm
Movement distance adjustment: Micrometer differential head
Slide rail: Linear guide rail type: Roller type
Weight: 0.300 g / 10.6 oz
Size: 0.119.3 x 72 x 24.5 mm / 4.7 x 2.8 x 1.0 in
Color: Black
Material: Metal
Package contents:
1 * Optical Tester
Only the above-mentioned package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
