XY6015LV CNC Adjustable DC Power Supply Constant Voltage Current Maintenance 15A/900W Step-Down Module

XY6015LV CNC Adjustable DC Power Supply Constant Voltage Current Maintenance 15A/900W Step-Down Module Description

Model:XY6015LV
Input voltage: 6.0-70.00V
Output voltage: 0.0-60.00V
Output current: 0-15.00A
Power output: 0-900W

Product name:DC buck power supply
Resolution of voltage: 0.01V
Resolution of current: 0.01A
Output ripple typical value:vpp-100mv
Maximum output voltage: inputvoltagex0.945
Accuracy of in put voltage: 0.1%+5word
Accuracy of Output voltage:0.4%+lword
Accuracy of current:0.5%+3 word
Heat dissipation fan on: Current 2A, power 50W, Temperature 50
Heat dissipation fan on then off: Current Less than 1.5A, power Less than 45W, Temperature Less than 45

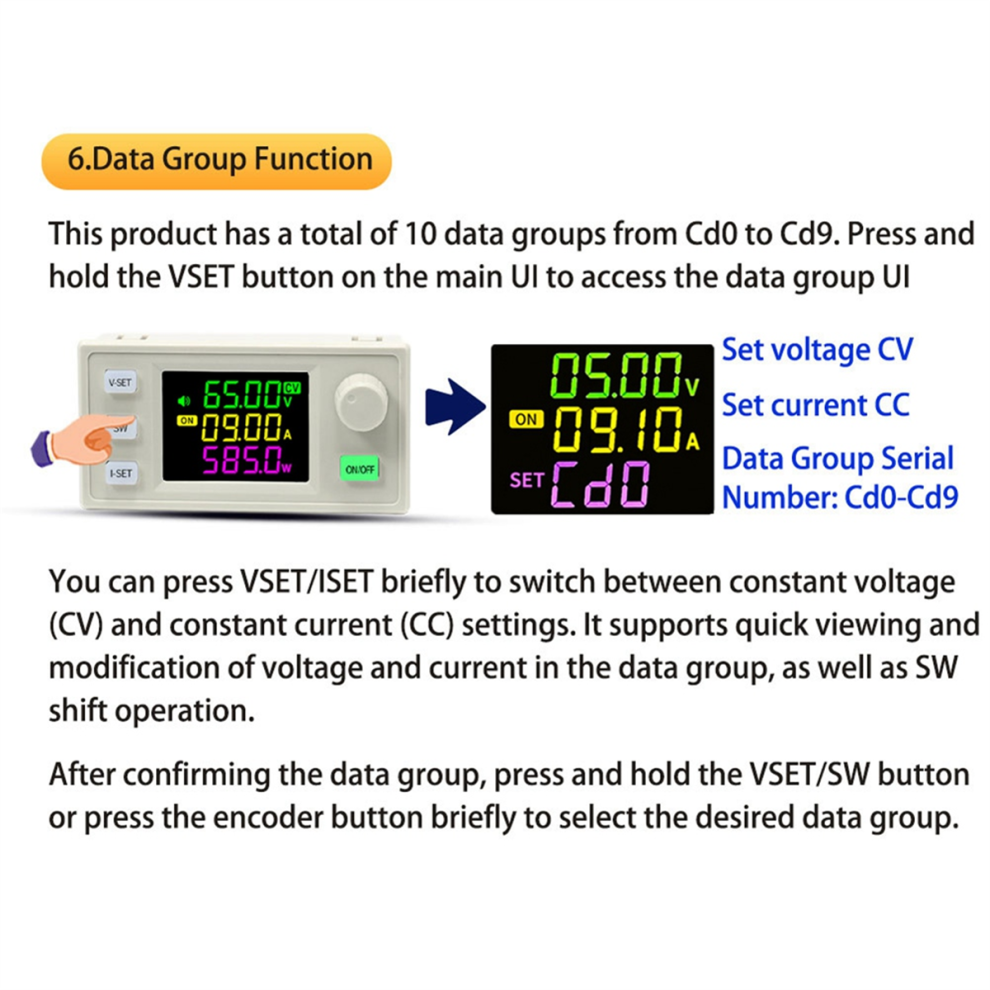

Storage data group: 10 groups
Num ber of buttons: 5
Efficiency of conversion: About 95%
MPPT function: Support MPPT solar charging

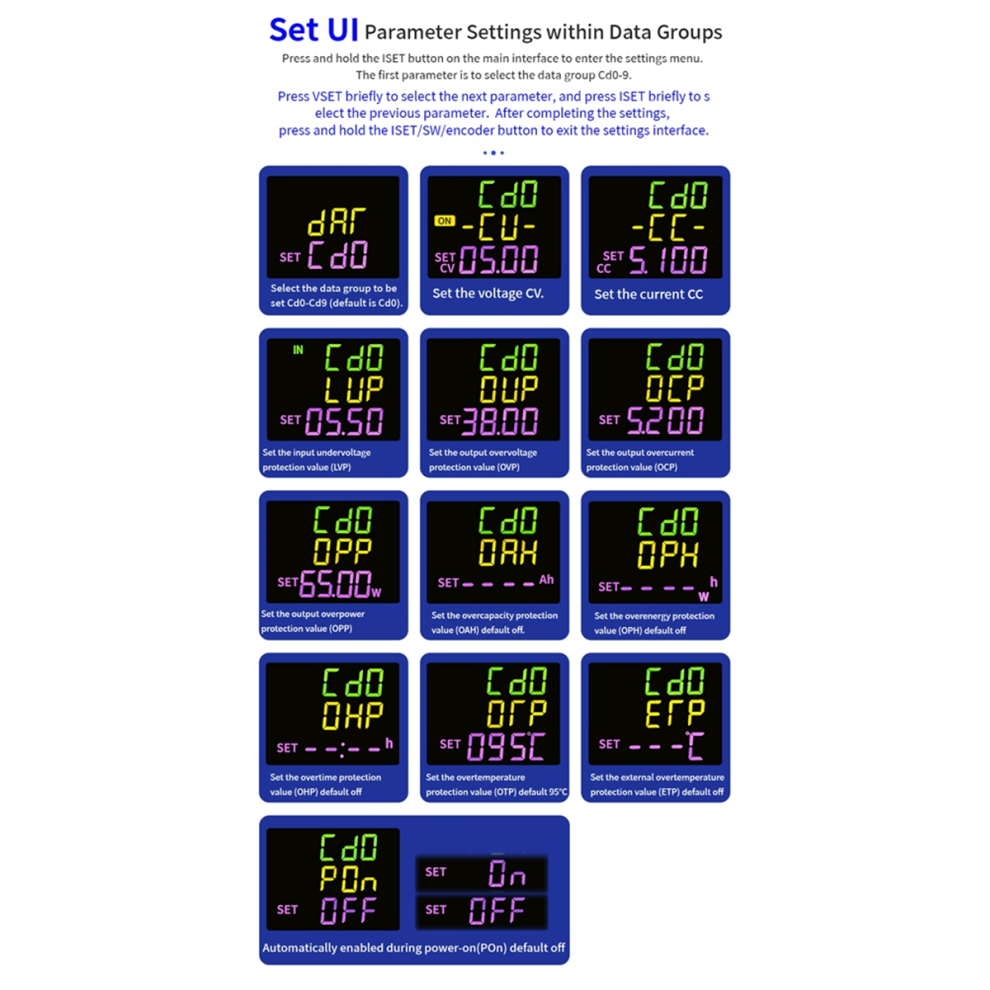

Protection mechanism:
External temperature protection: 0-110 , off by default
Input overvoltage protection: 71V by default
under-voltage (LUP):(Adjustable 4.8-71V, default 65V)
over-voltage (OUP):(Adjustable 65V, default is 65V)
over-current (OCP):(Adjustable from 0 to 16A, default 16A)
over-power (OPP):(Adjustable from 0 to 950W, default is 950W)
over-temp (OTP): Adjustable from 60 to 110, default is 95
over- (OHP): 1 minute -99 hours 59 minutes, off by default
over-capacity ():0-9999Ah, off by default
over-energy (OPH):0-9999KWh, off by default
Colour:As Shown
Material:PCB+components+plastic

Package Contents:
1 * Adjustable Step-Down Power Supply

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
