XZZ Programmer Notebook Chip Read Write Tool Online/Offline Dual Operation Without Disassembly Full Set

XZZ Programmer Notebook Chip Read Write Tool Online/Offline Dual Operation Without Disassembly Full Set Description

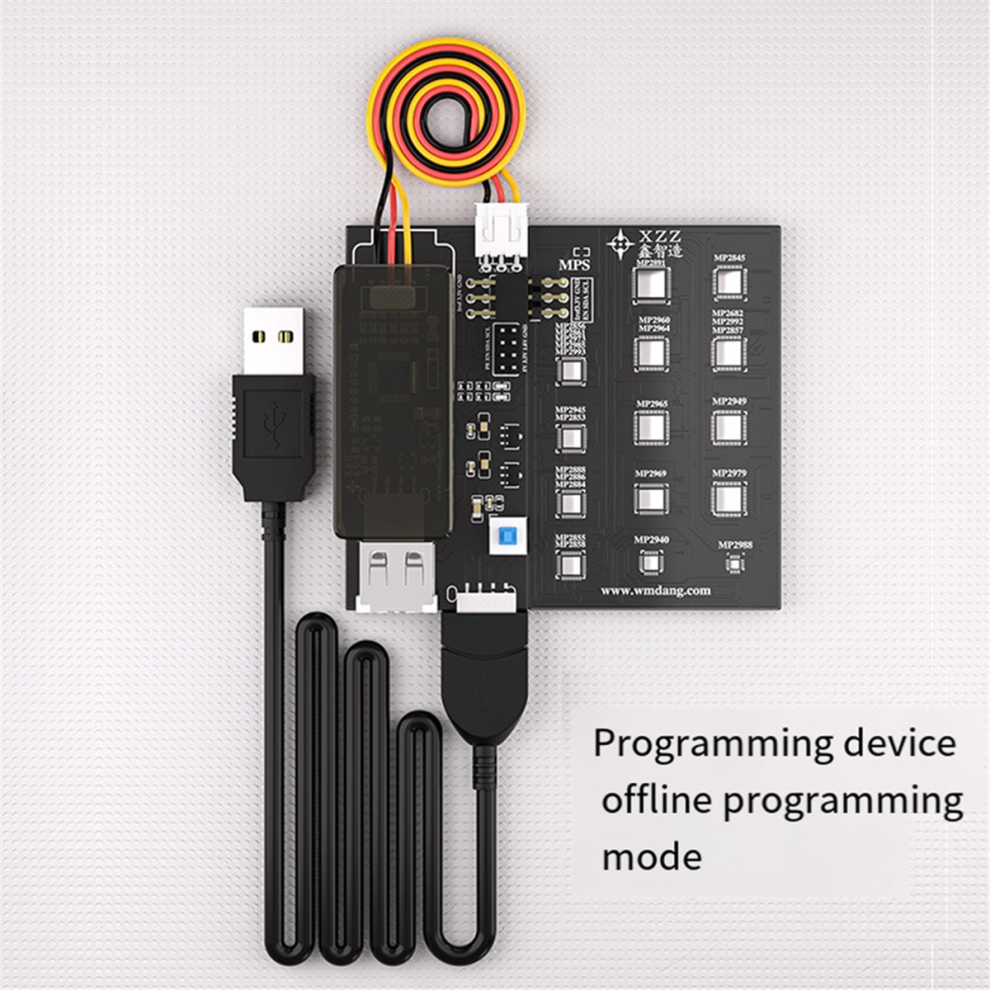

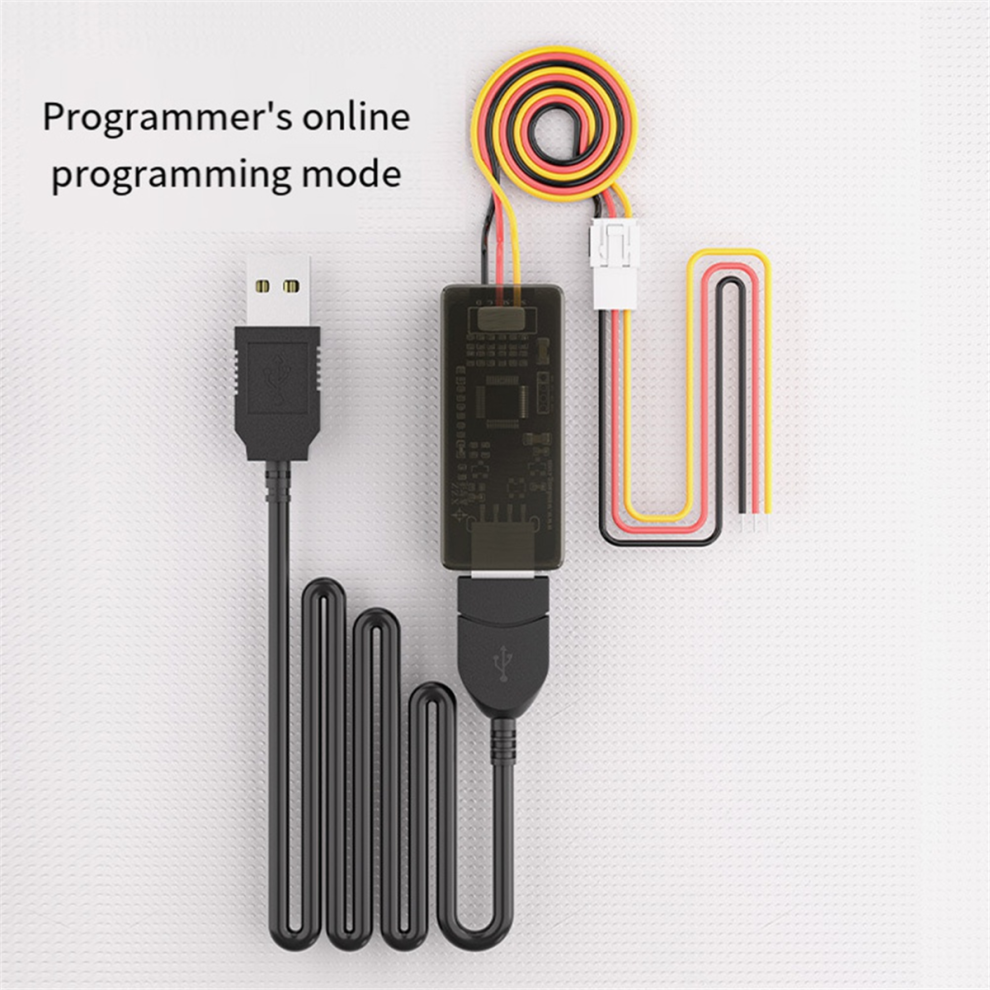

XZZ Notebook Programmer with Offline Board supports offline/online dual mode operation, allowing notebook chip read, write and repair without disassembly. Jumping wires connect the motherboard for online programming, and the CPU is soldered on the board for offline programming.
List of devices supported by the programmer:
1. Notebook Core Power Monitor Programming: MP2940, MP2940A, MP2940C, MP2942, MP2943, MP2944, MP2945, MP2948C, MP2949A, MP2950, MP2959, MP2962, MP2969, MP2979A.
2. Server Core Power Monitor Programming: MP2955/56/58, MP2951, MP2853, MP2888/86/84, MP2965/66/68, MP5023, MP2975/78/72, MP2855, MP2949A, MP5920, MP5922, MP2926, MP2988.
3. Computing and Core: MP2971/73, MP2845/45A, MP2856/57, MP2880, MP2882/72/74/78, MP2960, MP2964, MP9941, MP2975/72/76178, MP2985/92/93, MP2986/83, MP2995, MP5990, MPQ2977, MPQ2967, MPQ2861/MP2862, MPQ8646, MP2860/MP2891, MP2890/MP2891A.

Import and Export Program Tutorial:
1. When opening the and program-ming is not connected, a red message "USB is not connected!" appear below.
2. When the programmer is connected, the red message "USB is not connected!" disappear below.
3. The programmer is connected to the chip through a 3P plug, with a black wire of GND, a red wire of SDA, and a yellow wire of SCL.
4. If you are unsure of the specific point, please refer to the chip PDF, such as MP28888, where pin 34 is SCL and pin 35 is SDA.
5. Power on the target board and click SCAN to search for the chip. Note that the chip needs to be powered on to recognize it.
6. ldentified chip MP2888A with PMBUS address of 20H and ID of 25H.
7. If there are multiple chips, the list be displayed on the left. Click on the chip title to select.
8. Input is used to set the basic parameters of the chip, such as the number of phases, etc.
9. Click on "Reglster" to backup and flash programs on this interface.
10. Backup program: Click on [Cur. Export] or [Sys. Export], enter the file name to save in the Save As dialog box, and save. When there are multiple chips, Cur. Export backs up a single chip, while Sys. Export backs up all chips together to a file. Recommend using Cur. Export.
Color: Black
Material: PCB
Specifications:Full Set

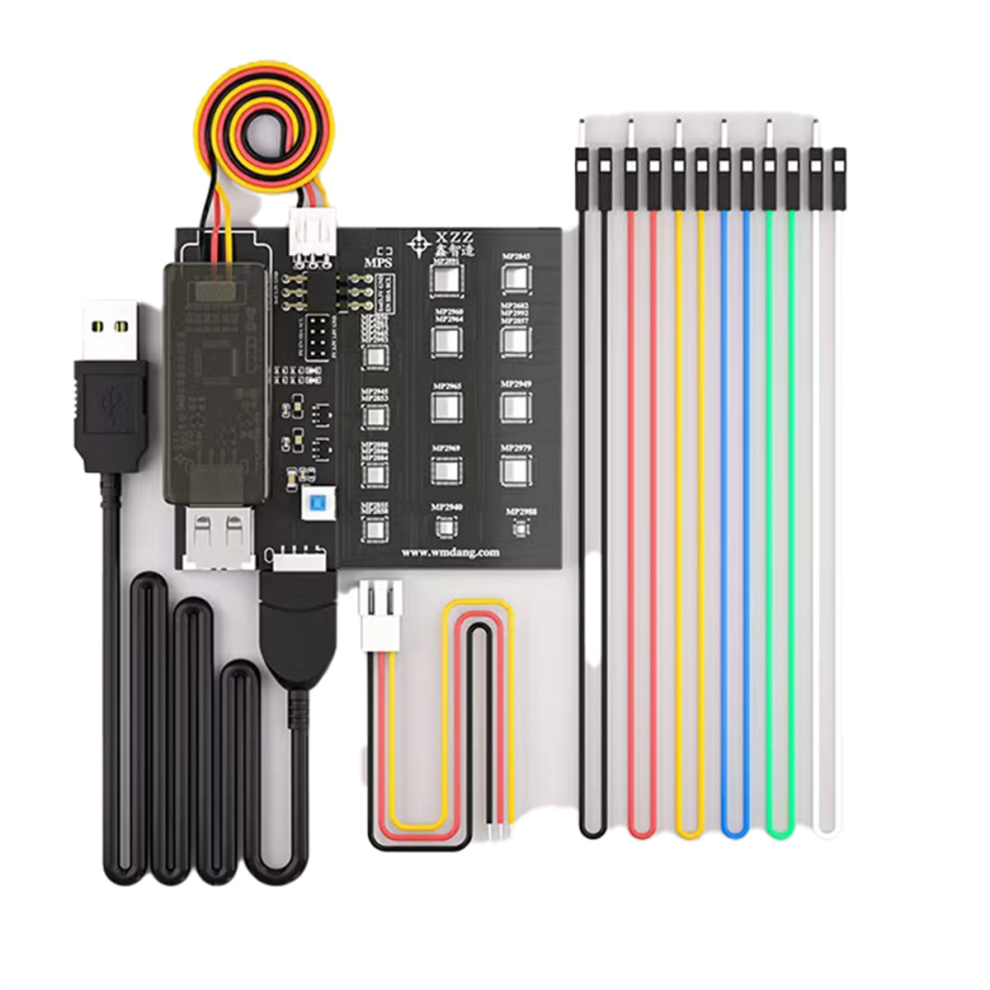

Package Contents:
1 x Programmer
1 x Offline board

Only the above package content, other products are not included.
