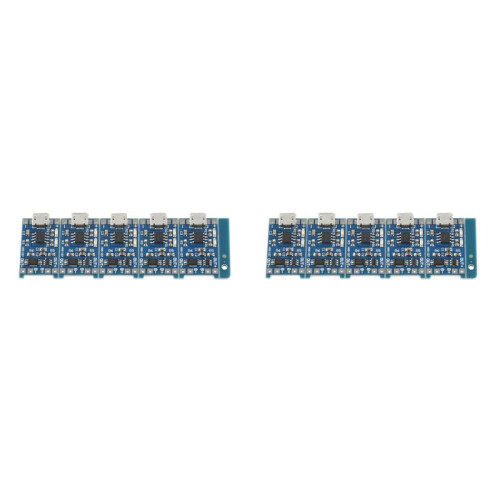

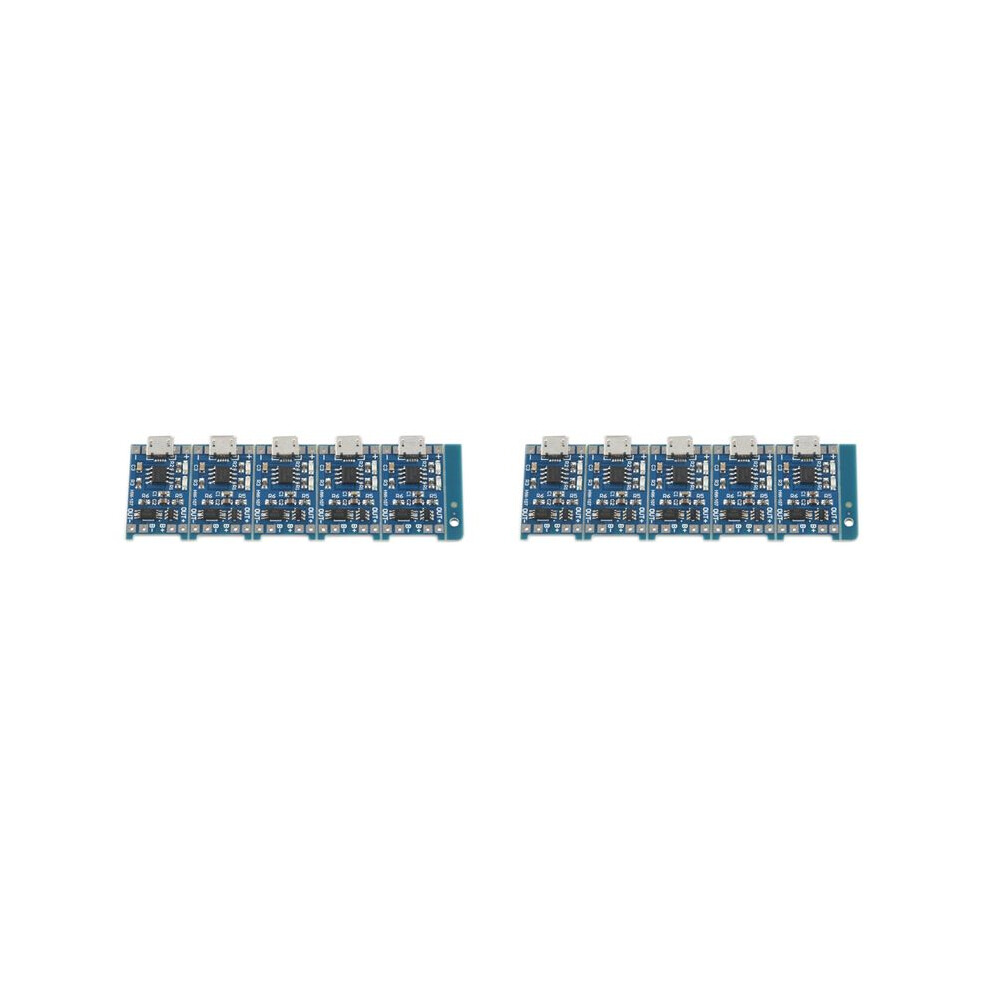

10 Pcs 1A 5V Micro-USB for TP4056 Lithium Battery Power Charger Board Module TE420

Descrizione di 10 Pcs 1A 5V Micro-USB for TP4056 Lithium Battery Power Charger Board Module TE420

USB input terminal with a female, can be directly input to do with the phone charger rechargeable lithium battery, and still retains the input voltage wiring pads, can be very convenient DIY.
This module is used for single-cell lithium or lithium multi-section parallel, charging can take power from USB.
Input Voltage: 5V
Full charging voltage: 4.2V
Max output current: 1A

Material:metal
Colour:
Power Indicator: Red stands for charging, Green stands for fullly charged.
Input interface: interface
Item Size: 25mm x 19mm.
It can be used for voltage 3.6 3.7V, etc. 18650, polymer and other lithium battery charge and discharge protection.
Instructions / Precautions:
Test current meter in series with the charge sheet only 5V input.
Charge current is best battery capacity 0.37C, is 0.37 times the capacity, such 1000mAH battery charging current 400 this is enough. The effect of excessive charging speed backward, rushed over battery voltage out much!
Not too small and too long charging connector wires. Such connection resistance. Too thin, then rushed over battery voltage out much.
Connected to the battery the best good contact. Otherwise rushed over battery voltage out much.
If the 5V input voltage is high, such as 5.2 or even 5.5, will result in insufficient charging current is 1000mA, this is normal. High voltage chip fever will automatically reduce the charging current, not to chip burned. Chip at work about 60 degrees fever is normal. After the charging current is large.
Enter the reverse has no effect the chip, but the output (battery terminals) reverse will burn the chip, please note that buyers.
Package includes:
10x Charger Module
