12Pcs Fixed Ceramic Cement Resistors 5% Watt,15 Ohm 10W & 8 Ohm 20W

Descrizione di 12Pcs Fixed Ceramic Cement Resistors 5% Watt,15 Ohm 10W & 8 Ohm 20W

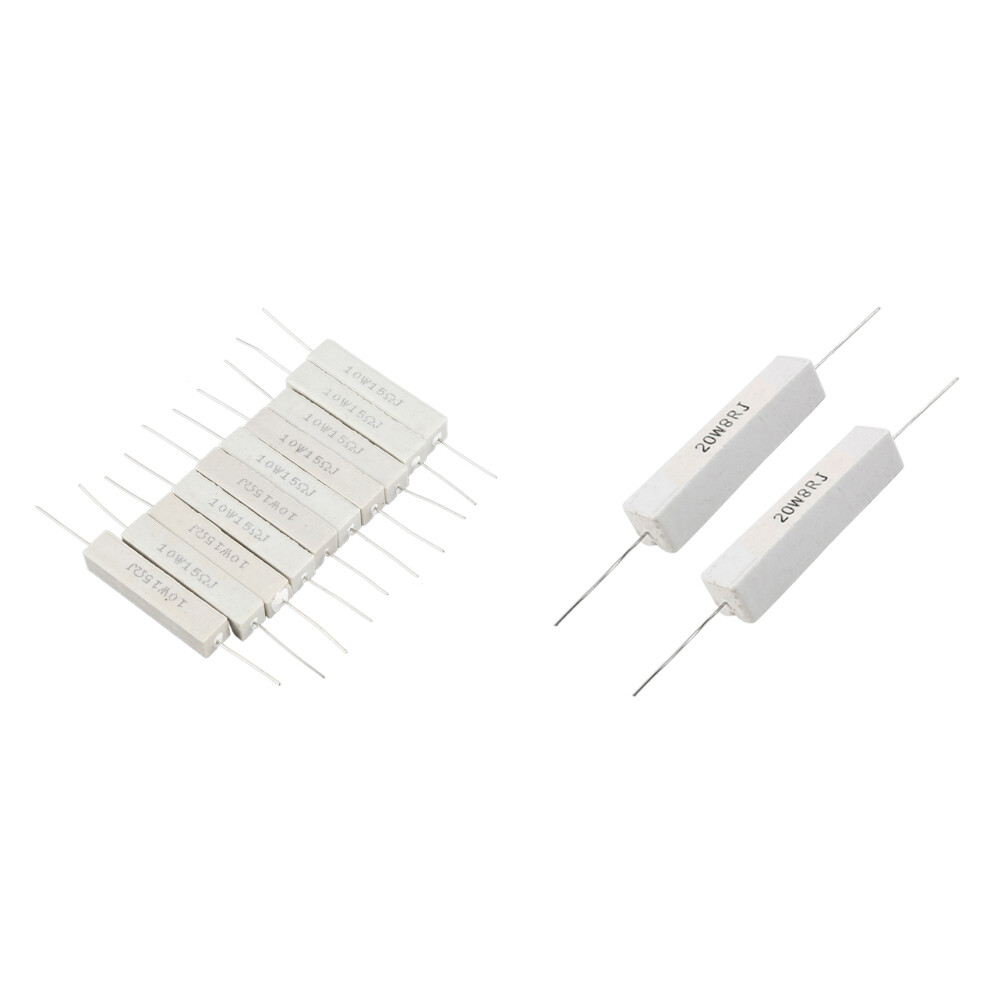

12 PCS Cement Resistor: 10 x 10W Cement Resistor & 2 x 20W Cement Resistor
Cement Resistor features good heat resistant, low temperature coefficient, high load power, high insulating capacity.
Wire Wound Cement Resistor with solderable axial lead for easier mounting.
Widely used in computer, TV set, apparatus, meter, sound and other equipment.

Product Name: Cement Resistor
Body Material: Ceramic, Cement
Color: White

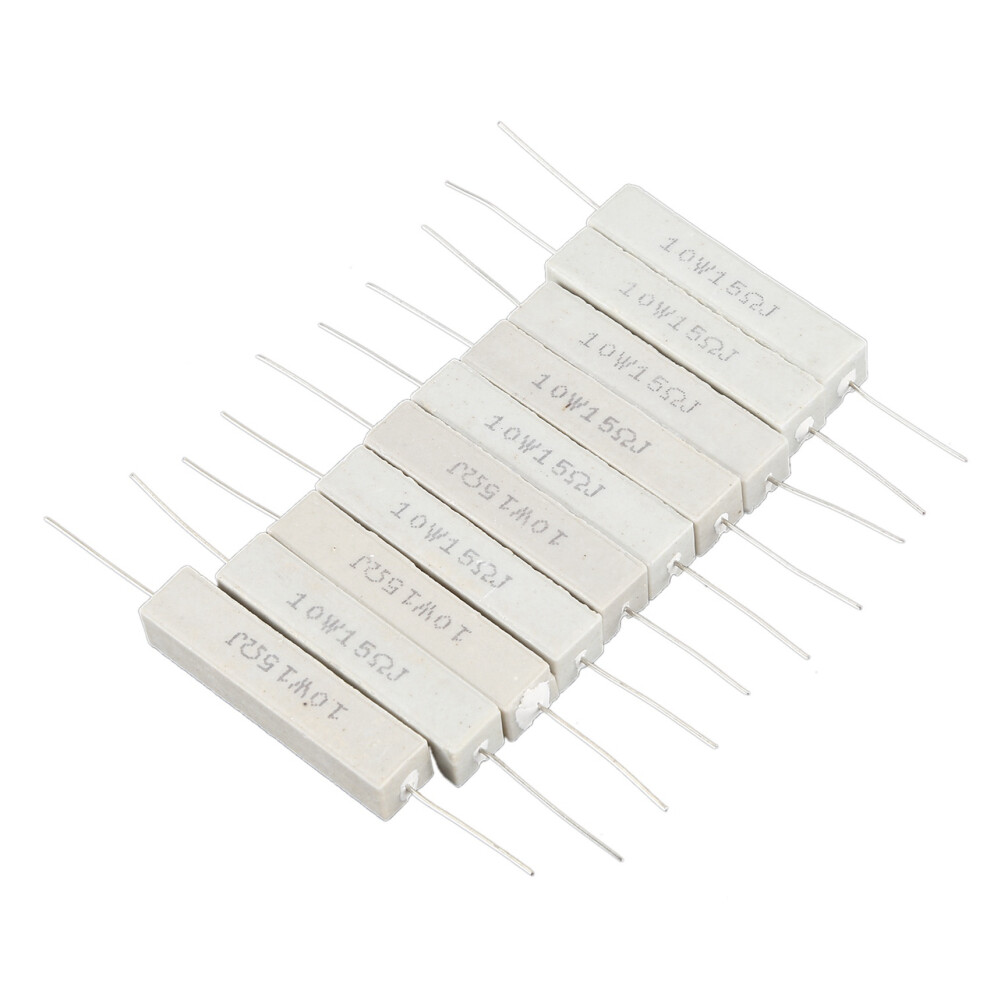

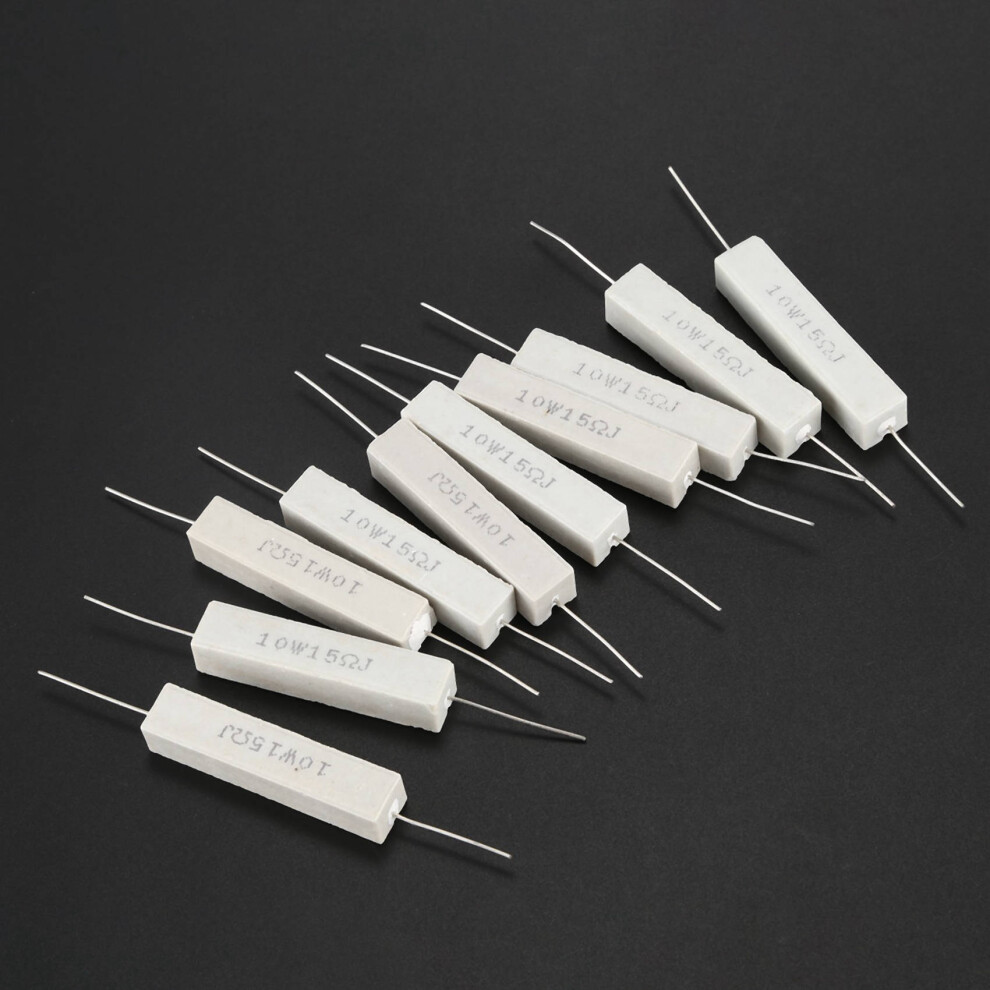

A type:
Power: 10W
Resistance: 15 ohm
Tolerance: +/-5%
Body Size (Approx.): 49 x 10 x 9mm/ 1.9inch x 0.39inch x 0.35inch (L x W x H)
Lead Diameter (Approx.): 0.8mm/ 0.031inch
Lead Length (Approx.): 21mm/ 0.83inch(Max.), 16mm/ 0.63inch (Min.)
B type:
Power: 20W;
Resistance: 8 Ohm
Tolerance: +/-5% (J);
Body Size (Approx.): 61 x 12 x 13mm/2.4inch x 0.47inch x 0.51inch (L x W x H)
Lead Diameter (Approx.): 0.7mm / 0.027inch;

Package Contents:
12 x Cement Resistor
