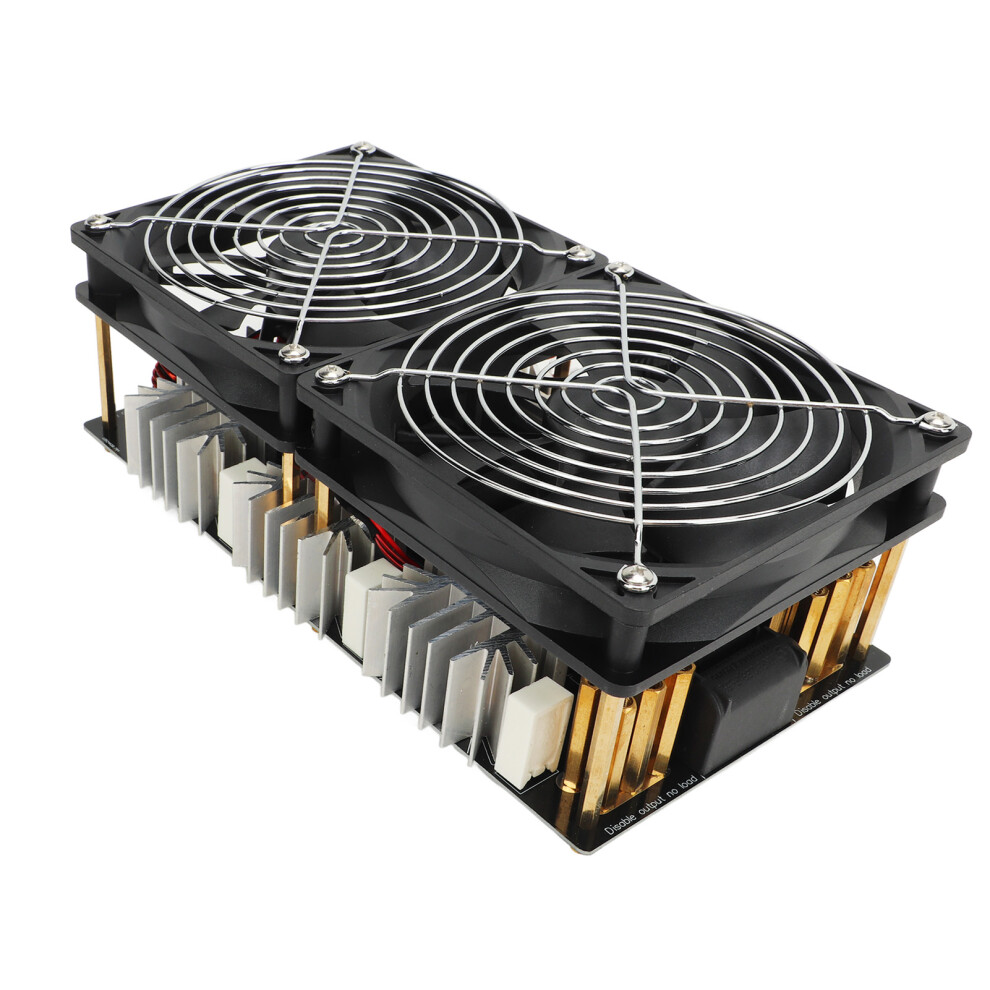

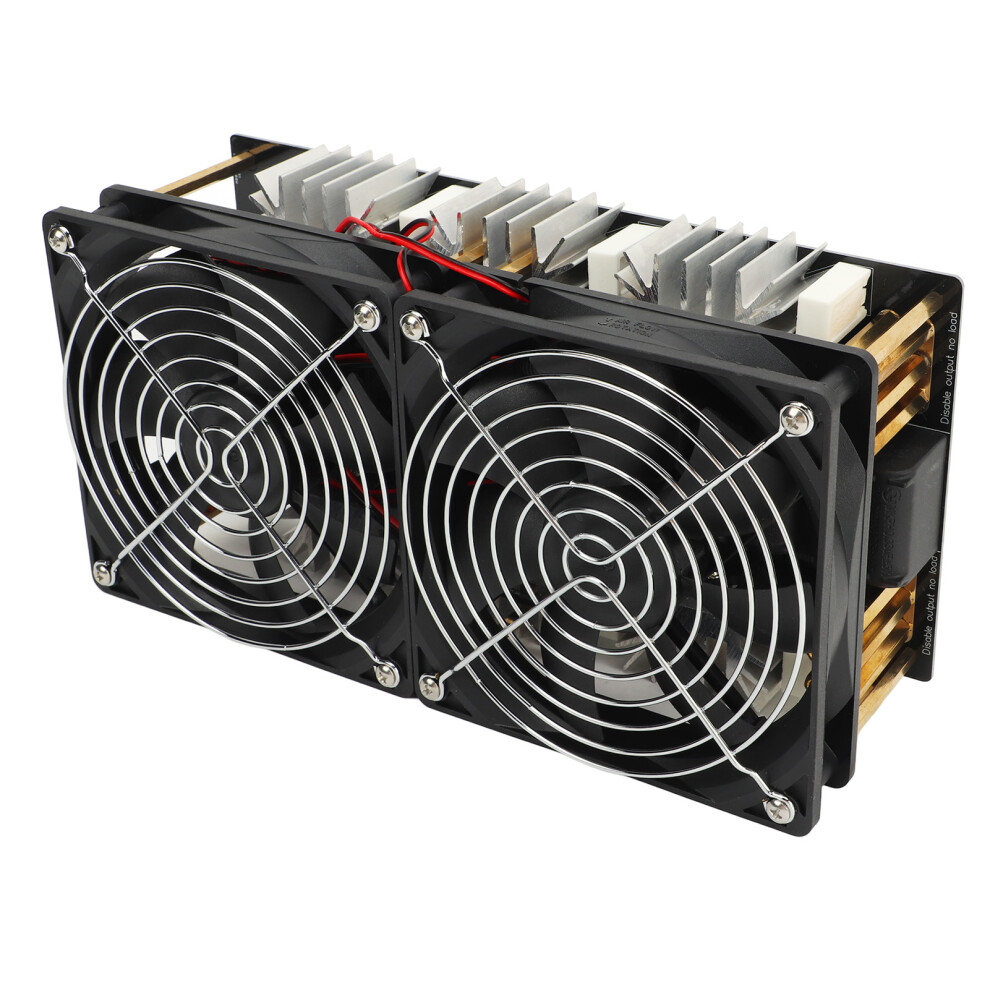

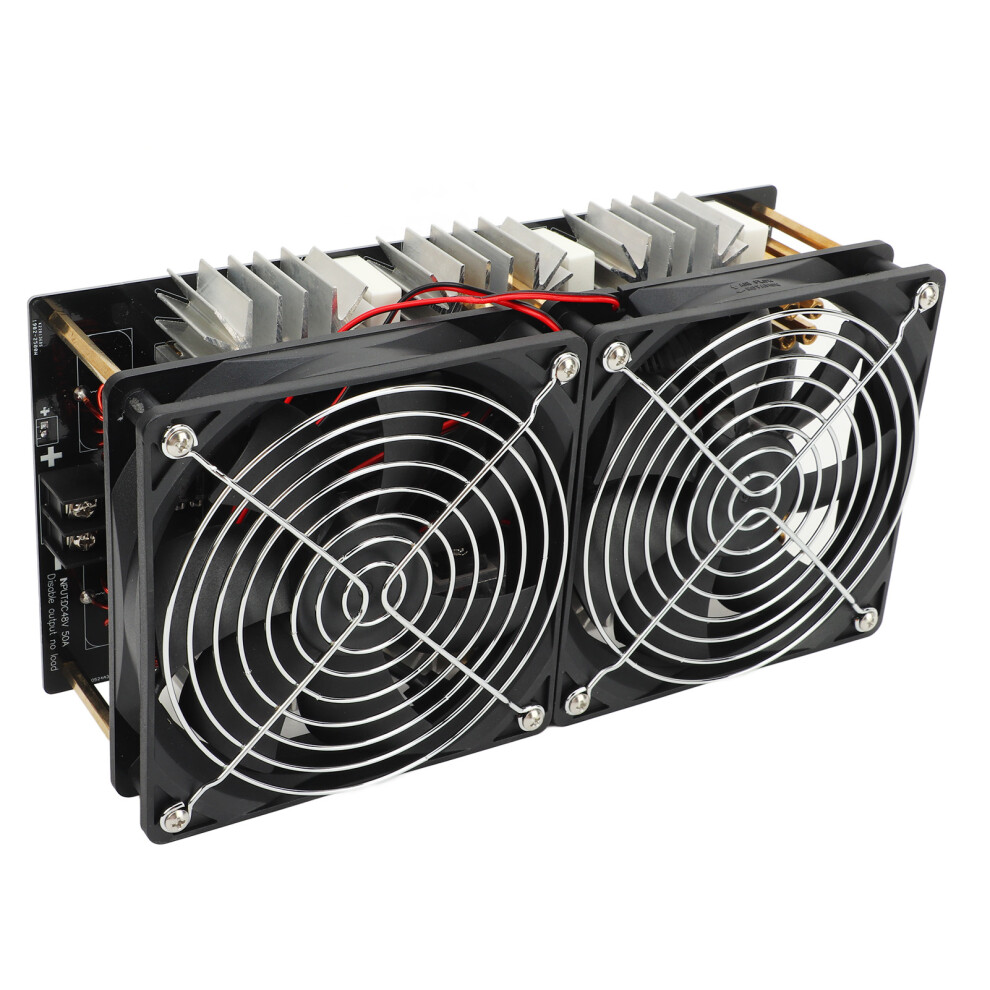

2500W Induction Heater Module 12-48V Brass Ring
Nuovo
Disponibile
Perché amerai fare acquisti su OnBuy:
- Ottieni Cashback su ogni acquisto – spendilo subito sul tuo prossimo ordine
- Consegna gratuita – su milioni di articoli in tutto il sito
- I clienti ci amano – 132,000 recensioni con valutazione « Eccellente »
222,20 €
326,76 €
Sconto del 32%!
Consegna GRATUITA
1%
Ottieni subito 2,22 €
Scopri di più
I prezzi degli articoli in vendita su OnBuy includono l’IVA
Opzioni di pagamento a rate senza interessi disponibili
Vedi la descrizione completa e i dettagli del prodotto
Consegna: Priorità (Gratis) | lun 31 ago - mer 2 set
Venduto da: OKMANO
Resi: 30 giorni
Protezione dei pagamenti per 180 giorni
Descrizione e dettagli
Riepilogo

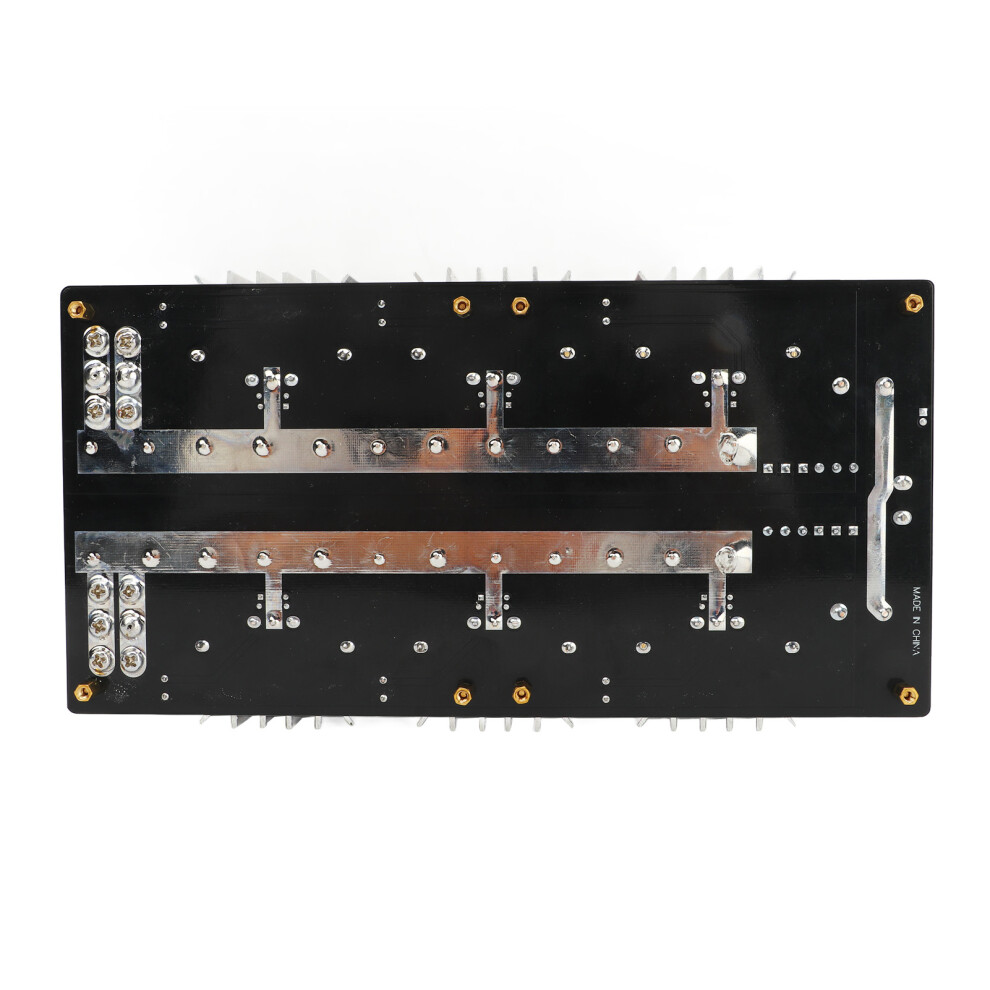

- FINE DESIGN: Induction heating board adopts a super large PCB layout design and a super large heat sink, which has good heat dissipation and high power. Comes with a cooling fan interface and can also be used for discharge, generator, high voltage inverter power supply, etc.
- POWERFUL FUNCTION: The output end uses three M4 brass columns in parallel, which can be connected to other outputs such as high voltage packages; Using 6 IRFP260 and 12 parallel resonant capacitors, the heating board has high power and efficiency.
- WORK DETAILS: This induction heating circuit uses a 12‑48V low voltage DC power supply, with a maximum current of 50A and a maximum power of 2500W.
- WIDELY APPLICABLE: Induction heater can work continuously under good heat dissipation conditions. Due to its moderate power, the module can be used by DIY players to perform heat treatment such as quenching and annealing on small parts. It can also be paired with a graphite crucible(without) to melt metals such as gold, silver, copper, aluminum, etc., heating evenly and quickly, making it very c
- EASY TO INSTALL: Compact size make the module easy to install on the equipment and machine, ideal replacement for the old and damaged parts.
Descrizione di 2500W Induction Heater Module 12-48V Brass Ring
2500W Induction Heater High Frequency Low Voltage Induction Heating Module 12V‑48V Flyback Drive Heater with Brass Ring
Item Type: Induction Heater
Material: PCB, Brass
Power Requirements:
Below 12V, greater than or equal to 10A
Above 15V, greater than or equal to 20A
Fan: With a silent fan
Maximum Power: 2500W
Maximum Current: 50A
1. The heating power is very high, except for the boards and components being very hot, the heating capacity of brass pipes is very high. Buyers can prepare a separate water cooling system by purchasing a small water pump and a 2 meter rubber hose with an inner diameter of 4mm.
3. When heating metal objects, please do not heat too much metal, otherwise it may cause power overload. Please add a 35A fuse or ammeter, and the air switch will be better. (Packaging not included)
4. Although this drive board can withstand a current of over 40A, it is recommended not to exceed 48V 35A to avoid accidents and damage.
7. If encountering MOS tube heating, the first thing to consider is whether the output power meets the requirements.
8. Do not empty the board, otherwise it will emit high noise frequency and burn out the MOS transistor.
Dettagli
| OPC | PT55DCK |
|---|---|
| Codici | 5071393636836 (EAN) |
