5X Soil Hygrometer Detection Module Moisture Sensor FC-28 3.3V-5V

Descrizione di 5X Soil Hygrometer Detection Module Moisture Sensor FC-28 3.3V-5V

Material: metal
Net Weight: 35g
Model: FC-28
Main Color:
Operating voltage: 3.3V~5V

Dual output mode,analog output more accurate
A fixed bolt hole for easy installation
With power indicator (red) and digital switching output indicator (green)

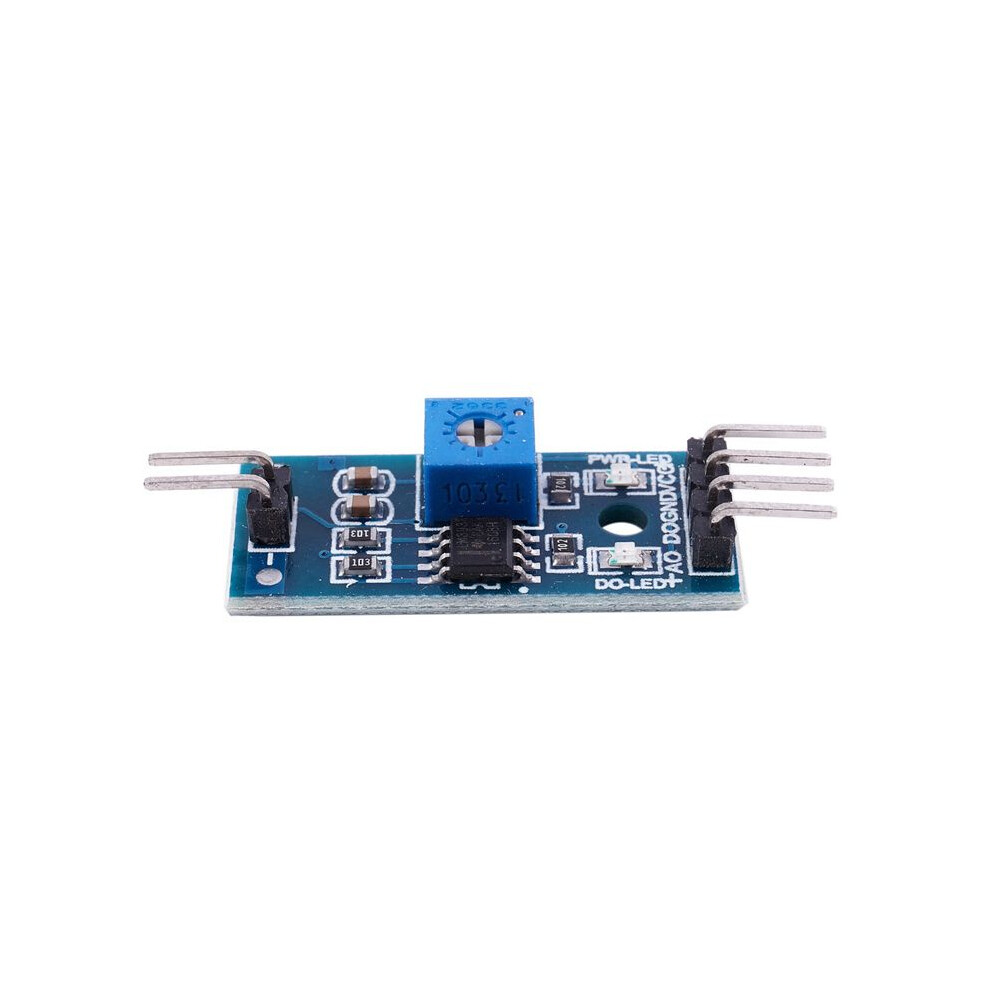

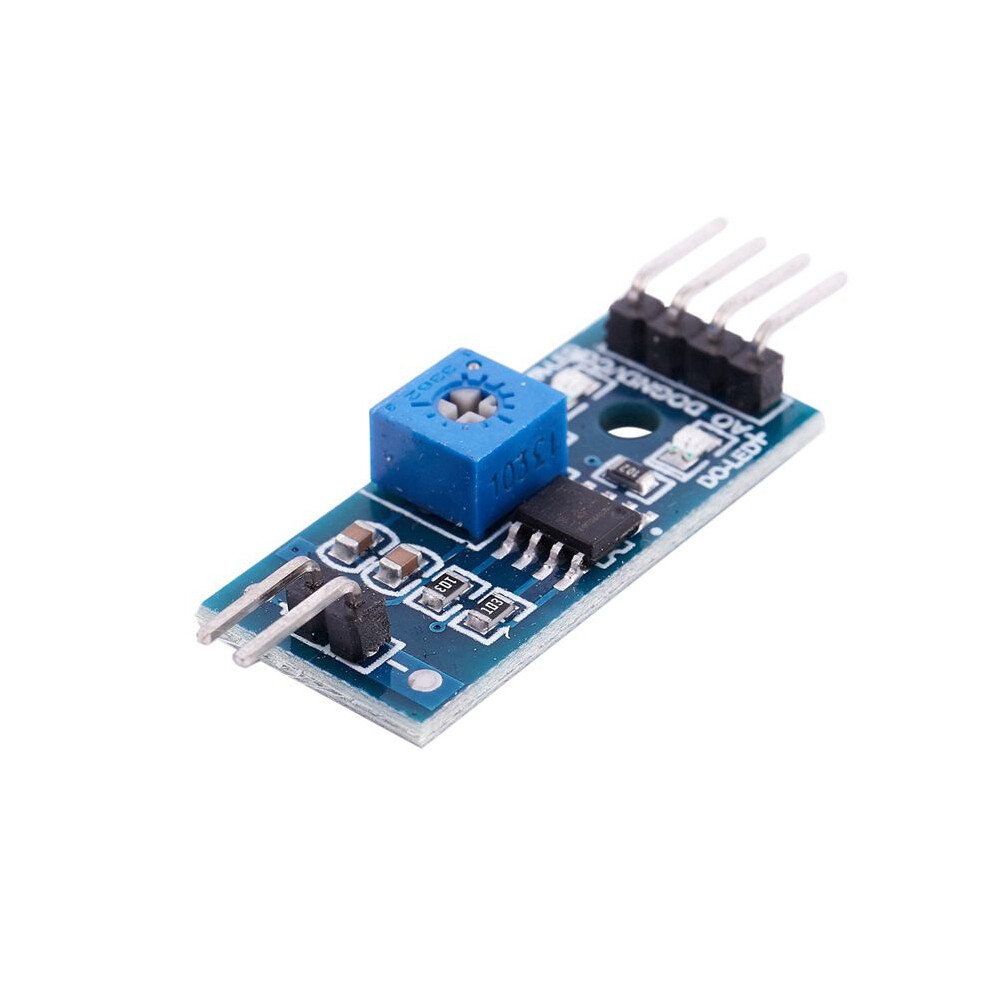

Having LM393 comparator chip, stable
Panel PCB Dimension: Approx.3cm x 1.5cm

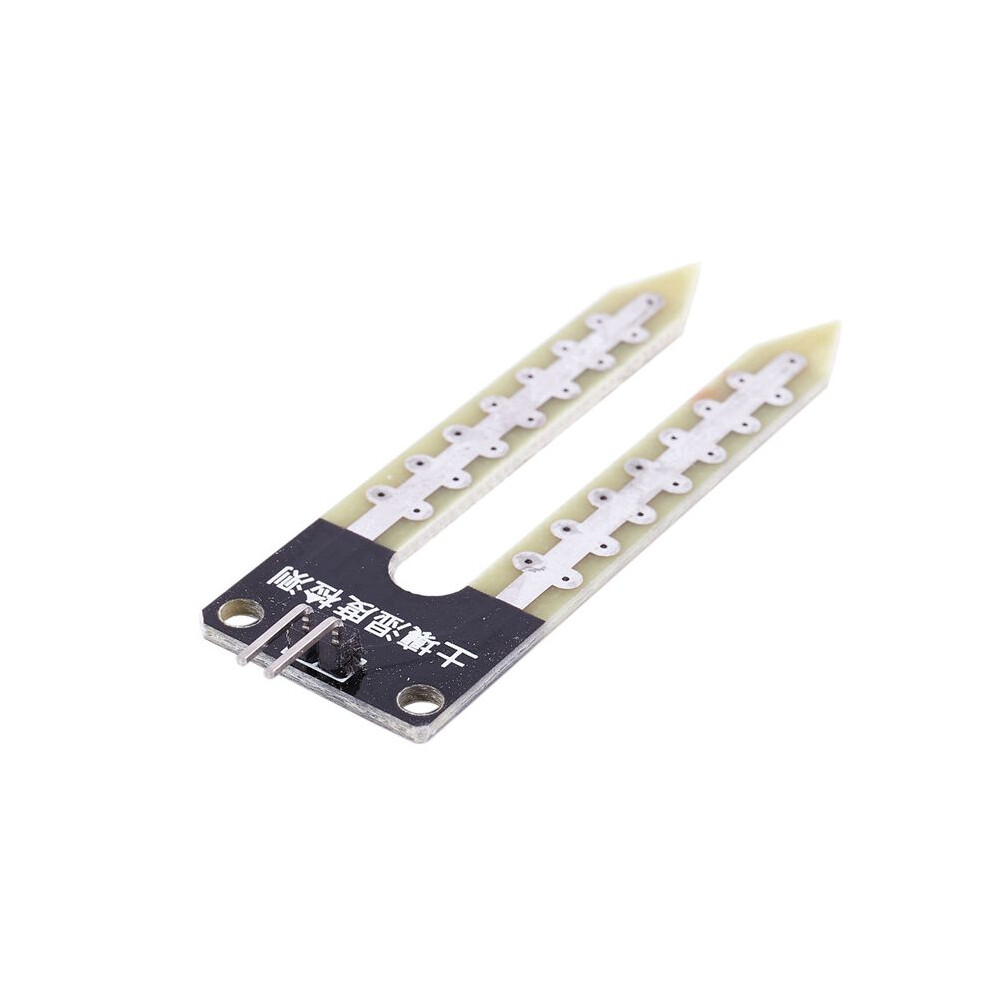

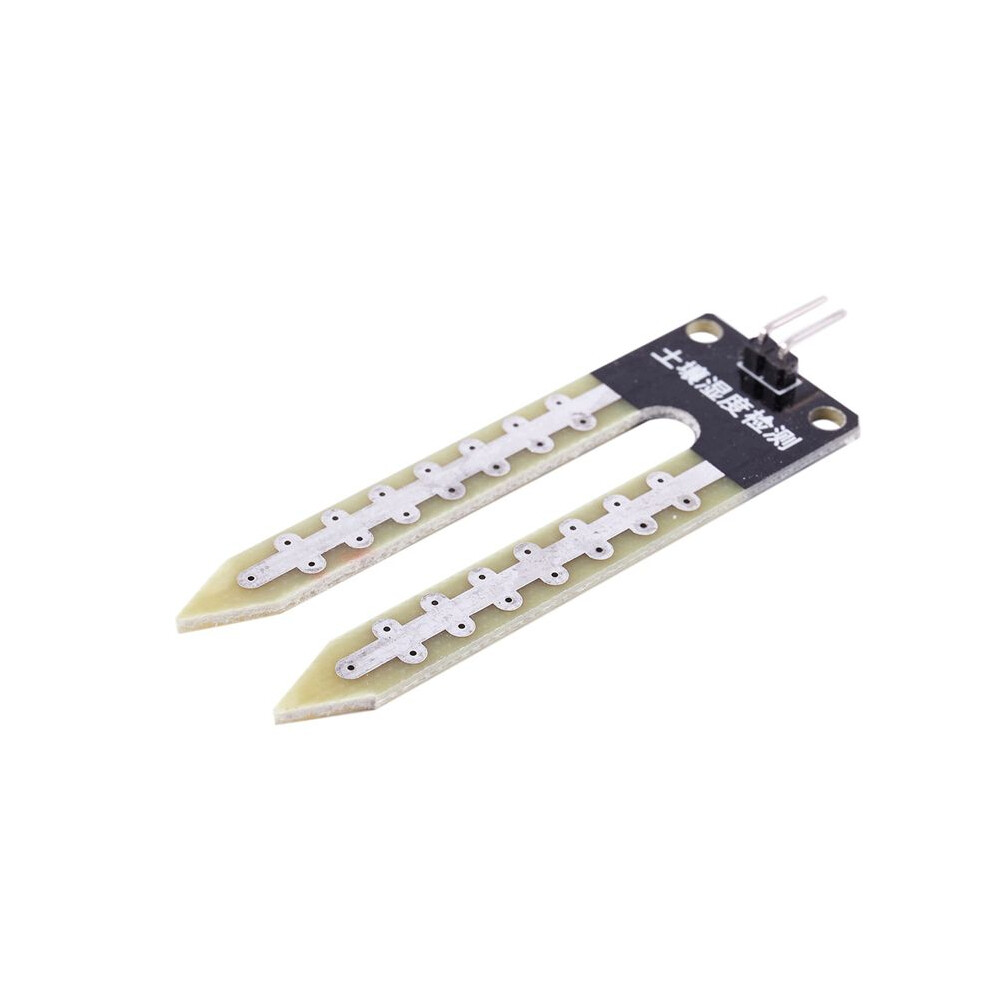

Soil Probe Dimension: Approx. 6cm x 3cm
Cable Length: Approx.21cm
Interface Description(4-wire):
VCC: 3.3V-5V
GND: GND
DO: digital output interface(0 and 1)
AO: analog output interface
Instructions for Use:
Soil moisture module is most sensitive to the ambient humidity is generally used to detect the moisture content of the soil
Module to reach the threshold value is set in the soil moisture, DO port output high, when the the soil humidity exceeds a set threshold value, the module D0 output low
The digital output D0 can be connected directly with the microcontroller to detect high and low by the microcontroller to detect soil moisture
The digital outputs DO shop relay module can directly drive the buzzer module, which can form a soil moisture alarm equipment
Analog output AO and AD module connected through the AD converter, you can get more precise values of soil moisture

Package Content: 5 x Soil Hygrometer Detection Module
Note: with cable Random color, don't accept the specified color.
