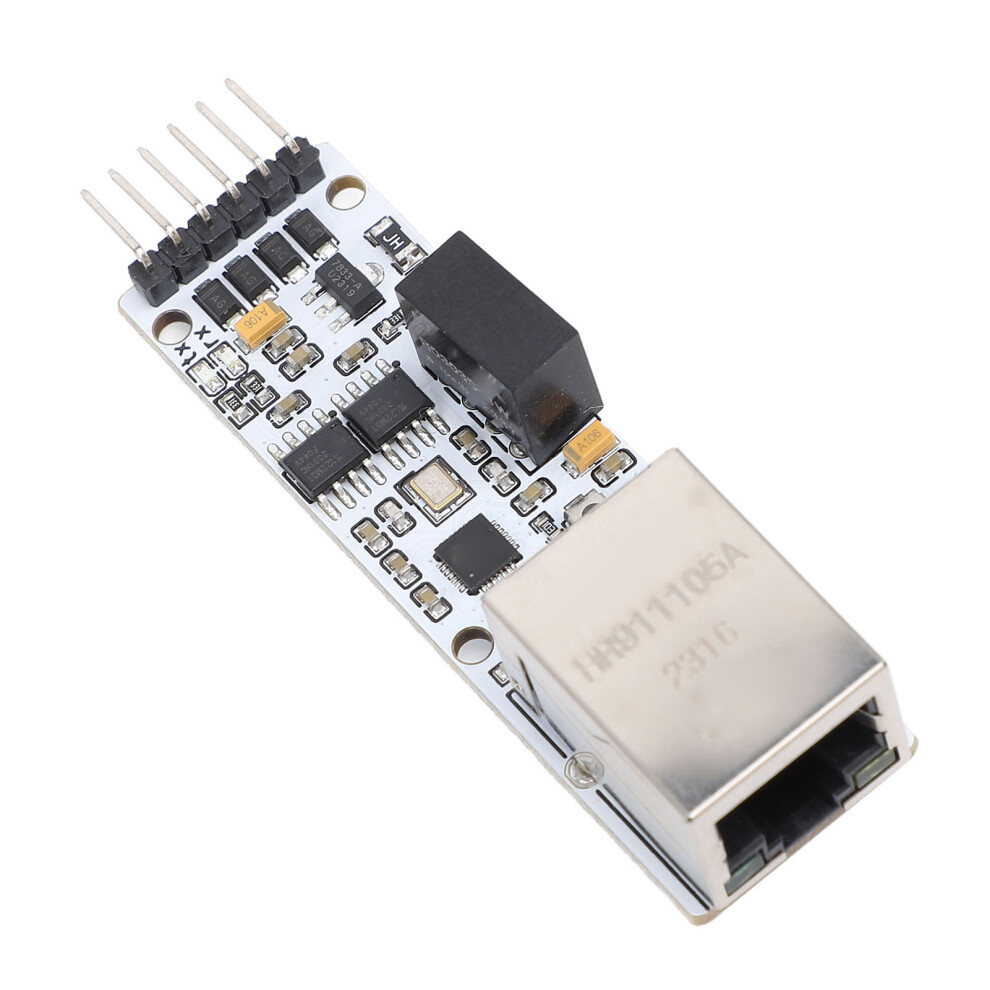

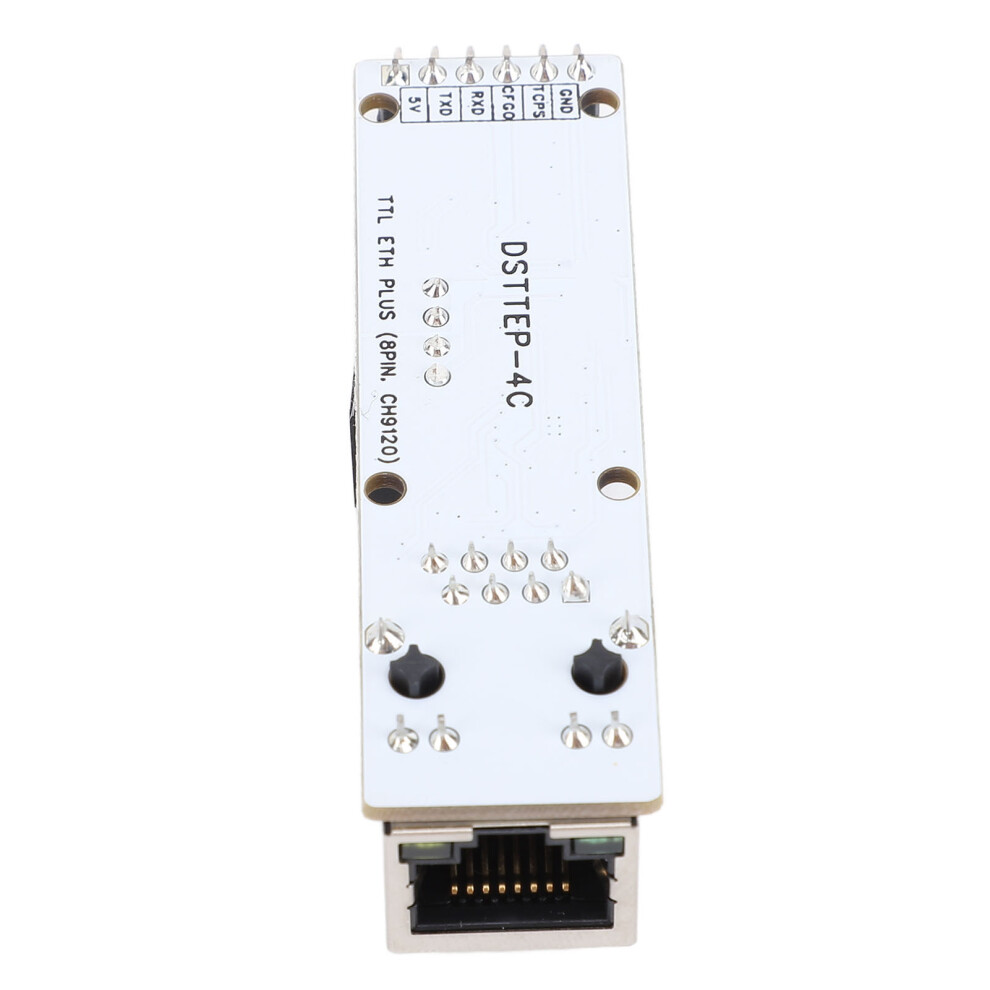

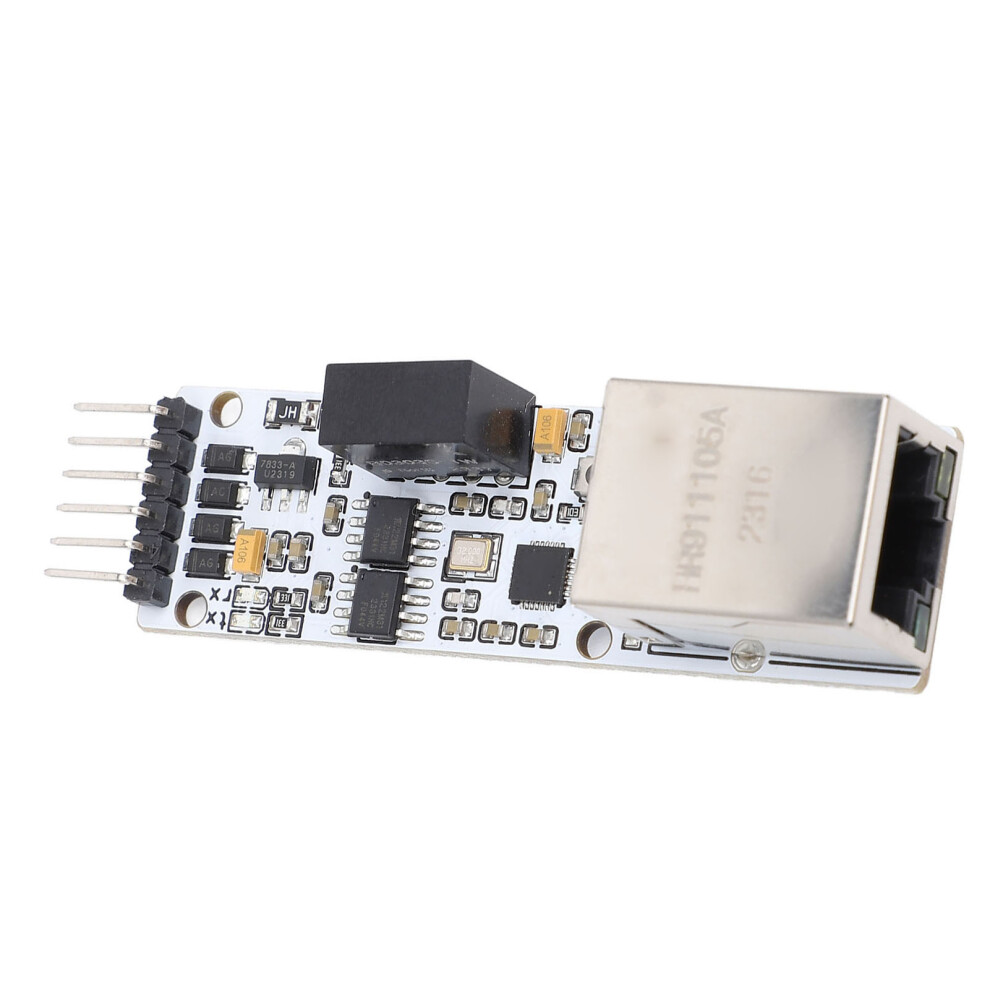

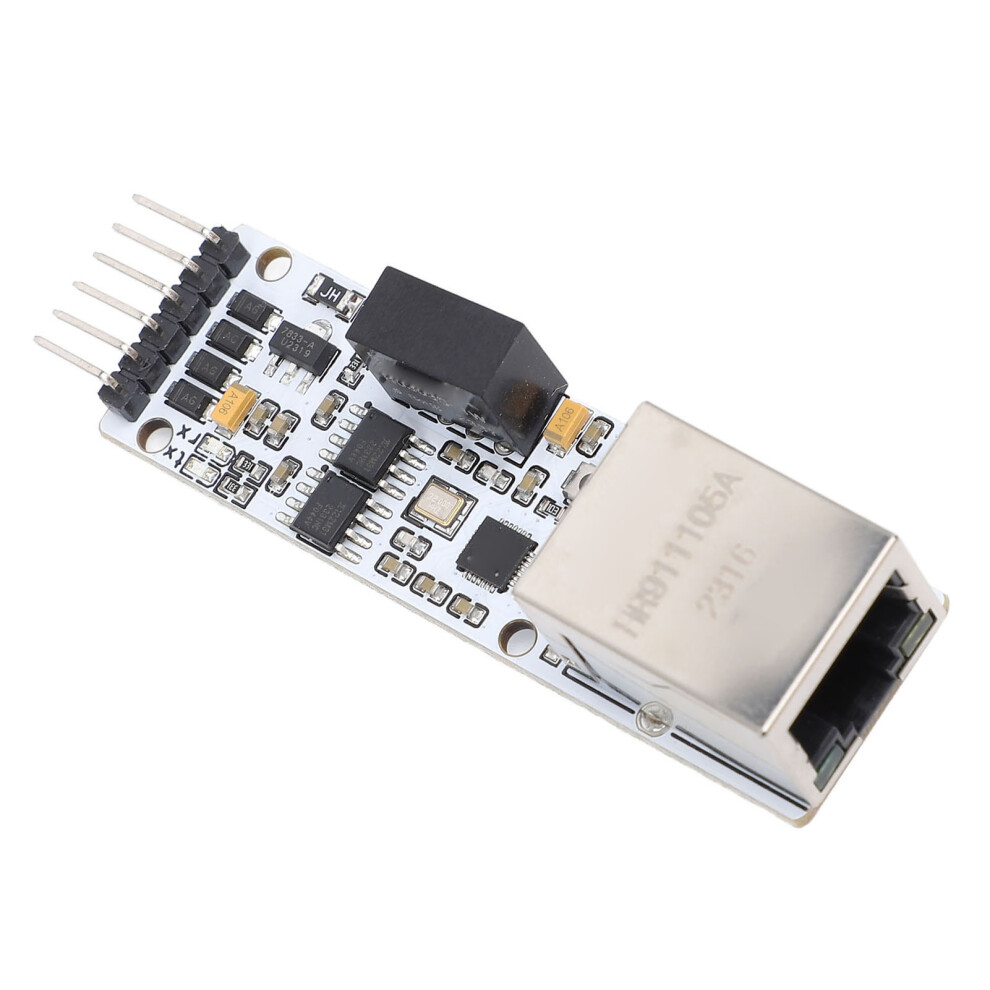

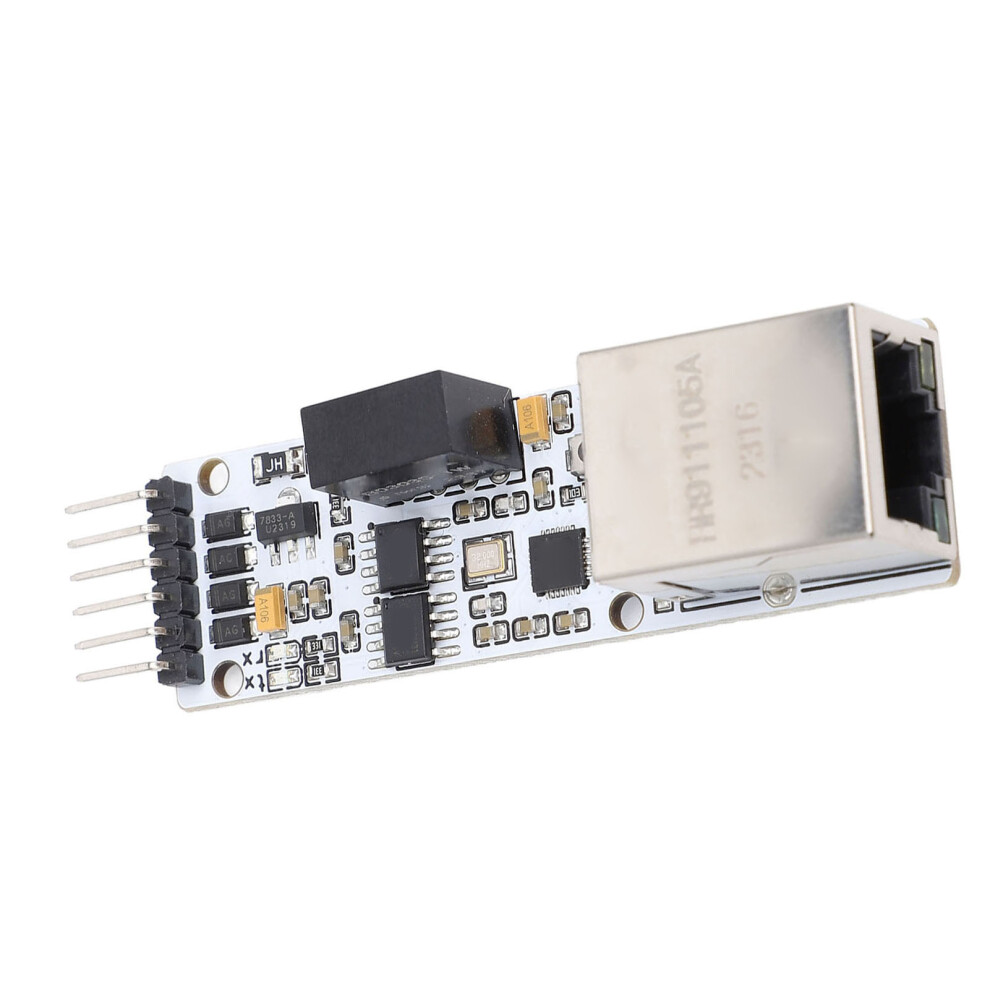

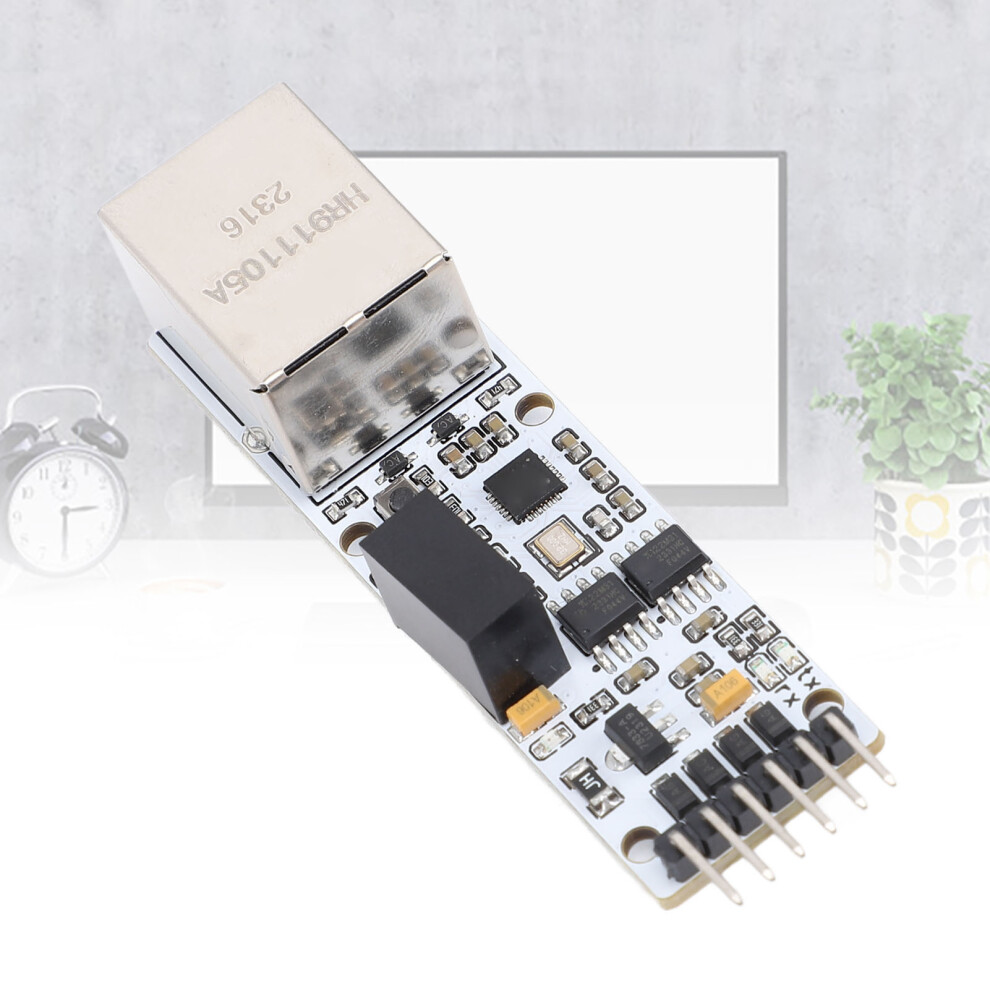

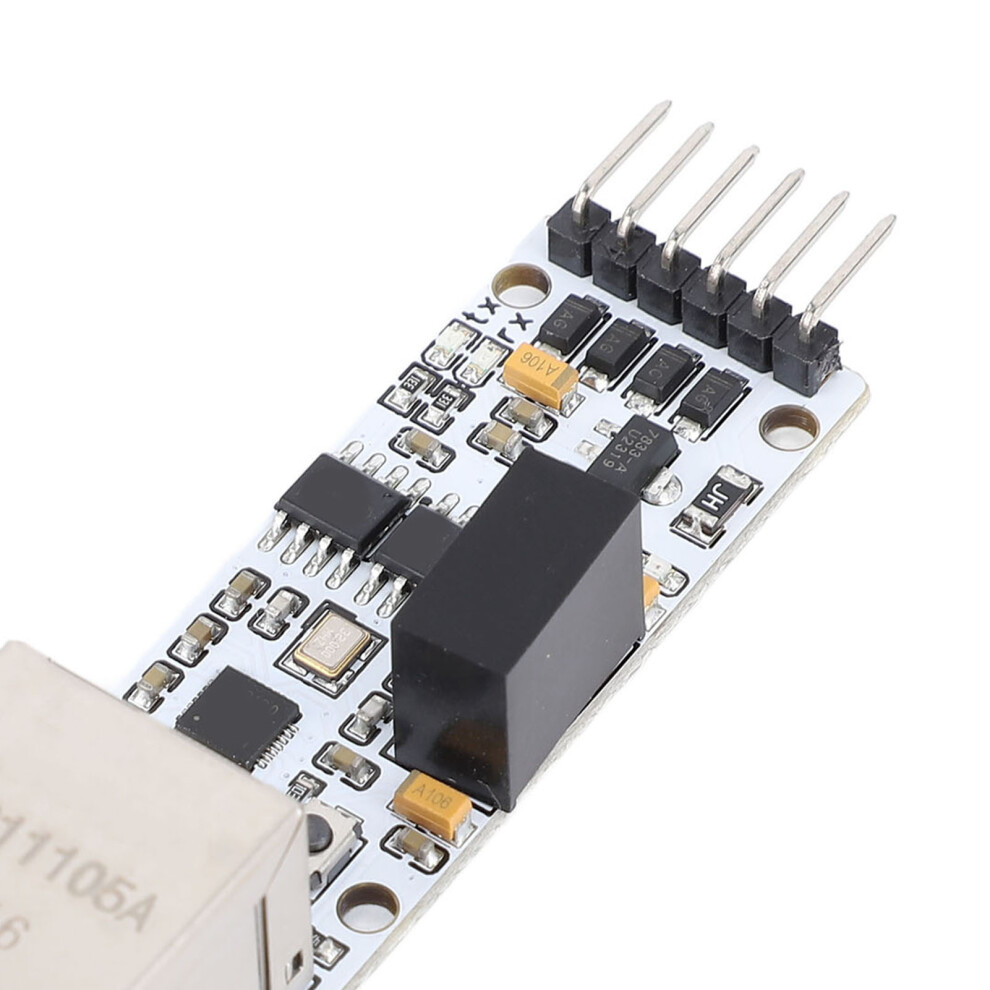

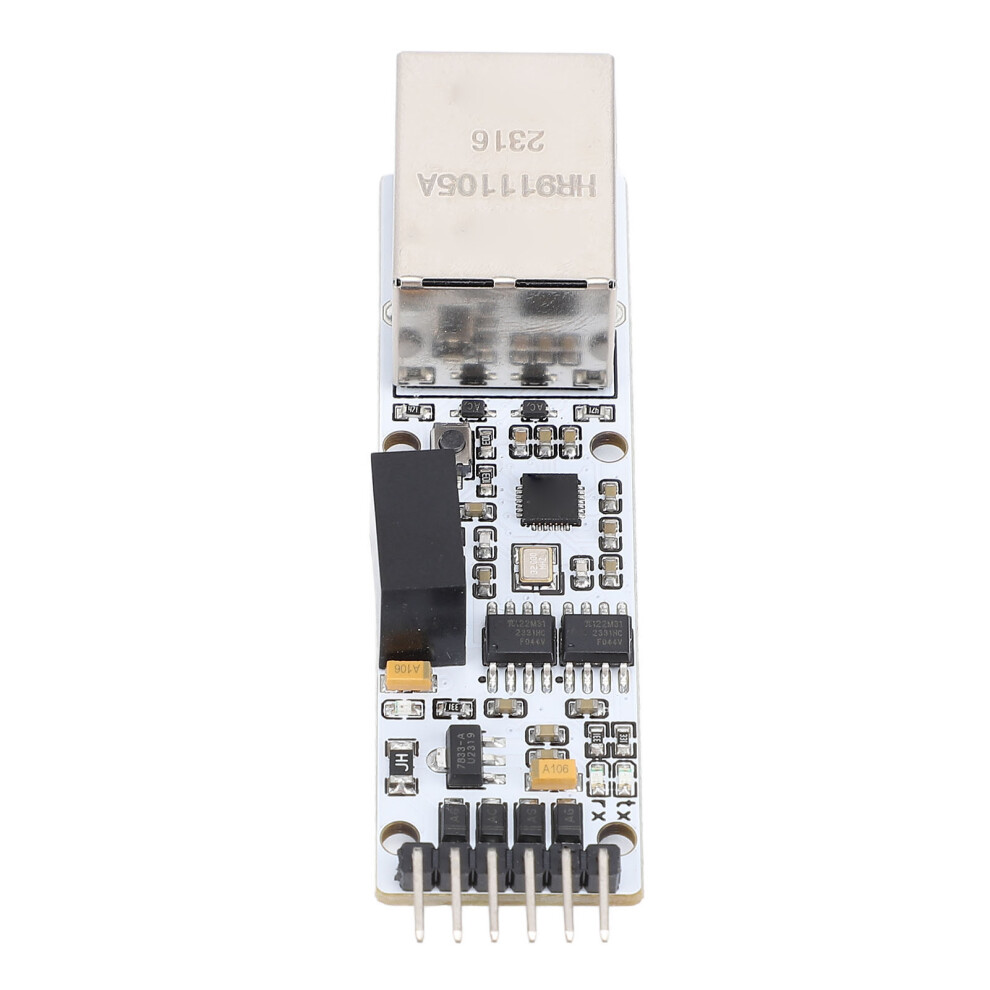

Modulo di rete seriale a Ethernet 4-Mode TTL RJ45

Riepilogo

• MODEL AND STRUCTURE: Serial to Ethernet network module adopts the original chip for CH9120, and has the Ethernet media transport layer and physical layer (PHY). The operating mode, port, IP and other network parameters of the chip are set through the host software and serial port commands

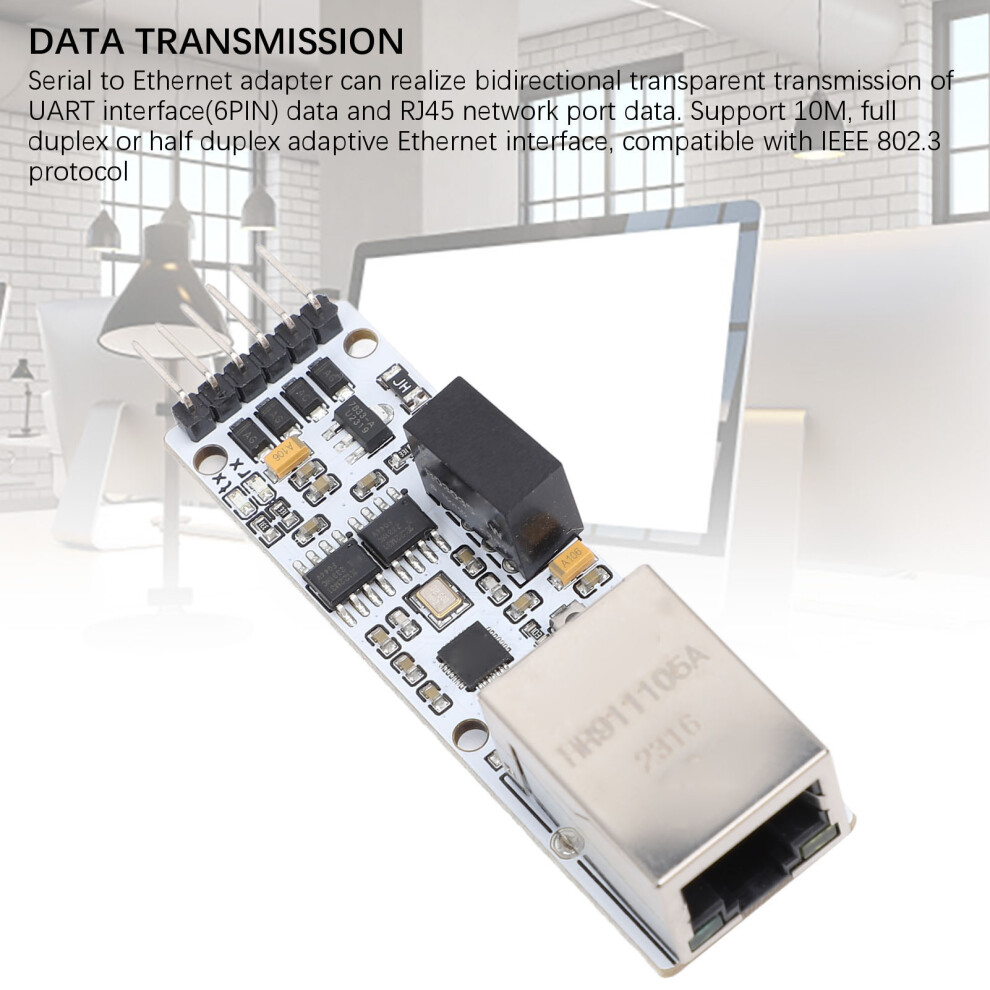

• DATA TRANSMISSION: Serial to Ethernet adapter can realize bidirectional transparent transmission of UART interface(6PIN) data and RJ45 network port data. Support 10M, full duplex or half duplex adaptive Ethernet interface, compatible with IEEE 802.3 protocol

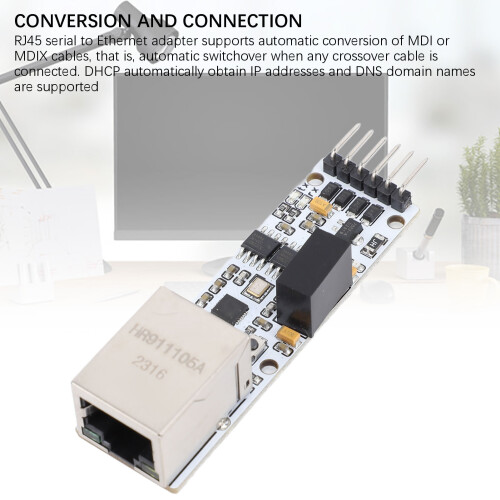

• CONVERSION AND CONNECTION: RJ45 serial to Ethernet adapter supports automatic conversion of MDI or MDIX cables, that is, automatic switchover when any crossover cable is connected. DHCP automatically obtain IP addresses and DNS domain names are supported
• FOUR MODES: The serial adapter supports TCP CLIENT, TCP SERVER, and UDP CLIENT and UDP SERVER 4 modes. The KEEPALIVE mechanism is supported
• SUPPRESSION VOLTAGE: RJ45 serial to Ethernet adapter on board TVS(transient voltage suppression tube), can effectively suppress the surge voltage and transient peak voltage in the circuit, protect the rear circuit and equipment
