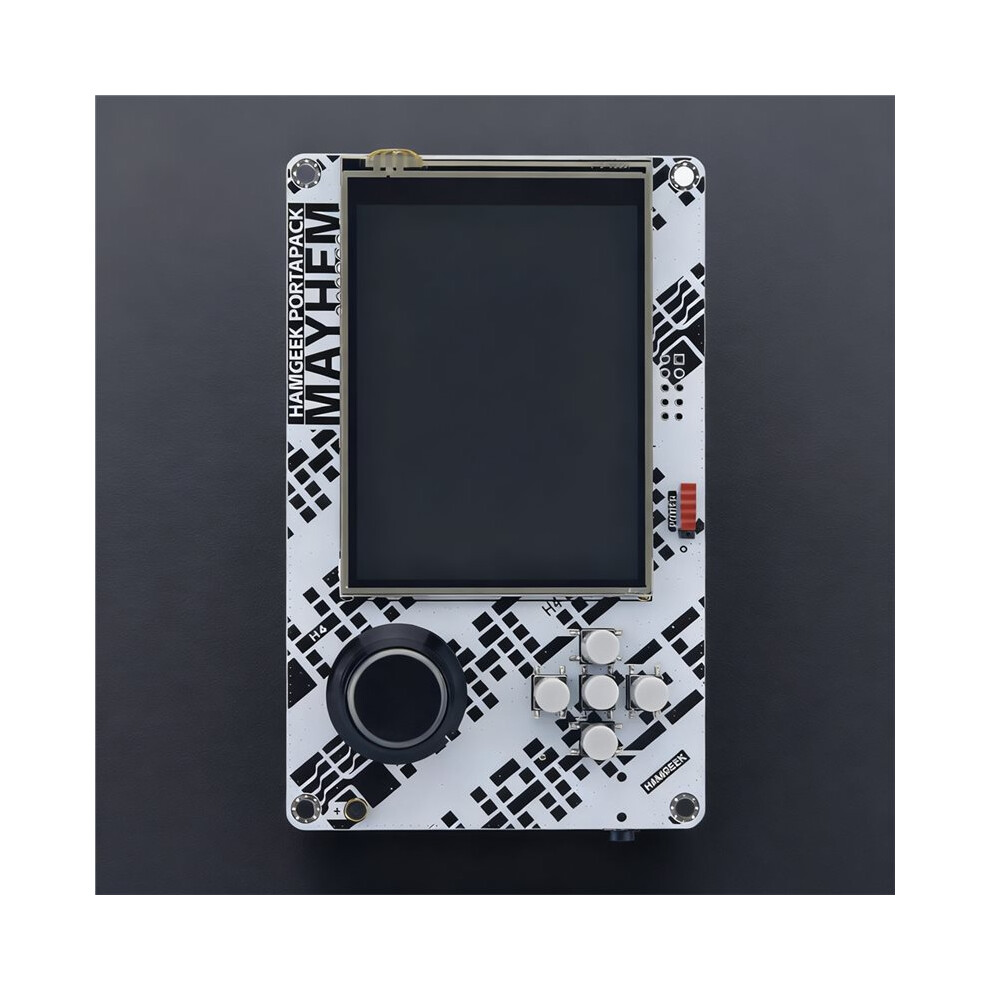

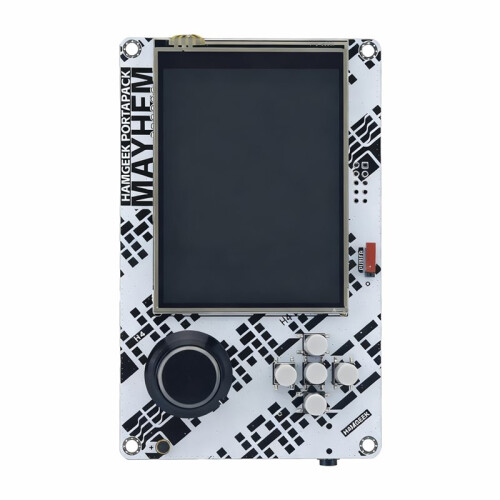

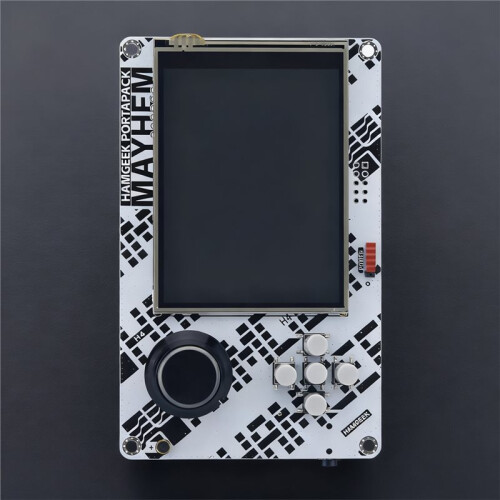

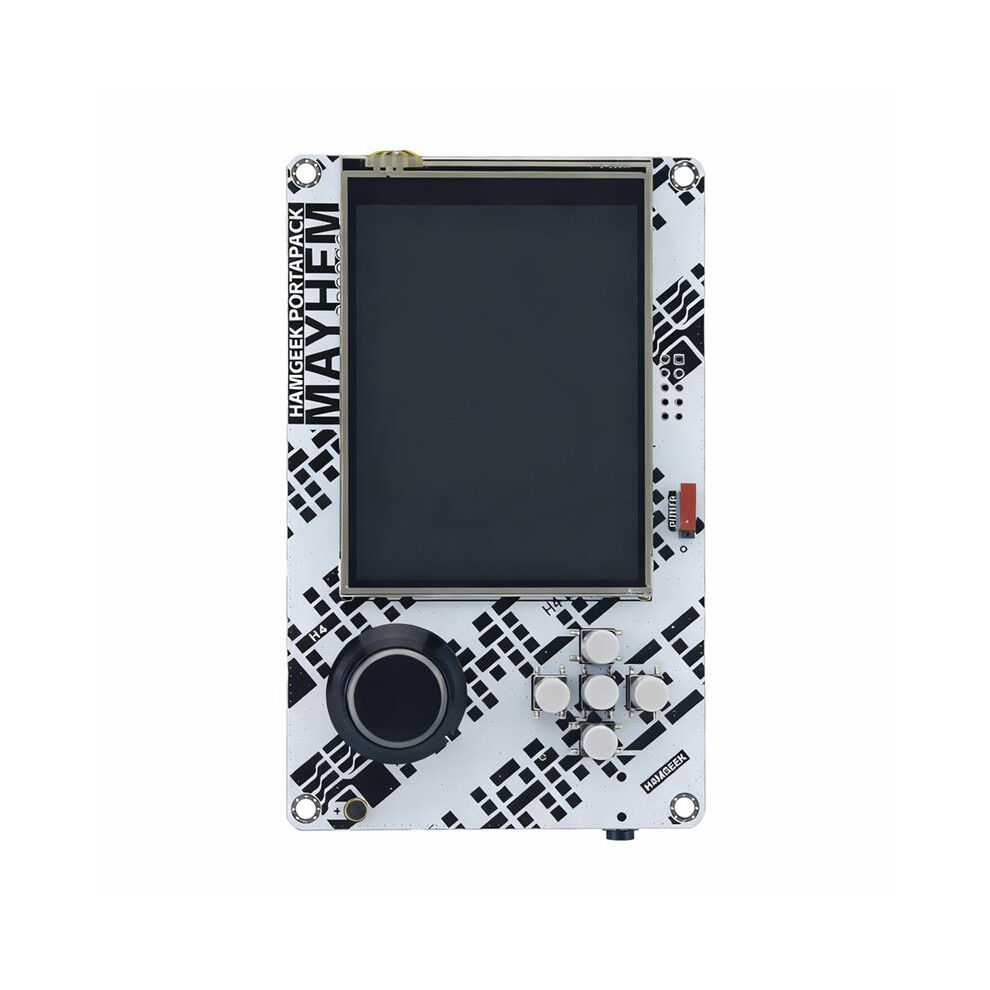

PortaPack H4A Expansion Board with Speaker MAX2839 Chip for Hackrf One R10C R9

Descrizione di PortaPack H4A Expansion Board with Speaker MAX2839 Chip for Hackrf One R10C R9

Employs MAX2839 chip.
Features Type-C interface and battery level display.
Retains the encoder function of the H2
Description: For HackRF One is a software-defined radio peripheral capable of transmitting or receiving radio signals from 1 MHz to 6 GHz. It is designed for the testing and development of modern and next-generation radio technologies. for HackRF One is an open-source hardware platform that can be used as a USB peripheral or programmed to operate independently. It features a Type-C interface.

Note:
1. The latest firmware version is supported; the default current firmware is Mayhem firmware V2.2.0.
2. For some functions, such as world map and GPS simulator, you will need a PortaPack H4 and a micro- card formatted with FAT32 and larger than 1GB.
Specifications:
Operating Frequency: 1 MHz to 6 GHz
Half-duplex transceiver
to 20 million samples per second
8-bit quadrature sampling (8-bit I and 8-bit Q)
Compatible with GNU Radio, SDR#, etc.
Software-configurable receive and transmit gain and baseband filter
Software-controlled antenna port power (50 mA at 3.3 V)
SMA female antenna connector
SMA female clock input and output for synchronization
Convenient programming button
Internal expansion headers
High-speed USB 2.0
USB powered
Open source hardware
For HackRF One 1 MHz to 6 GHz SDR Platform Software-Defined Radio Development Board.
Color:As Shown
Material:Plastic+Metal

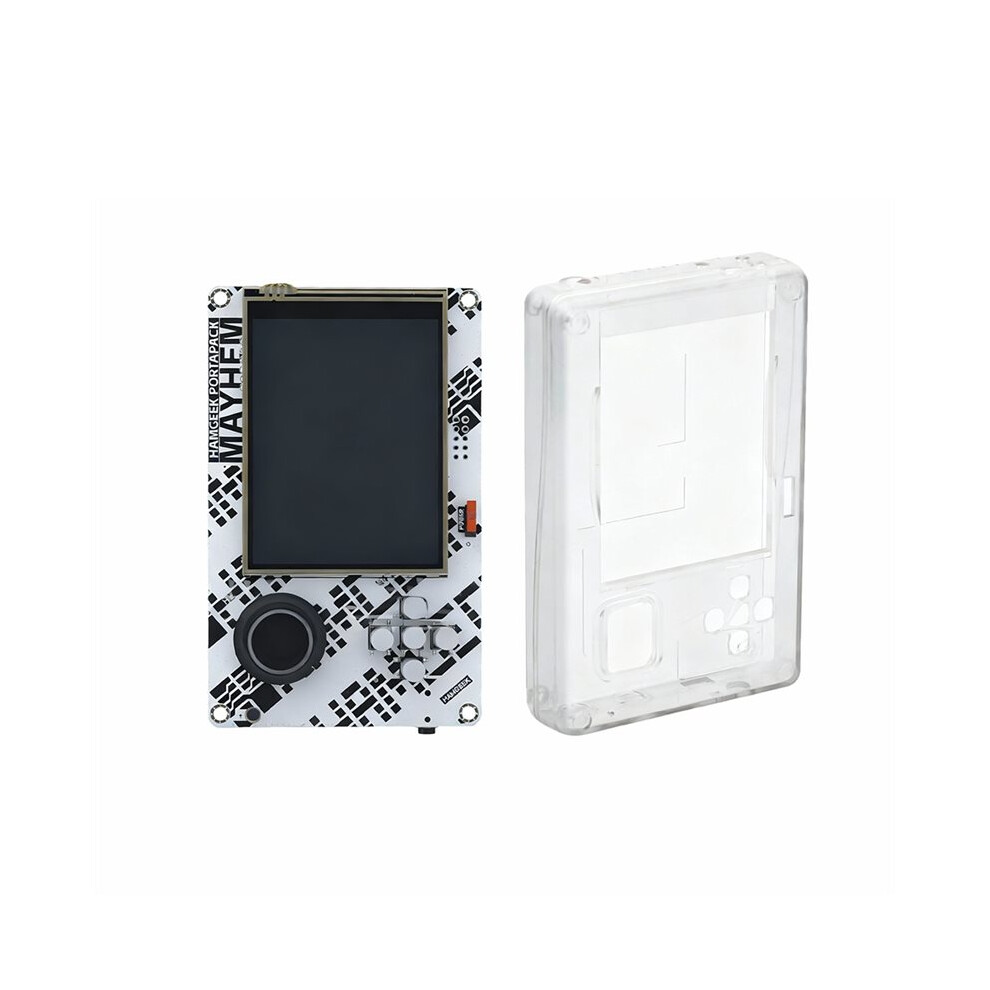

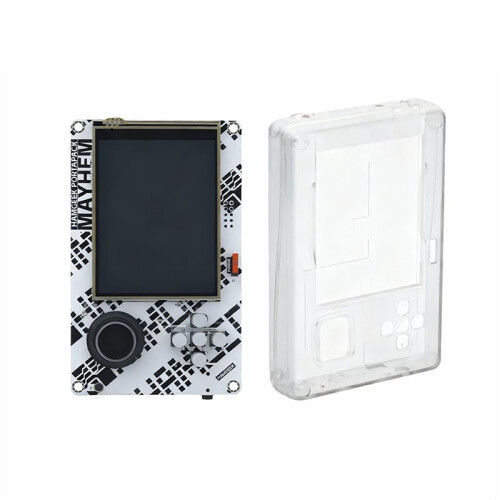

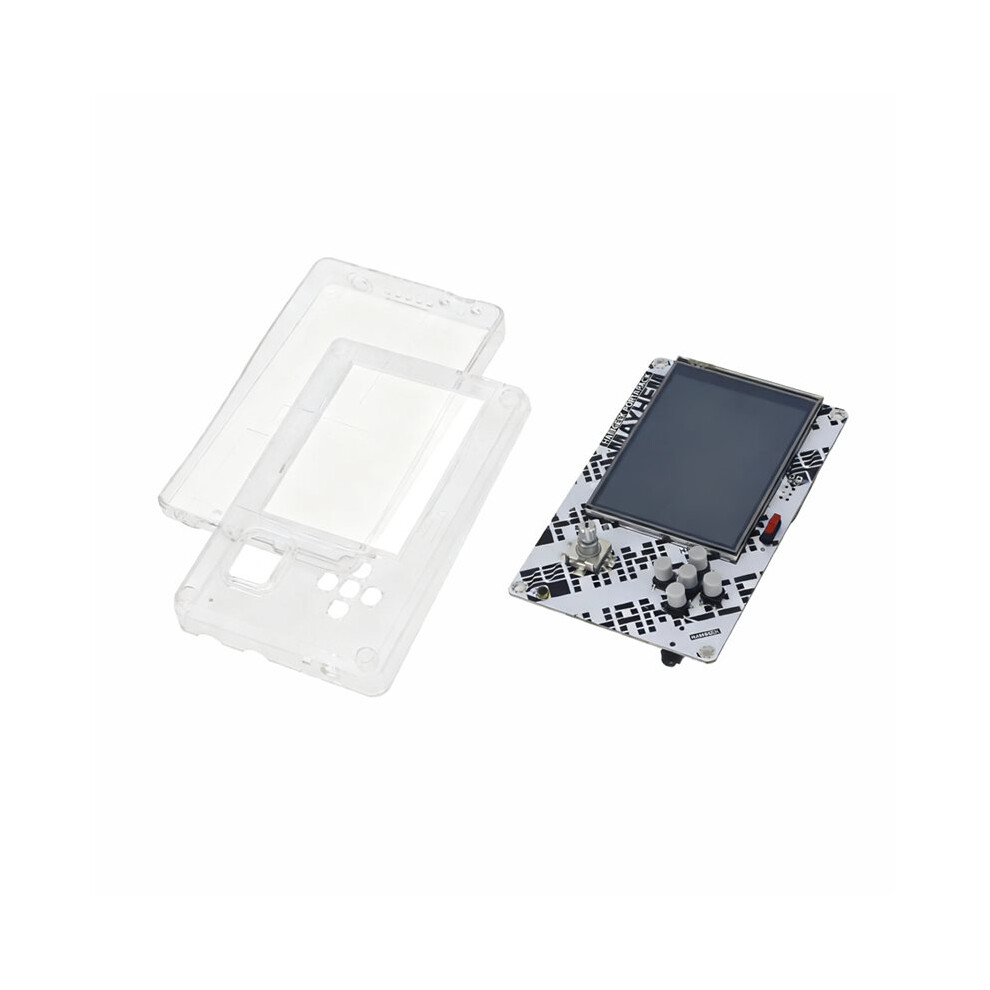

Package Contents:
1 * Board

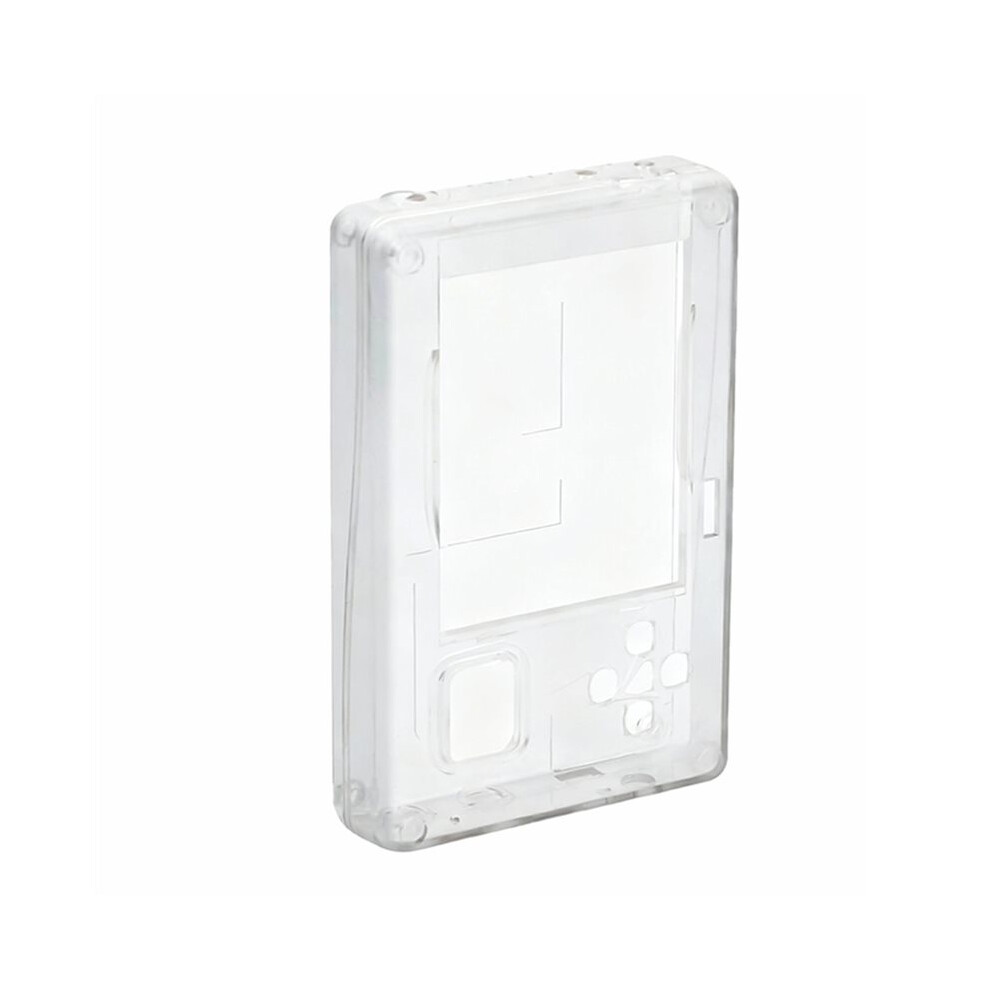

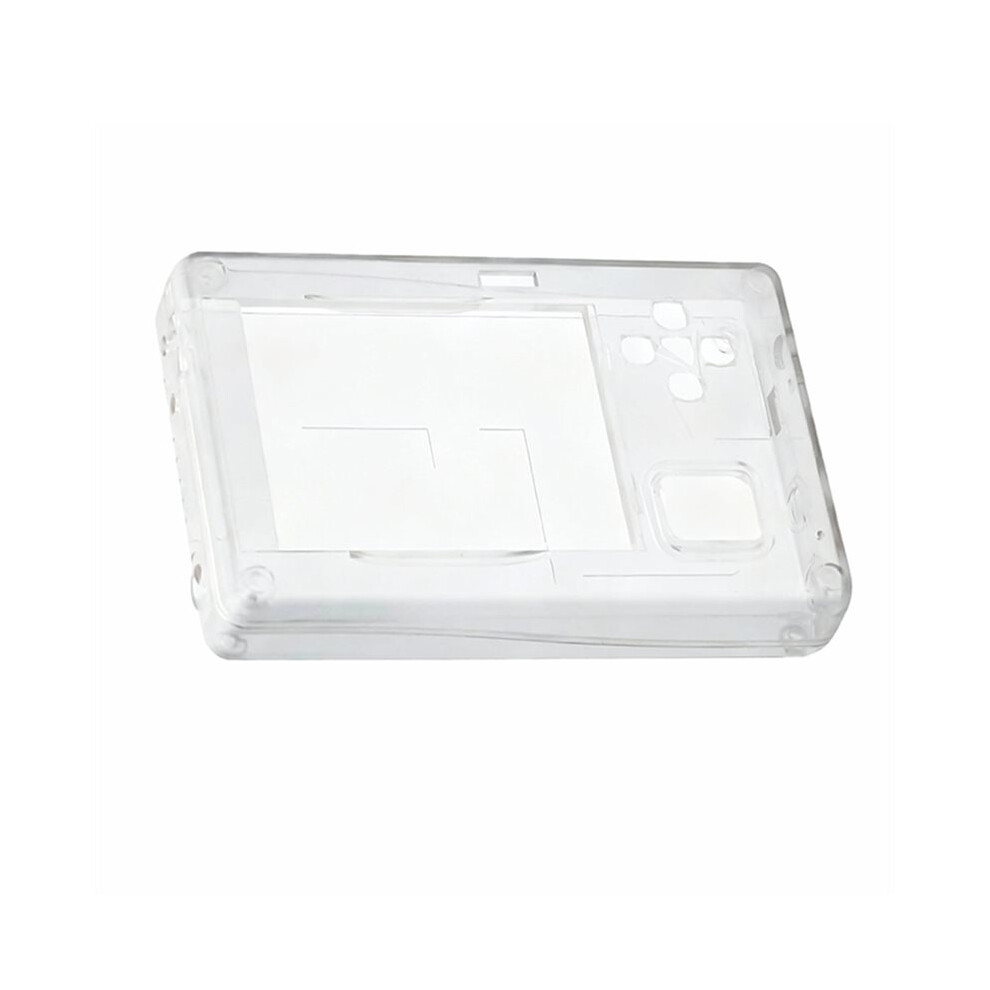

1 * case
