SZ01 6000 Counts DMM 125.4x66.9x26.6mm Red/Yellow

Descrizione di SZ01 6000 Counts DMM 125.4x66.9x26.6mm Red/Yellow

ANENG SZ01 Smart Digital Multimeter 6000 Counts Auto Range True RMS NCV Universal Meter Handheld Multifunctional Tester Voltmeter Ammeter with Backlight Flashlight AC/DC Voltage & Current Resistance Frequency Measurement

Features:
Intelligent Multimeter with Multiple Functions: It can measure AC/DC current, AC/DC voltage, resistance, frequency, continuity, fire wire detection, etc.

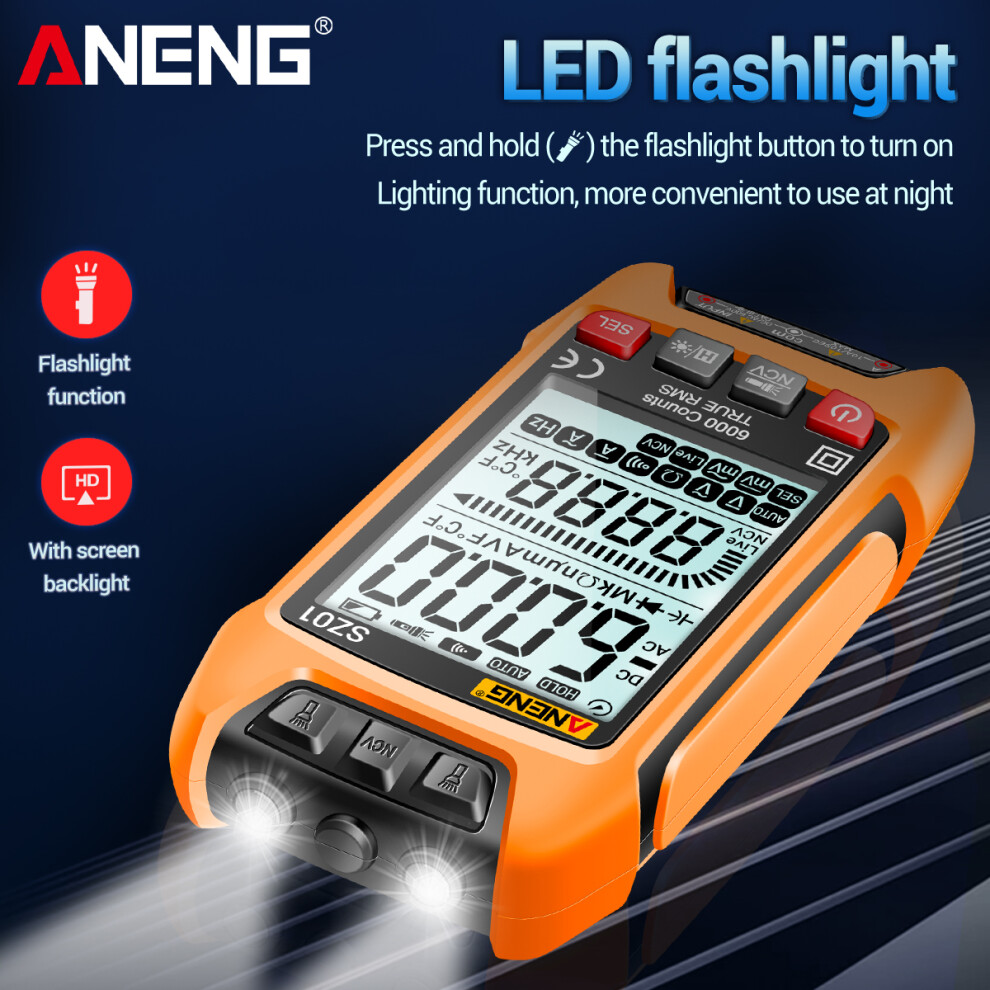

Dual Flashlights Design: two torch at the top for auxiliary lighting up the working area in the low lit or dark environment, not afraid of dark when working, and it will automatically turned off after about 5 minutes.

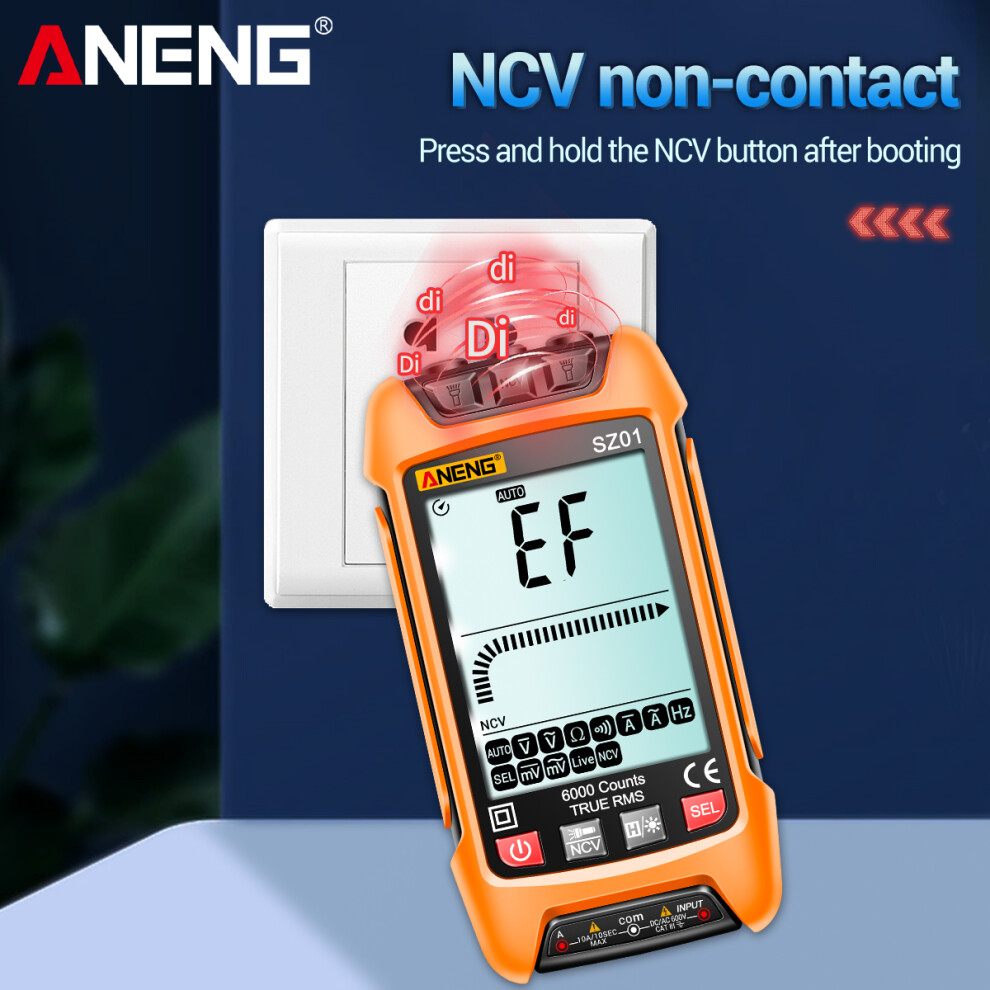

NCV Non-contact Voltage Detection: Place the NCV sensor closer to the measured cable, and the multimeter can detect whether the voltage is greater than 90V AC voltage. When the AC voltage being detected, the meter buzzer alarms and the LCD analog bar displays the induction intensity.
Safety Operation: Built-in overload conservation fuse, smart anti-burn. Meet the DC/AC 600V CAT III overvoltage standard, and double insulation conservation(class II).

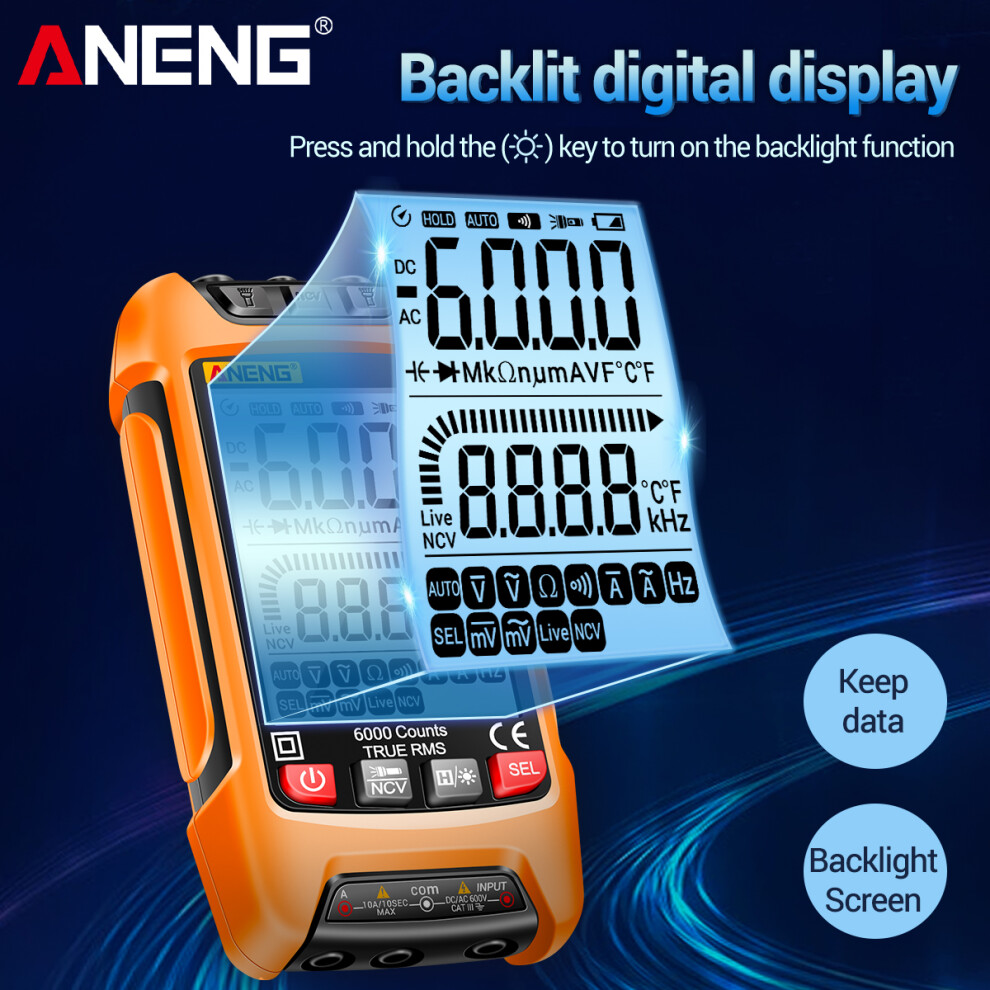

Large LCD Screen & Easy to Control: Soft push buttons is easy to operate, the instrument is used for 6000 counts display, LCD display, backlight display, and clear reading.
Automatic shutdown: The multimeter will automatically shut down after 15 minutes. Current sensing alarm function, live wire measurement alarm.
Compact & Accurate: As small as a mobile phone, convenient e and carry around. Built-in with high performance chip to ensure its accuracy.
Silicone Protective Case: Protected with a soft silicone cover, you can use the meter at various condition without worrying it from falling down or scratch by hardware.
Specification:
Color: Red / Yellow
(Optional)
Model: SZ01
Auto Range: Yes
Overload conservation: Yes
Maximum Voltage Between Measuring End And Ground: 600V DC or 600V AC
Working Height: maximum 2000m
Display: LCD
Display Type: Digital display
Maximum Display Value: 6000 counts
Polarity Indication: automatic indication, '-' indicates negative polarity.
Superview Display: 'OL' or '-OL'.
Automatic Shutdown Time: 15 minutes
Sampling Time: about 3 times/second
AC Current: 20mA/10A
DC Current: 20mA/10A
DC Voltage: 600.0mV/6.000V/60.00V/600.0V
AC Voltage: 600.0mV/6.000V/60.00V/600.0V
Line Continuity Test: 50Ω
Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
Frequency: 100Hz/1000Hz
Buzzer: Yes
NCV Induction: Yes
Data Hold: Yes

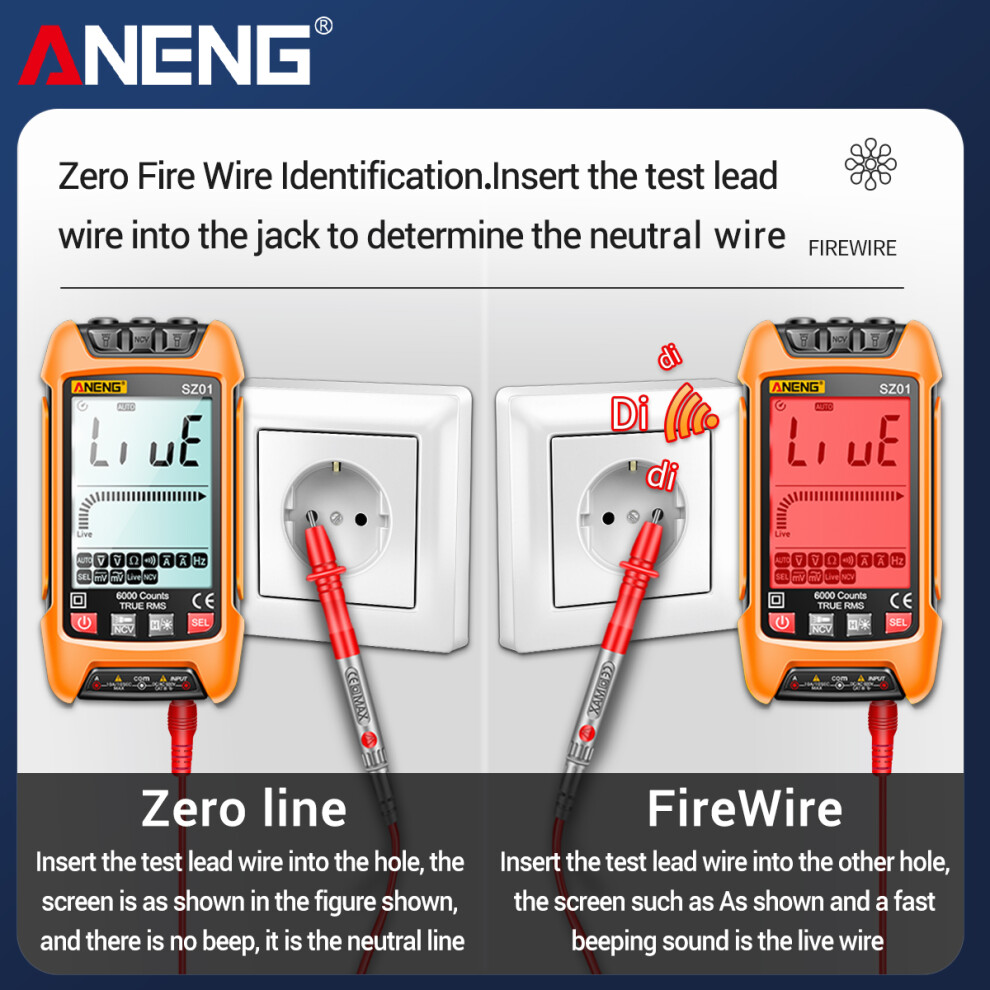

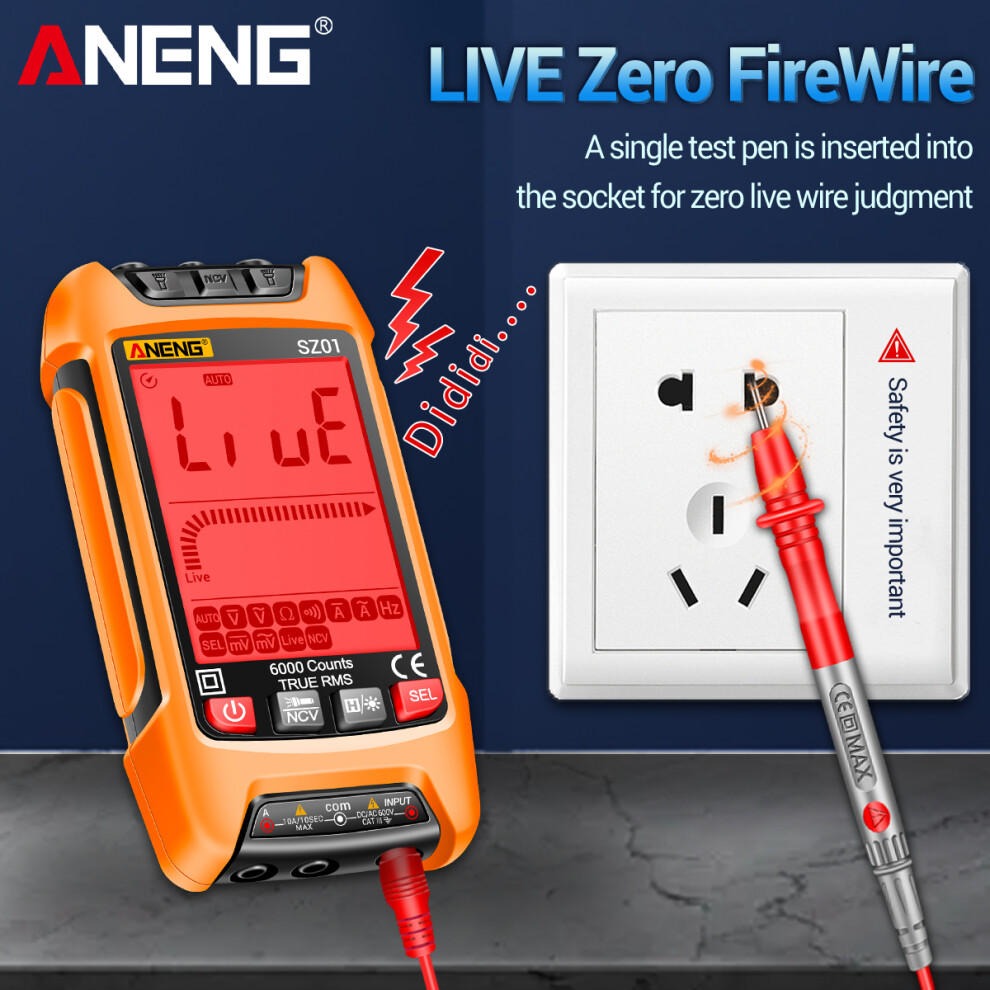

Zero/Fire Wire: Yes
Low Battery Indicator: Yes
Power Supply: 2 X AAA batteries (not included)
Temperature Coefficient: less than 0.1X accuracy /C
Operating Temperature: 0C-40C
Storage Temperature: -10C- 50C
Item Size: 125.4 * 66.9 * 26.6 mm / 4.94 * 2.63 * 1.05 inch
Package Size: 135 * 75 * 66 mm / 5.31 * 2.95 * 2.6 inch
Package Weight: 225g / 7.94oz
Package List:
1 * Digital Multimeter
1 Pair * Test Leads
1 * User Manual (English)
