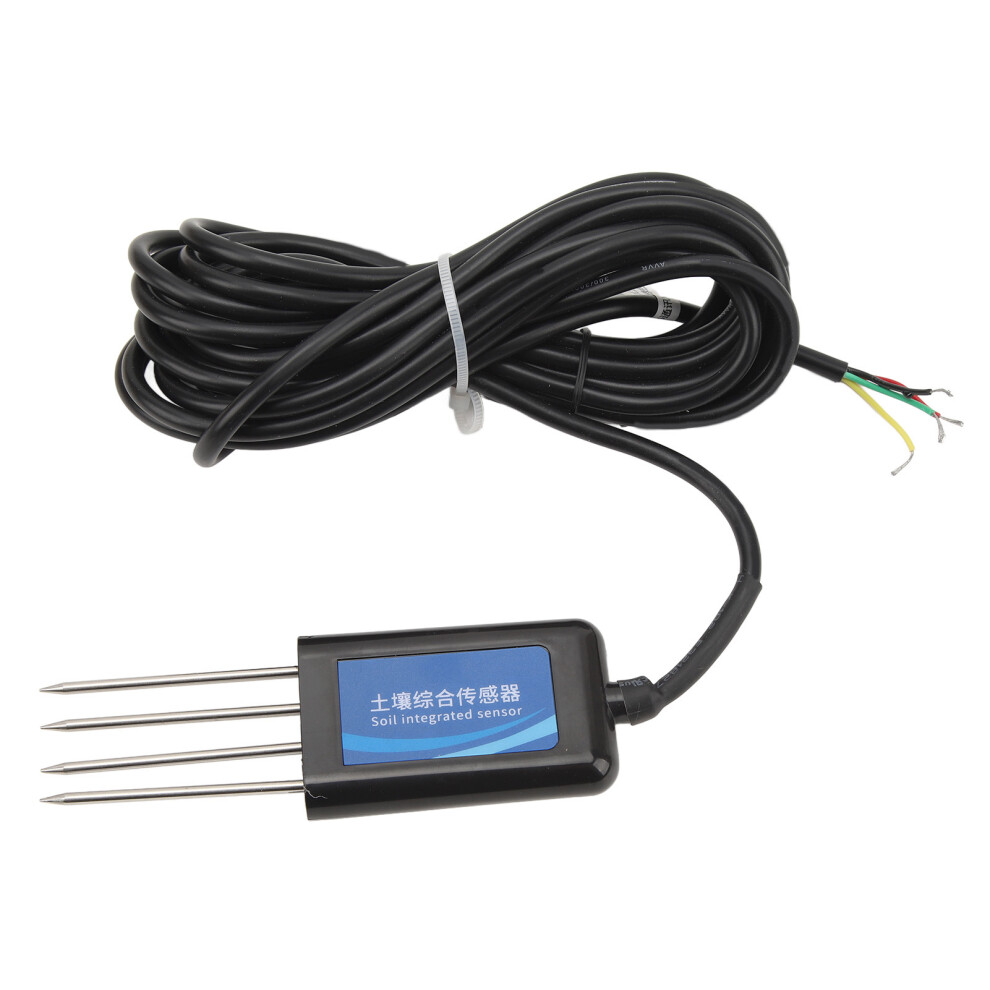

YGC-SM Soil Sensor 0-2000 mg/kg 133x60x45mm Silver

Descrizione di YGC-SM Soil Sensor 0-2000 mg/kg 133x60x45mm Silver

Soil NPK PH Sensor Probe IP68 Waterproof Nitrogen Detector Temperature Moisture Conductivity Monitor Meter DC 9‑30V
Item Type: Soil NPK PH Sensor ProbeMaterial: 304 stainless steel, plasticWeight: Approx. 348g/0.77lbWaterproof Grade: IP68
Size: Approx. 133x60x45mm/5.24x2.36x1.77in
Cable: Approx. 5m/16.40ft
Built in Sensors: Soil temperature, soil humidity, NPK, conductivity
Type: RS485 (For Modbus)
Power Supply Voltage: DC 9-30V
Load Capacity: Current output impedance 250Ω
Voltage Output Impedance 1KΩ
Measuring Range:
Soil Moisture: 0-60% (volume moisture content)
Soil Temperature: -40-80
Conductivity: 0-20000us/cm
NPK: 0-2000 mg/kg
Accuracy:
Soil Moisture: 3% (0-35% measurement range)
5% (35%-60% measurement range)
Soil Temperature: 0.5
Conductivity: 5%
NPK: 2%FS
Resolution:
Soil Moisture: 0.1%
Soil Temperature: 0.1
Conductivity: 1us/cm
NPK: 1mg/kg
Working Environment: Soil temperature -40 ~ 80 ; soil humidity 60%
Protection Class: IP68
Probe Material: 304 stainless steel, plastic, anti corrosion aluminum zinc alloy electrode
Scope of Application:Scientific experiments, water saving irrigation, greenhouses, flowers and vegetables, grass pastures, soil quick measurement, plant cultivation, sewage treatment, grain storage and measurement of moisture content and temperature of various particles.
Wiring Method:
Default Line Sequence:
Line Color and Output Signal
Red: Voltage and Current: Power positive, RS485: Power positive
Black: A+
Yellow: B-
Green: Voltage and Current: Power negative, RS485: Power negative
Description of Sensor Communication Protocol:
If you are connecting multiple sensors to PLC, configuring or connecting to a programmable data collector, it is recommended e the standard for ModBus-RTU protocol (hex sending and receiving).
Standard for ModBus-RTU communication protocol
1. Serial Port Format
8 data bits, 1 stop bit, no parity bit, baud rate 9600bps, the serial port debugging software is set to hex sending and receiving, the interval between two communications is at least 1000ms, the CRC in the manual is the parity bit, 2 words Festival.
2. Register Address
The YGC-SM comprehensive soil sensor can integrate up to 8 soil elements, namely soil temperature, soil moisture, electrical conductivity, and soil nitrogen, phosphorus and potassium content. Each element has its own register address.
The correspondence between register addresses and channels in for MODBUS is as follows:
Register Address and Aisle Data Shows:
0x0000: Channel 1 (TW) Signed number (-40~80), 0x7FFF (invalid/missed)
0x01 0x2C=30.0
0x0001: Channel 2 (soil wet) Signed number (0~60%), 0x7FFF (invalid/missed)
0x01 0x23=29.10x0002: Channel 3 (conductivity) Signed number (0-20000) us/cm, 0x7FFF (invalid/missed)
0x01 0xF4=500us/cm
0x0005: Channel 6 (nitrogen content) Signed number (0-2000) mg/kg, 0x7FFF (invalid/missed) 0x00 0xE1=225 mg/kg
0x0006: Channel 7 (phosphorus content) Signed number (0-2000) mg/kg, 0x7FFF (invalid/missed) 0x00 0x64=100 mg/kg
0x0007: Channel 8 (potassium content) Signed number (0-2000) mg/kg, 0x7FFF (invalid/missed) 0x00 0xA0=160 mg/kg
Troubleshooting :
The display value of the instrument is incorrect when the analog signal or RS485 is output. Correct data may not be acquired due to wiring problems or communication serial port failures. Please check whether the wiring is correct and firm, whether the serial port is occupied, and whether the serial port settings are correct;
